Puck Man vampire clone
From Citylan
| dumper | f205v |
| date | 25/12/2016 |
| emulator | |
| dev |
| name | 1450 |
| description | Puck Man vampire clone |
| year | 1980 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MK3880N IRL Z80CPU | 7c | 8-bit Microprocessor - main | |
| 1x | LM380N | 12a | Audio Amplifier - sound | |
| 1x | oscillator | 18.432 MHz | 9b |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 11x | D2716 | 1-7,9-12 | dumped |
| 1x | TMS2516 | 8 | dumped |
| 1x | 74LS367N | 10g | dumped |
| 3x | 63S141 | 1m,3m,4a | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 6x | 2114 | 4i,4l,4m,4n,4o,4p missing |
| 2x | D2125 | 2a,2b missing |
| 2x | D2125 | 2c,2d |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x trimmer (volume)(11a)
1x 8 DIP switches bank (11d)
Notes
PCB marked: "MADE IN ITALY G" and "PUK"
Files
-

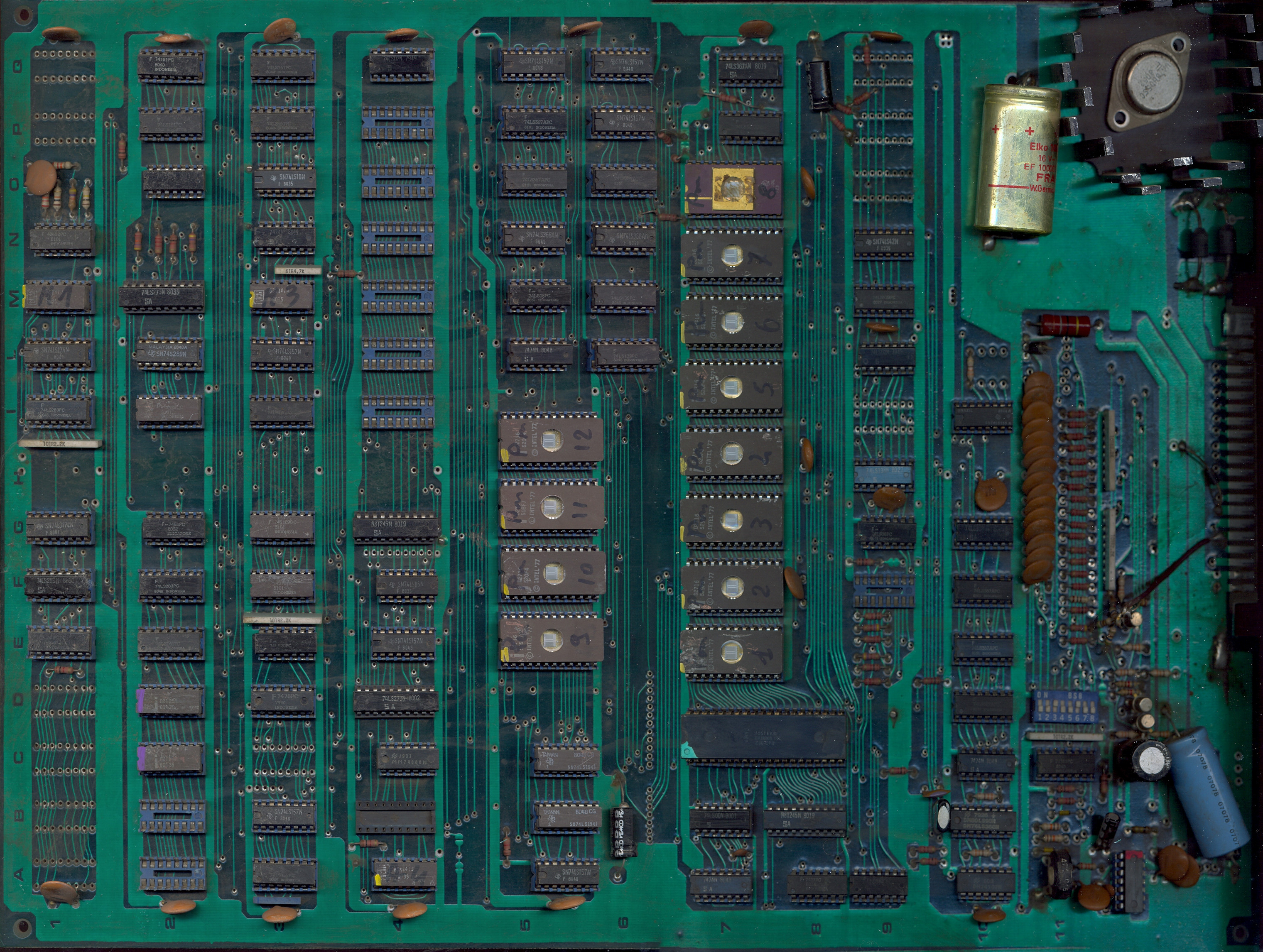

PCB component side
-

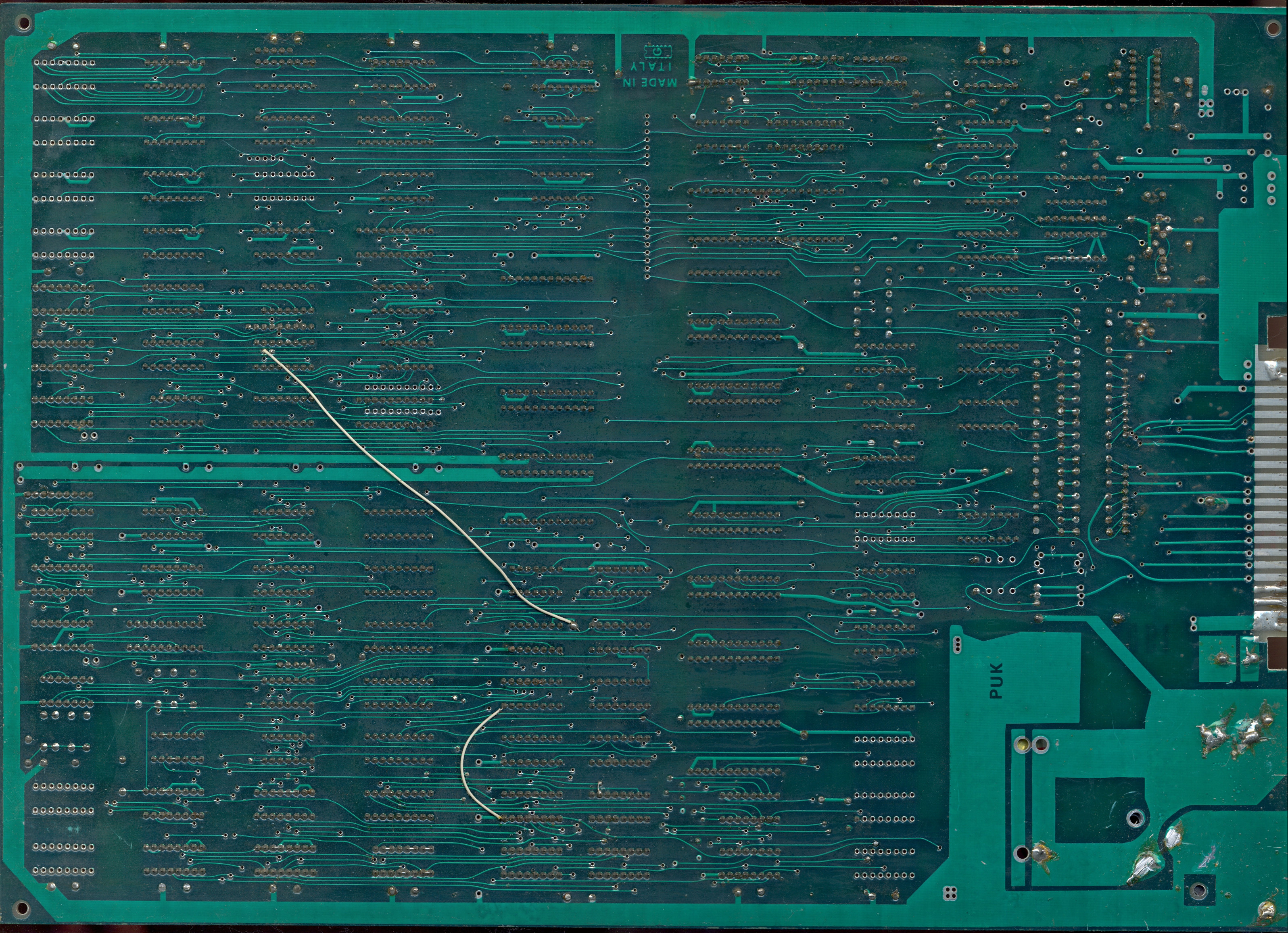

PCB solder side
-
ROMs
1450
