Knock Out!! (bootleg, set 2)
From Citylan
| dumper | Tirino73 |
| date | 18/03/2008 |
| emulator | MAME 0.169 |
| dev | David Haywood |
| name | knockoutb on ProgettoEMMA knockoutb on Arcade Database |
| description | Knock Out!! (bootleg, set 2) |
| year | 1982 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80 | 8-bit Microprocessor - main | ||
| 1x | AY-3-8910 | Programmable Sound Generator - sound | ||
| 1x | 8255 | Programmable Peripheral Interface | ||
| 1x | oscillator | 18.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 2716 | 6-7 main | dumped |
| 5x | 2732 | k1-k5 GFX | dumped |
| 1x | PROM | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
K1-2h to k5-2p main program.The gfx eproms (2716 x2) are the same of existing set. All eproms are 2532
Update 2008-03-21: The game has been redumped.
Files
-

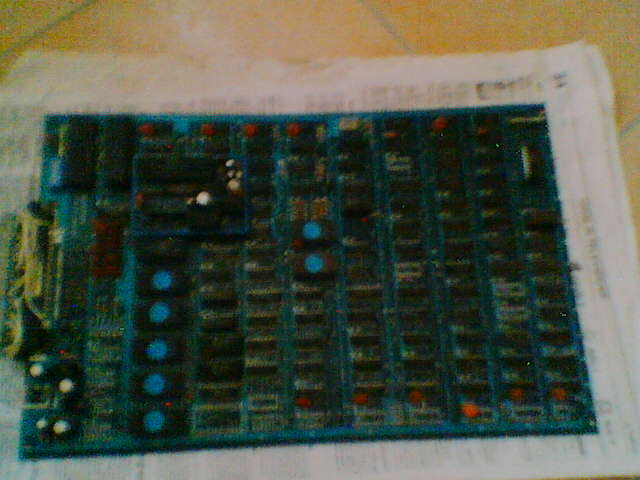

PCB component side
-
Read me
