Final Fight (bootleg)
From Citylan
| dumper | Any |
| date | 20/05/2013 |
| emulator | MAME 0.148u5 |
| dev | David Haywood |
| name | ffightbl on ProgettoEMMA ffightbl on Arcade Database |
| description | Final Fight (bootleg) |
| year | 1990 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68020P10 | 68000 | 16/32-bit Microprocessor - main | |
| 1x | Z0840006PSC | Z80 | 8-bit Microprocessor - sound | |
| 2x | M5205 | 5205 | ADPCM Speech Syntesis IC - sound | |
| 2x | YM2203C | 2203 | FM Operator Type-N (OPM) - sound | |
| 2x | [[YM3014|YM3014B] | 3014 | D/A Converter (DAC) - sound | |
| 2x | LM324N | 324 | Quad Operational Amplifier - sound | |
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 29.700 | ||
| 1x | oscillator | 20.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | AM27C010 | 1 | dumped |
| 6x | 27040 | A-F | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | HM6116LK-70 | 6116 |
| 2x | MCM2018An45 | 2018-35 |
| 4x | MCM2018An45 | 65728 |
| 2x | MCM2018An45 | 2016 |
| 2x | KM62256ALP-10 | 62256 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | GAL20V8A-25LP | PAL1,PAL3,PAL4 | read protected |
| 3x | PALCE16V8H-25PC | PAL2,PAL5,PAL6 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
3x 8x2 switches DIP (SW1,SW2,SW3)
Notes
Files
-

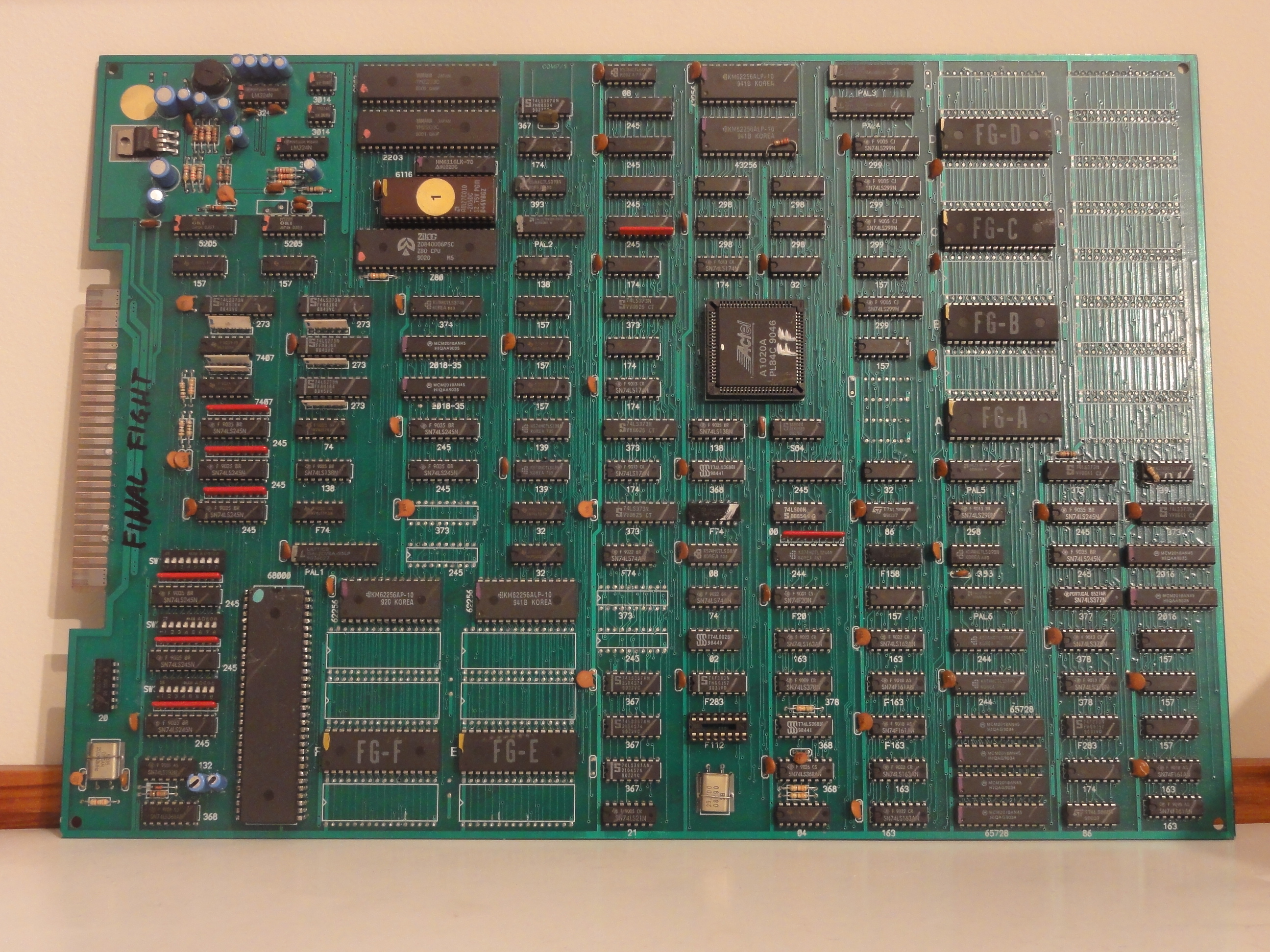

PCB component side
-

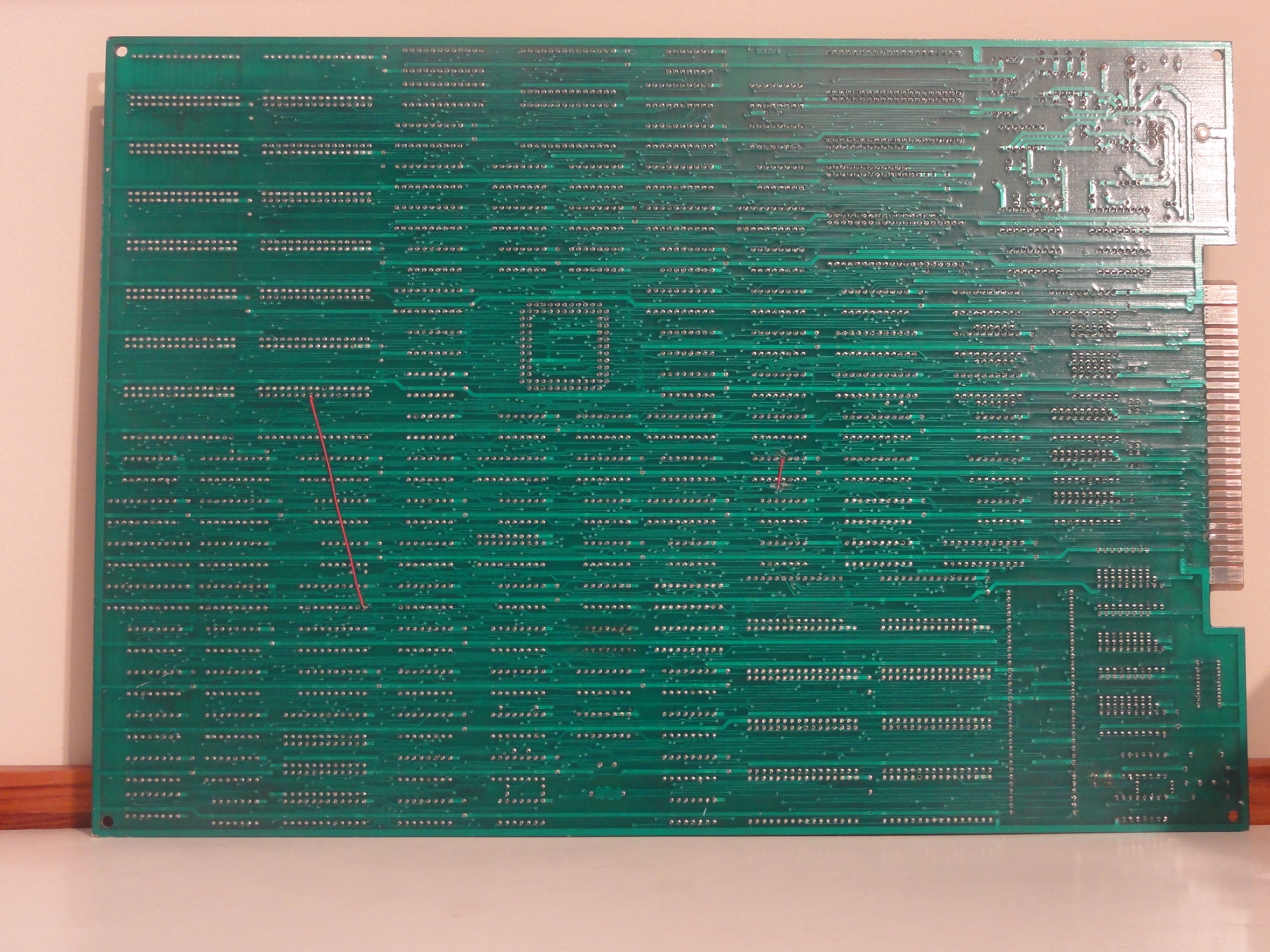

PCB solder side
