The Typing of the Dead
From Citylan
| dumper | Twistedsymphony |
| date | 19/11/2015 |
| emulator | MAME 0.168 |
| dev | MetalliC |
| name | totdo on ProgettoEMMA] totdo on Arcade Database |
| description | The Typing of the Dead |
| year | 2000.01 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | EPR-23021.ic22 | dumped |
| 20x | M27W064 | 23001.ic1 - 23020.ic20s | dumped |
| 1x | X76F100 | ic37 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0026C
Protection IC: not present
Key: no key
Files
-

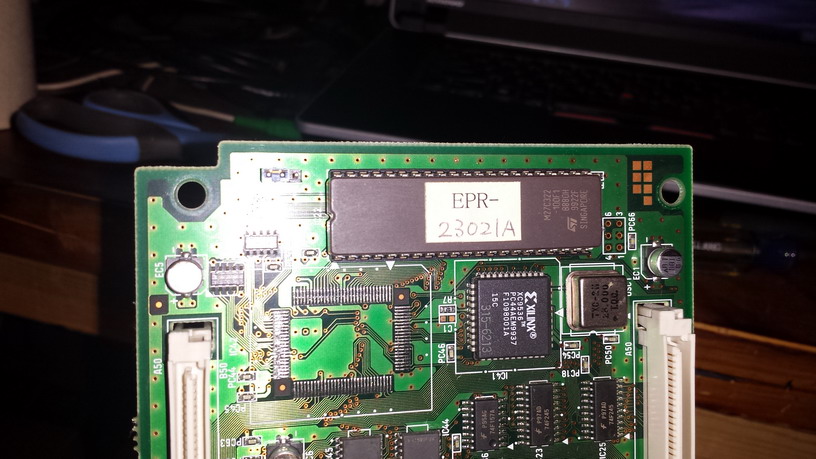

PCB component side detail
-

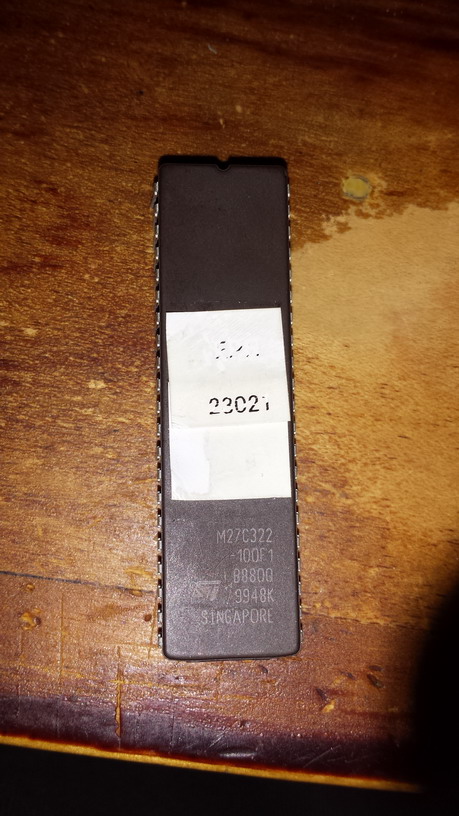

EPROM
