Salamander (version J, bootleg)
| dumper | Tirino73 |
| date | 17/04/2015 |
| emulator | |
| dev |
| name | 1304 |
| description | Salamander (version J, bootleg) |
| year | 1986 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|
ROMs
| QTY | Type | position | status |
|---|
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
This romset comes from a working bootleg pcb.
Game differences are: none.
Hardware info:
Almost the same of original sets (salamand,salamandj,lifefrce,lifefrcj)
-main cpu 68000P8
-sound cpu Z80A
-sound ic YM2151 + YM3012, VLM5030
Note: no custom K007232 or replacement of it present.
Note 2:video pcb of originals with all the custom gfx chips was been replaced by two pcbs full of standard TTL ics,a PAL and a MCU or PLD with ID code erased (named on pcb 86K12).
OSC: 18,432 Mhz and 3,579545 Mhz
Rom definition:
S-7_4c,S-8_3c,S-13_4b,S-14_3b main program (ver. J)
S-3_8c to S-6_5c and S-9_8b to S-12_5b gfx
Rest of roms (S-1_12h VLM5030 speech data,S-2_9o sound program) are identical of existing sets (salamand,salamandj)
Note 3: main progam and gfx roms all was been splitted into 32kb TMM24256 roms (27256 equivalent)
Note 4: no K007232 data rom due to reason above
Files
-

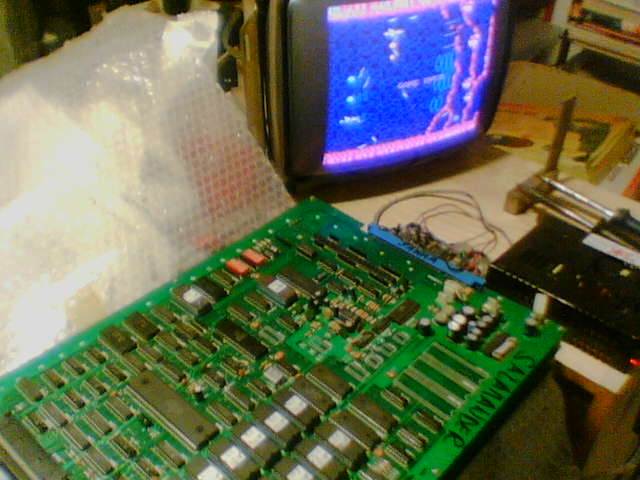

assembled PCBs component side
-

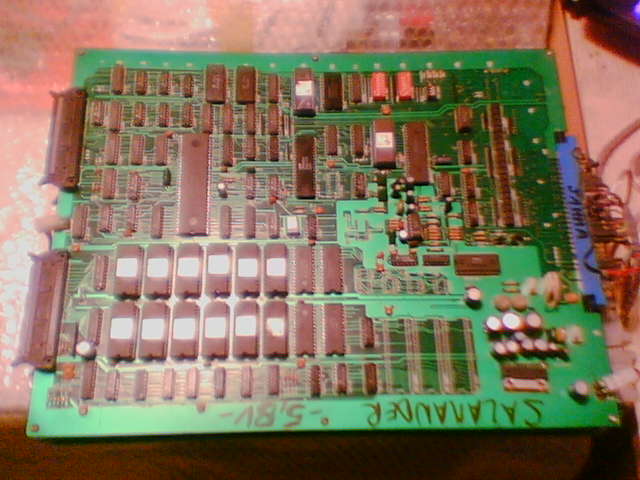

main PCB component side
-

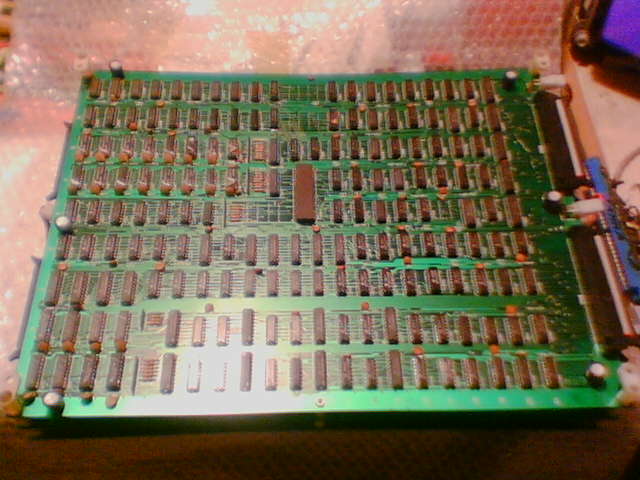

slave PCB component side
-

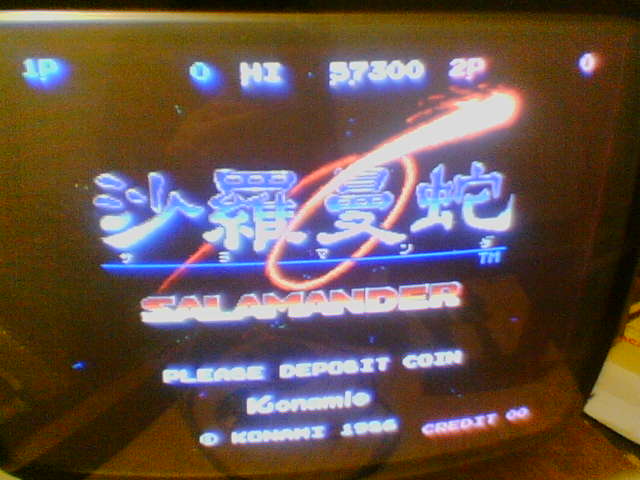

Title
-

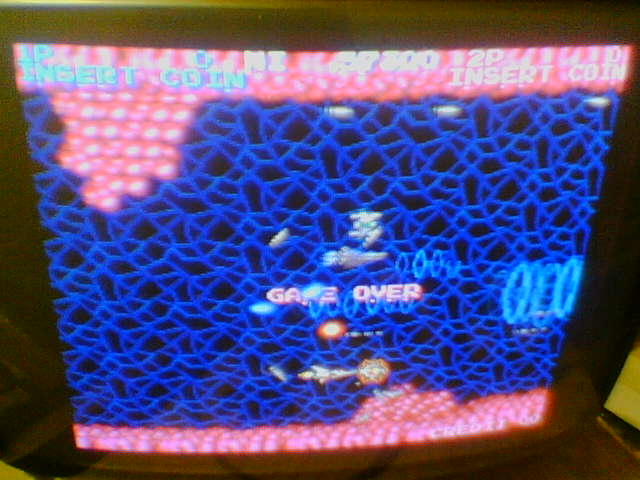

Attract mode 1
-

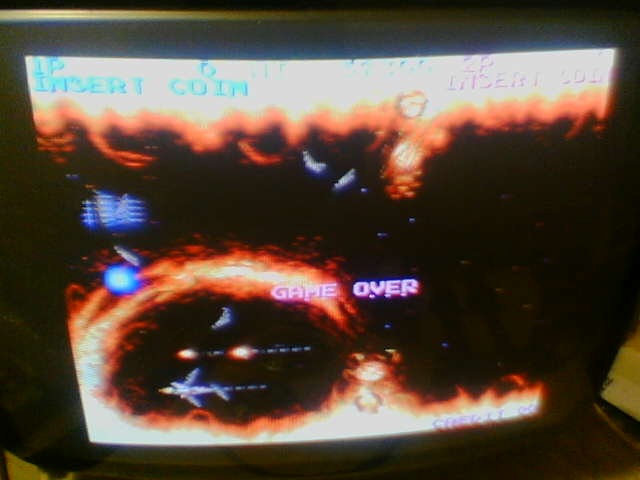

Attract mode 2
-
Read me
-
ROMs
1304
