Revision as of 17:37, 21 September 2014

EMU Infos
dumper f205v
date 14/10/2007
emulator
dev
PCB Infos
name 602
description Tehkan World Cup (bootleg)
year 1986
manufacturer

Technical references

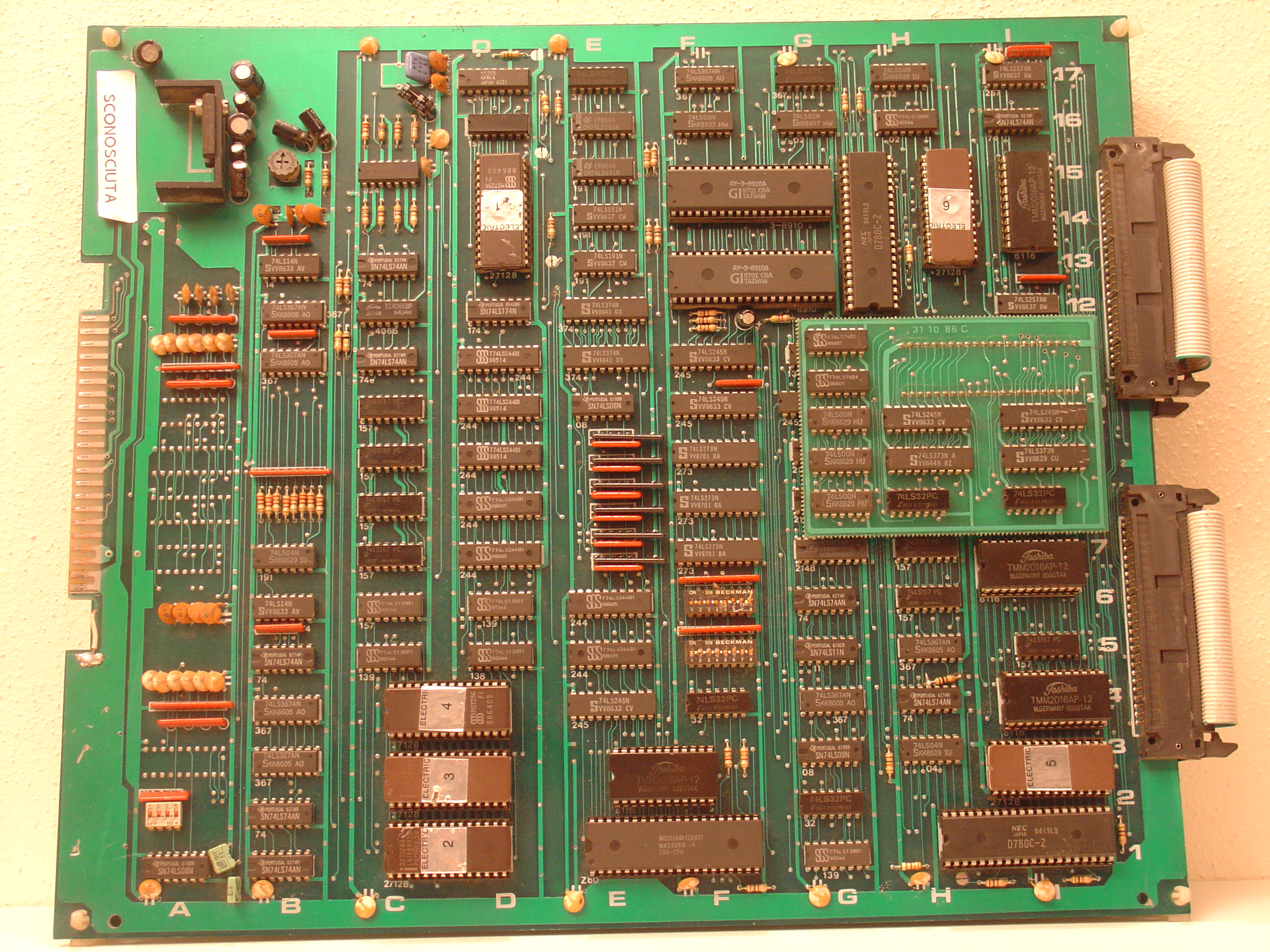

CPUs

QTY Type clock position function
1x MK3880-4-Z80CPU CPUs board 1e 8-bit Microprocessor - main
1x D780C-2 CPUs board 1i 8-bit Microprocessor - main
1x D780C-2 CPUs board 12gh 8-bit Microprocessor - sound
1x 5205 CPUs board ADPCM Speech Syntesis IC - sound
2x AY-3-8910 CPUs board 12f,14f Programmable Sound Generator - sound
1x LM324 CPUs board 15c Quad Operational Amplifier - sound
1x oscillator unmarked ROMs board
1x oscillator 18.432 ROMs board

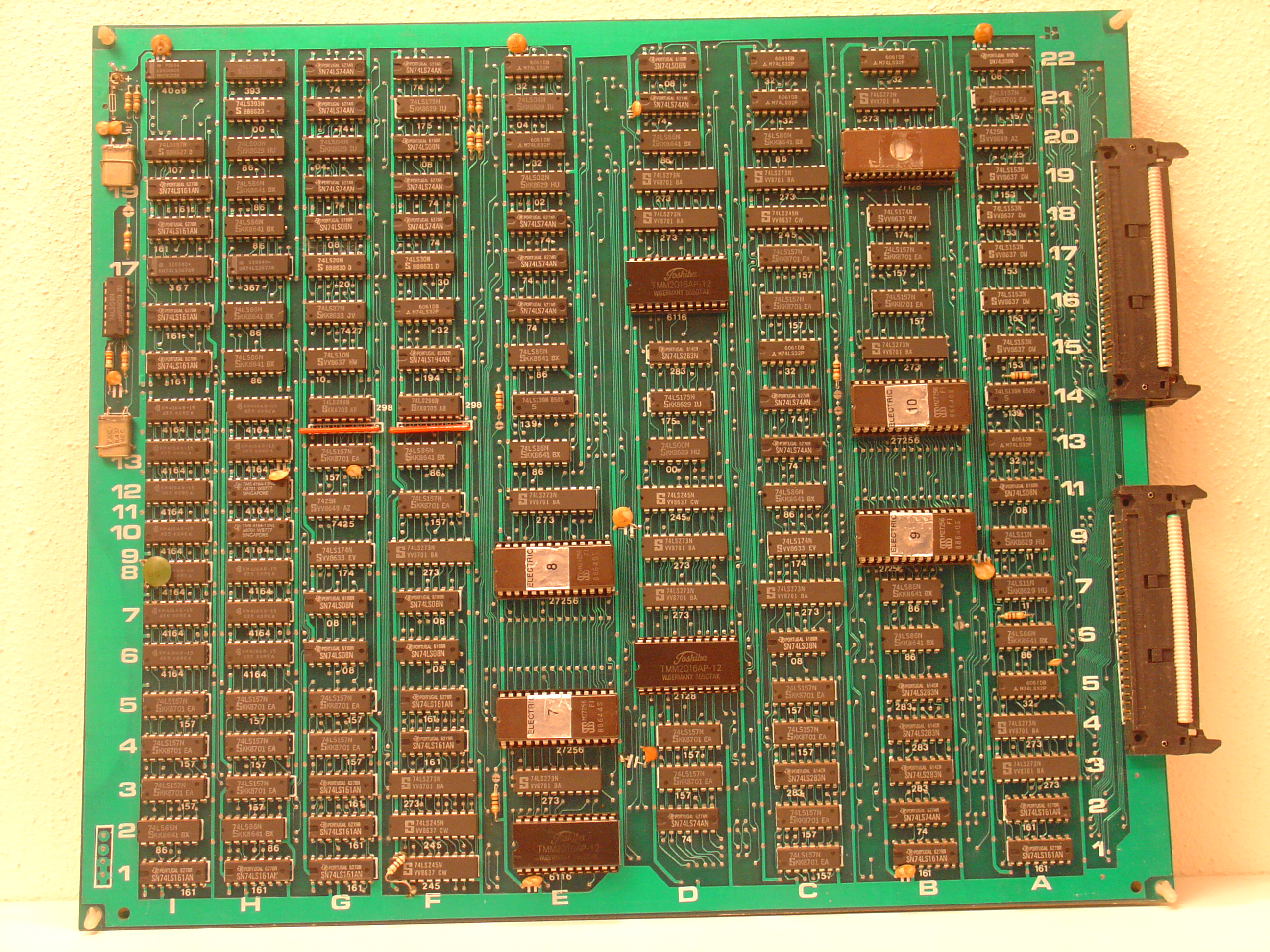

ROMs

QTY Type position status
4x I27128A CPUs board 2,3,5,6 dumped
2x M27256 CPUs board 1,4 dumped
1x I27128A ROMs board 11 dumped
4x M27256 ROMs board 7,8,9,10 dumped

RAMs

QTY Type position
4x TMM2016AP-12 CPUs board 2ef,4i,6i,14i
3x TMM2016AP-12 ROMs board 1e,5d,16d

PLDs

QTY Type position status

Others

1x 22x2 edge connector (CPUs board)
2x 50 pins flat cable connector from CPUs board to ROMs board
1x trimmer (volume) (CPUs board)
2x 8x2 switches DIP (CPUs board)
1x 4x2 switches DIP (CPUs board)

Notes

Files

602
