Revision as of 17:33, 21 September 2014

EMU Infos
dumper Corrado Tomaselli, f205v, Zab
date 10/05/2011
emulator MAME 0.142u4
dev David Haywood

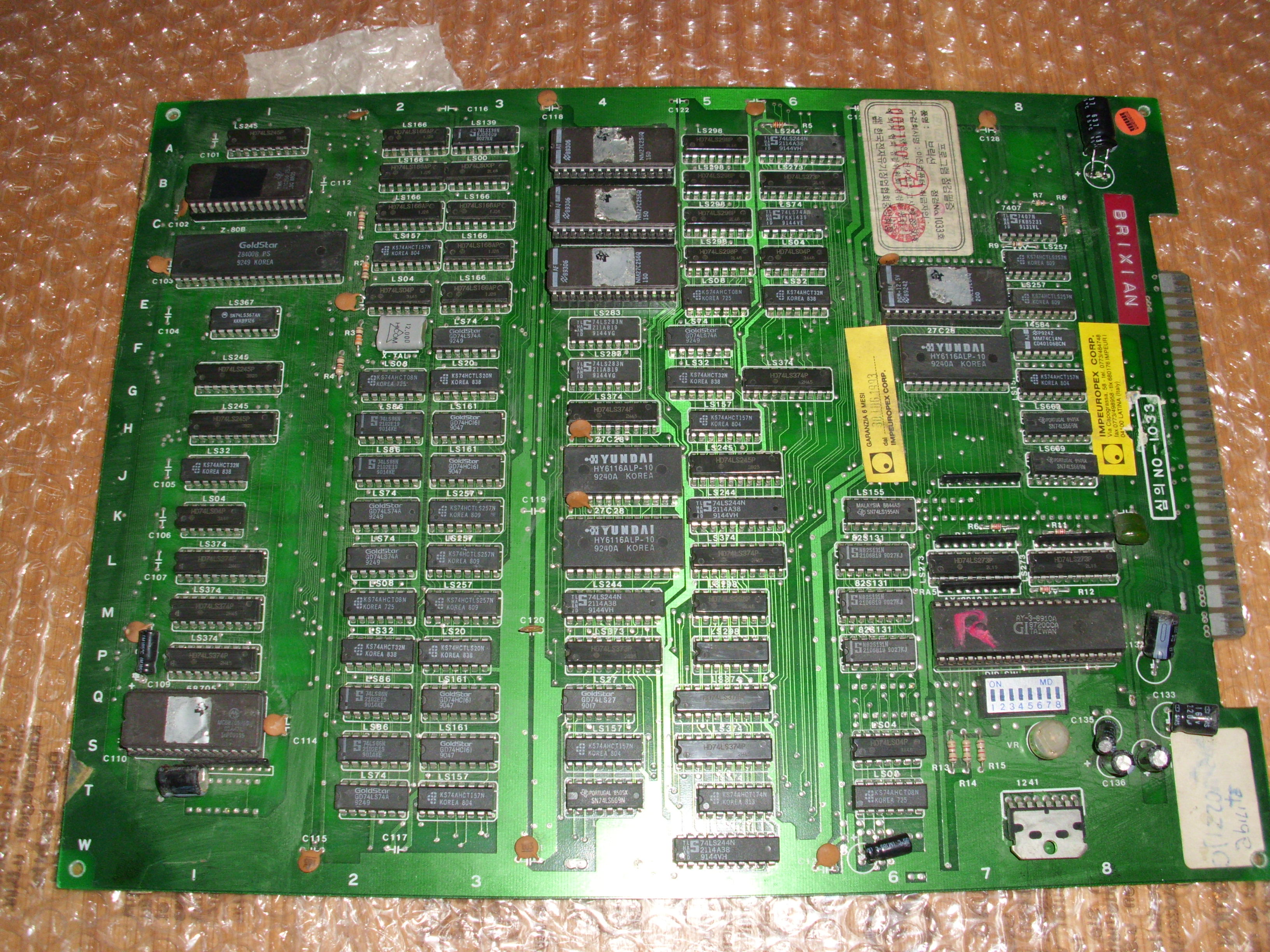

PCB Infos
name brixian
description Brixian
year 1993
manufacturer Cheil Computer System

Technical references

CPUs

QTY Type clock position function
1x 68705 1s 8-bit EPROM Microcomputer Unit - main (extracted with Fluke)
1x Z8400BPS 1d 8-bit Microprocessor - main
1x AY-3-8910A 7m Programmable Sound Generator - sound
1x oscillator 3.579545 xtal (2f)

ROMs

QTY Type position status
1x 2764 7e dumped
4x 27256 1b,4b,4c,4e dumped
3x N82S115 6l,6m,6p dumped

RAMs

QTY Type position
2x HY6116ALP-10 4j,4l

PLDs

QTY Type position status

Others

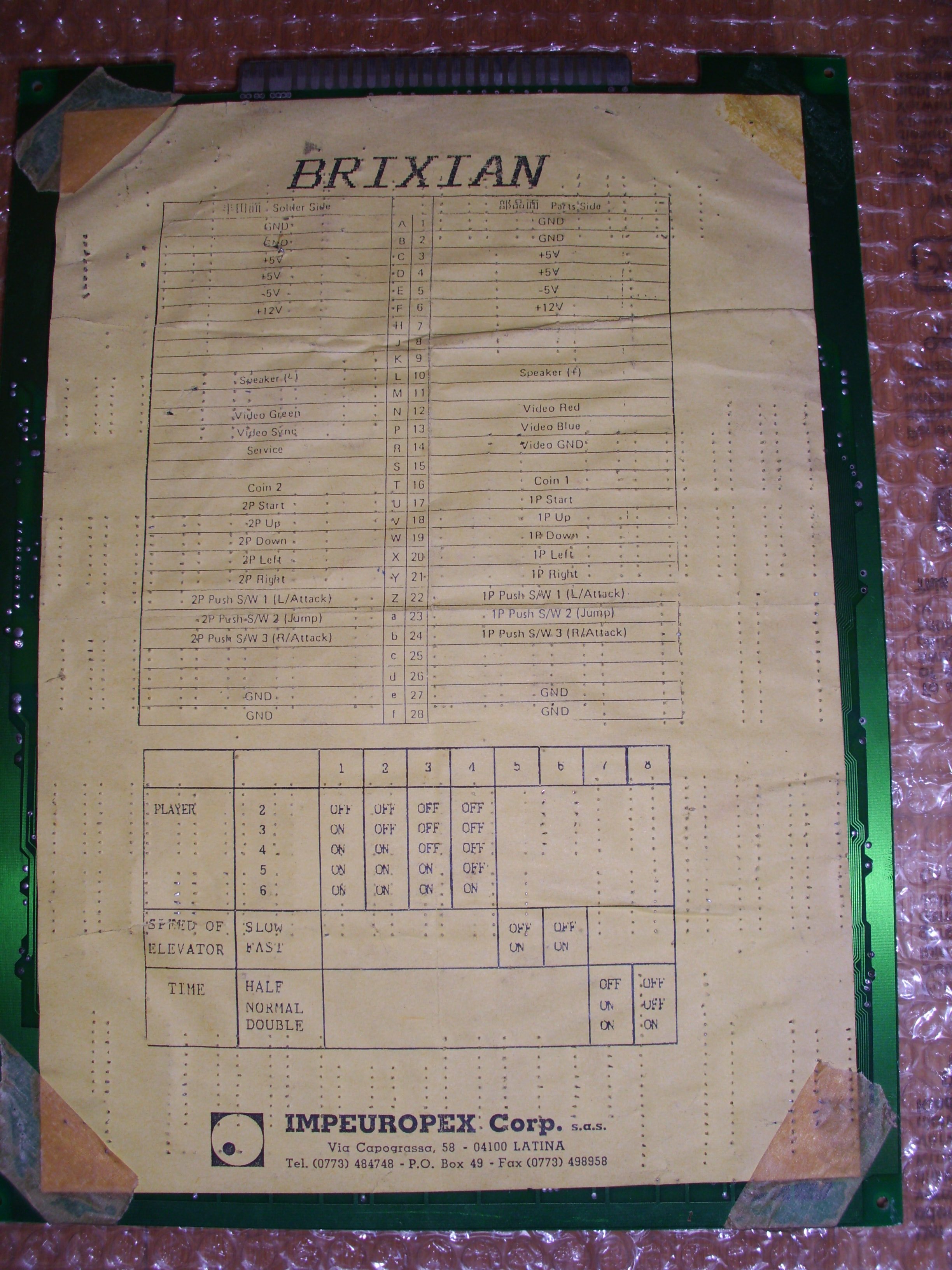

1x 28x2 JAMMA edge connector
1x 8x2 switches DIP (7q)
1x trimmer (volume) (7s)

Notes

update 20130130: Zab dumped the internal memory of 68705 via Fluke

Files

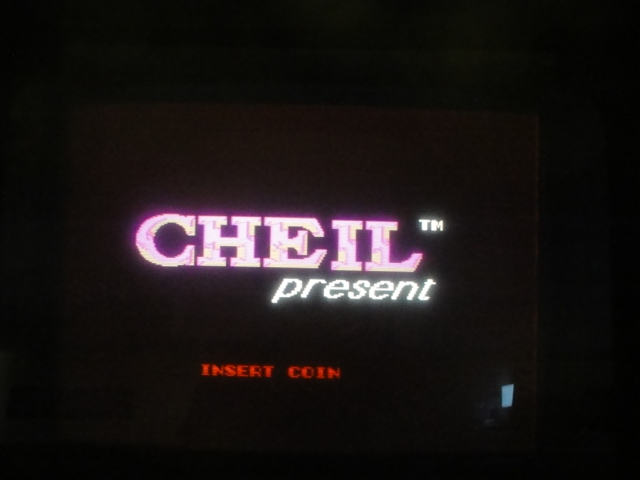

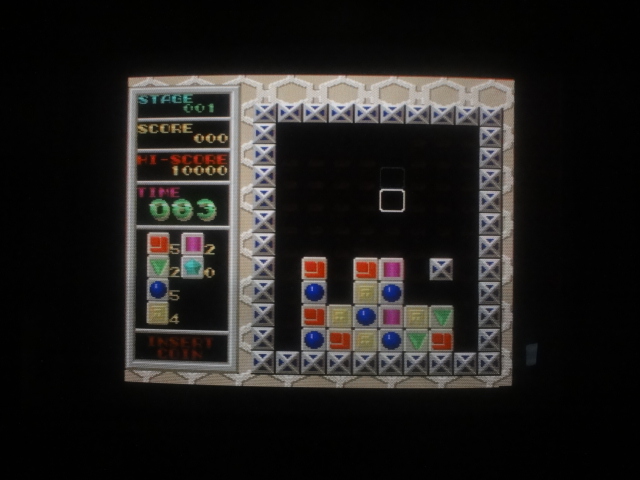

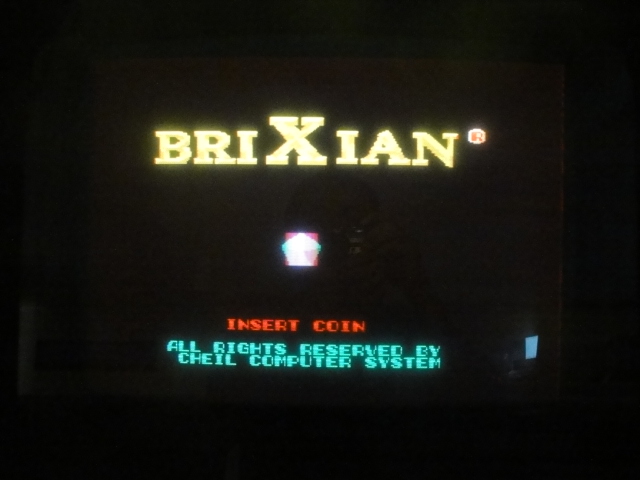

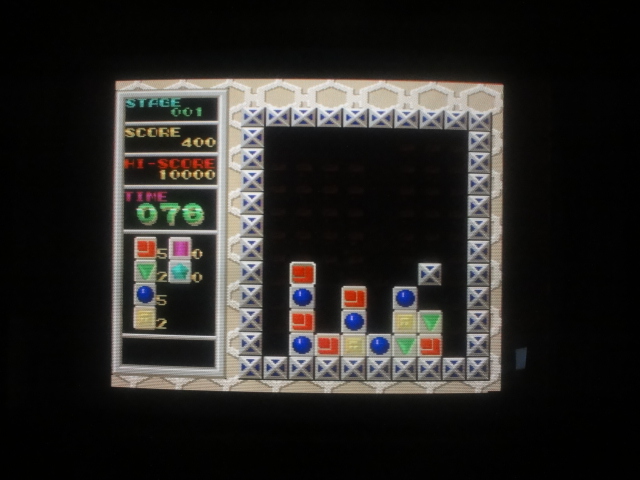

In Game

970
