| dumper | f205v |
| dump date | 05/04/2009 |
| emulator | MAME 0.130u3 |
| dev | Tafoid, f205v |
| name | crushbl2 |
| description | Crush Roller (bootleg set 2) |
| year | 1981 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80 | 7A | 8-bit Microprocessor - main (missing) | |
| 1x | TDA2002 | sound | ||
| 1x | oscillator | missing |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | M2716 | 1,2,3,4 | dumped |
| 1x | TMS2732 | 5 | dumped |
| 3x | MCM2732 | 6,7,8 | dumped |
| 2x | MMI6301 | 1K,4A | not dumped |
| 2x | MB7052 | 3k | missing |
| 1x | SN74S288N | 8H | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 6x | 2114 | 4H,4J,4K,4L,4M,4N |
| 1x | 93l422DMQC | 2C |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
2x 8x2 switches DIP
Notes
Not working
Files
-

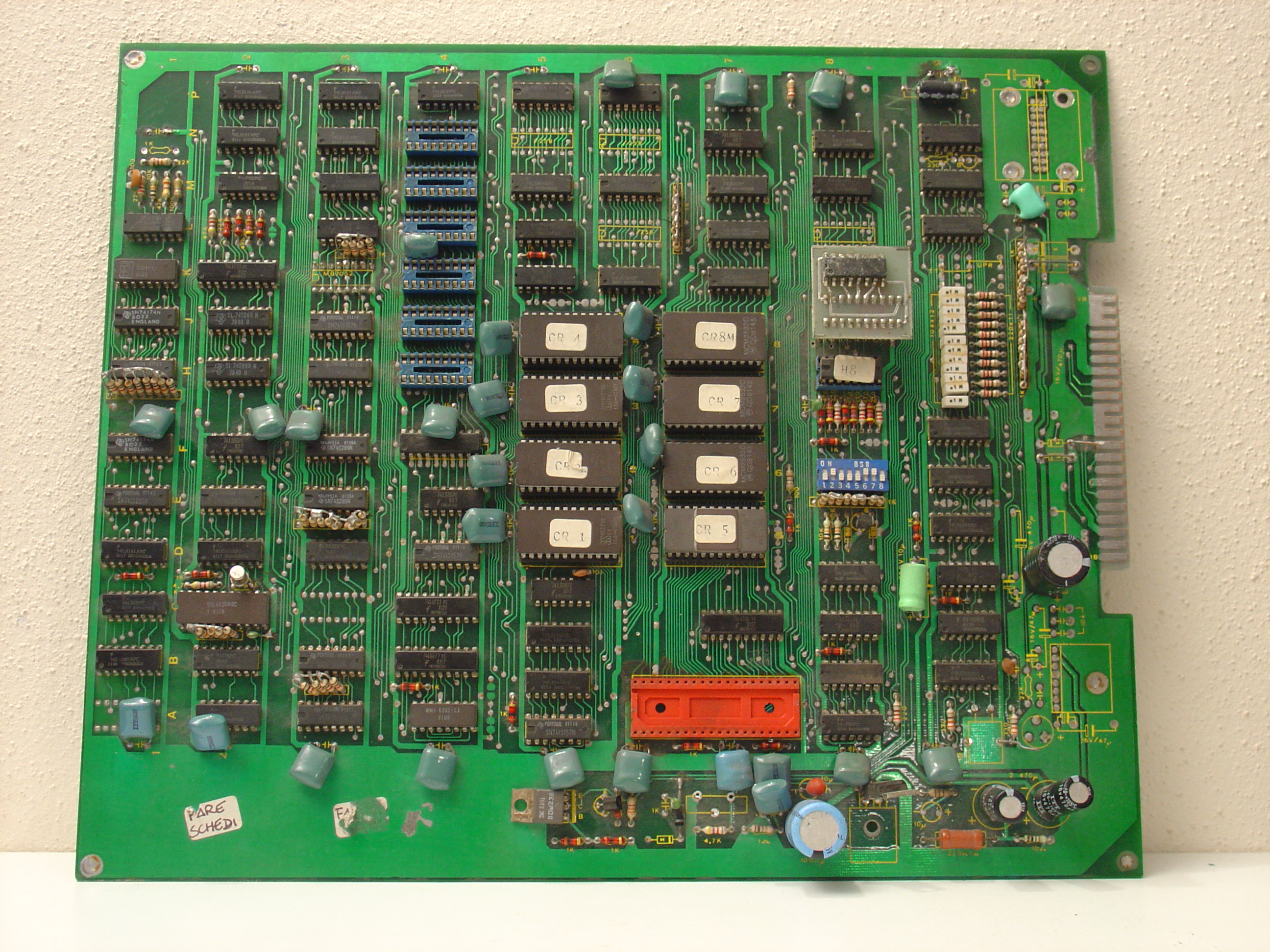

PCB component side
-

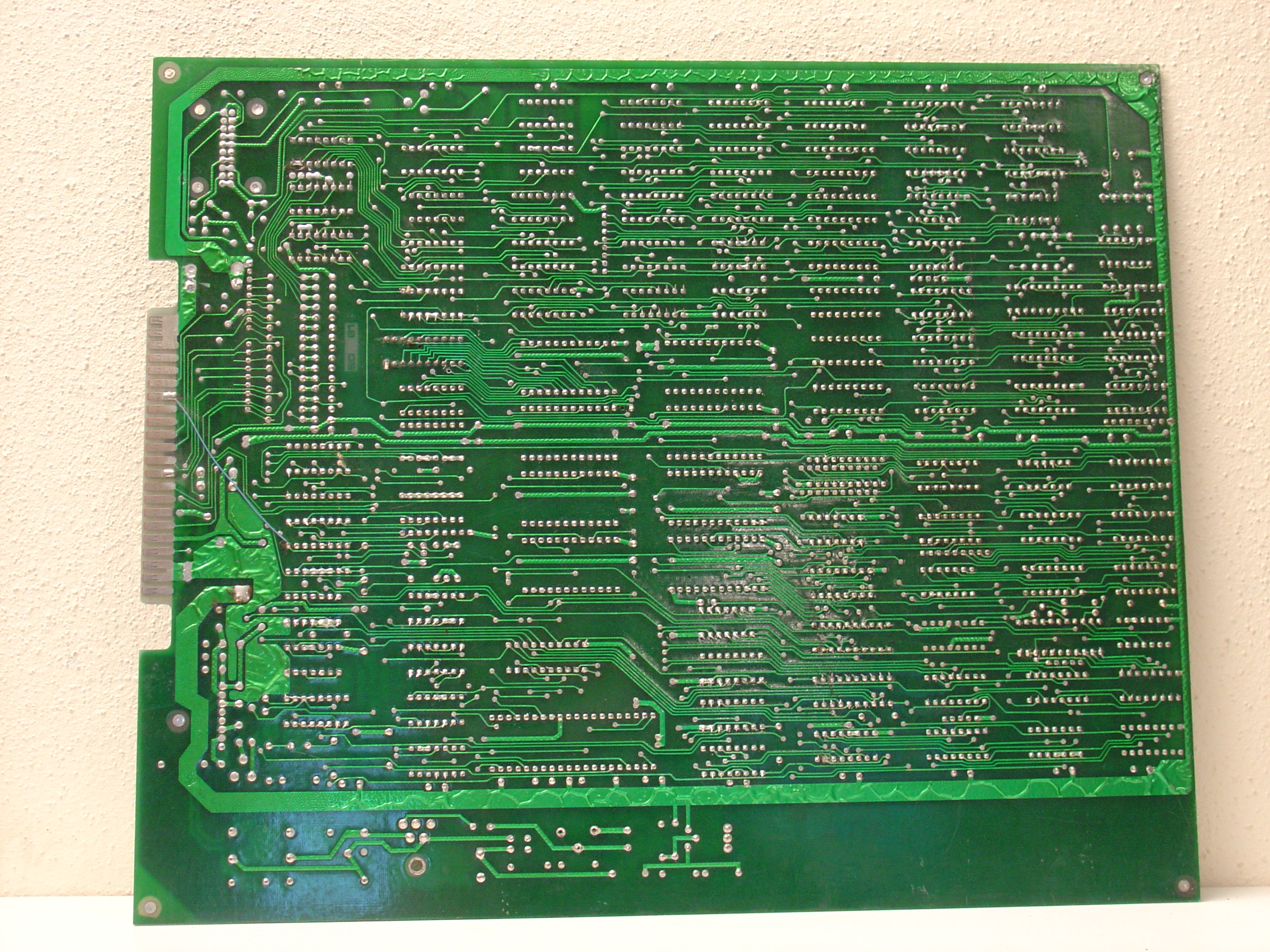

PCB solder side
