Revision as of 20:03, 14 April 2013
| dumper | f205v |
| date | 14/04/2013 |
| emulator | |
| dev |
| name | 1130 |
| description | Royal Card (French) |
| year | 1991 |
| manufacturer | TAB Austria |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 6502A | 8-bit Microprocessor - main | ||
| 2x | EF6821P | Peripheral Interface Adapter | ||
| 1x | 68A45 | CRT Controller (CRTC) | ||
| 1x | YM2149F | Programmable Sound Generator - sound | ||
| 1x | oscillator | 16000.000KHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | 27256 | 1,2,3 | dumped |
| 1x | N82S147AN | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | 6264 | |
| 1x | 6116 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PEEL18CV8P-25 | read protected -> extracted with CmD's PALdumper | |
| 1x | GAL16V8-25 | read protected -> extracted with CmD's PALdumper |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
1x 8x2 switches DIP
1x battery (missing)
Notes
Files
-

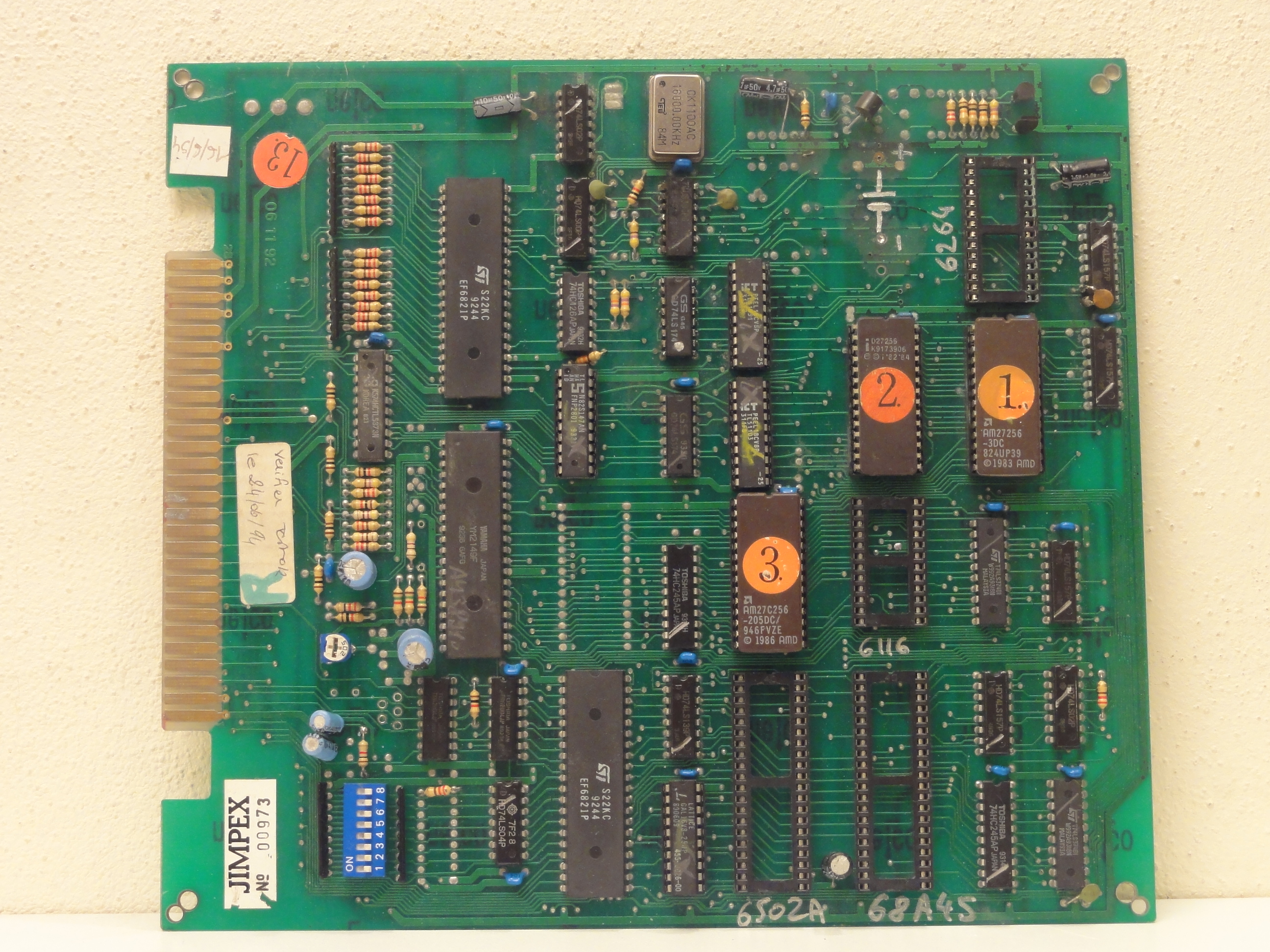

PCB component side
-

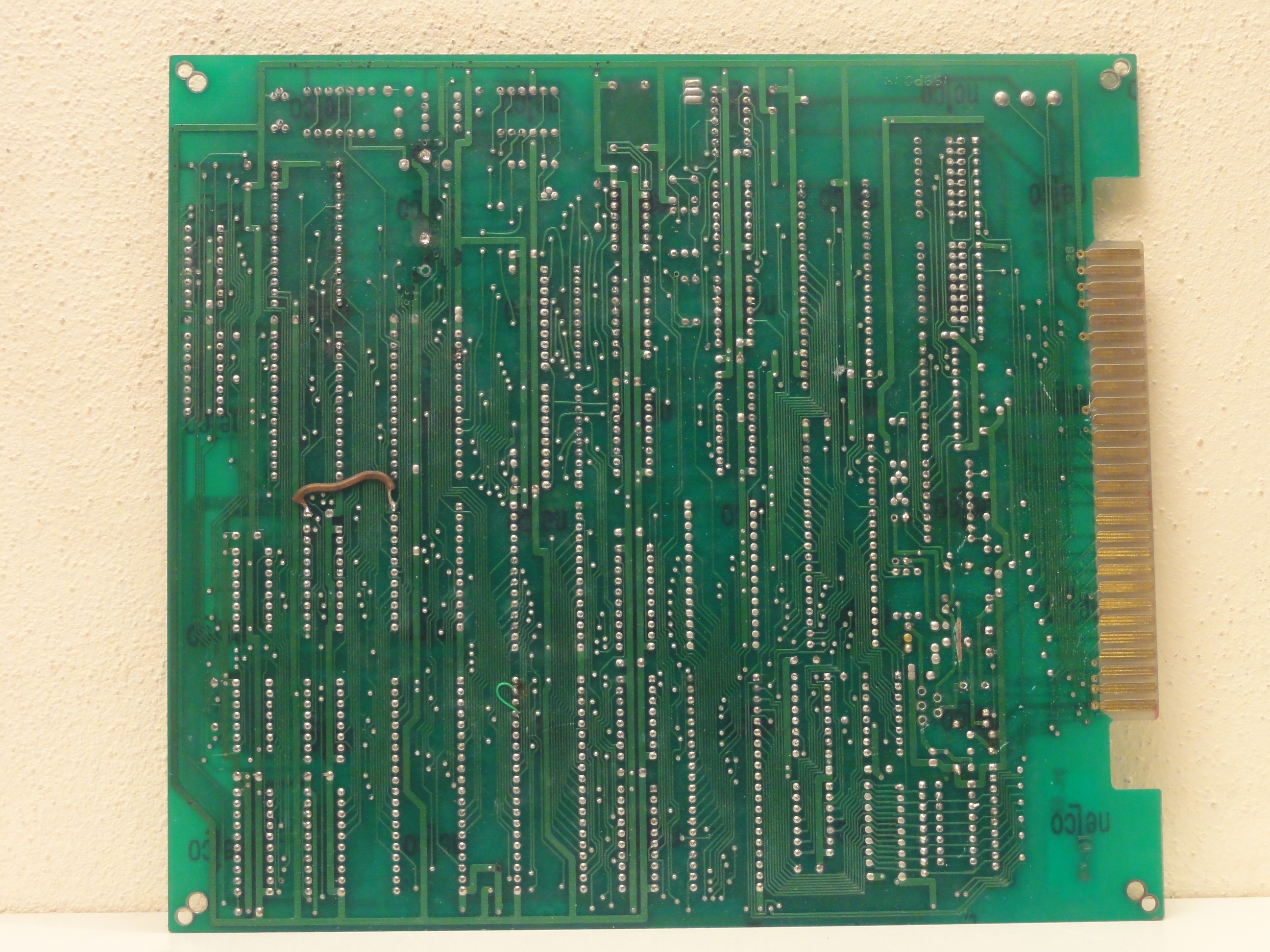

PCB solder side
-
ROMs
1130
