Revision as of 18:04, 21 January 2013

EMU Infos
dumper Any
date 20/01/2013
emulator
dev Roberto Fresca, The Dumping Union

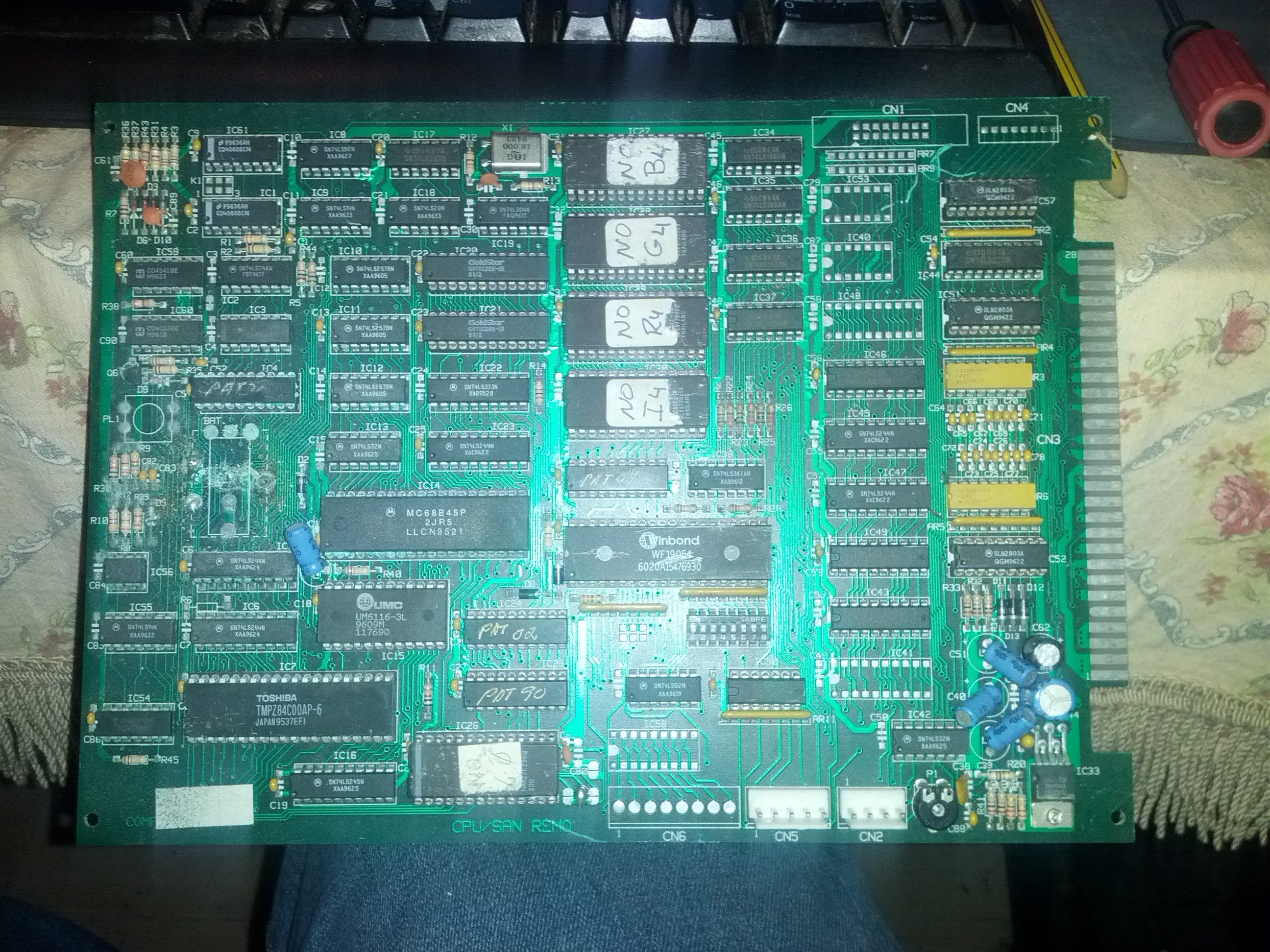

PCB Infos
name 1105 - number1
description Number One
year 1996
manufacturer San Remo Games

Technical references

CPUs

QTY Type clock position function
1x MC68B45P ic14 CRT Controller (CRTC)
1x TMPZ84C00AP-6 ic7 8-bit Microprocessor - main
1x WF19054 ic32 Programmable Sound Generator - sound
1x oscillator 18.000MHz x1

ROMs

QTY Type position status
1x NM27C256 ic26 dumped
4x 27C512 ic27-ic30 dumped

RAMs

QTY Type position
2x GM76C28K-10 ic20,ic21
1x UM6116-3L ic15

PLDs

QTY Type position status
4x unknown PAL (DIP20 mil300) ic4,ic24,ic25,ic31 read protected

Others

1x 28x2 JAMMA edge connector (CN3)
1x 4 legs connector (CN2)
1x 5 legs connector (CN5)
1x trimmer (volume) (P1)
1x 8x2 switches DIP

Notes

Files

1105
