Revision as of 22:59, 5 April 2010
| dumper | "someone" |
| dump date | 12/10/2009 |
| emulator | MAME 0.134u4 |
| dev | ANY, The Dumping Union |
| name | shootopl |
| description | Shootout Pool |
| year | 2001 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | position | function |
|---|
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | MX23L641 | ic17s,ic18,ic19s,ic20 | dumped |
| 1x | M27C322 | ic11 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | IDT71256 | ic15 |
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
Working
Cart type: 171-7978B
Cart N°: 840-0098C
EPR: 23844
Protection IC: ACTEL A54SX32A (317-0336-COM)
Files
-

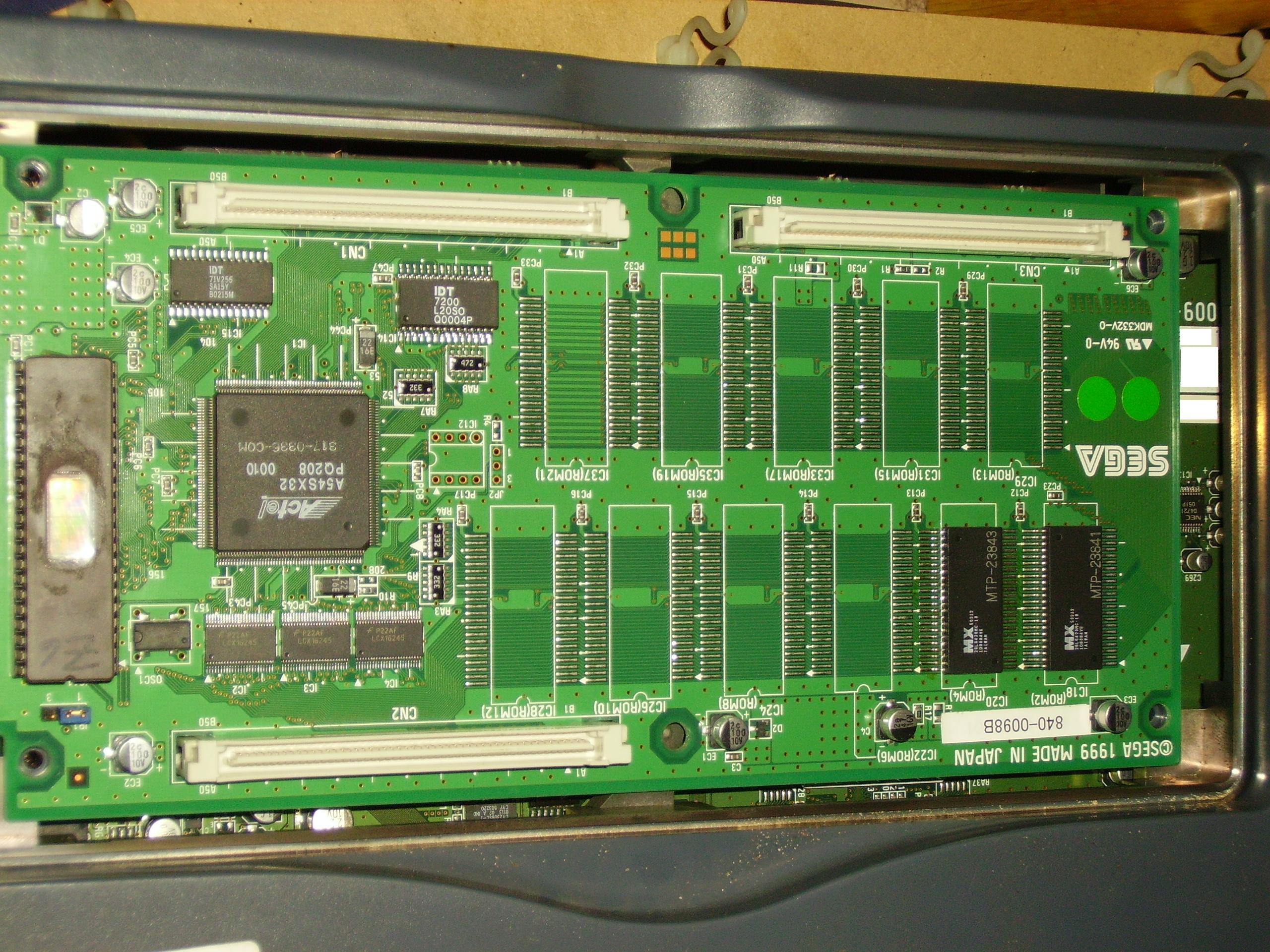

PCB component side
-

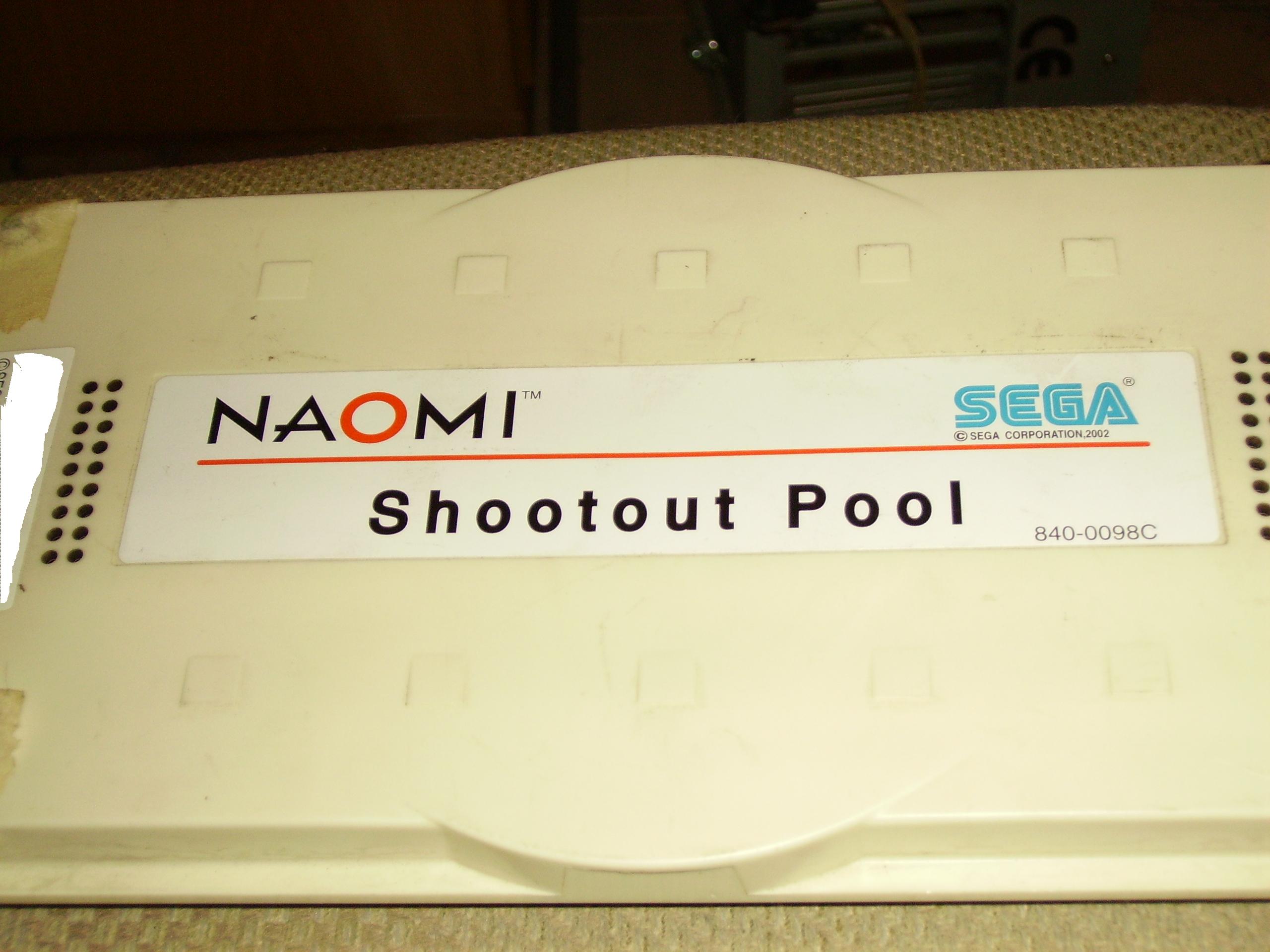

Cart
-
Read me
