| dumper | f205v |
| date | 28/08/2008 |
| emulator | MAME 0.129u5 |
| dev | Angelo Salese |
| name | supjolly on Arcade Database |
| description | Super Jolly |
| year | 200x |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | M30624FGAFP-03001A4 | u1 | 32/16-bit Single-Chip Microcomputer - main (internal ROM not dumped) | |
| 1x | OKI M6295 | u28 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | TDA2003 | - | Audio Amplifier - sound | |
| 1x | LM358 | - | u33 | Dual Operational Amplifier - sound |
| 1x | oscillator | 16.000MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | MX26C1000A | u29 | dumped |
| 3x | M27C4001 | u23,u24,u25 | dumped |
| 1x | ST93C46 | u35 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | HY628100A | u20,u21,u22 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | ispLSI1032E-70LJ | u12,u13 | read protected |
Others
1x 28x2 JAMMA edge connector (JP11)
1x RS232 connector (JP15) (along with an ST232C controller (u34)
1x 2x7 legs connector (JP17 PROG)
1x 4 legs connector (JP18)
1x red LED (D3)br>
1x pushbutton (S1 SW PUSHBUTTON)
1x trimmer (RV9 VOLUME)
1x trimmer (RVTRIMMER10KHOM)
1x battery 3.6V (bt1)
Notes
PCB is marked: "CE", "S.N.____________" and "GNE-PCB1" on component side
PCB is marked: "V0", "14-01" and "TE" on solder side
Files
-

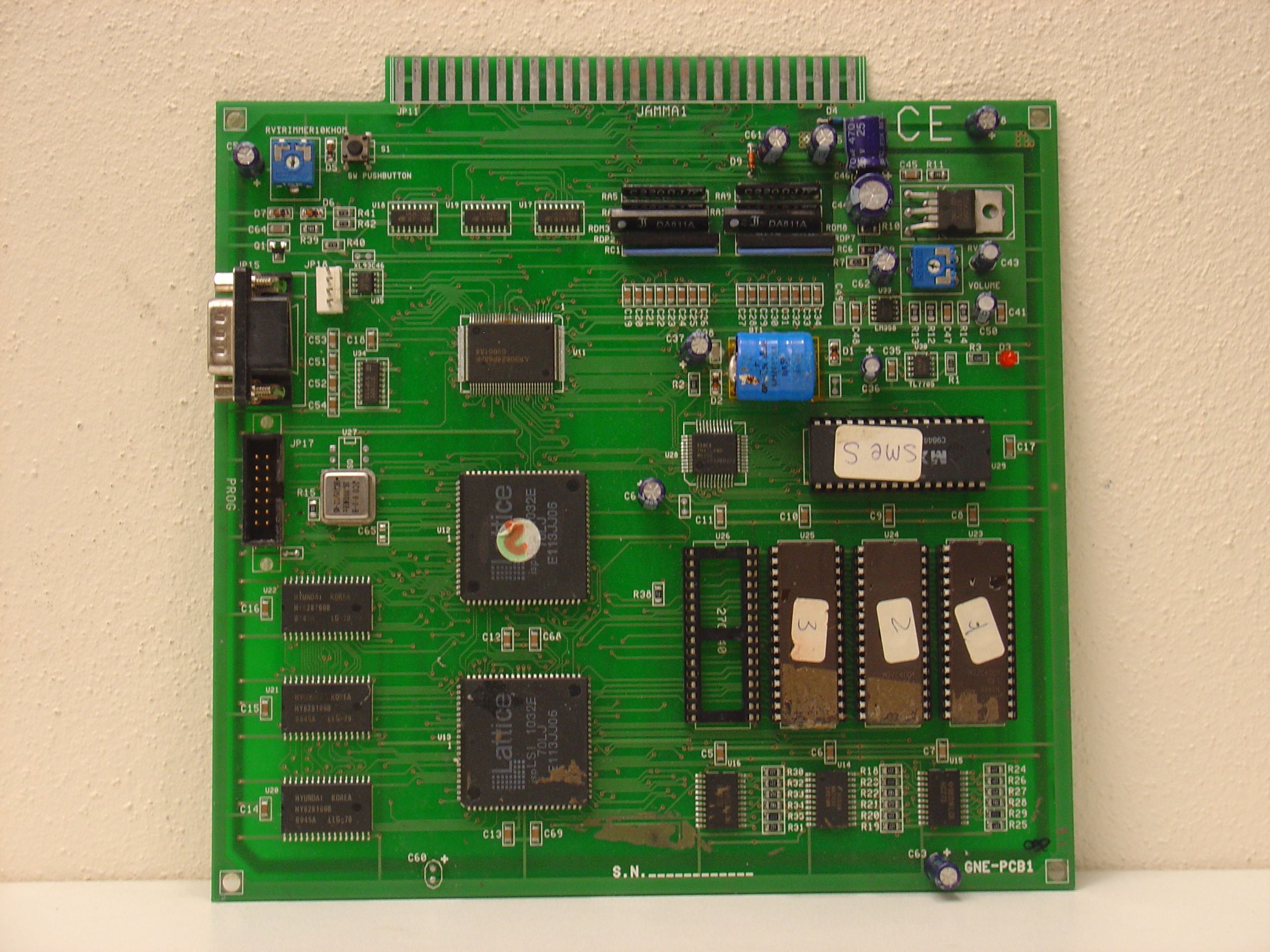

PCB component side
-

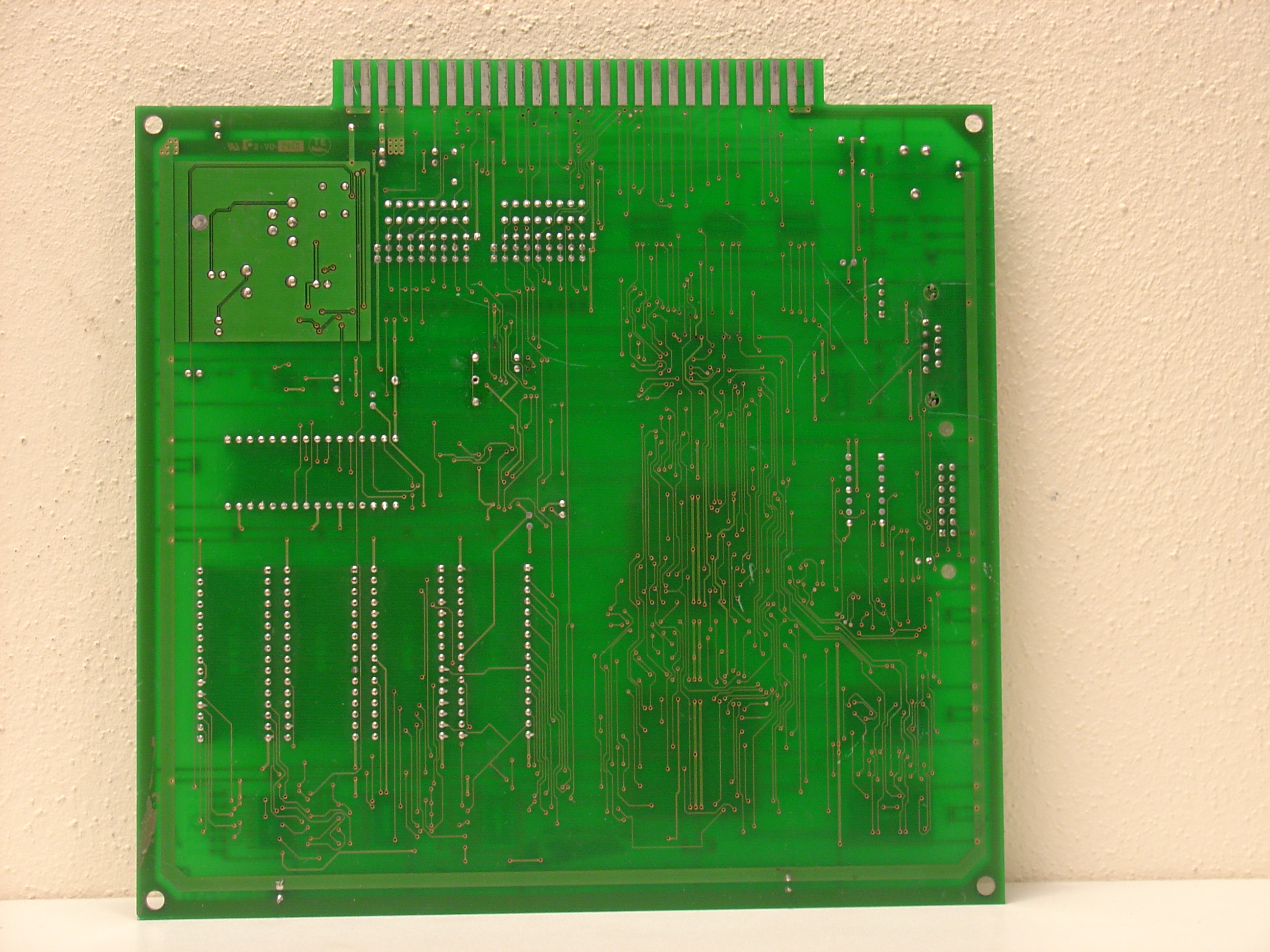

PCB solder side
-

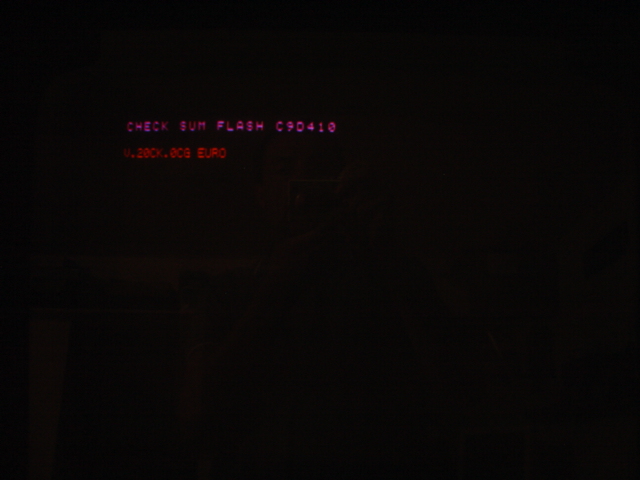

Boot screen
-

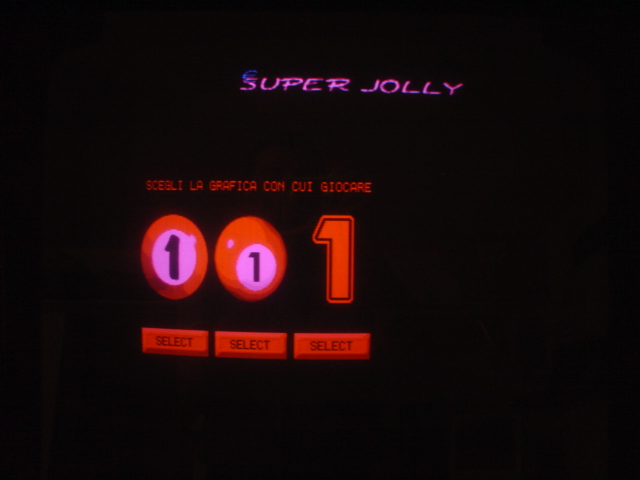

Title
-

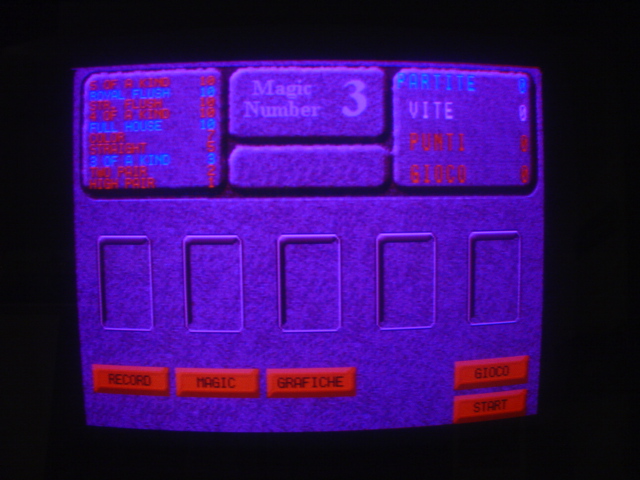

In game 1
-

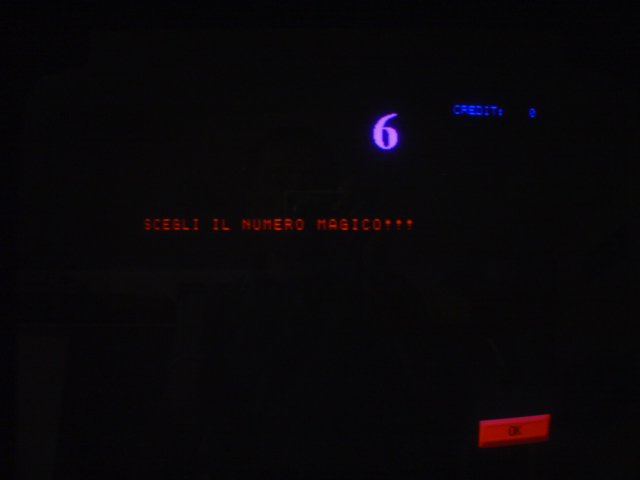

In game 2
-

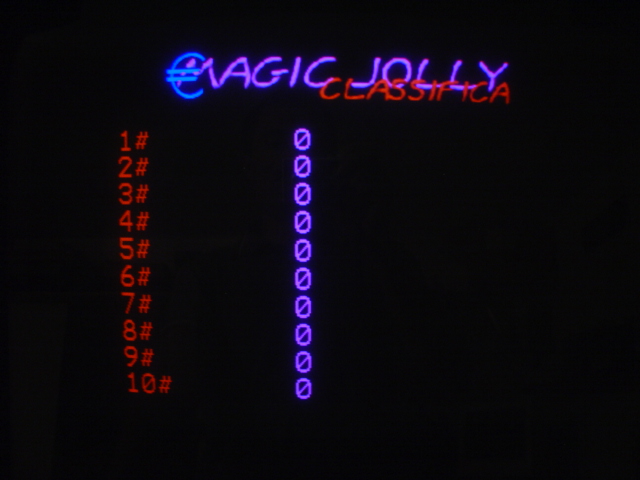

Hiscore
