Latest revision as of 14:50, 27 September 2024
| dumper | f205v, Corrado Tomaselli |
| date | 20/04/2008 |
| emulator | MAME 0.125u5 |
| dev | Luca Elia |
| name | smoto20 on Arcade Database |
| description | Super Rider (Italy, v2.0) |
| year | 1996 |
| manufacturer | Subsino |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | unknown big black box | see notes | ||
| 2x | SS9100 | QFP44 | ||
| 1x | SS9101 | DIP42 | ||
| 2x | D8255AC-2 | - | Programmable Peripheral Interface | |
| 1x | K-665 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | SM64 | FM Operator Type-L II (OPL II) - sound | ||
| 1x | K-664 | D/A Converter (DAC) - sound | ||
| 1x | oscillator | 12.000MHz | ||
| 1x | oscillator | 4.433619MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27C512 | 1 | dumped |
| 3x | M27C1001 | 2,3,4 | dumped |
| 3x | N82S129AN | not dumped yet |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | PALCE16V8H | read protected | |
| 2x | TIBPAL16L8B | read protected | |
| 1x | GAL16V8B | read protected |
Others
1x 36x2 edge connector
1x 10x2 edge connector
1x trimmer (volume)
4x 8 DIP switches banks (SW1,SW2,SW3,SW4)
1x battery 3.6V
Notes
This game is the official Italian version of "Super Rider" by Subsino.
Files
-

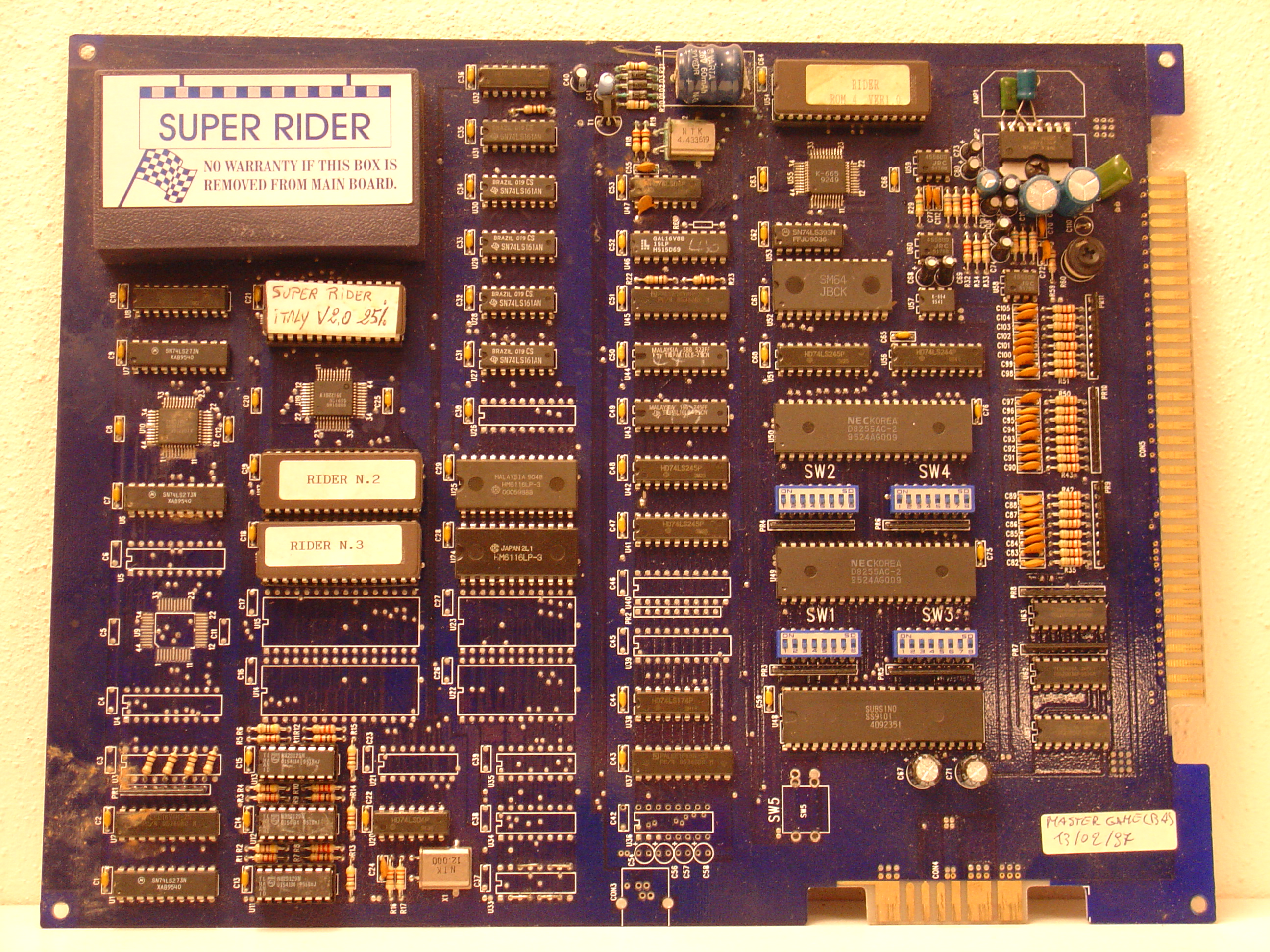

PCB component side
-

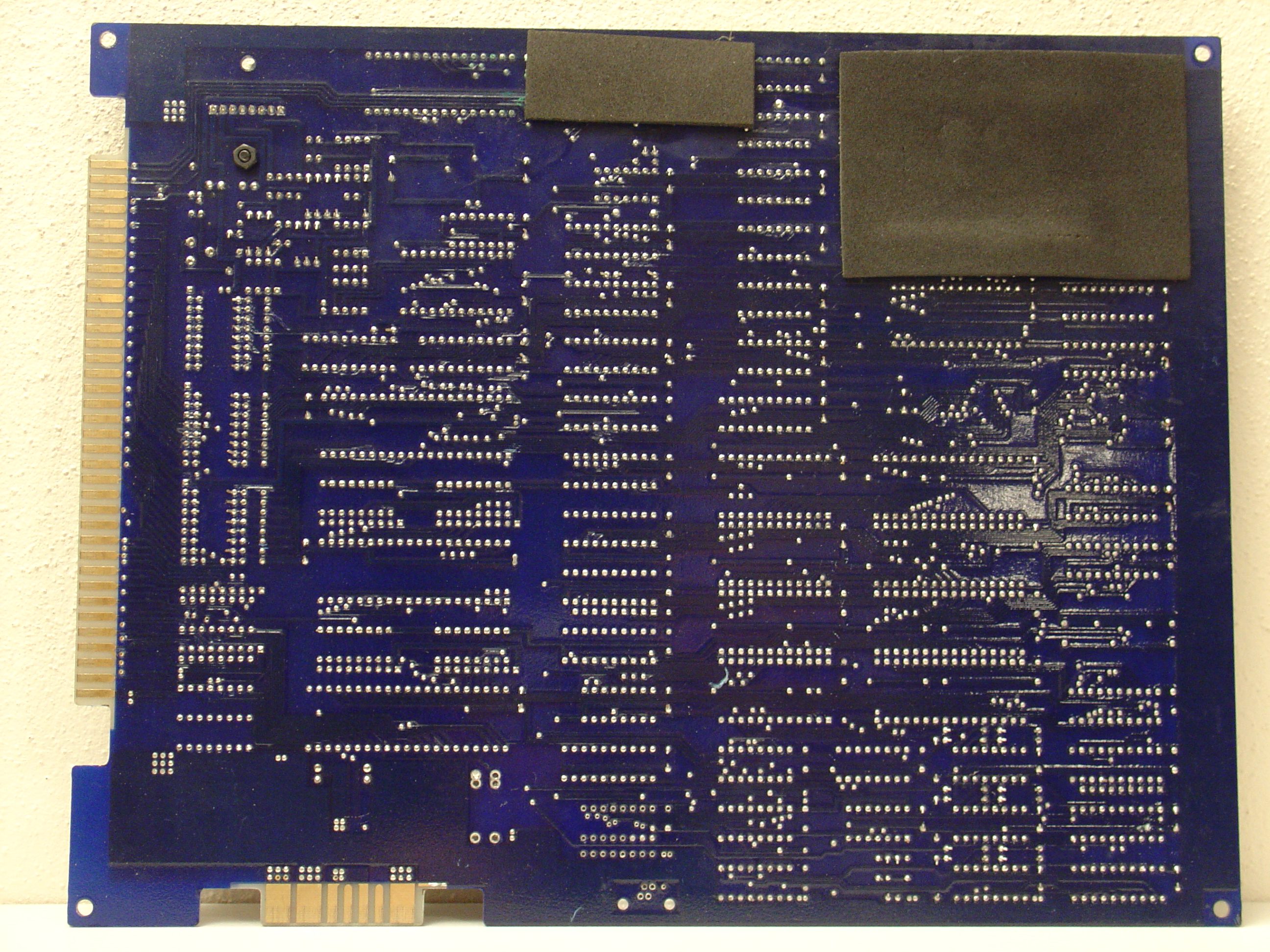

PCB solder side
-
boot error
