Latest revision as of 14:41, 27 September 2024
| dumper | f205v, Gnoppi, Corrado Tomaselli |
| date | 28/12/2005 |
| emulator | MAME 0.129u1 |
| dev | David Haywood |
| name | luckygrl on Arcade Database |
| description | Lucky Girl (Wing) |
| year | 1985 |
| manufacturer | Wing |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | unknown blank chip (DIP40) | 8l | most probably CPU - space under chip is etched "Z80" | |
| 1x | LH0080A Z80A-CPU-Z | 8r | 8-bit Microprocessor - main | |
| 1x | AY-3-8910 | 1j | Programmable Sound Generator - sound | |
| 1x | HA1368 | - | 0r | Audio Power Amplifier - sound |
| 1x | LM348 | - | 1p | Dual Operational Amplifier - sound |
| 1x | oscillator | 20.000MHz | 8a |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | MBM2732 | 5 | dumped |
| 2x | MBM8532 | 6,7 | dumped |
| 4x | MBm2764 | 1,2,3,4 | dumped |
| 1x | MB7051 | 3h | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | M5K4164ANP | 4e,4f,4h,4j |
| 1x | HM6116FP-3 | 9b |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 28x2 edge connector
1x trimmer (volume)(0m)
1x 6 DIP switches bank (3a)
1x battery 3.6V (9a)
Notes
main PCB is marked: "8309", "00-733" and "FALCON" on component side
sub PCB is marked: "8503A" and "WING" on solder side
main PCB is labeled: "WING NO.10368" on component side
main PCB is labeled: "(Falcon symbol) 03155096" on unmarked chip
main PCB is labeled: "Automatengrosshandel und Service - HANS CHRISTL - Donaustr.2 94569 Stephansposching - Tel. 09935/1414 Fax 09935/1417 - Auto 0172/2906598", and handwritten "115 Lucky Girl", "3961" on solder side
update 20220423: better pics and description.
Files
-

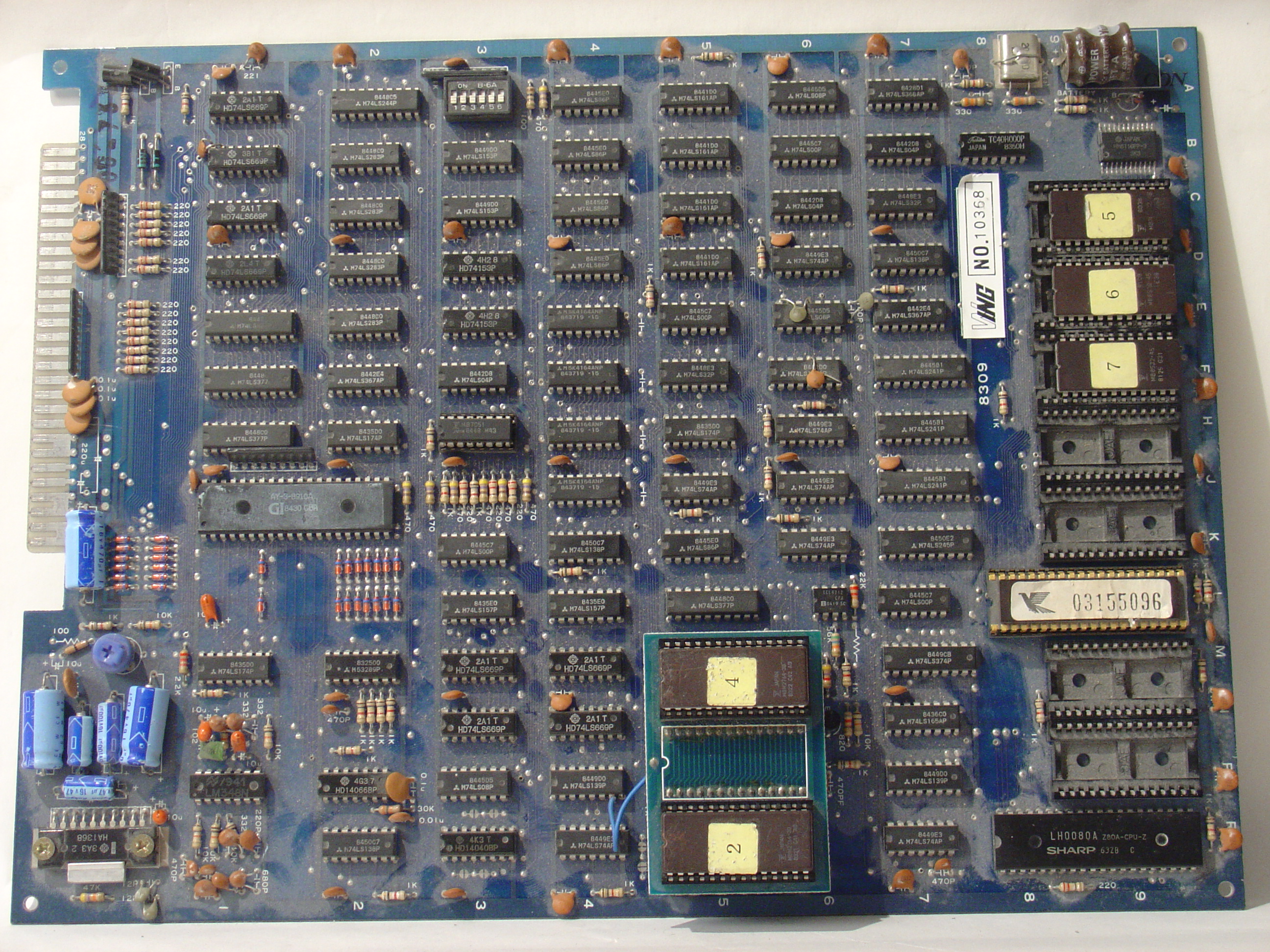

assembled PCBs
-

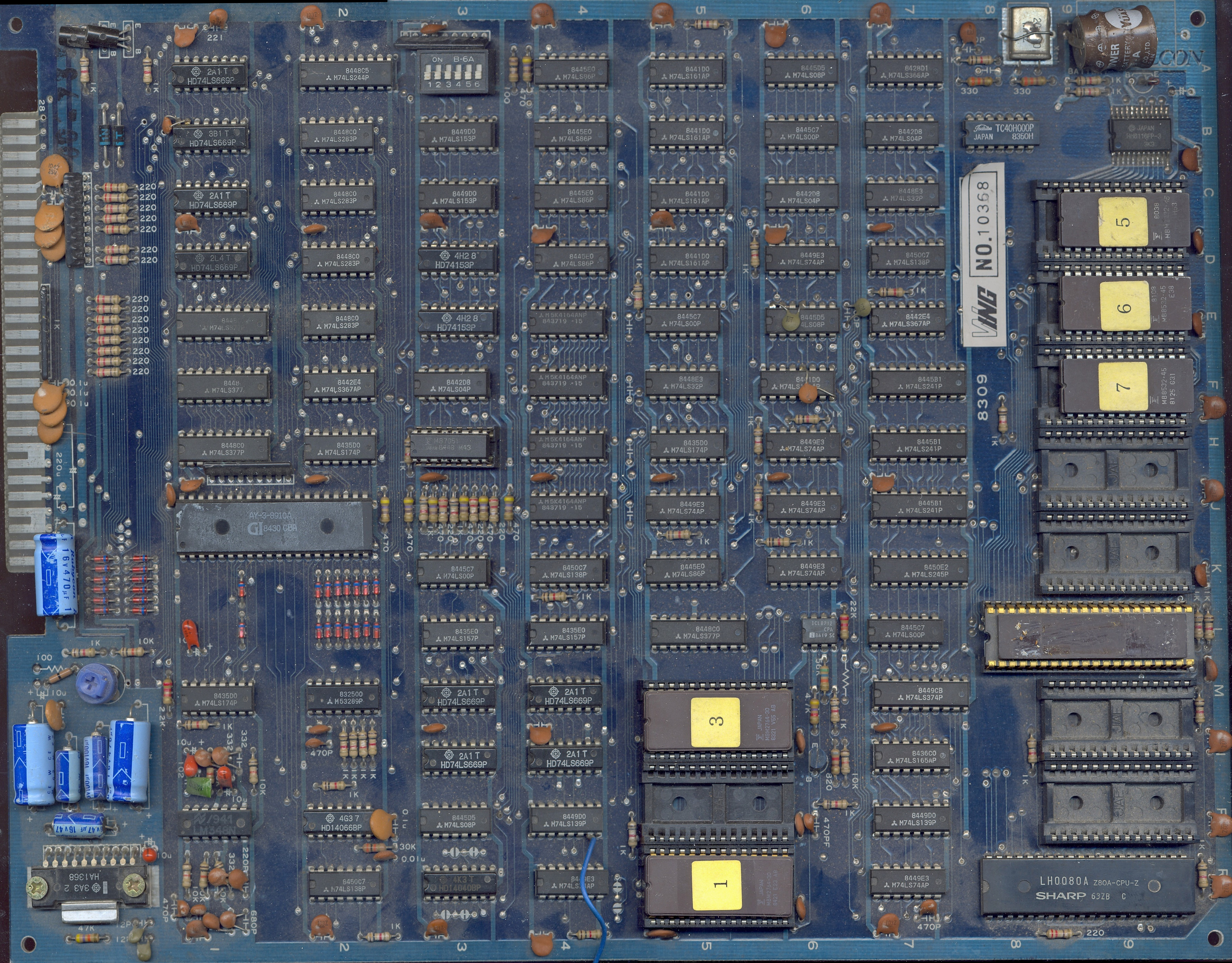

main PCB component side
-

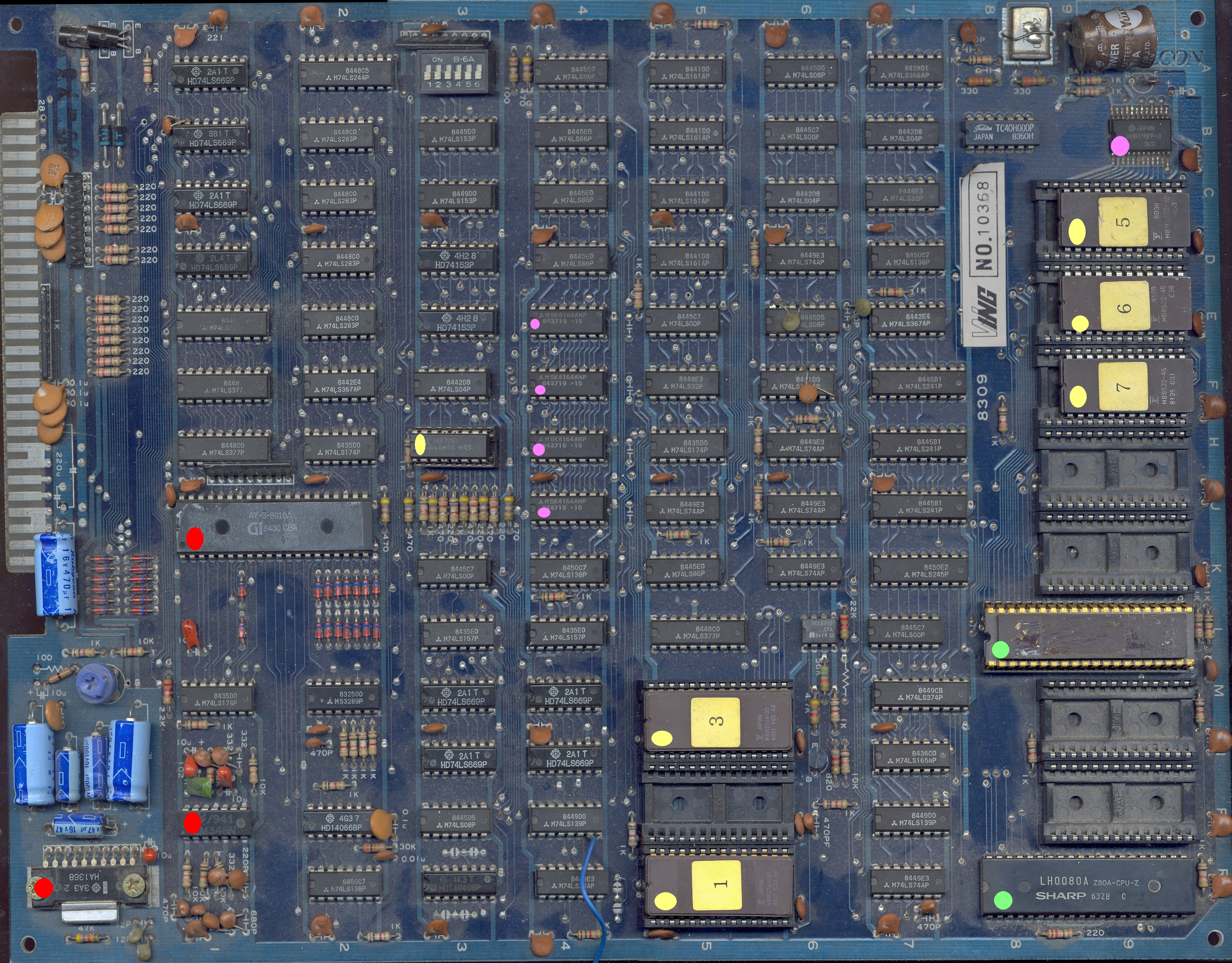

main PCB component side notes
-

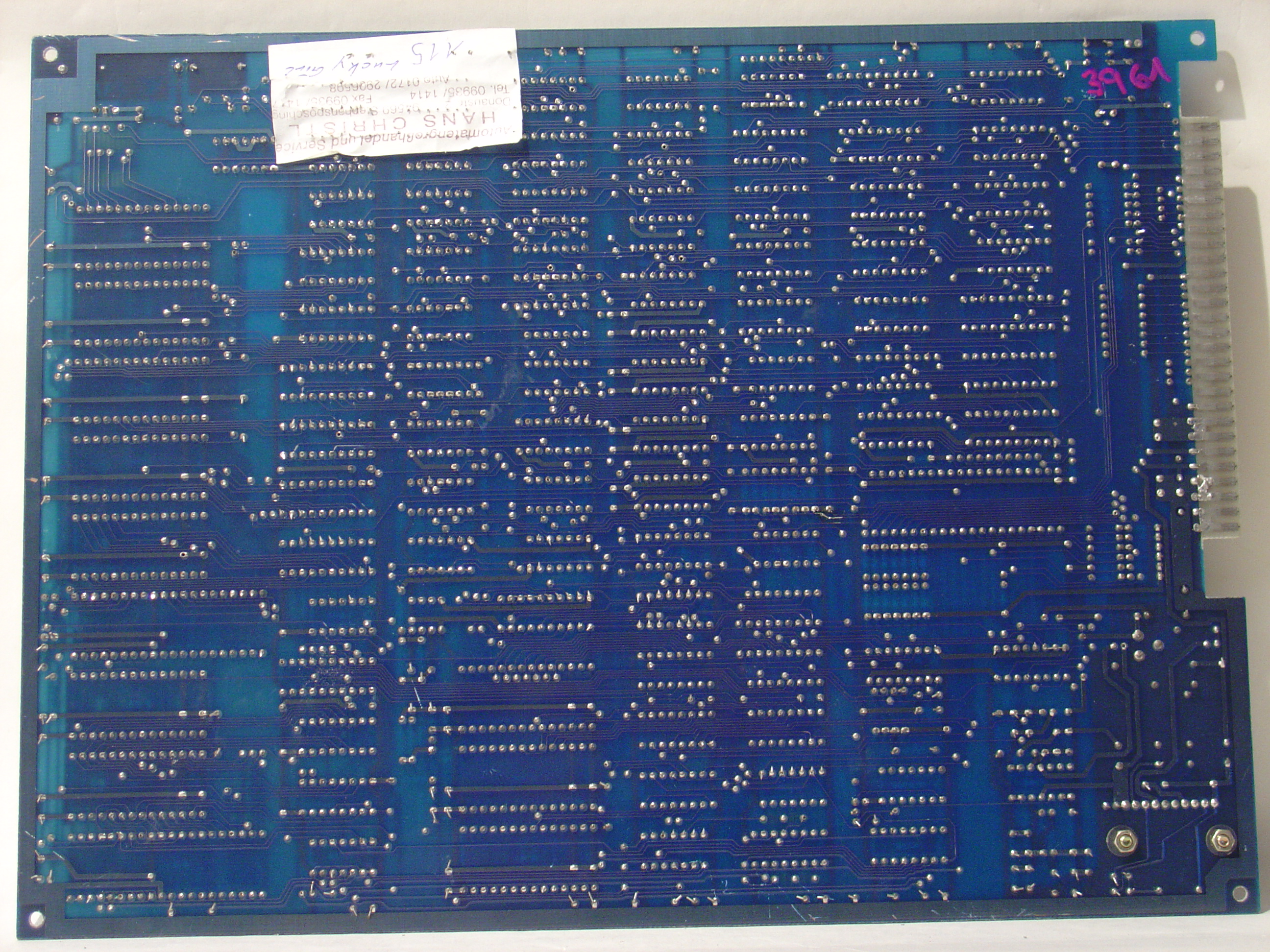

main PCB solder side 1
-

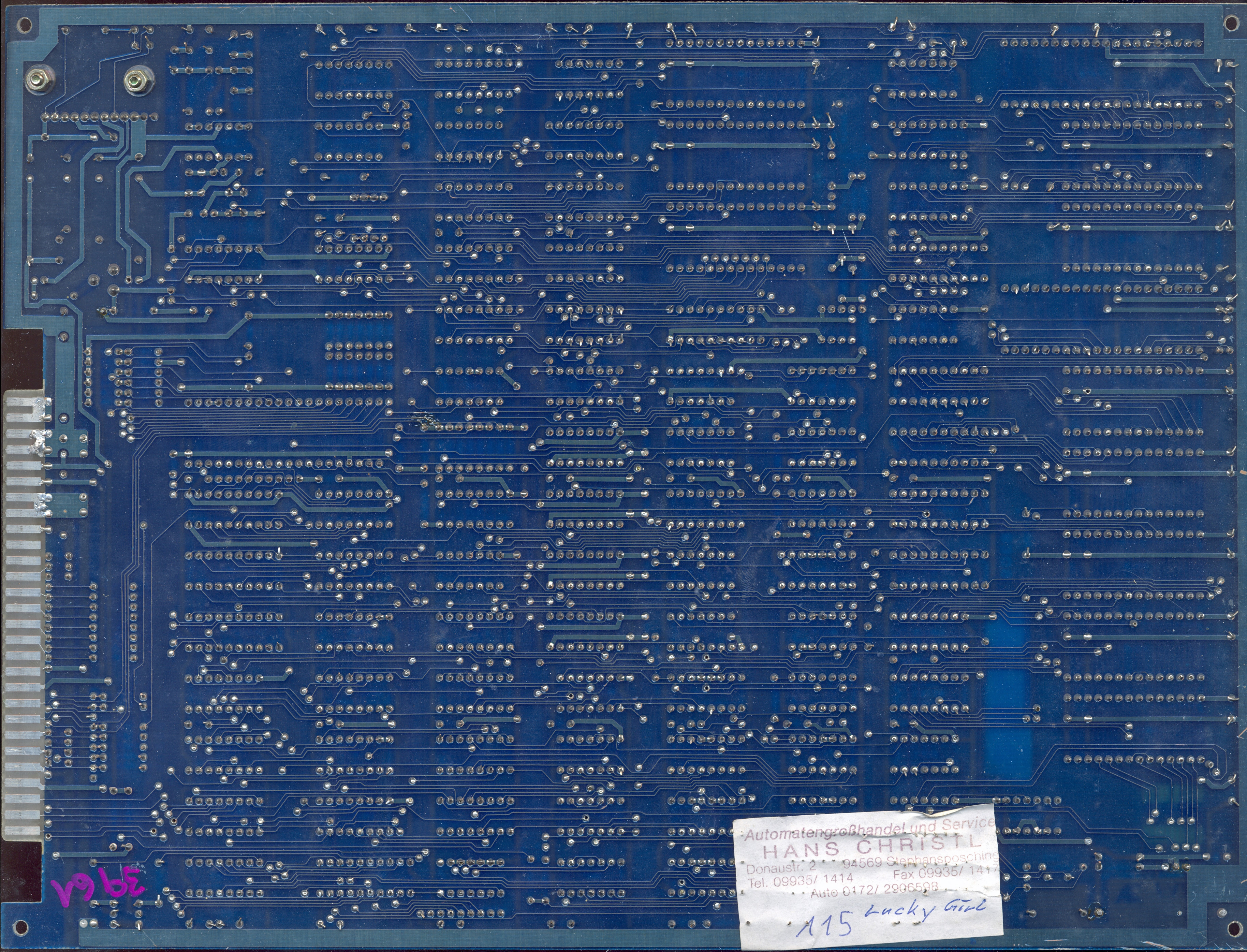

main PCB solder side 2
-

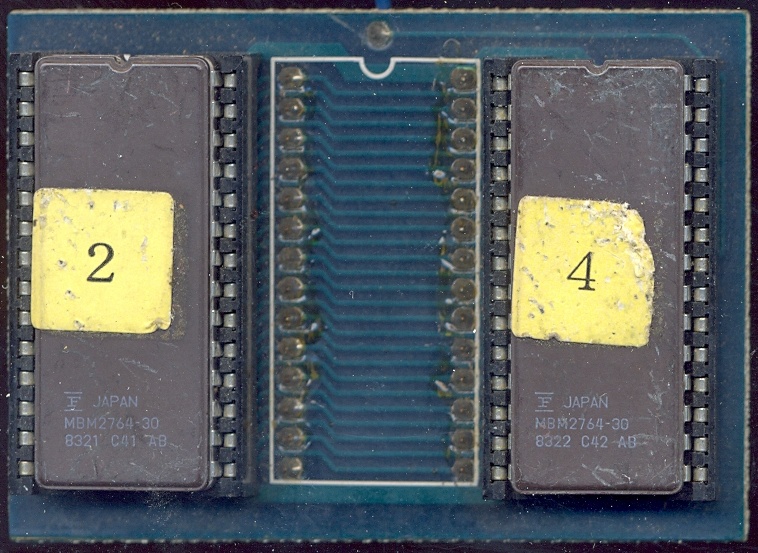

sub PCB component side
-

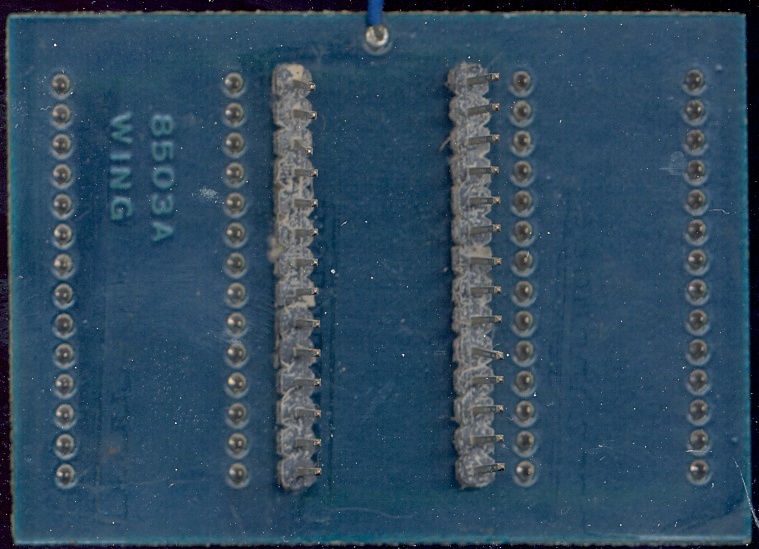

sub PCB solder side
