Latest revision as of 10:49, 7 June 2024

EMU Infos
dumper Guru
date 04/03/2005
emulator MAME 0.94u1
dev smf
PCB Infos
name twcupmil on Arcade Database
description Tecmo World Cup Millennium (Japan)
year 2000
manufacturer Tecmo

Technical references

CPUs

QTY Type clock position function
description as per layout (see below)

ROMs

QTY Type position status
1x MSM534002E main PCB BIOS (SOP40) not dumped
1x AT28C16 main PCB (SOP24) not dumped
2x M27C801 ROMs PCB UO119,UO120 dumped
5x MASKROM ROMs PCB UO216-UO220 dumped

RAMs

QTY Type position
1x M5M44260 main PCB
2x KM4132G271BQ-10 main PCB
8x KM48V514BJ-6 main PCB

PLDs

QTY Type position status
1x EPM7032QC44 main PCB ZN1A read protected
1x unknown (DIP20 mil300) main PCB CAT702 MG01 read protected
1x PALCE16V8 main PCB ZN1A read protected
1x unknown (DIP20 mil300) ROMs PCB CAT702 MG13 read protected

Others

see layout

Notes

PCB layout
2005-02-11
f205v
Original readme made by Guru (unemulated.emuunlim.com)


Main board (Standard ZN1 Main Board with Tecmo BIOS)

EP-GW 307117 COH-1002M
|--------------------------------------------------------|
|  LA4705             |---------------------------|      |
|                     |---------------------------|      |
|    AKM_AK4310VM      AT28C16                           |
|  VOL                                                   |
|       SW1            BIOS                              |
|  TD62064                                               |
|  TD62064        PALCE16V8                              |
|J                                                       |
|                                                        |
|A                EPM7032   M5M44260     CXD2925Q        |
|                                                        |
|M                                                       |
|                                                        |
|M                                                       |
|                KM4132G271BQ-10                         |
|A           DSW                                         |
|                                CXD8561Q    CXD8530CQ   |
|                KM4132G271BQ-10                         |
|CN505  CN506                   53.693MHz    67.737MHz   |
|            CAT702                                      |
|                                                        |
|CN504  CN503                                            |
|                                                        |
|                                                        |
|  NEC_78081G503         KM48V514BJ-6    KM48V514BJ-6    |
|            MC44200FT   KM48V514BJ-6    KM48V514BJ-6    |
|CN651  CN652            KM48V514BJ-6    KM48V514BJ-6    |
|                CN654   KM48V514BJ-6    KM48V514BJ-6    |
|--------------------------------------------------------|
Notes:
      CN506 - Connector for optional 3rd player controls
      CN505 - Connector for optional 4th player controls
      CN503 - Connector for optional 15kHz external video output (R,G,B,Sync, GND)
      CN504 - Connector for optional 2nd speaker (for stereo output)
      CN652 - Connector for optional trackball
      CN651 - Connector for optional analog controls
      CN654 - Connector for optional memory card
      SW1   - Slide switch for stereo or mono sound output
      DSW   - Dip switch (4 position, defaults all OFF)

      BIOS           - COH1002M.353, Tecmo ZN1 BIOS, 4MBit MaskROM type M534002 (SOP40)
      AT28C16        - Atmel AT28C16 2K x8 EEPROM
      M5M44260       - 256K x16 (4MBit) DRAM
      KM4132G271BQ-10- 128K x32 x2 banks (32MBit) SGRAM
      KM48V514BJ-6   - 512k x8 (4MBit) DRAM
      EPM7032        - Altera EPM7032QC44-15 CPLD labelled 'ZN1A' (QFP44)
      CAT702         - Protection chip labelled 'MG01' (DIP20)
      PALCE16V8      - PAL, labelled 'ZN1A' (PLCC20)



Game board without sound

Tecmo TPS1-7-130109
|--------------------------------------|
|    |---------------------------|     |
|    |---------------------------|     |
|       GAL16V8D    CAT702             |
|              TWM-EP.119  TWM-EP.120  |
|                                      |
|                                      |
|                                      |
|                                      |
|                                      |
|                                      |
|  TWM-4.220   TWM-2.218   TWM-0.216   |
|      TWM-3.219     TWM-1.217         |
|                                      |
|                                      |
|                                      |
|                                      |
|                                      |
|                                      |
|                                      |
|                                      |
|                                      |
|                                      |
|                                      |
|                                      |
|                                      |
|                                      |
|                                      |
|--------------------------------------|
Notes:
      There are many unpopulated positions on this game board. This game only contains
      the following parts...
      PAL16V8D labelled 'SOPROM1'
      CAT702 Protection chip labelled 'MG13' (DIP20)
      3 logic chips
      2x 4MBit EPROMs labelled 'TWM-EP U0119' and 'TWM-EP U0120'
      5x 32MBit smt SOP44 MASKROMs labelled 'TWM-4', 'TWM-3', 'TWM-2', 'TWM-1' & 'TWM-0'. There is space
      for 10 more 32MBit smt SOP44 MASKROMs.

Files

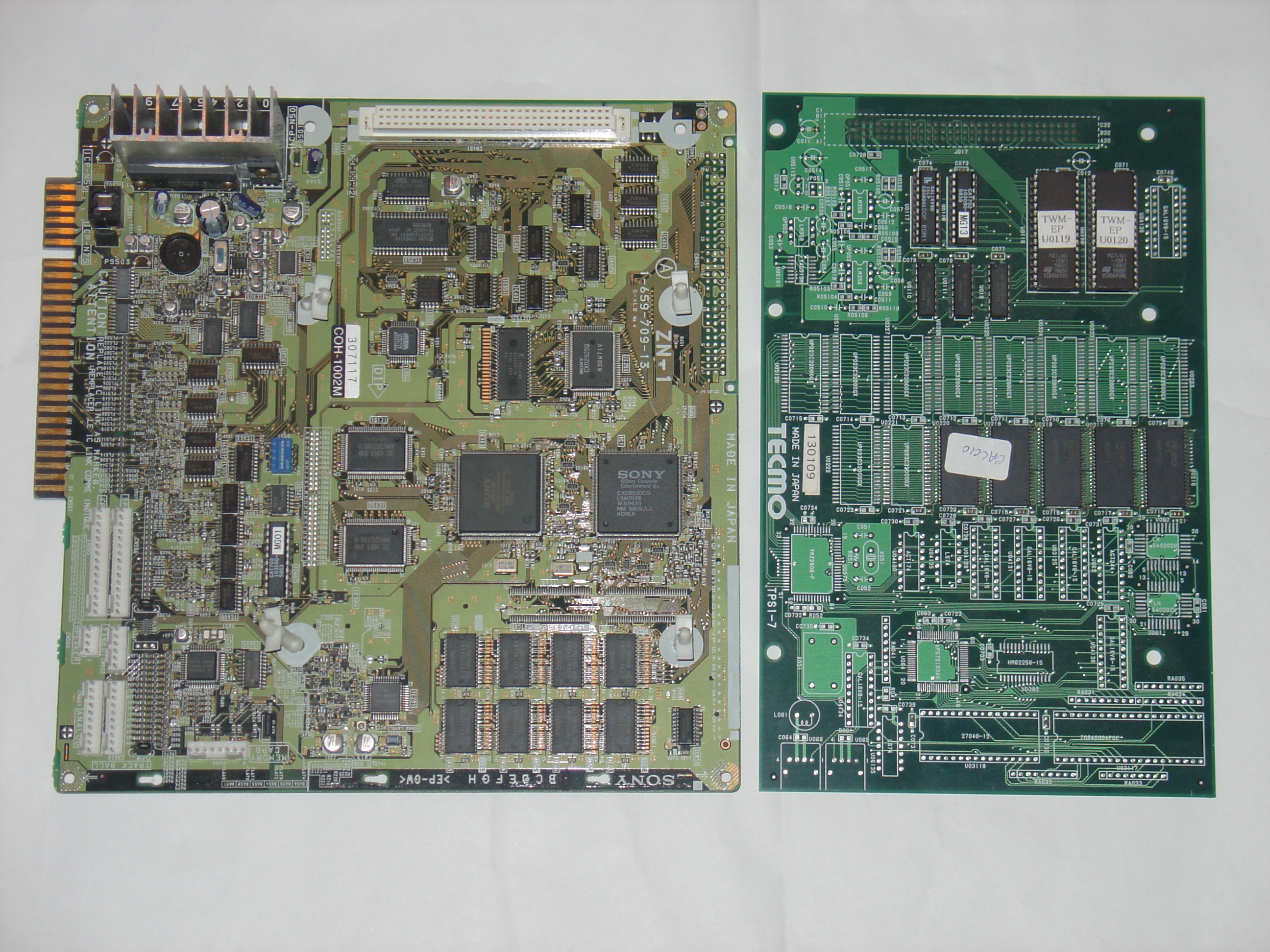

  • PCBs component side

    PCBs component side

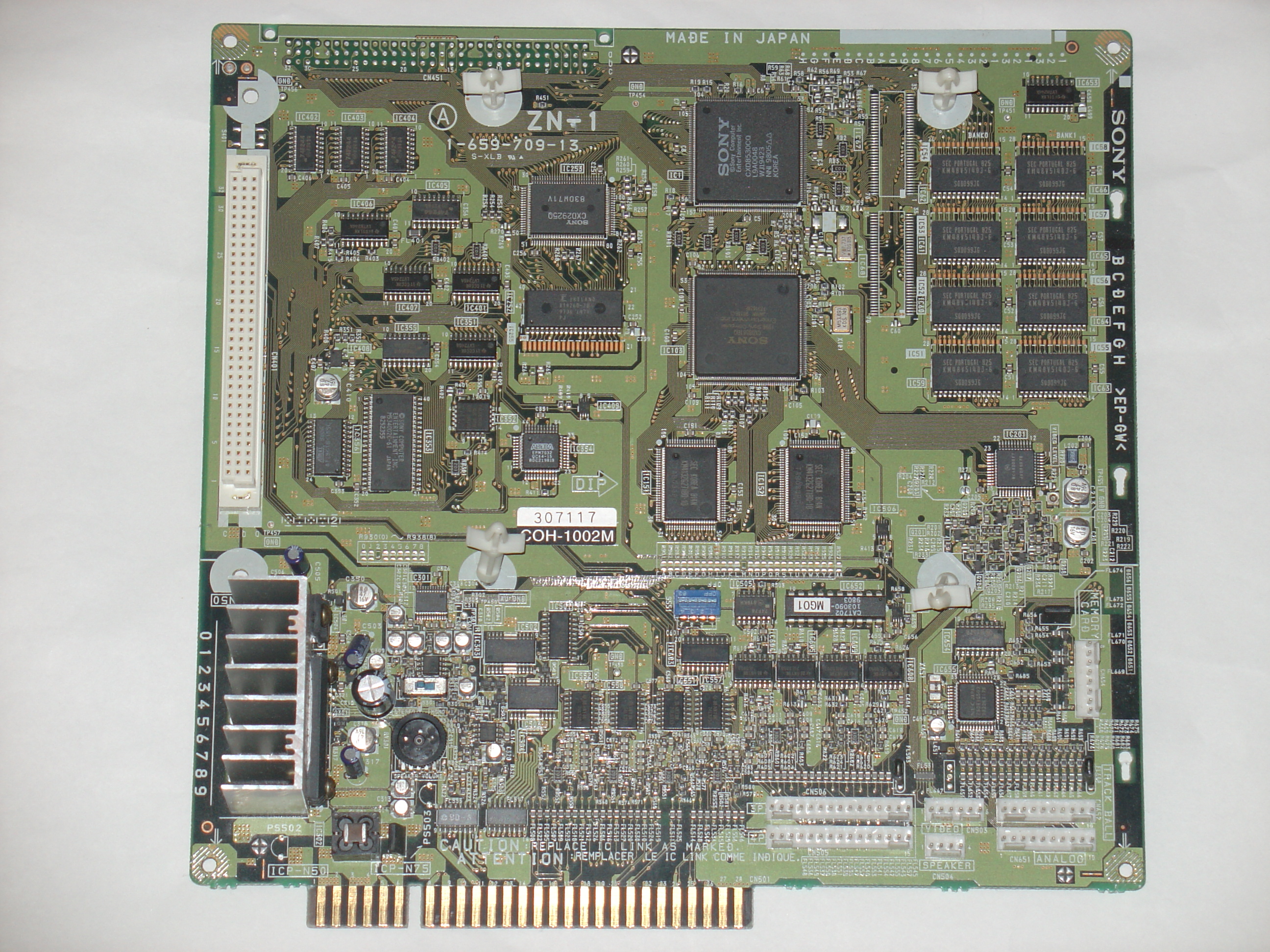

  • main PCB component side

    main PCB component side

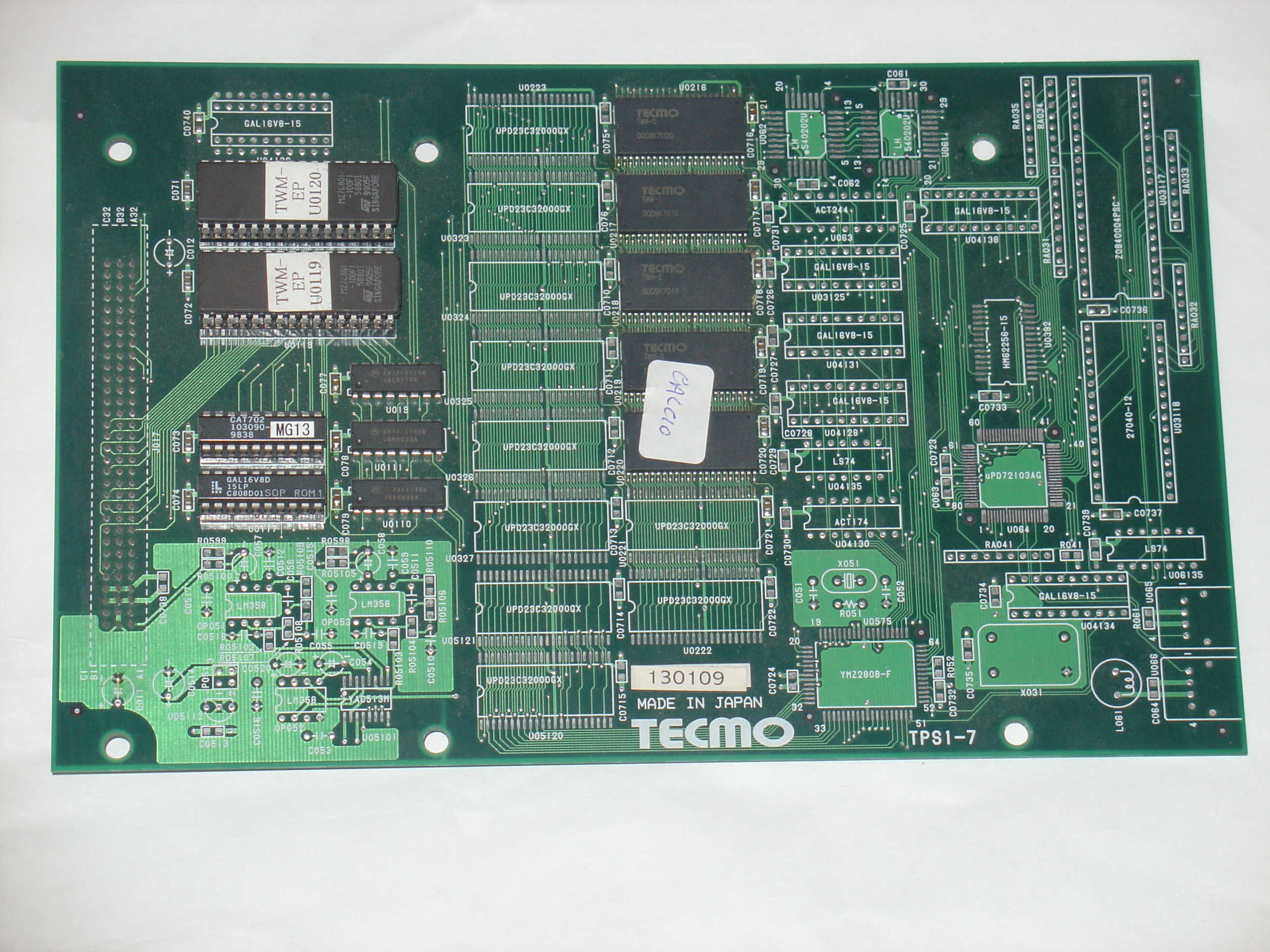

  • ROMs PCB component side

    ROMs PCB component side

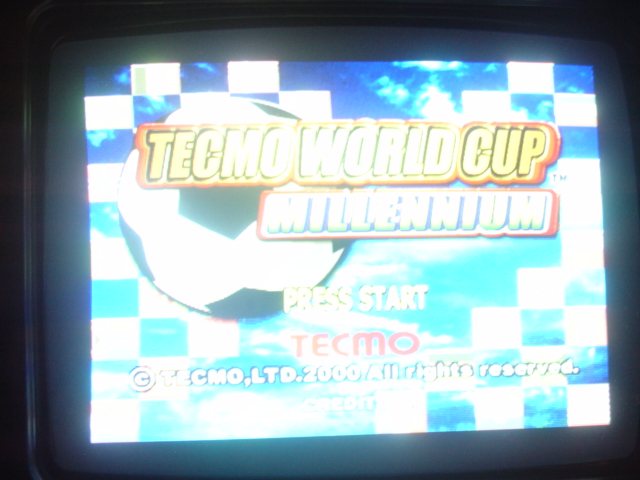

  • Title

    Title

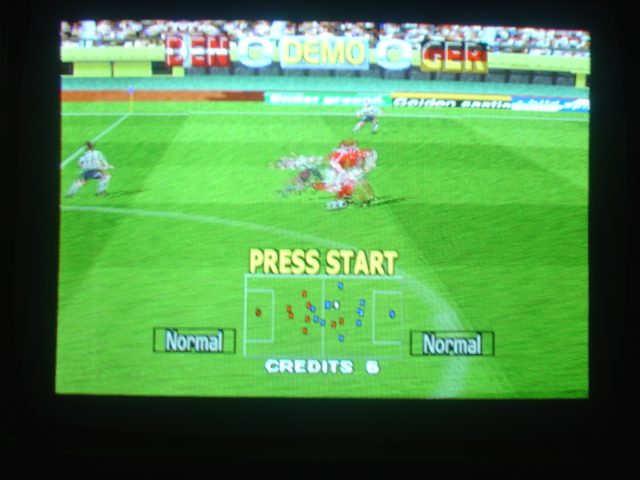

  • In game

    In game

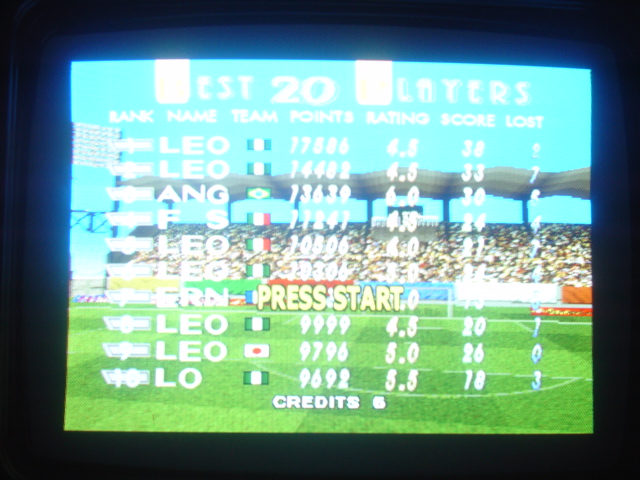

  • Hiscore

    Hiscore

  • Layout

    Layout
