Revision as of 14:46, 3 December 2023
| dumper | f205v |
| date | 31/07/2006 |
| emulator | MAME 0.180 |
| dev | Osso |
| name | roadfh on ProgettoEMMA roadfh on Arcade Database |
| description | Road Fighter (bootleg GX330 conversion) |
| year | 1984 |
| manufacturer | Konami |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 5x | Custom chips (DIL28) Konami | on board PWB(A)2000146B | ||
| 2x | Custom chips (DIL24) | on board PWB(A)2000146B | ||
| 1x | oscillator | 18432 KHz | on board PWB(A)2000146B | |
| 1x | Custom chips (DIL42) Konami | on board PWB(B)2000147C | ||
| 1x | Custom chips (DIL42) | on board PWB(B)2000147C | ||
| 3x | Custom chips (DIL24) | on board PWB(B)2000147C | ||
| 1x | oscillator | 14.31818 MHz | on board PWB(B)2000147C | |
| 1x | oscillator | unmarked | on board PWB(B)2000147C |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 10x | TMS2764J | on board PWB(A)2000146B | dumped |
| 2x | 82S129 | on board PWB(A)2000146B | dumped |
| 1x | TMS2764J | sound on board PWB(B)2000147C | dumped |
| 3x | TMS27128J | on board PWB(B)2000147C | dumped |
| 1x | 6331 | on board PWB(B)2000147C | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 18x2 edge connector (on board PWB(B)2000147C)
1x trimmer (volume) (on board PWB(B)2000147C)
2x 8 DIP switches banks (on board PWB(B)2000147C)
Notes
Files
-

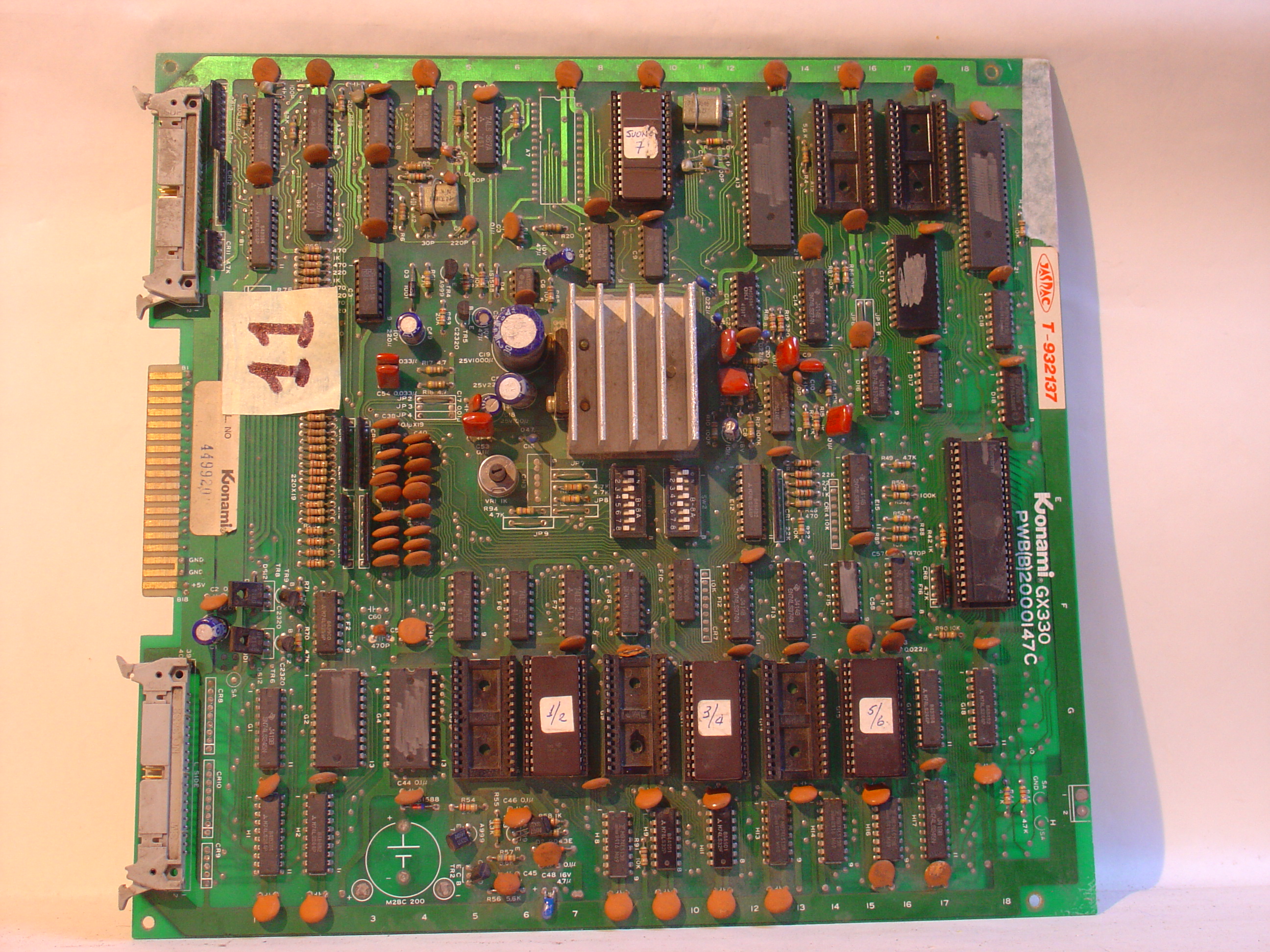

main PCB component side
-

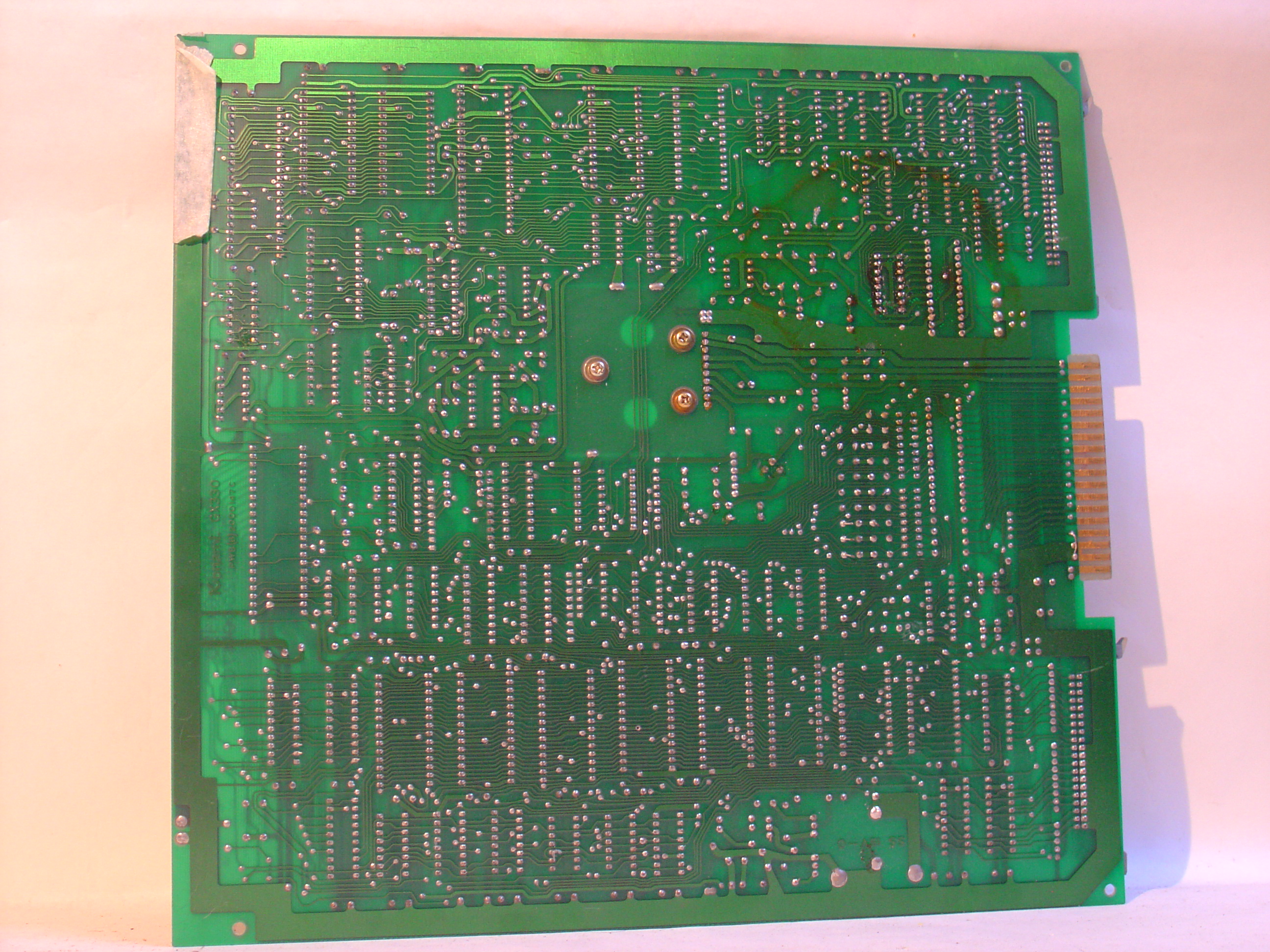

main PCB solder side
-

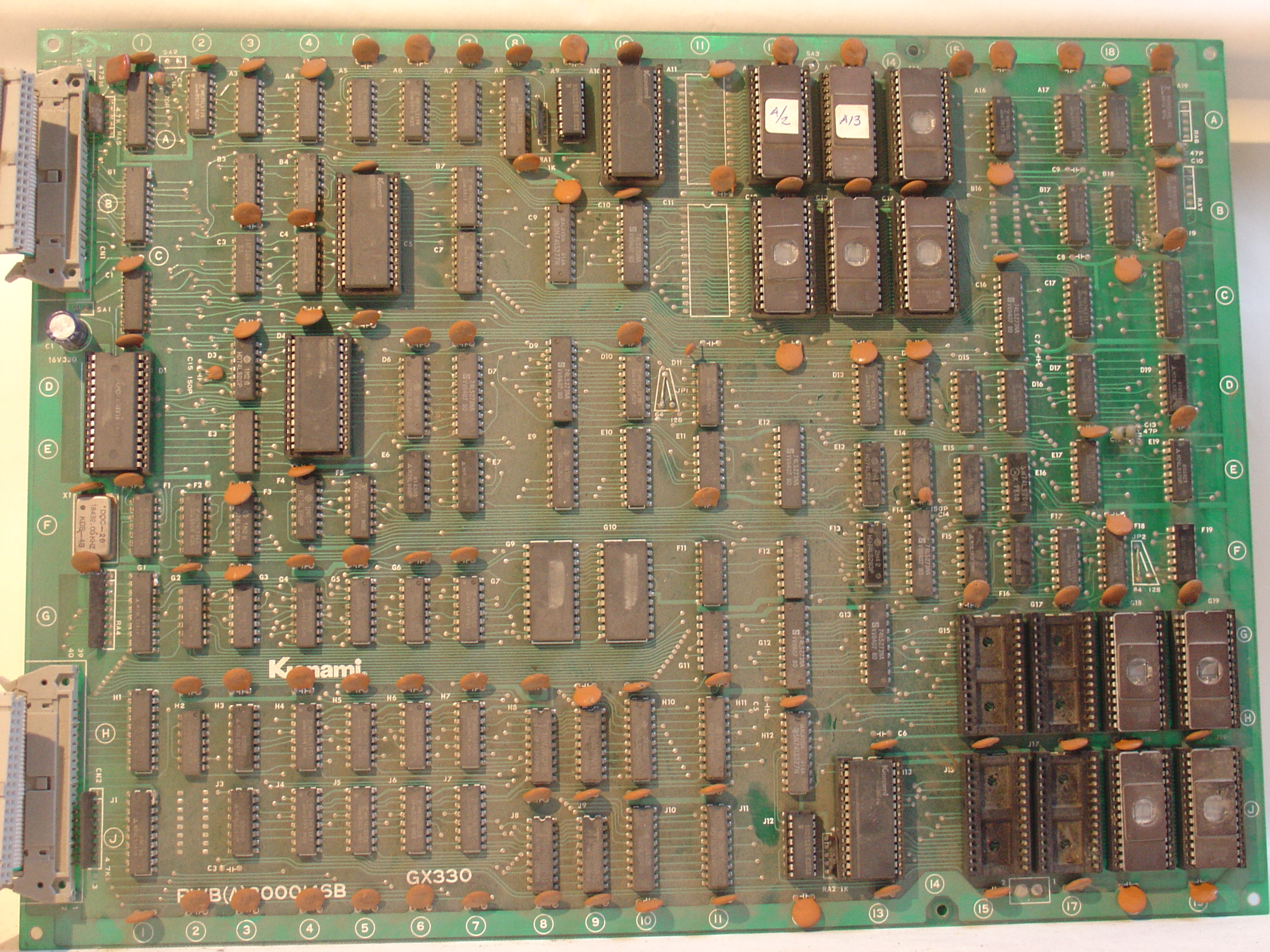

ROMs PCB component side
-

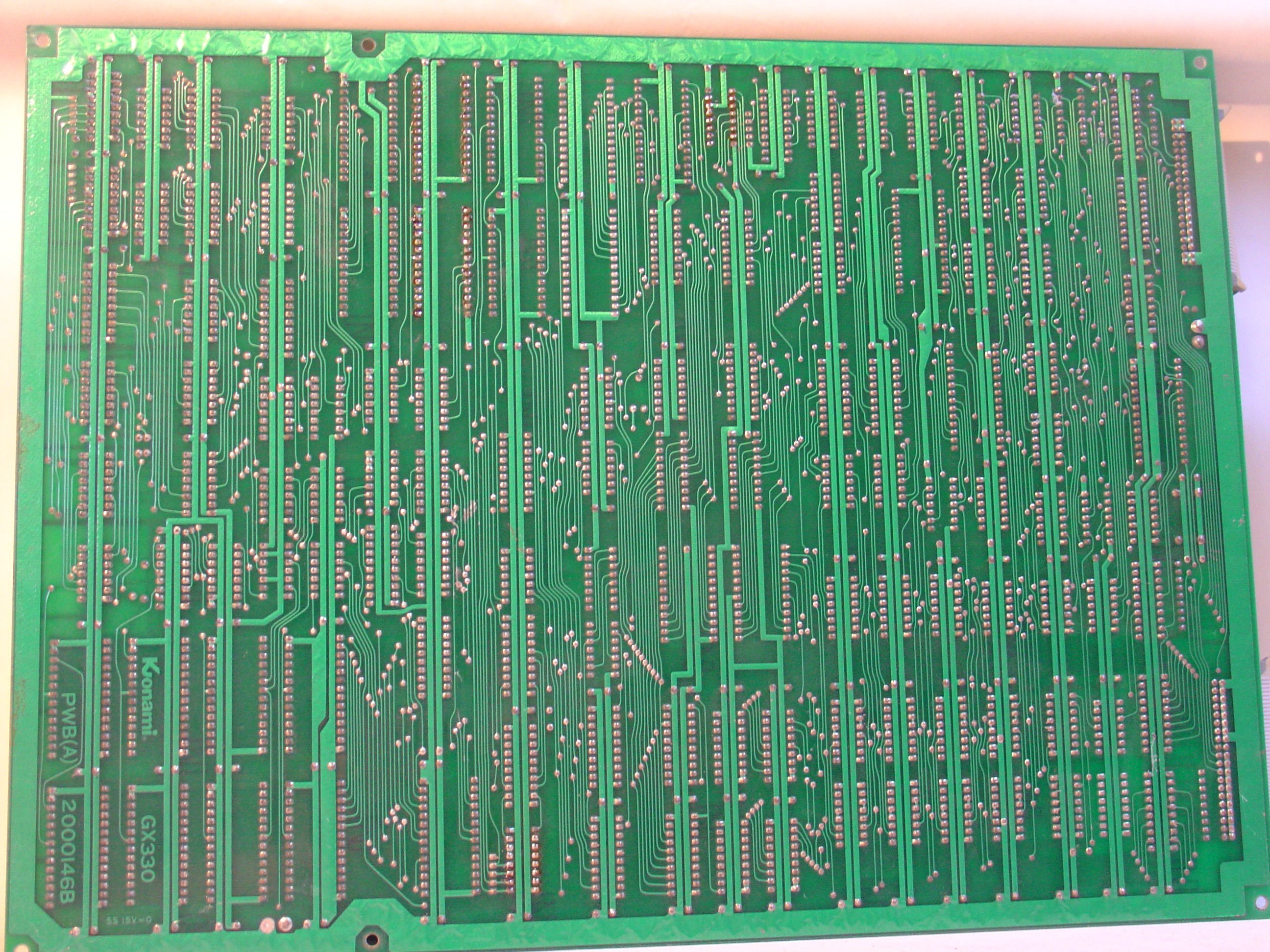

ROMs PCB solder side
