| dumper | Tirino73, MAME Italia Forum |
| date | 14/08/2008 |
| emulator | MAME 0.127 |
| dev | David Haywood |
| name | redhawki on ProgettoEMMA redhawki on Arcade Database |
| description | Red Hawk (horizontal, Italy) |
| year | 1997 |
| manufacturer | Afega / Hae Dong Corp |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 68000P10 | 16/32-bit Microprocessor - main | ||
| 1x | Z80B | 8-bit Microprocessor - sound | ||
| 1x | OKI6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | YM2151 | FM Operator Type-M (OPM) - sound | ||
| 1x | YM3012 | D/A Converter (DAC) - sound | ||
| 1x | oscillator | 12.000MHz | ||
| 1x | oscillator | 4.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 27C512 | 2,3 | dumped |
| 3x | 27C020 | 4,6,7 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | ispLSI1032 | read protected |
Others
1x 28x2 JAMMA edge connector
Notes
This romset comes from an original PCB produced by Afega.
Differences are: Booting notice screen with string "in italy only", title screen with logo and Haedong Corp. Sprite added.
Files
-

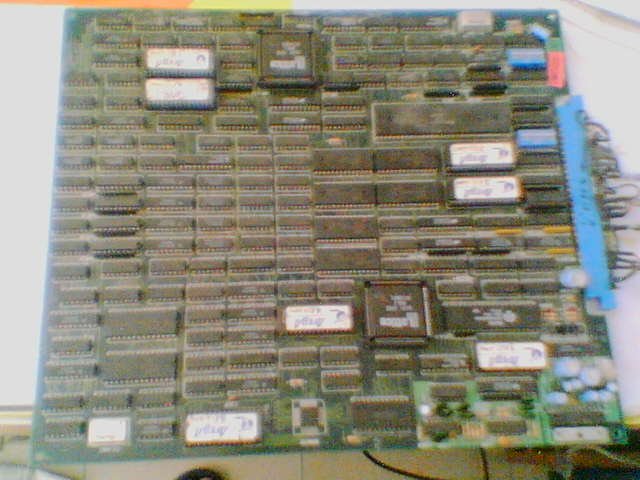

PCB component side
-
Readme
