EMU Infos
dumper f205v
date 03/03/2005
emulator MAME 0.78
dev Norbert Kehrer
PCB Infos
name supertnk on ProgettoEMMA
supertnk on Arcade Database
description Super Tank
year 1981
manufacturer Video Games GmbH

Technical references

CPUs

QTY Type clock position function
1x TMS9980ANL main PCB 8B 16-bit Microprocessor - main
1x AY-3-8910 sound PCB (missing) Programmable Sound Generator - sound
1x oscillator SKY 20.790 main PCB 10B

ROMs

QTY Type position status
1x TMS2716JL main PCB 2D dumped
4x TMS2732 main PCB 3D,4D,8D,9D dumped
3x TBP18S03N video PCB 1A,7C,8C dumped

RAMs

QTY Type position
2x TMS2114-45ML main PCB 2C,3C
12x F16K4DC or TMS411620N video PCB D4-D9,E4-E9

PLDs

QTY Type position status
0x

Others

1x 37x2 edge connector (main PCB)
1x 37x2 edge connector (video PCB)
1x trimmer (volume) (sound PCB missing)
2x 8 DIP switches banks (sound PCB missing)

Notes

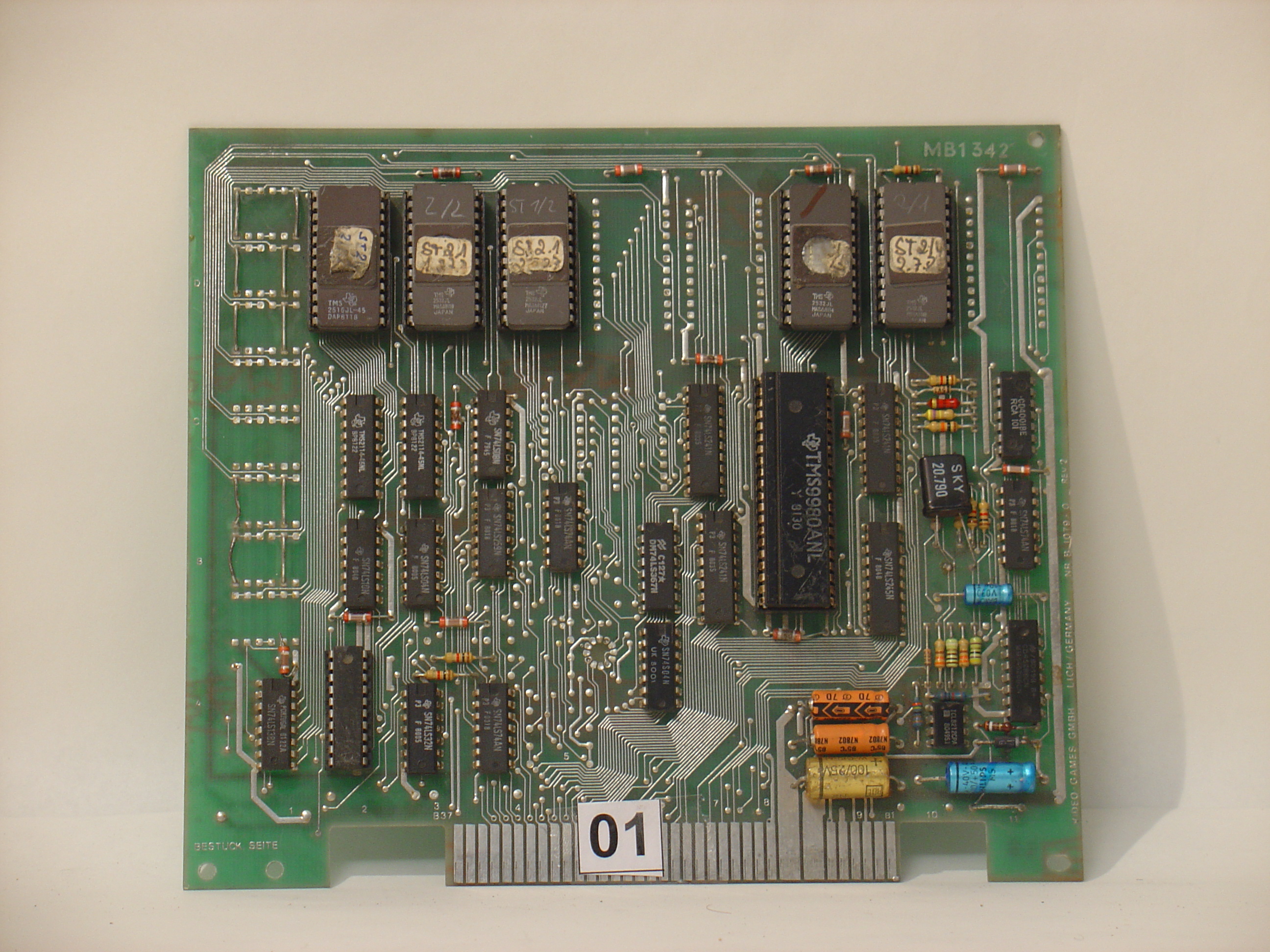

main PCB is marked: "BESTUCK SEITE", "VIDEO GAMES GMBH LICH/GERMANY", "MB1342" and "NR B 1079-0 REV2" on component side

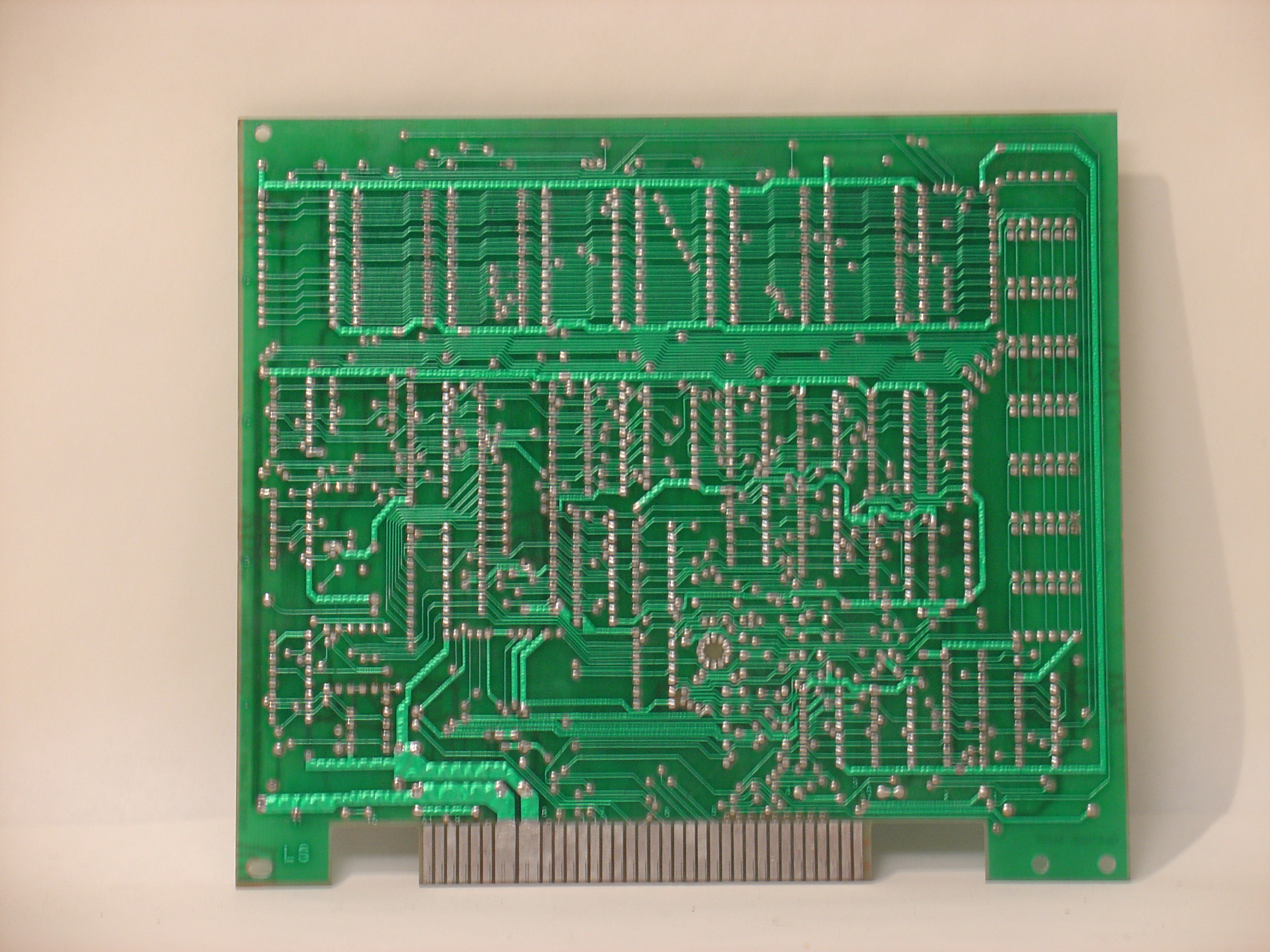

main PCB is marked: "LS" on solder side

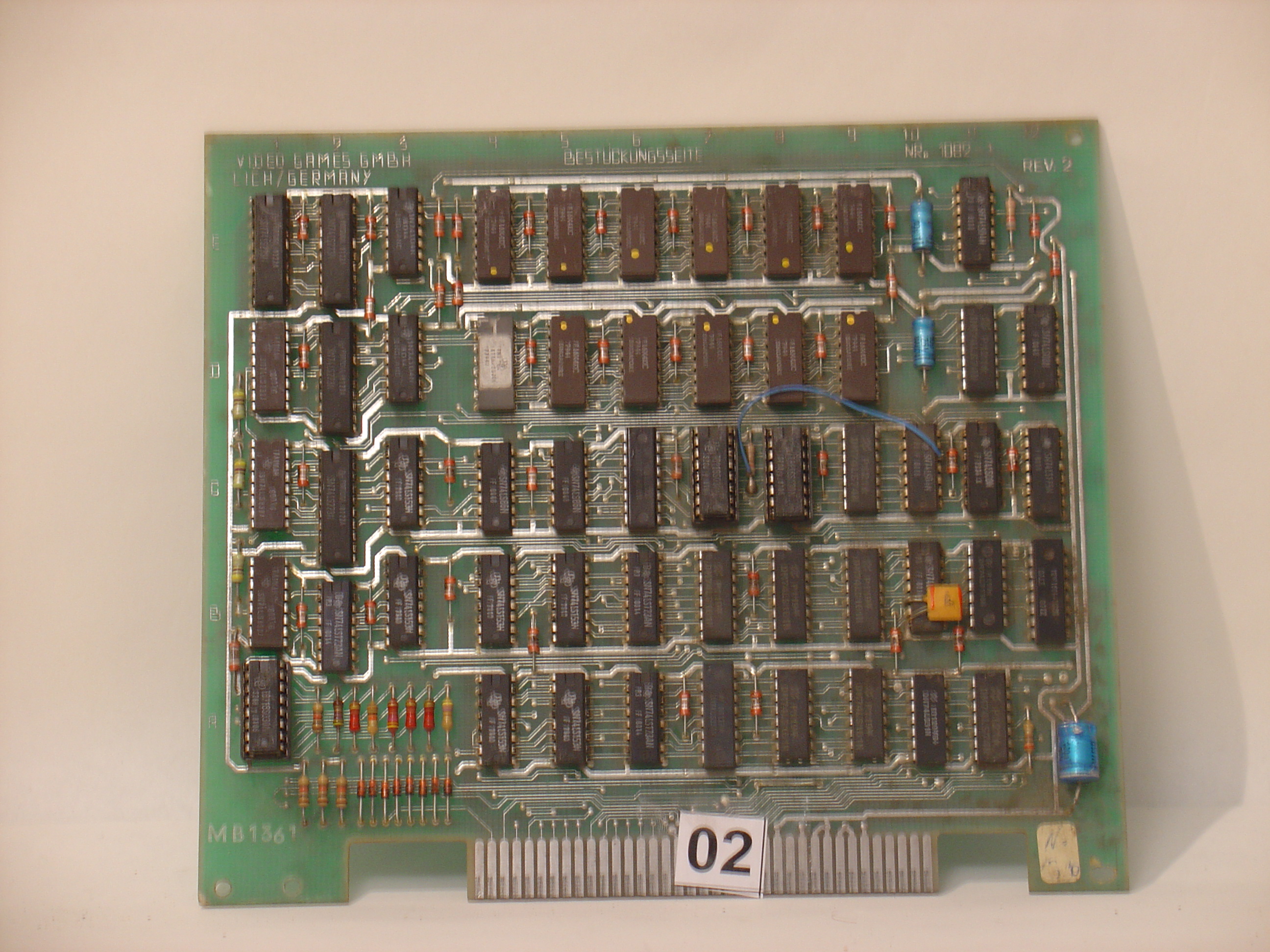

video PCB1 is marked: "BESTUCKUNGSSEITE", "VIDEO GAMES GMBH LICH/GERMANY", "MB1361" and "NR. 1082-1 REV.2" on component side

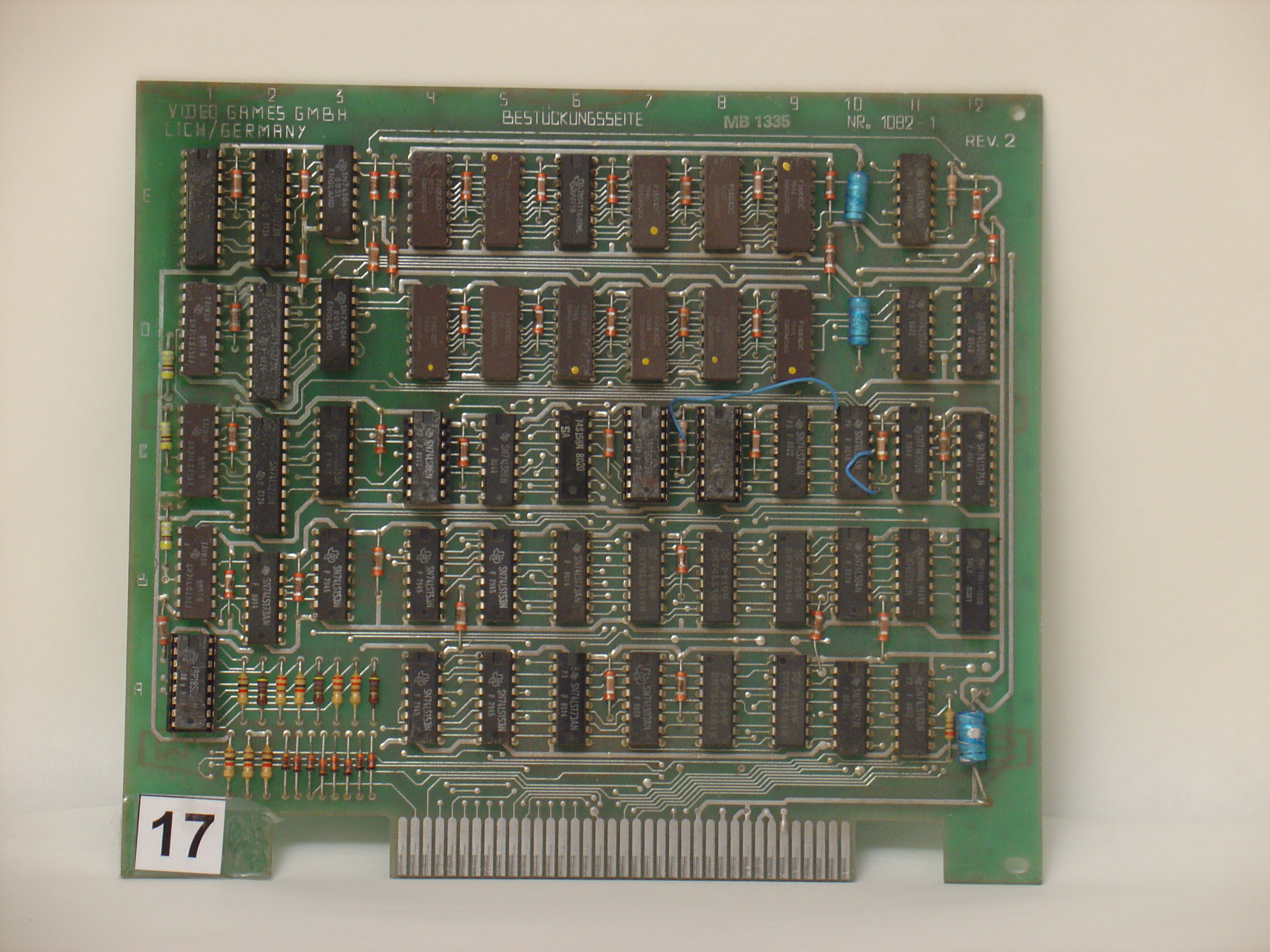

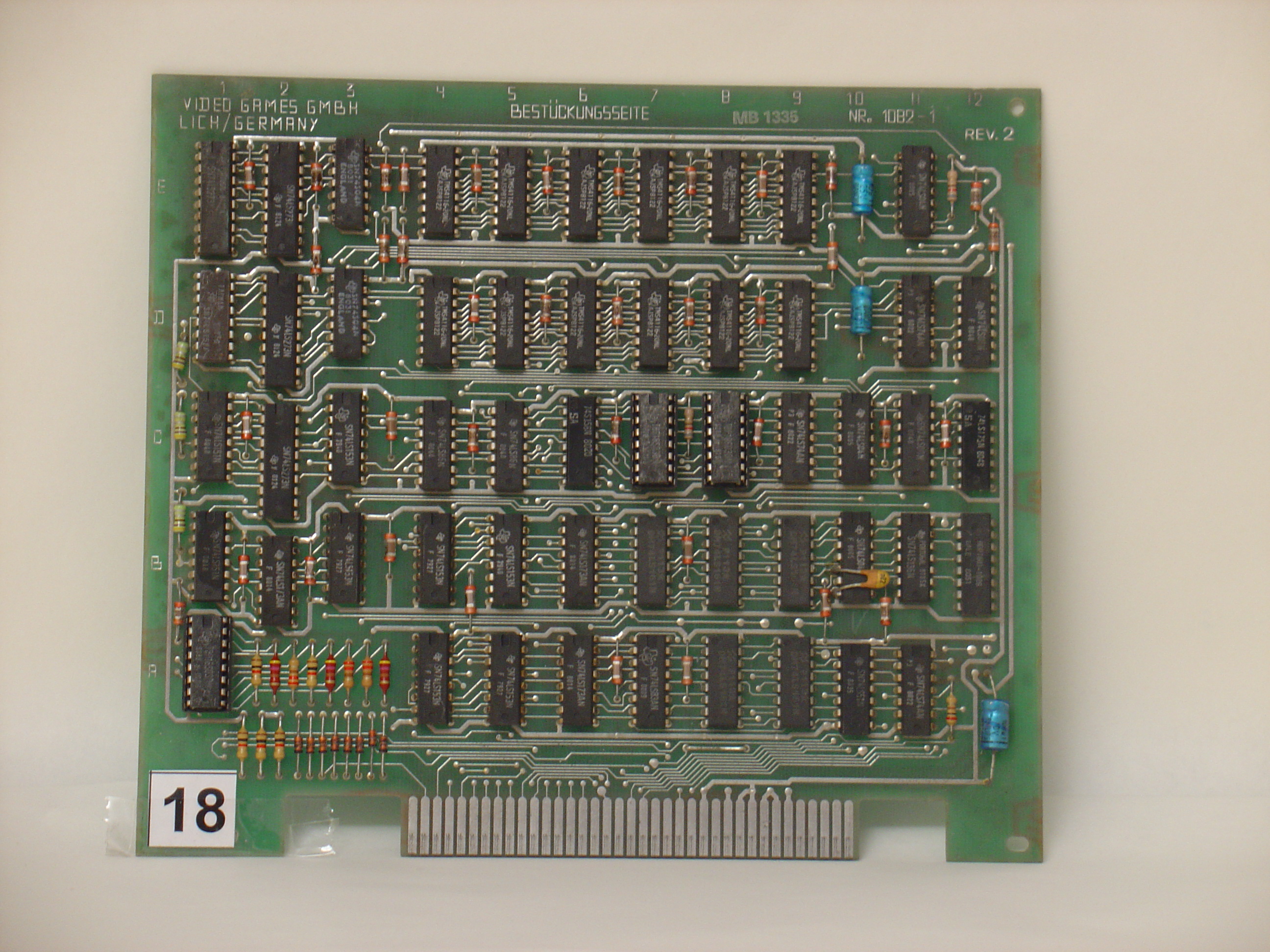

video PCB2, PCB3 are marked: "BESTUCKUNGSSEITE", "VIDEO GAMES GMBH LICH/GERMANY", "MB1335" and "NR. 1082-1 REV.2" on component side

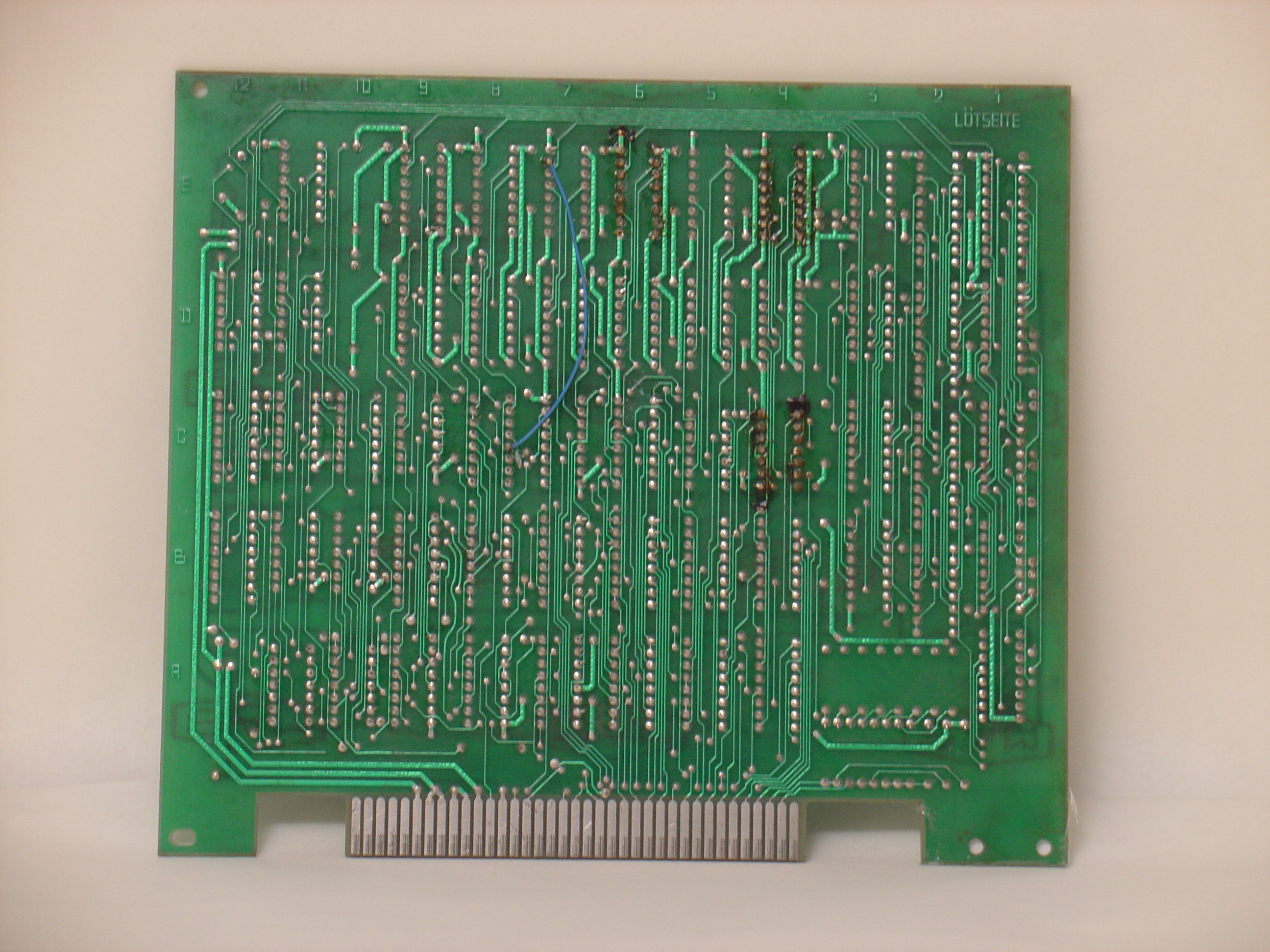

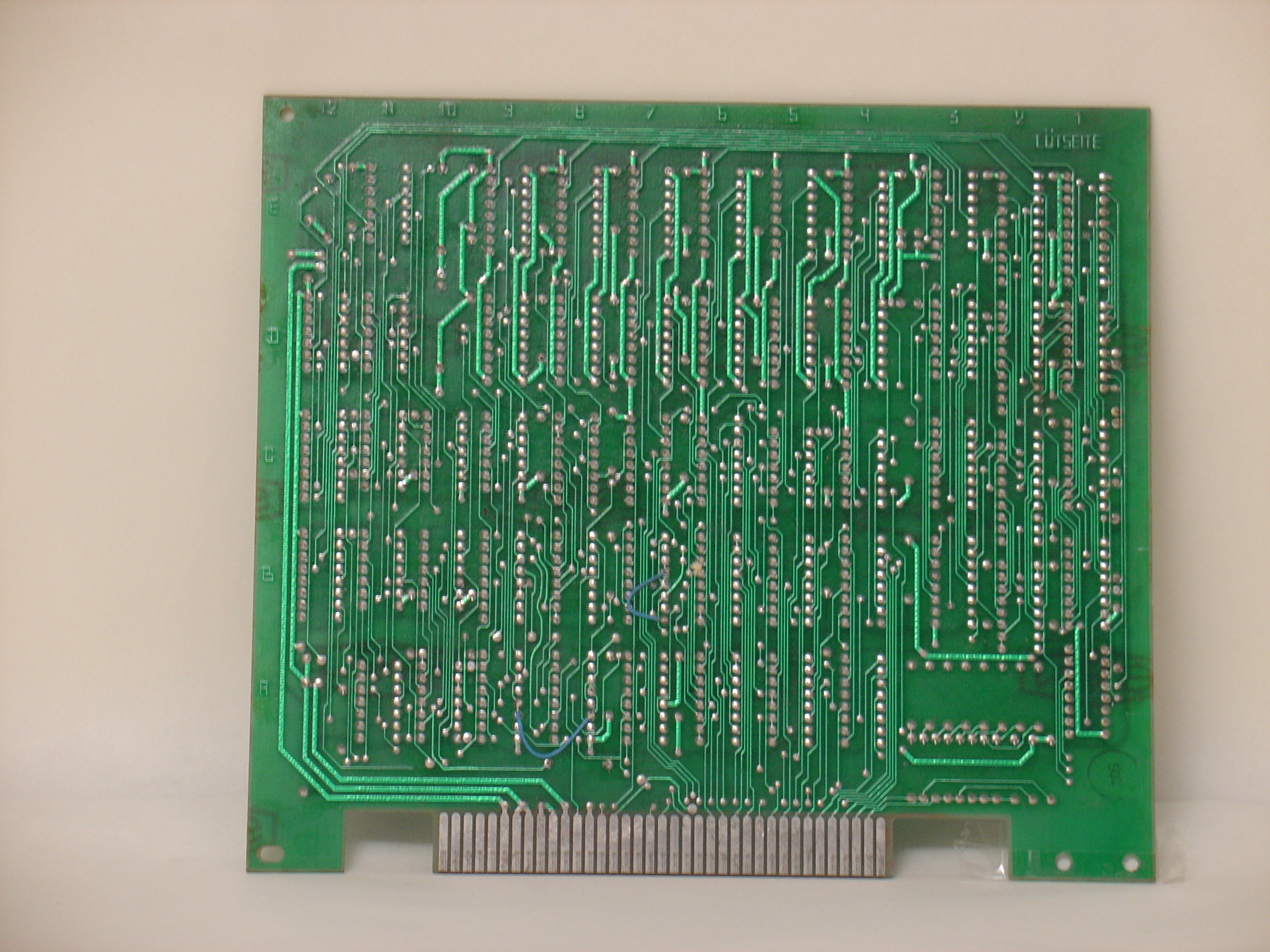

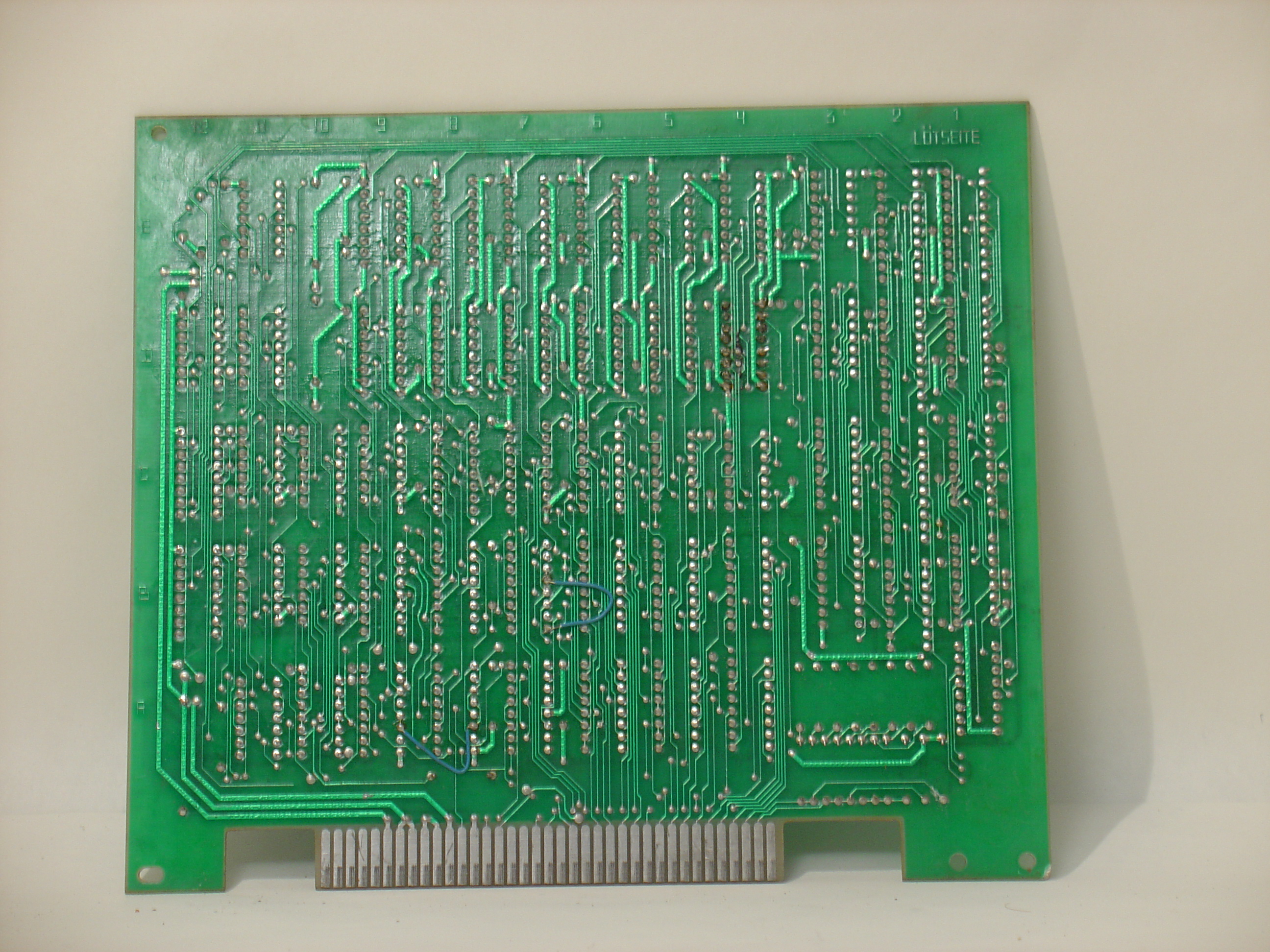

video PCBs are marked: "LOTSEITE" on solder side


The alternative PROM dump comes from video PCB2
Sound PCB is missing.


update 20210111: better description

Files
