Latest revision as of 17:35, 1 November 2020
| dumper | f205v |
| date | 01/11/2020 |
| emulator | MAME 0.153 |
| dev | Roberto Fresca, ANY |
| name | pool10h on ProgettoEMMA pool10h on Arcade Database |
| description | Pool 10 (Italian, set 7) |
| year | 1996 |
| manufacturer | C.M.C. |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | R65C02P2 | 1.999MHz(@37) - 1.999MHz(@39) | 8-bit Microprocessor - main | |
| 1x | MC68B45P | 1.999MHz(@21) - 15.99kHz(@39) - 62.47Hz(@40) | CRT Controller (CRTC) | |
| 2x | EF6821P | - | Peripheral Interface Adapter | |
| 1x | WF19054 | 1.999MHz(@22) | Programmable Sound Generator - sound | |
| 1x | TDA2003 | - | Audio Amplifier - sound | |
| 1x | oscillator | 16.000000MHz | os1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | TMS27C256 | dumped | |
| 1x | AM27S29PC | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | U6264DC 07L | |
| 1x | GM76C28A-10 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PALCE20V8H-25PC/4 | read protected | |
| 1x | PALCE16V8H-25PC/4 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
1x 8 DIP switches bank (SW1)
1x battery 3.6V
Notes
Not working
PCB is marked: "PY-10" and "COMP" on component side
PCB is marked: "SOLD" on solder side
Files
-

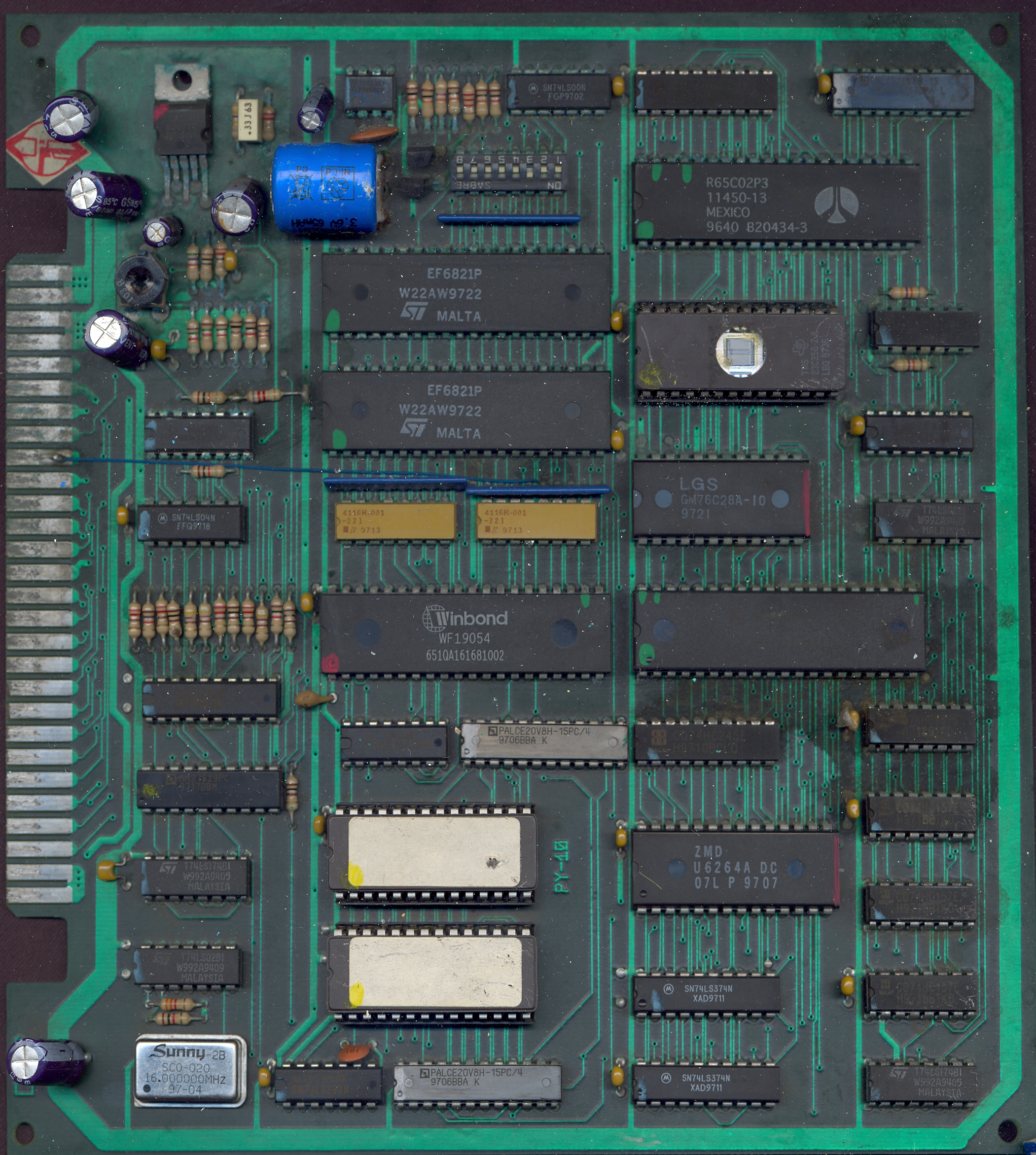

PCB component side
-

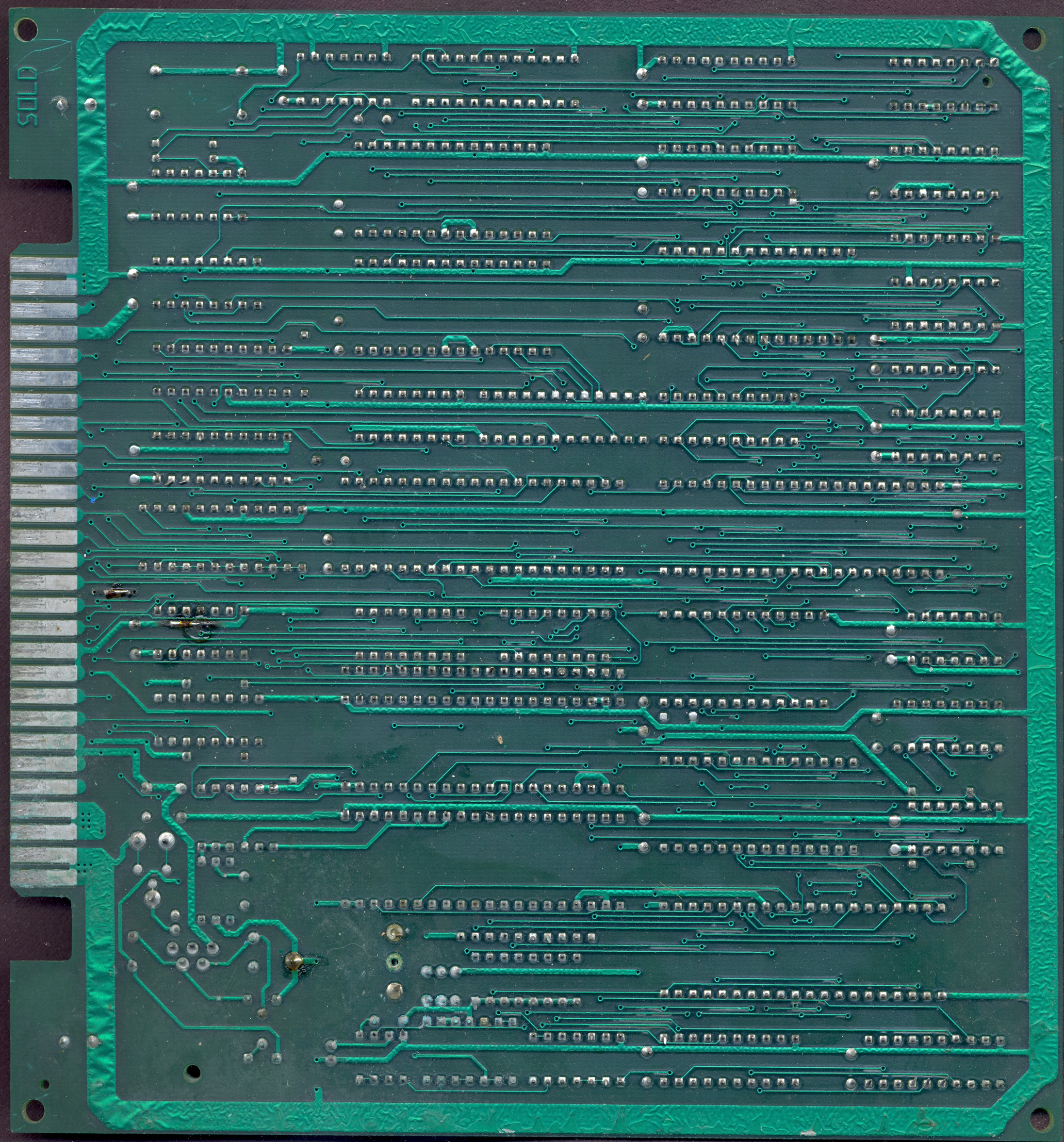

PCB solder side
