Revision as of 15:13, 17 October 2020
| dumper | f205v |
| date | 10/11/2018 |
| emulator | MAME 0.204 |
| dev | Osso |
| name | elsygame on ProgettoEMMA elsygame on Arcade Database |
| description | unknown Elsy game |
| year | 2002 |
| manufacturer | Elsy |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | unknown quad SMT chip etched "ELSY" | main | ||
| 1x | M30624FGAFP | 16-bit Single-Chip Microcomputer - main (internal ROM not dumped) | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 40.000 | ||
| 1x | oscillator | R100YXA62 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | HY29LV160BT | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | HY628100BLG_70-70W |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 28x2 JAMMA edge connector
1x 50 pins flat cable connector
1x 4 pins black connector
1x RS232 connectors
1x 8 DIP switches bank
1x battery 3.6V
1x battery 5.5V
Notes
PCB is marked: "ELSY CE" and "2-0291" on component side
PCB is labelled: "Fruit Diamont", "3", "G09004 Ver.1.6" and "TEST OK 02/46" on component side
Files
-

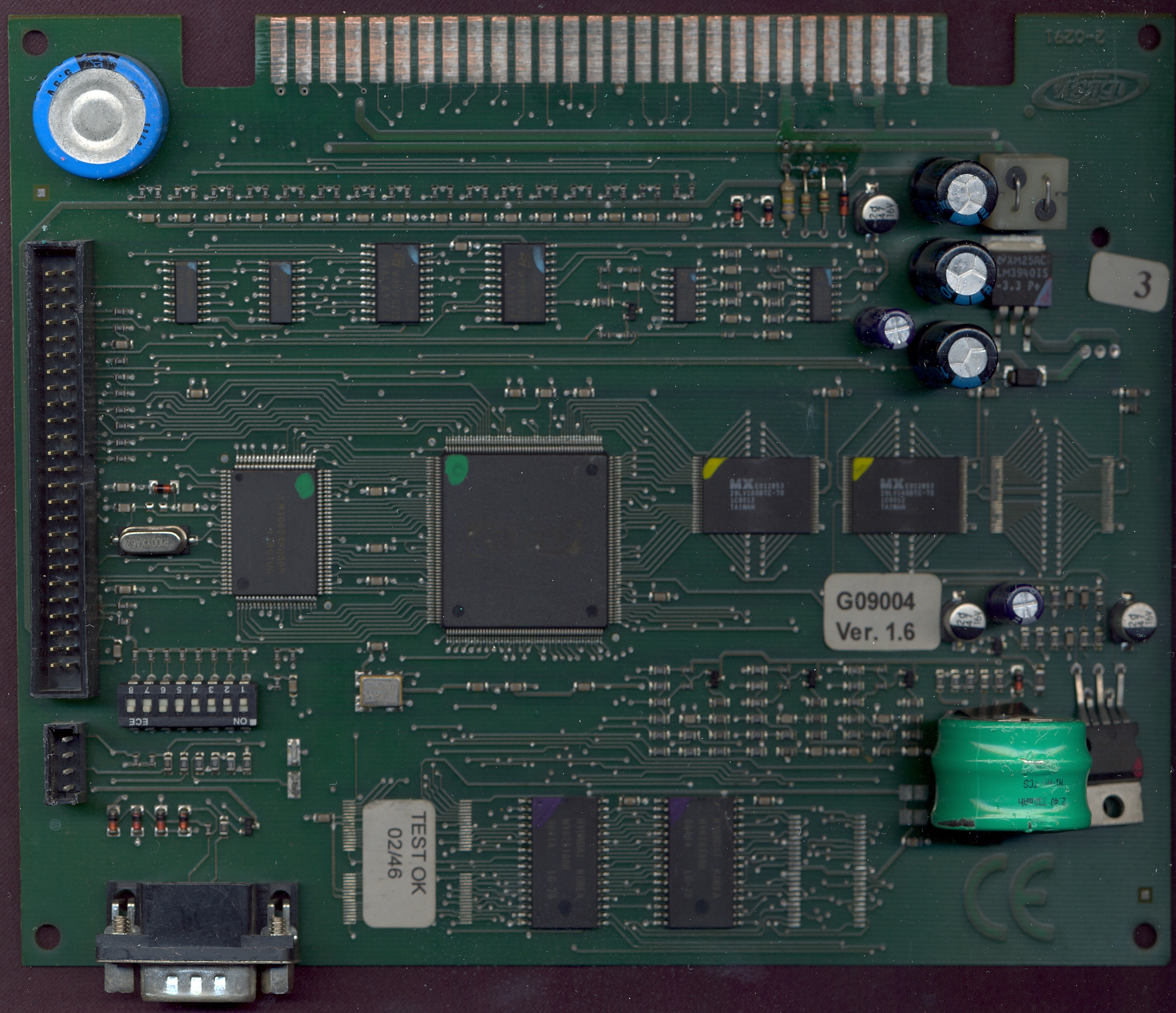

PCB component side
-

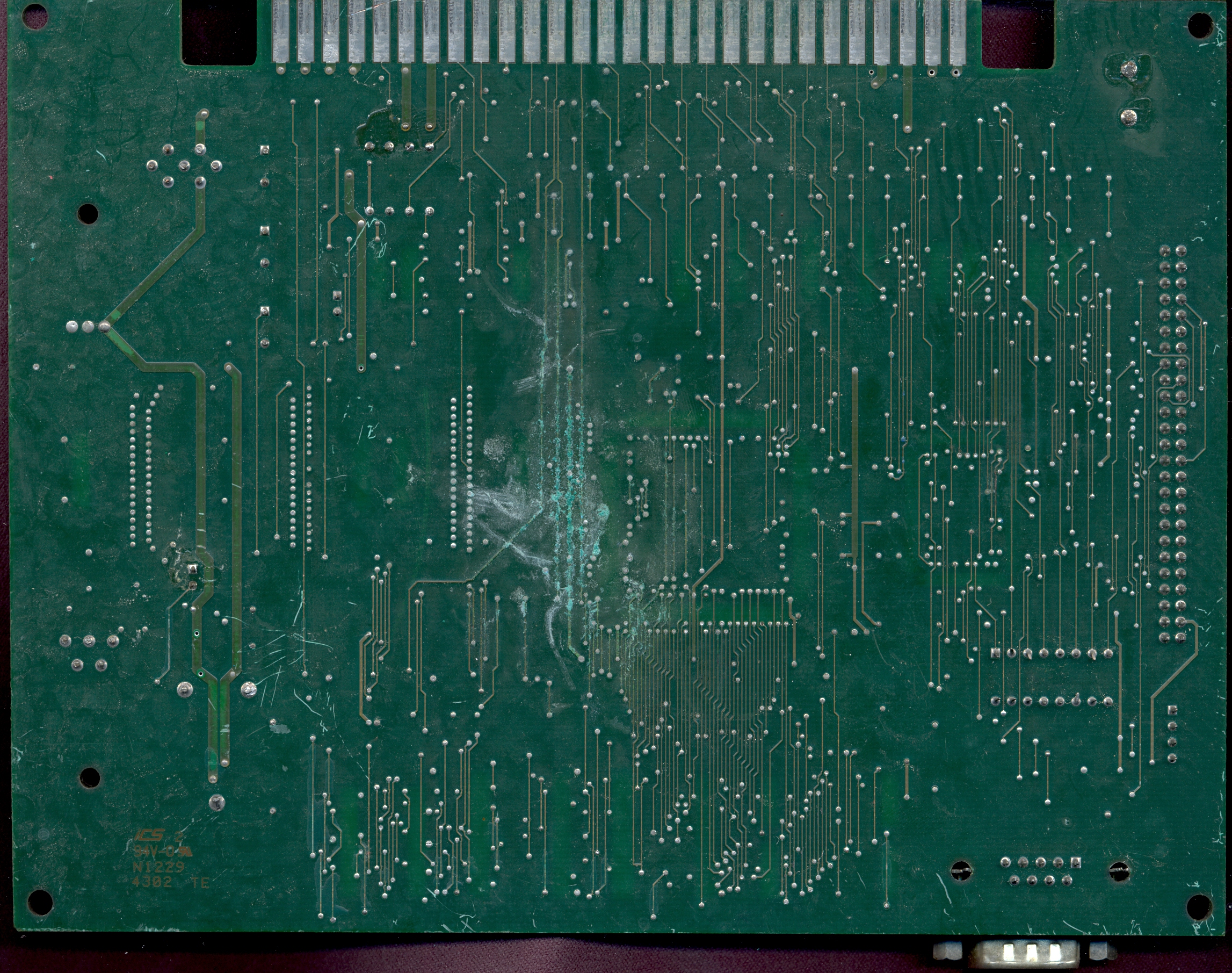

PCB solder side
