Revision as of 17:31, 7 April 2018
| dumper | f205v, Corrado Tomaselli |
| date | 12/04/2005 |
| emulator | MAME 0.095u4 |
| dev | Corrado Tomaselli |
| name | twcup94a on ProgettoEMMA twcup94a on Arcade Database |
| description | Tecmo World Cup '94 (set 2) |
| year | 1994 |
| manufacturer | Tecmo |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68HC000P16 | u38 | 16/32-bit Microprocessor - main | |
| 1x | H8/325 | u34 | 16-bit Single-Chip Microcomputer - main | |
| 1x | unknown | u22 | unmarked square chip QFP160 | |
| 1x | unknown | u23 | unmarked square chip QFP176 | |
| 1x | unknown | u29 | unmarked square chip QFP160 | |
| 1x | unknown | u75 | unmarked square chip QFP100 | |
| 1x | unknown | u109 | unmarked square chip QFP80 | |
| 1x | Z0840006PSC-z80CPU | u91 | 8-bit Microprocessor - sound | |
| 1x | YM2610 | u108 | FM Operator Type-N (OPN) - sound | |
| 1x | YM3016 | u107 | D/A Converter (DAC) - sound | |
| 1x | unknown | u113 | unmarked square chip QFP80 | |
| 1x | HA1388 | u105 | Audio Power Amplifier - sound | |
| 1x | oscillator | 20.000000MHz | u36 | |
| 1x | oscillator | 14.31818MHz | u57 | |
| 1x | oscillator | 32.000000MHz | u98 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27C210 | 11 | dumped |
| 1x | 27C020 | 12 | dumped |
| 1x | 27C4002 | 13 | dumped |
| 1x | TC532000 | u86 | dumped |
| 1x | TC538200 | u104 | dumped |
| 6x | 27160 | u11,u12,u13,u14,u17,u20 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 12x | KM6264BLS-7 | u1,u3,u5,u7,u9,u10,u27,u28,u44,u45,u95,u96 |
| 4x | LH52258D-35 | u2,u4,u6,u8 |
| 1x | Cy7C195-25PC | u21 |
| 3x | BR6216B-10LL | u89,u101,u102 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | TIBPAL16L8-15cn | s2031a.u39 - s2032a.u64 - s2033a.u66 - s2034a.u67 - s2035a.u68 - s2036a.u79 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 9 legs connector (CN6)(PLAY3)
1x 4 legs connector (CN4)(PLAY3)
1x 9 legs connector (CN5)(PLAY4)
1x 4 legs connector (CN3)(PLAY4)
1x trimmer (volume)
2x 8 DIP switches banks (SW1,SW2)
Notes
1st PCB is marked: "VSIS-20V3 MADE IN JAPAN" on component side
1st PCB is labeled: "TECMO No.W 02149" on component side
2nd PCB is marked: "VSIS-20V3 MADE IN JAPAN" and "MDK332V-0" on component side
2nd PCB is labeled: "TECMO No.W 01630" on component side
Update 20121021: full description
Update 20180325: found a second PCB for the same game, better description, better pics, confirmed dump.
Update 20180407: in game pics.
Files
-

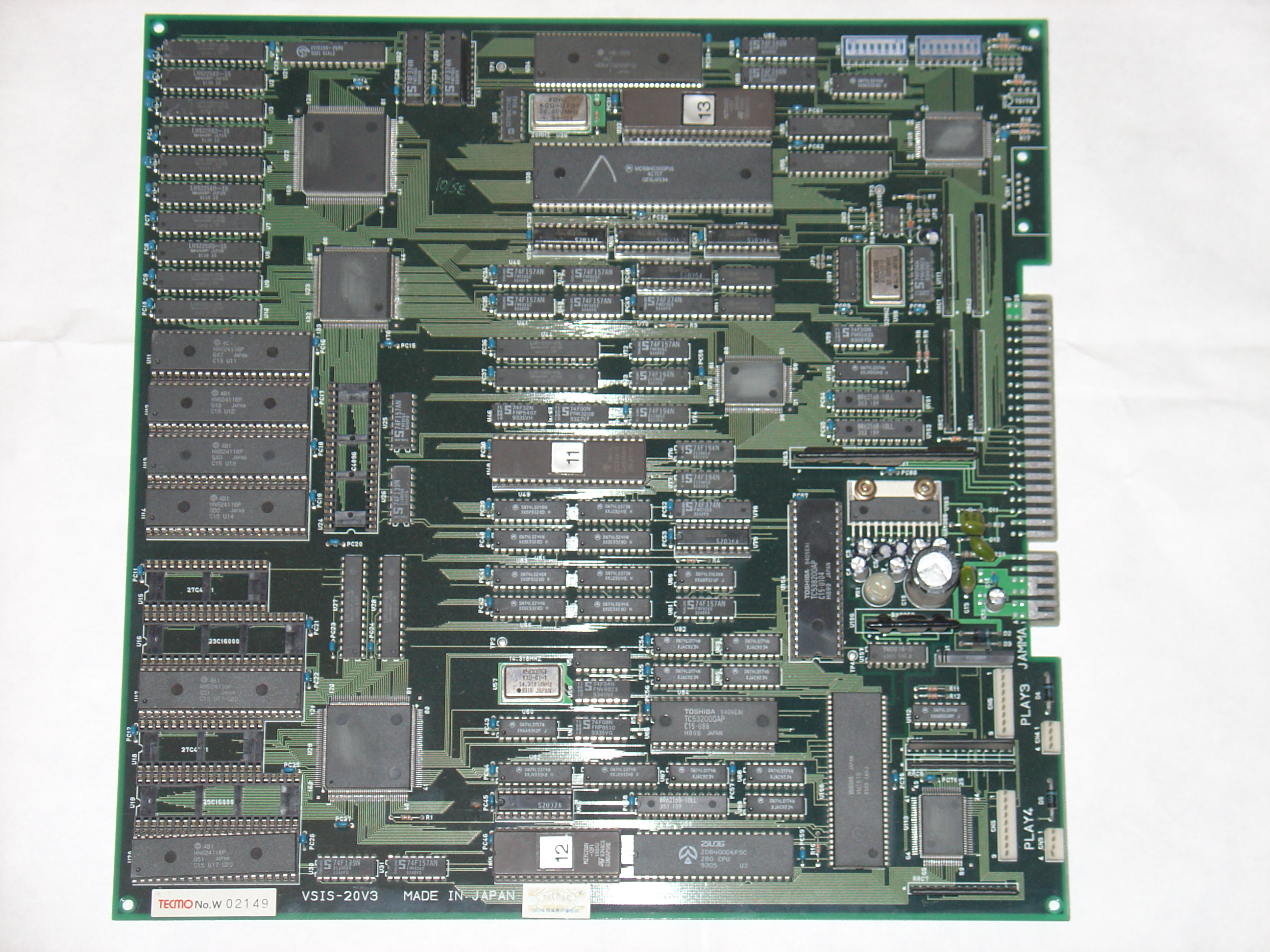

1st PCB component side
-

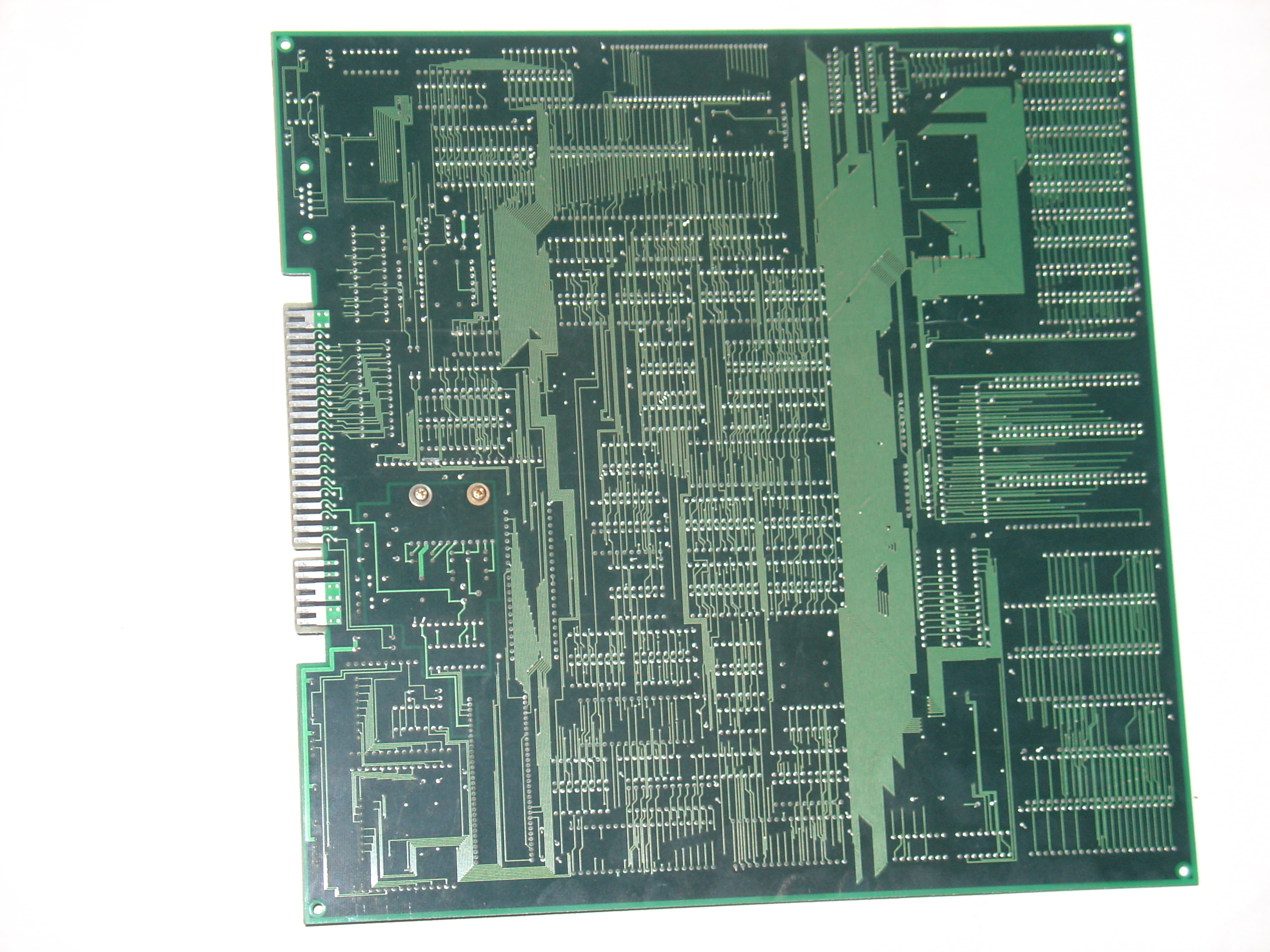

1st PCB solder side
-

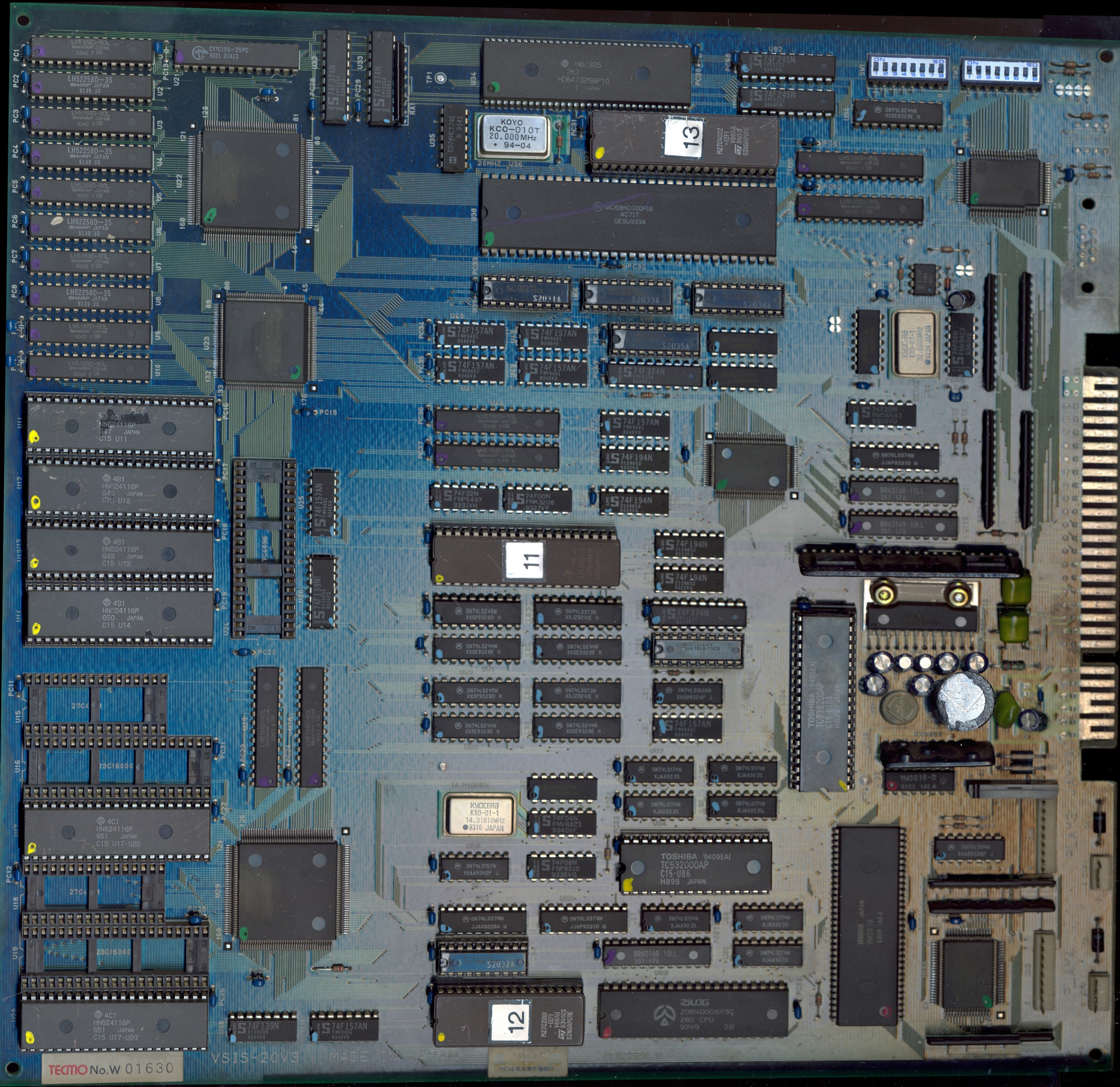

2nd PCB component side
-

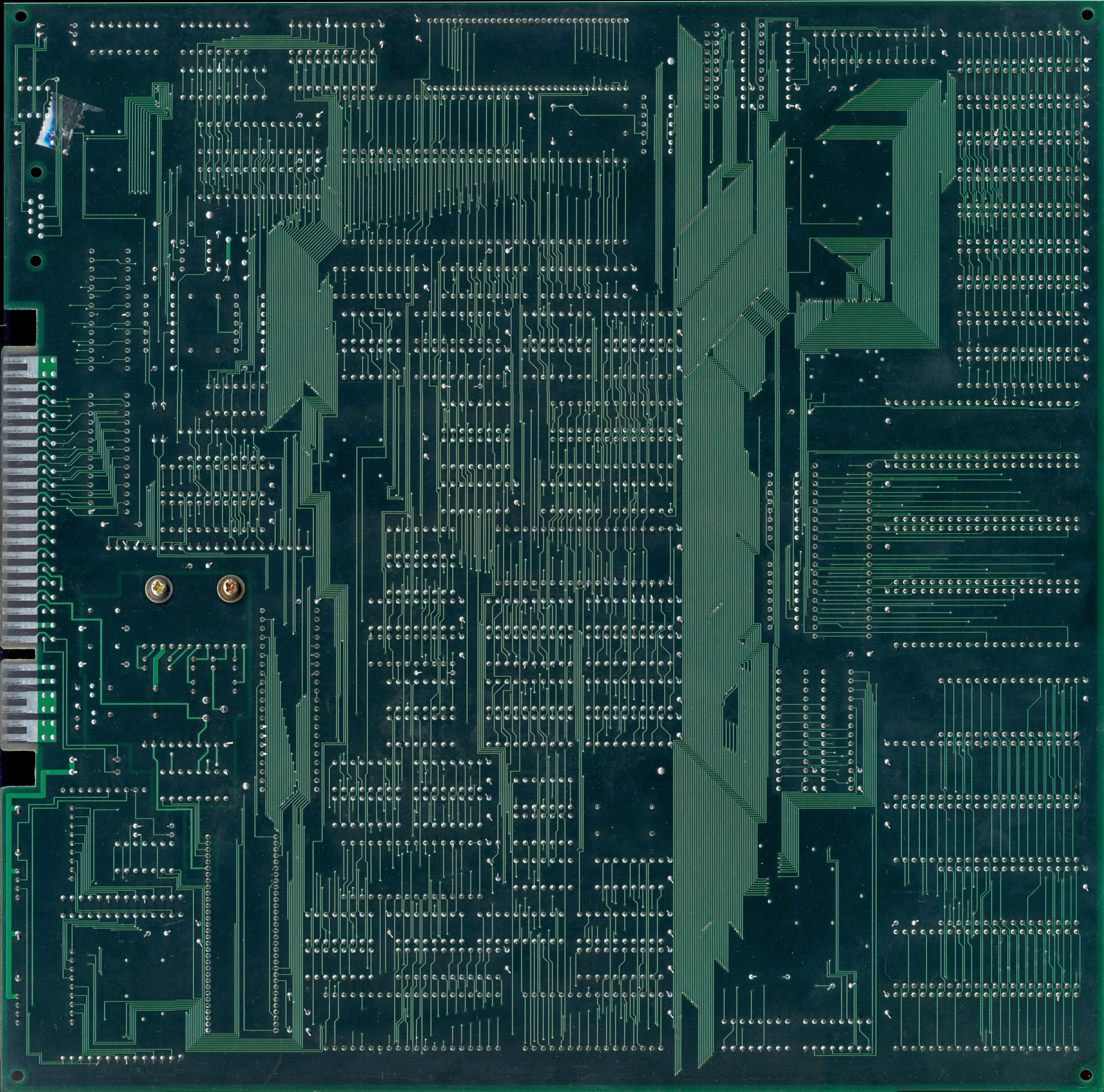

2nd PCB solder side
-

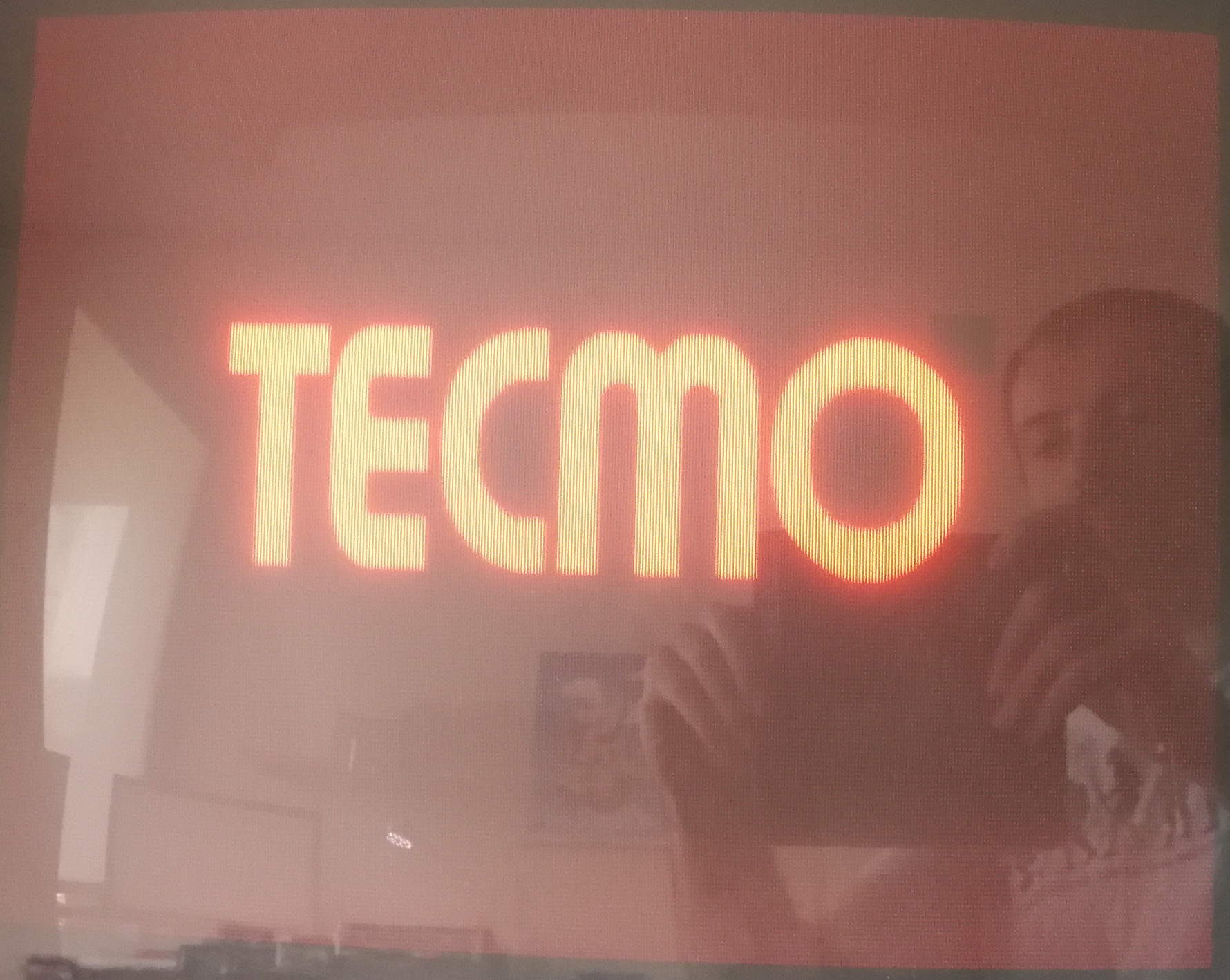

Title 1
-

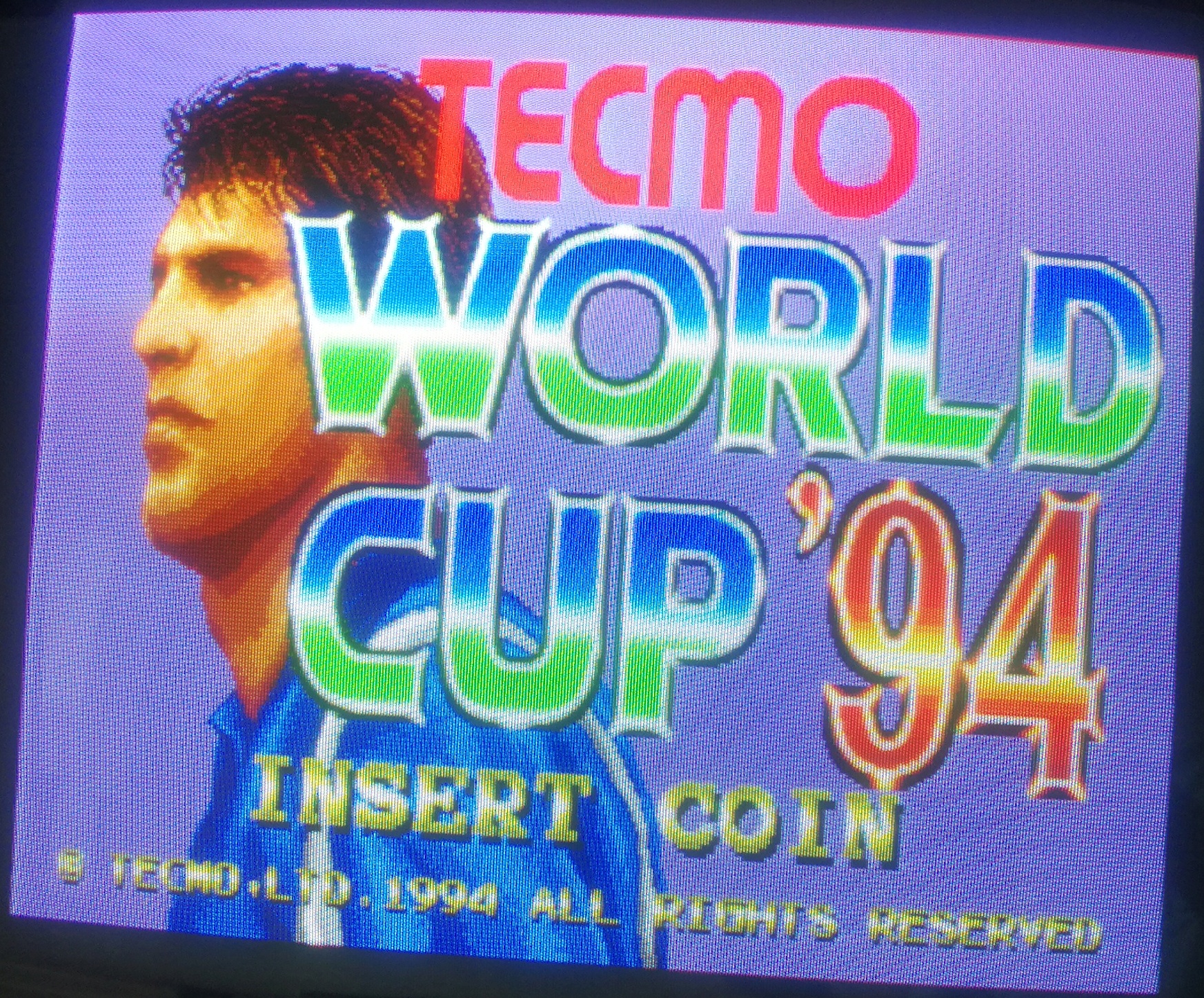

Title 2
-

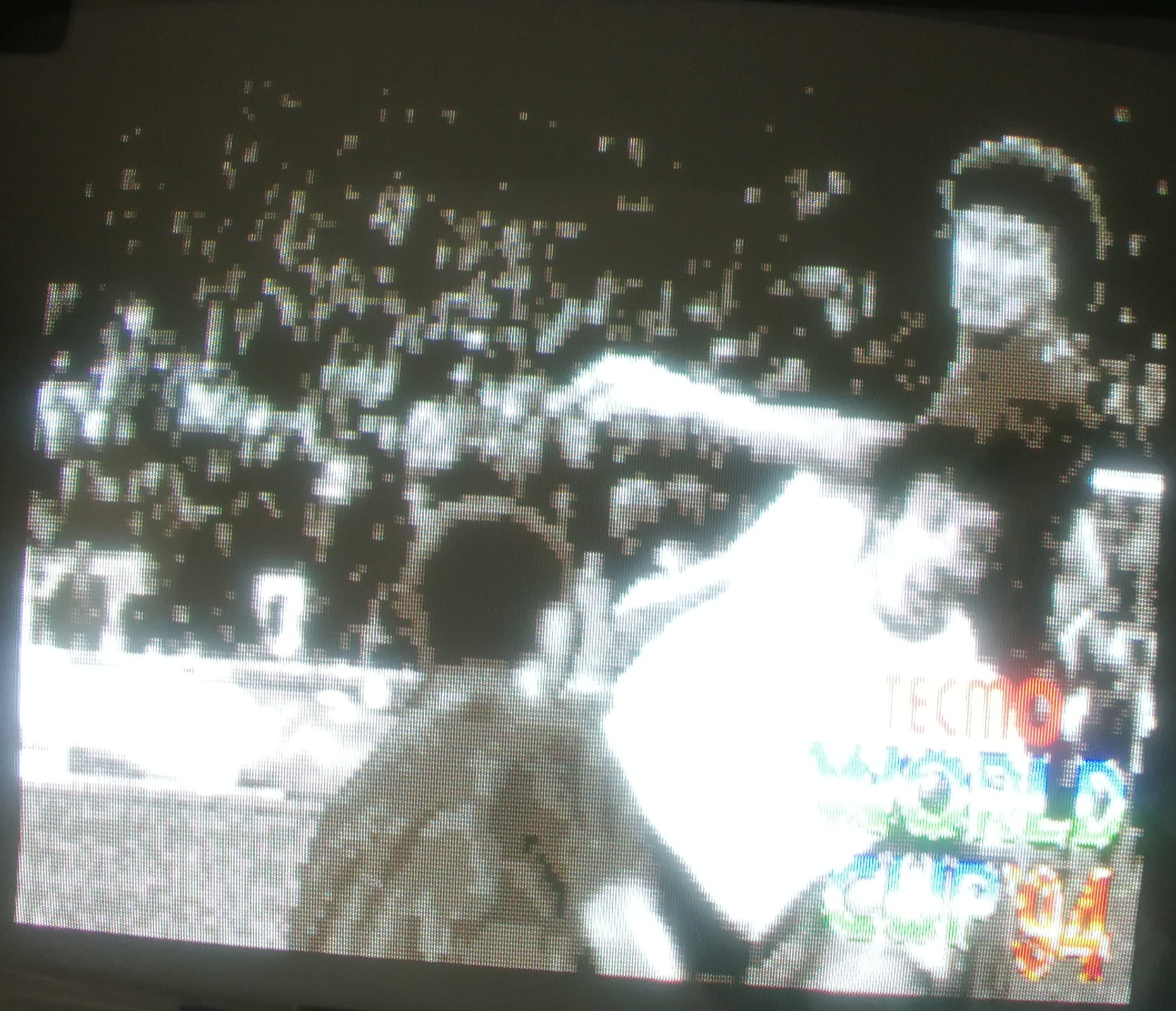

Attract mode 1
-

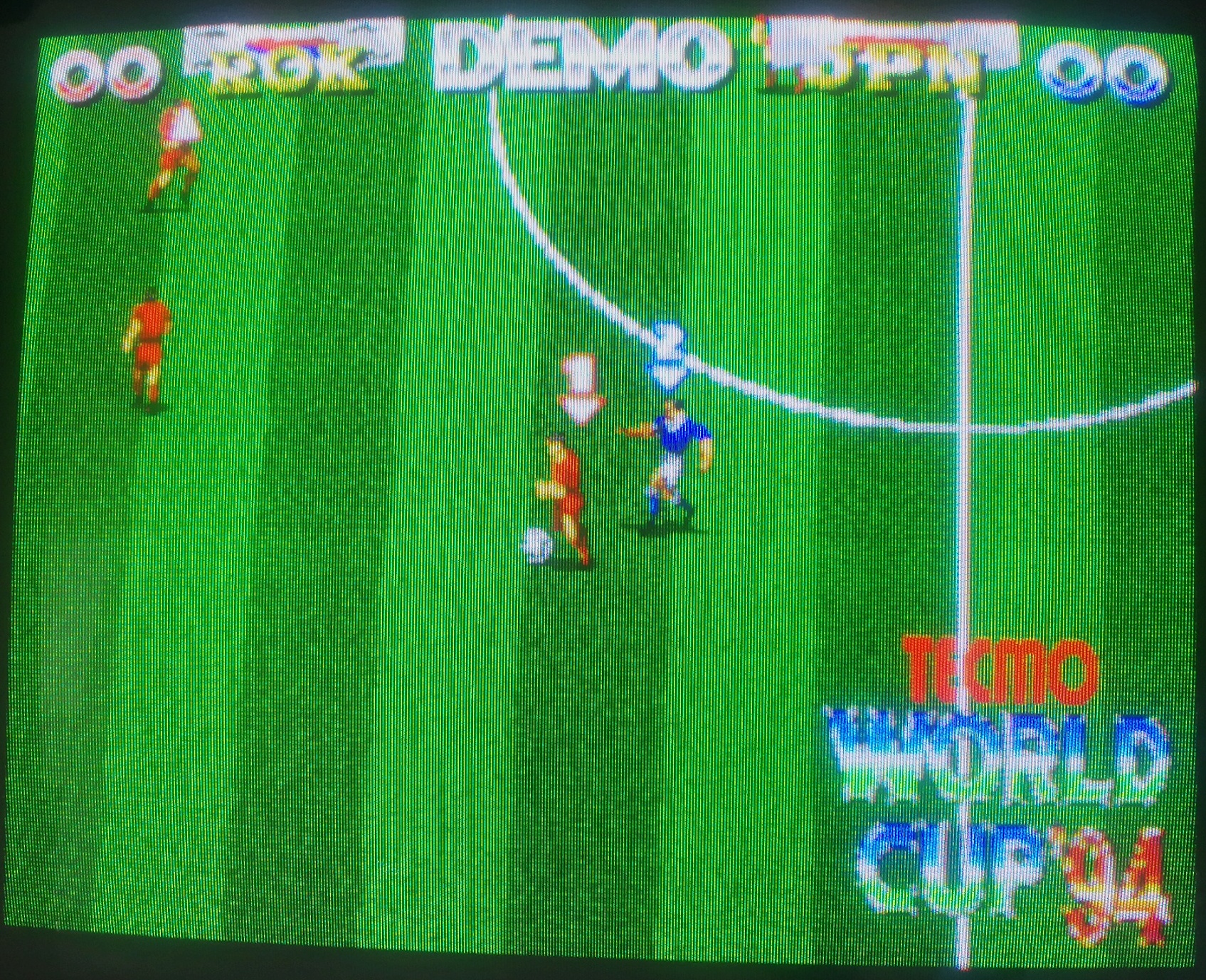

Attract mode 2
-

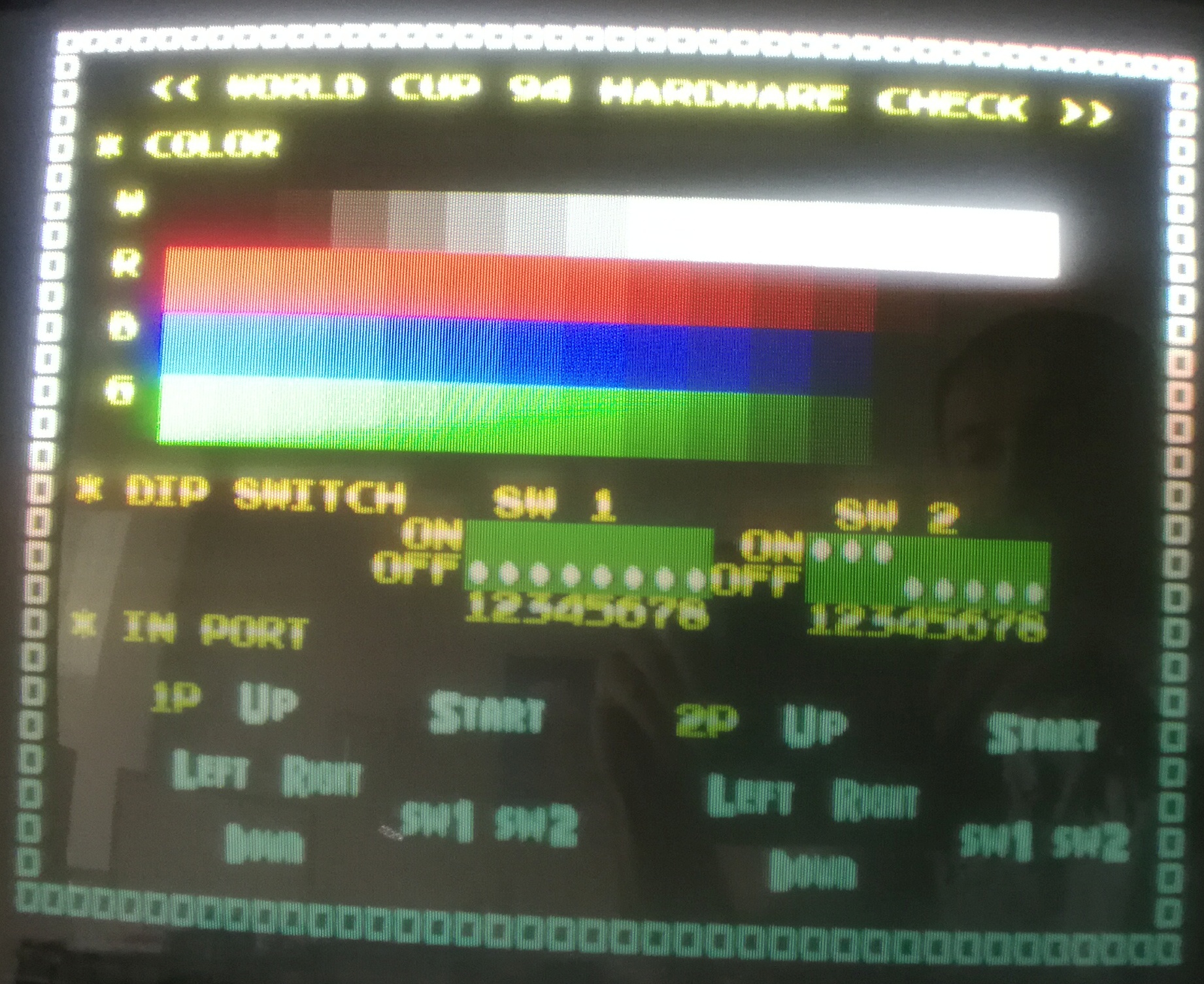

Test
