EMU Infos
dumper f205v
date 18/03/2017
emulator
dev
PCB Infos
name 1489

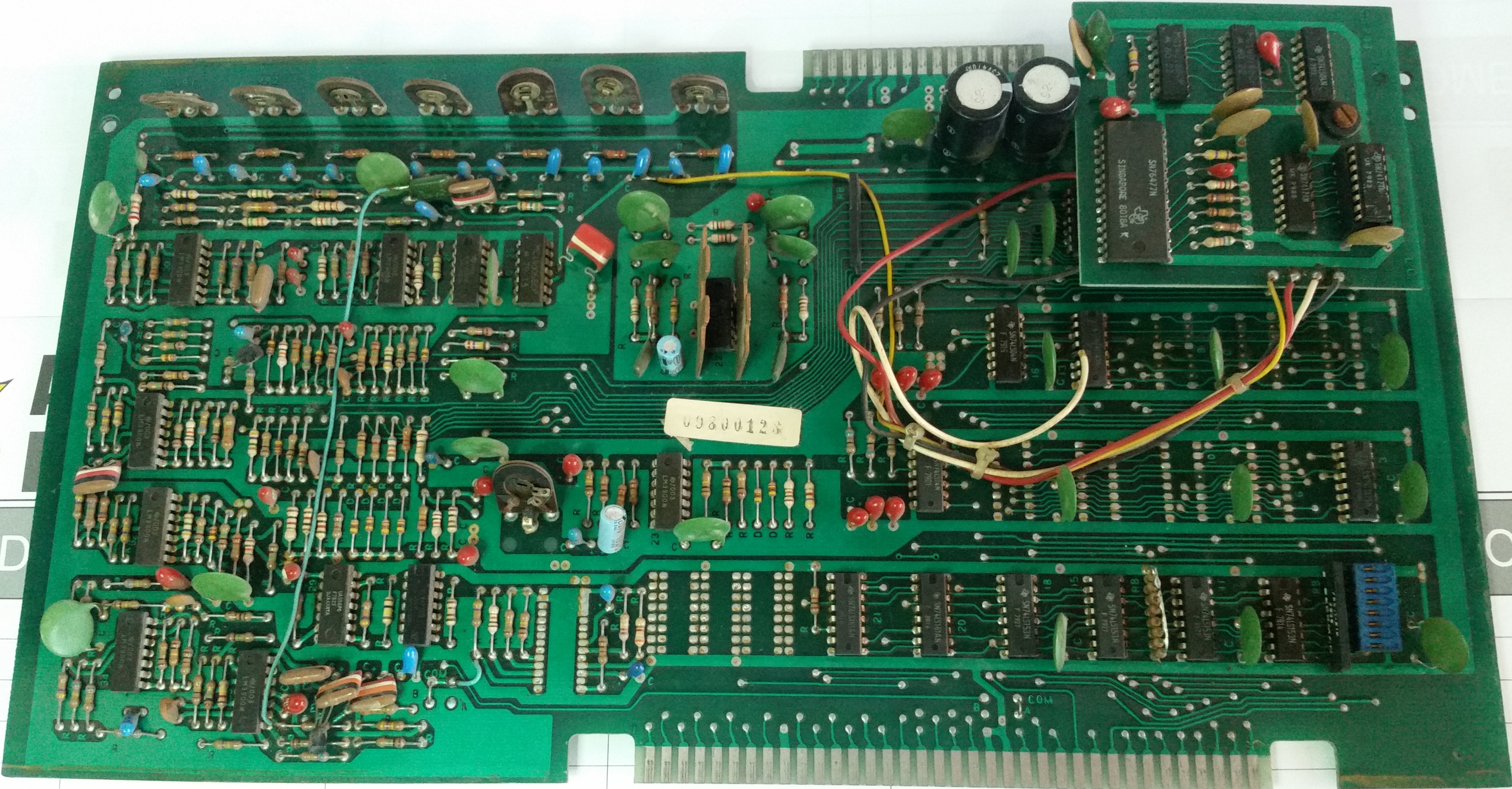

description unconfirmed Ozma Wars sound PCB
year 1979
manufacturer Model Racing

Technical references

CPUs

QTY Type clock position function
1x SN76477N CS244 Complex Sound Generator - sound
7x LM3900N CS209 Quad Operational Amplifier - sound
1x LM377N CS209 Dual Audio Amplifier - sound

ROMs

QTY Type position status
0x

RAMs

QTY Type position
0x

PLDs

QTY Type position status
0x

Others

1x 36x2 edge connector (CS209)
1x 15x2 edge connector (CS209)
8x trimmer (CS209 VR1-VR8)
1x 8 DIP switches bank (CS209 SW1)

Notes

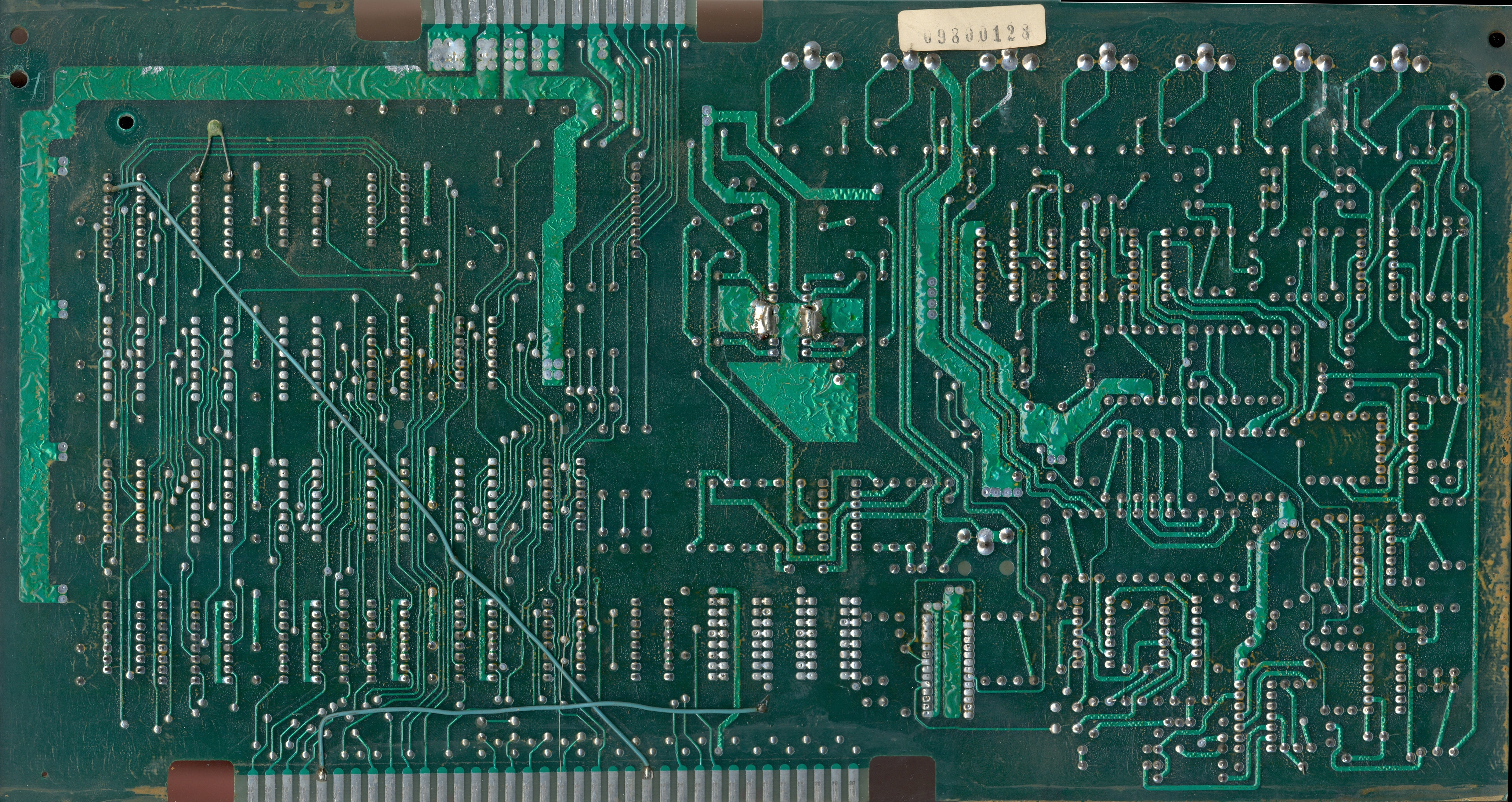

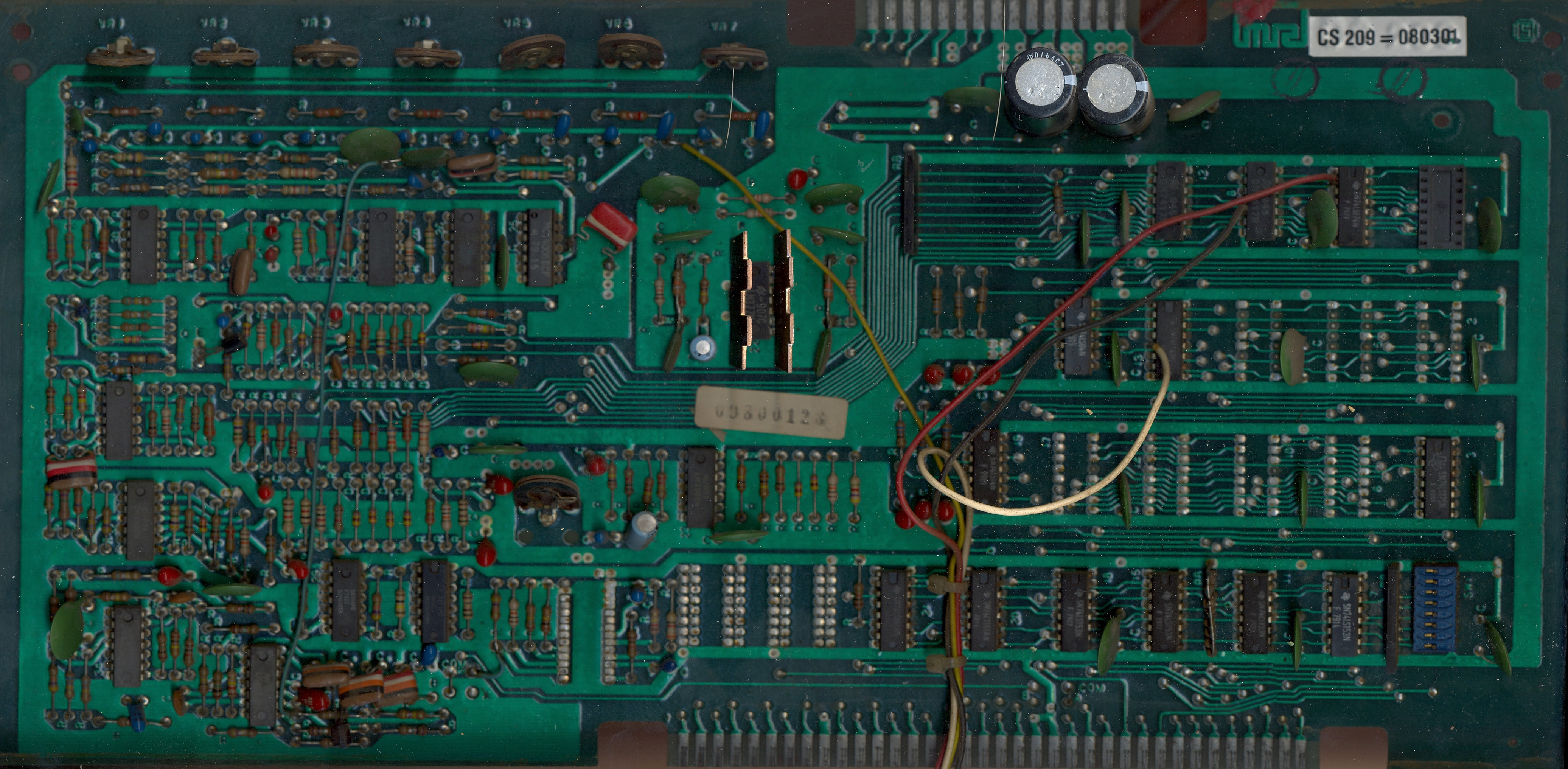

CS209 PCB is labeled: "CS209 = 080301" and "09800128"

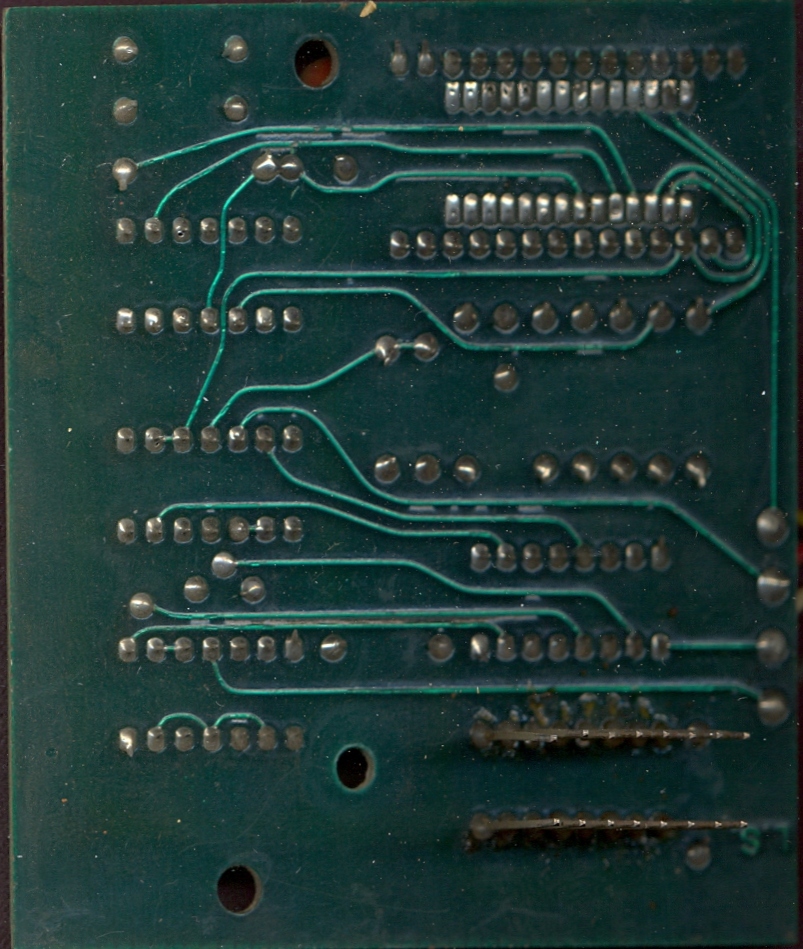

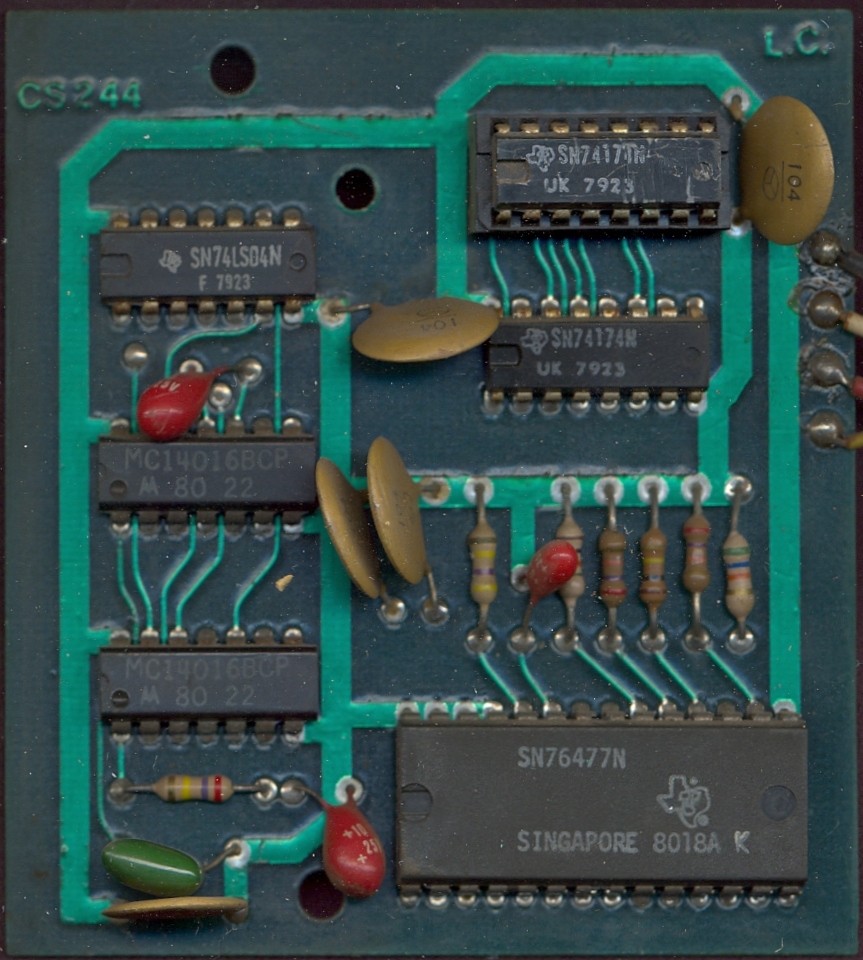

CS244 PCB is marked: "CS244" and "L.C." and "L.S."

Files

1489
