Revision as of 12:57, 3 March 2017
| dumper | f205v |
| date | 22/05/2005 |
| emulator | MAME 0.110u2 |
| dev | Roberto Fresca |
| name | fenix on ProgettoEMMA fenix on Arcade Database |
| description | Fenix (bootleg of Phoenix) |
| year | 1980 |
| manufacturer | Orio |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MOSTEK MK3830n-41RL-Z80CPU | 2b | 8-bit Microprocessor - main | |
| 1x | oscillator | unmarked | 9l |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | MK2716J-B | 1-2-3-5-6-7 | dumped |
| 5x | ID2716 | 4-8-9-10-11 | dumped |
| 1x | 2716 | 0 | missing |
| 1x | PROM | 9m | not dumped yet |
RAMs
| QTY | Type | position |
|---|---|---|
| 8x | L2114-JC | 2k,2kl,2lm,2m,4k,4kl,4lm,4m |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x trimmer (volume)
2x 8 DIP switches banks (3d,4d)
Notes
PCB is marked: "ORIO/G"
PCB is labeled: "FONECHIS"
It's a clone of "Vautour"
PCB is broken and not working, only hope to preserve this game is emulation....
Files
-

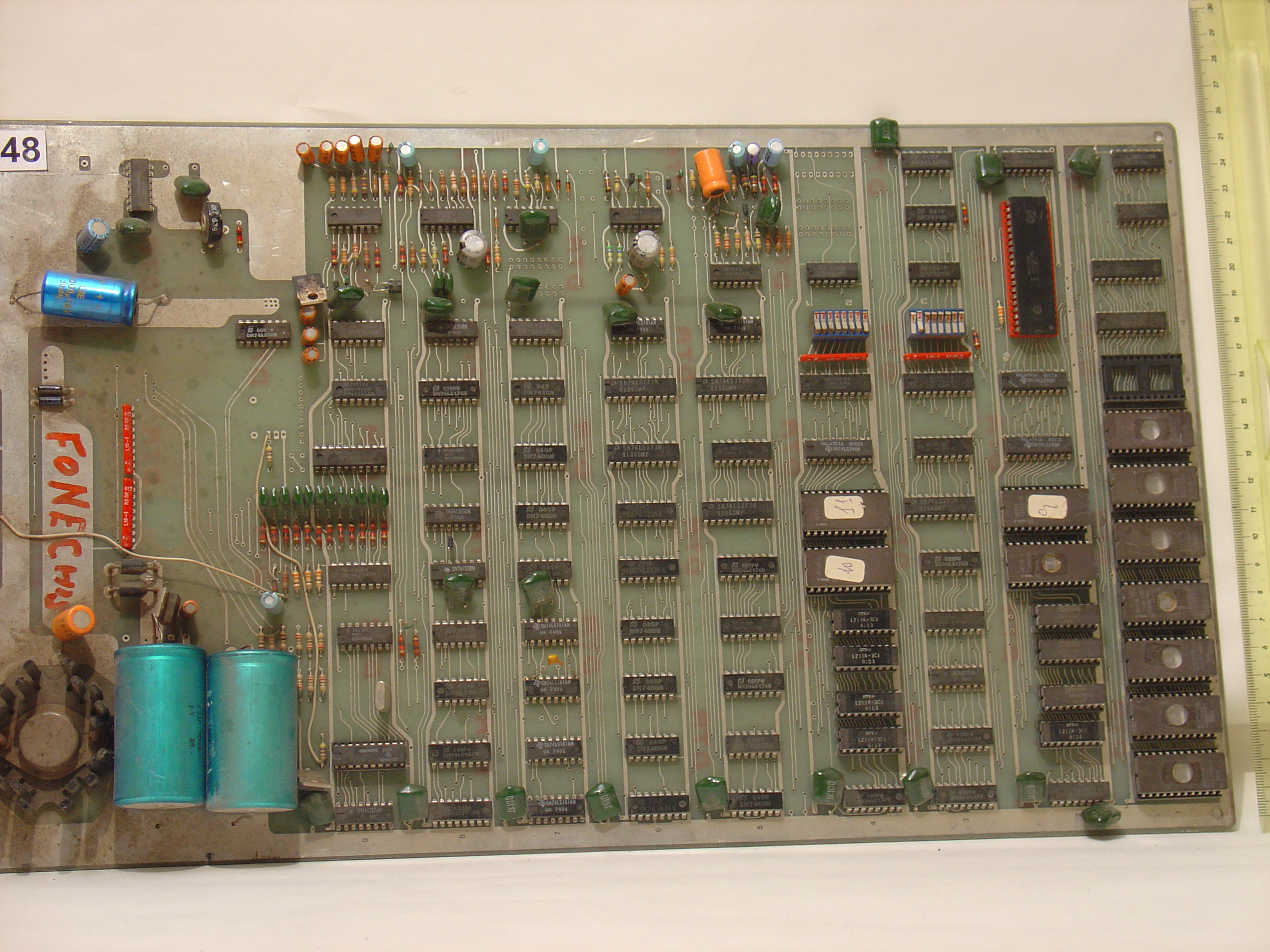

PCB component side
-

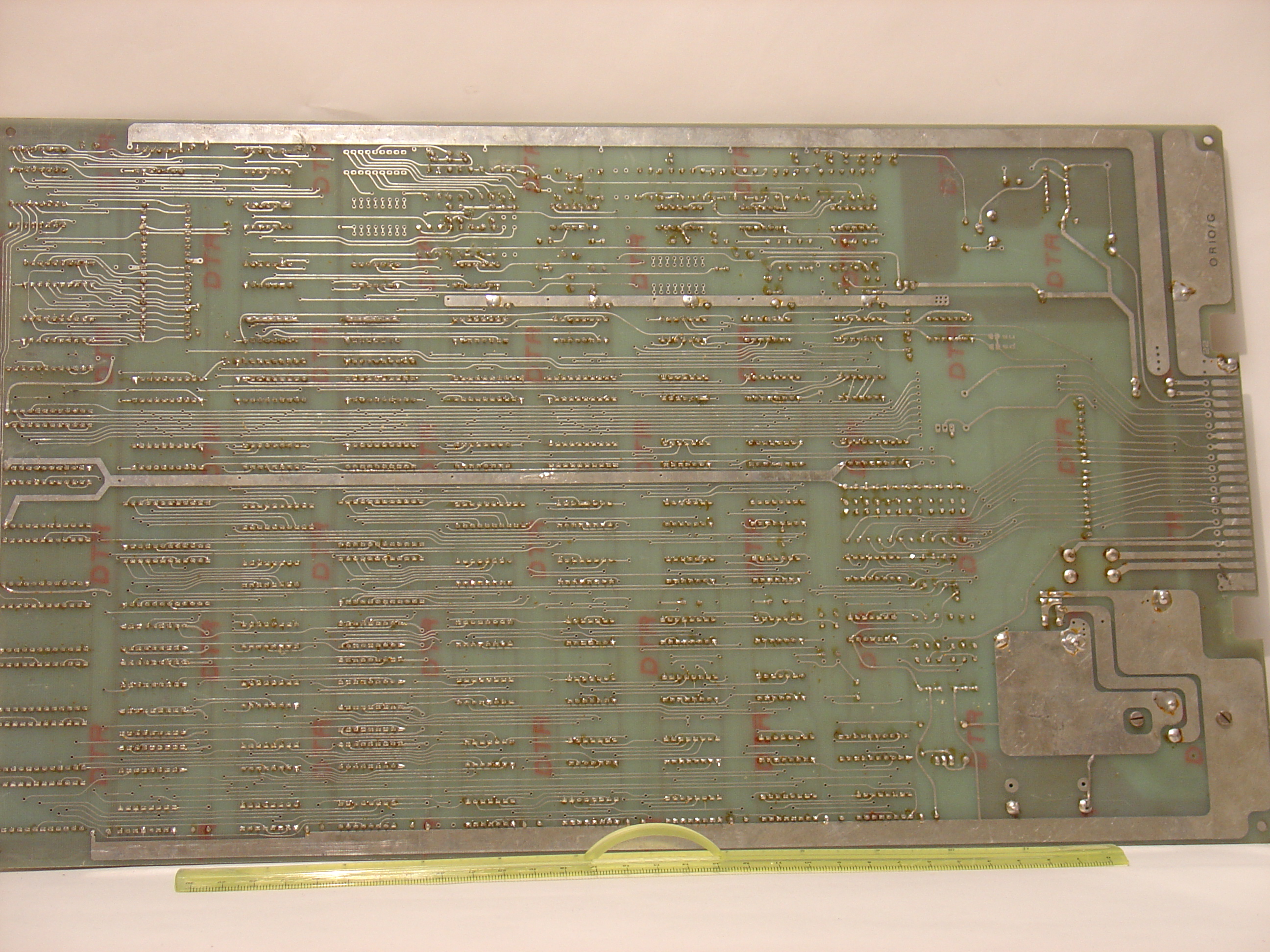

PCB solder side
