Revision as of 15:47, 12 February 2017

EMU Infos
dumper Rtw
date 21/08/2011
emulator MAME 0.143u4
dev Mark F., The Dumping Union, R. Belmont
PCB Infos
name alienfnta on ProgettoEMMA
alienfnta on Arcade Database
description Alien Front (Rev A)
year 2001.09
manufacturer Wow Entertainment - Sega

Technical references

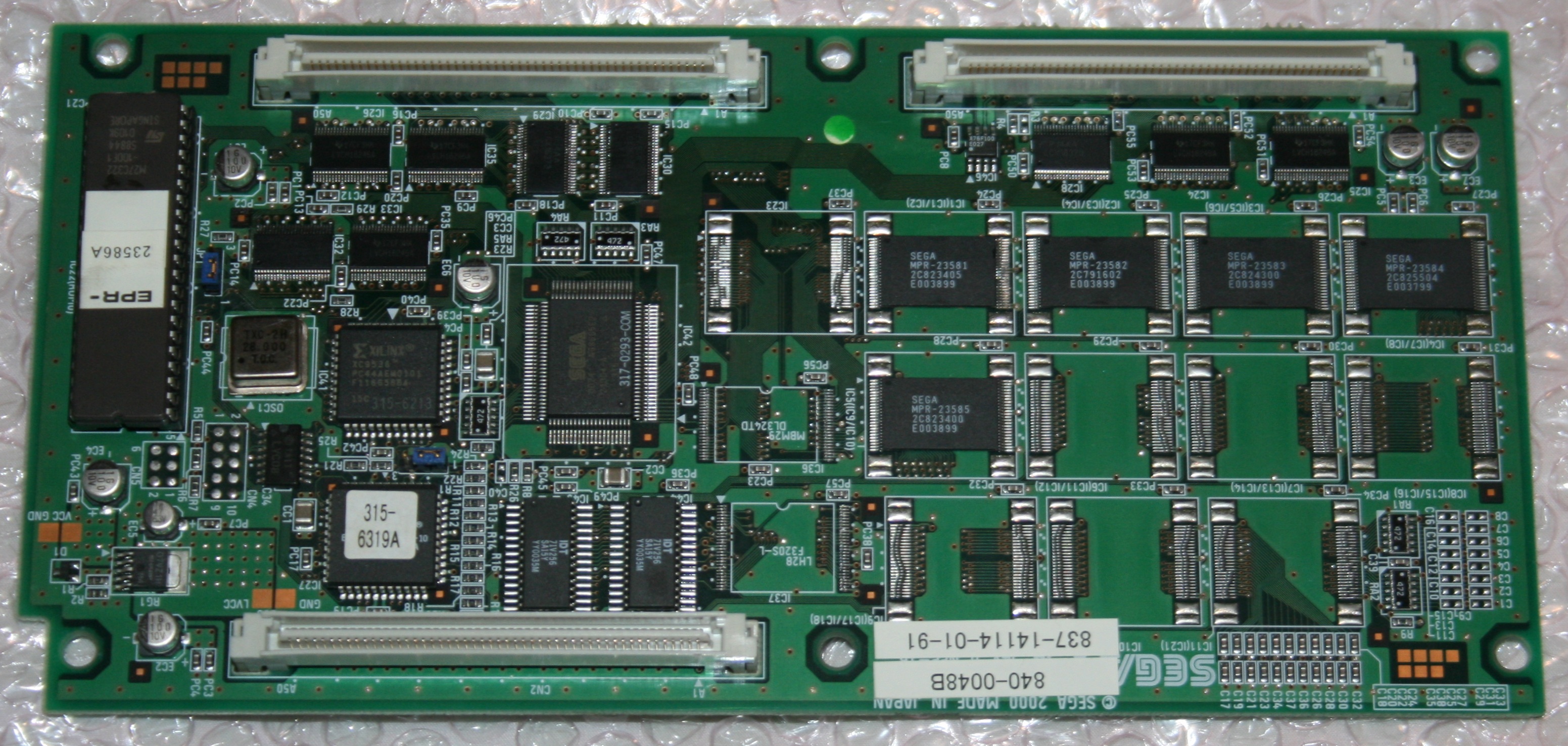

CPUs

QTY Type clock position function
1x oscillator 28.000 osc1

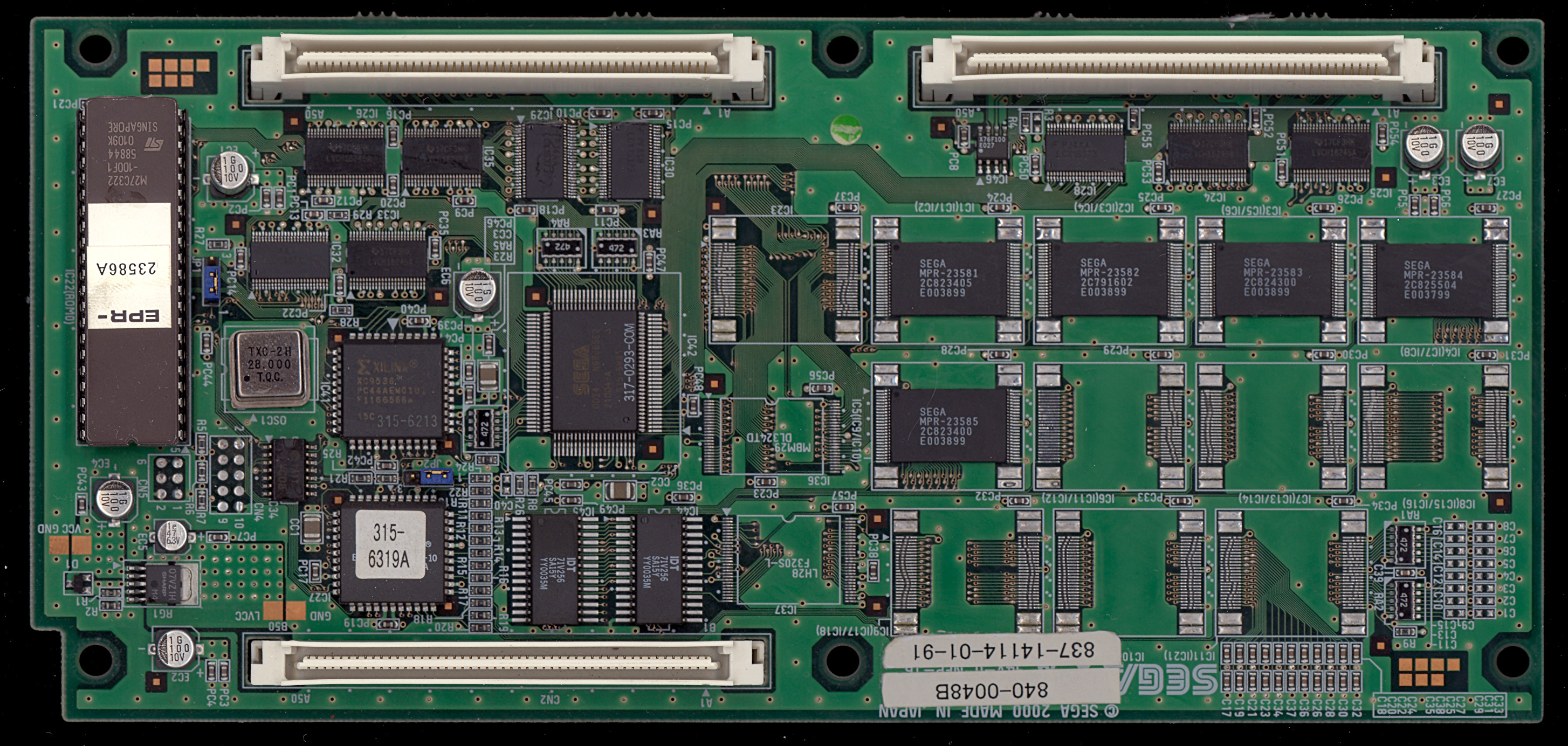

ROMs

QTY Type position status
1x M27C322 23586A.ic22 dumped

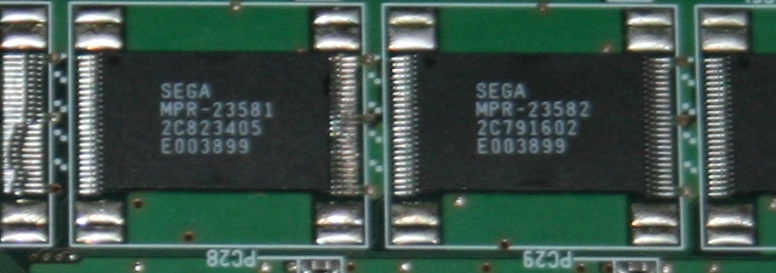

5x MaskROM 128Mb TSOP48 MPR-23581.ic1-23585.ic5 dumped

RAMs

QTY Type position
2x IDT71V256 ic44,ic45

PLDs

QTY Type position status
1x 315-6213 ic41 read protected
1x EPM7032 315-6319A ic27 read protected

Others

Notes

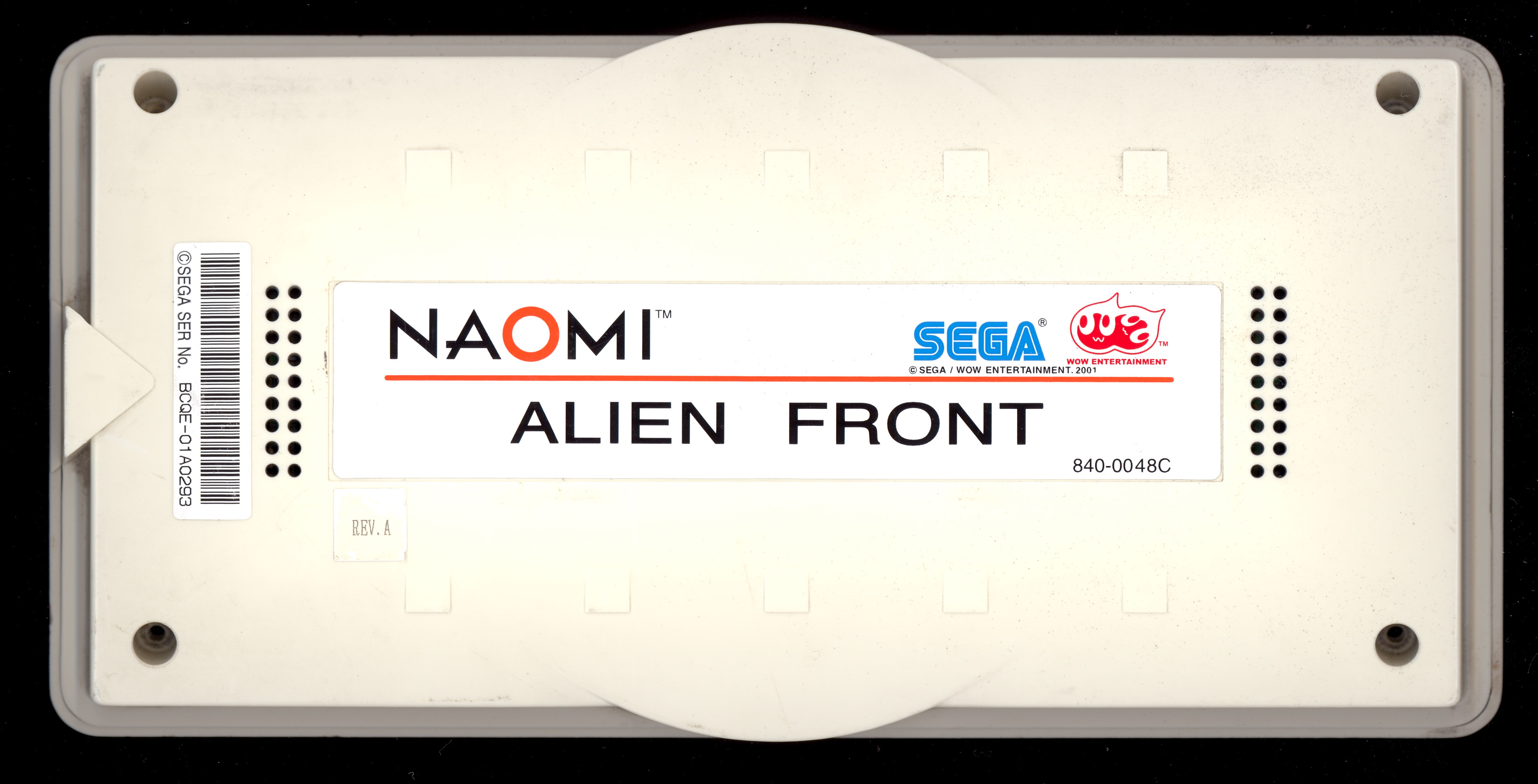

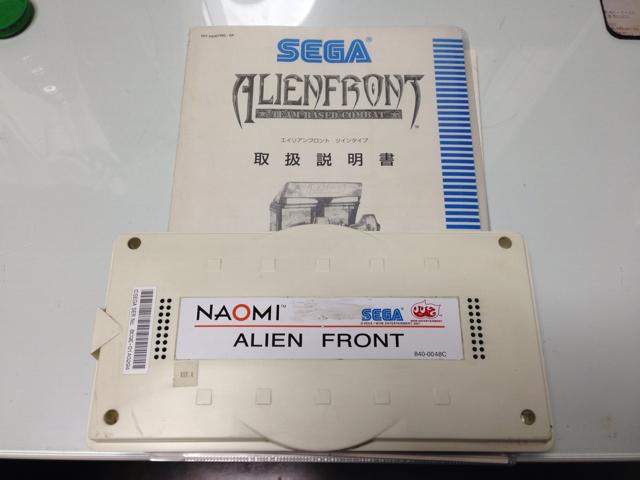

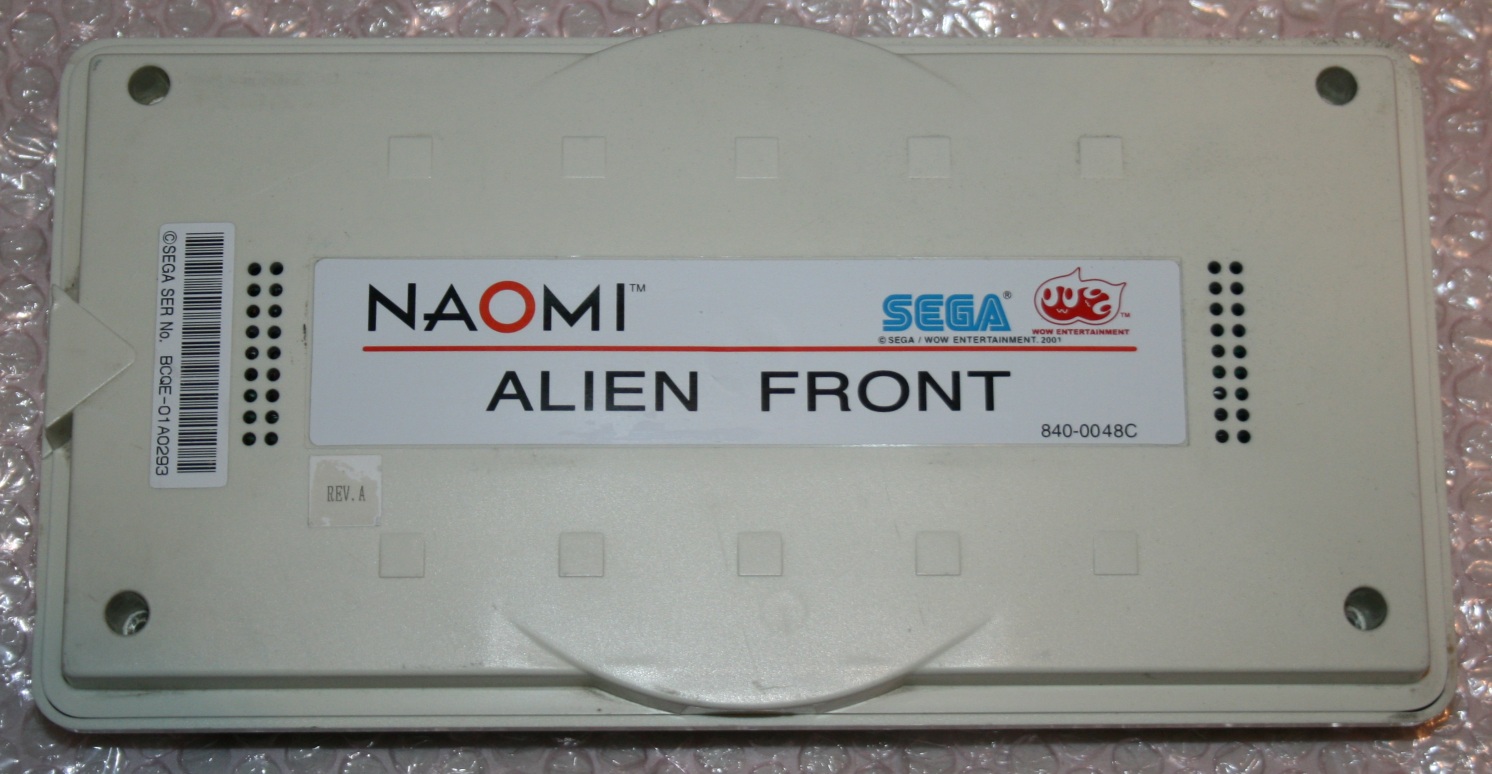

It's a NAOMI cart.
Cart type: 171-8132B
Cart N°: 840-0048C
Protection IC: SEGA 315-5881 (317-0293-COM)
Key: 0x28174343

Files

1314
