Illvelo (Illmatic Envelope) (Japan): Difference between revisions
From Citylan
Jump to navigationJump to search
m (→CPUs) |
mNo edit summary |
||
| Line 15: | Line 15: | ||
|name || '''[http://www.progettoemma.net/index.php?gioco=illvelo illvelo on ProgettoEMMA]<br>[http://adb.arcadeitalia.net/?mame=illvelo illvelo on Arcade Database]''' | |name || '''[http://www.progettoemma.net/index.php?gioco=illvelo illvelo on ProgettoEMMA]<br>[http://adb.arcadeitalia.net/?mame=illvelo illvelo on Arcade Database]''' | ||
|- | |- | ||
|description || '''Illvelo (Illmatic Envelope)''' | |description || '''Illvelo (Illmatic Envelope) (Japan)''' | ||
|- | |- | ||
|year || '''2008.06''' | |year || '''2008.06''' | ||
Revision as of 20:13, 27 October 2016
| dumper | Rtw |
| date | 11/05/2011 |
| emulator | MAME 0.143u1 |
| dev | The Dumping Union, R. Belmont |
| name | illvelo on ProgettoEMMA illvelo on Arcade Database |
| description | Illvelo (Illmatic Envelope) (Japan) |
| year | 2008.06 |
| manufacturer | Milestone |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | PIC16C621A | 317-5131-JPN.ic3 | EPROM-Based 8-Bit CMOS Microcontroller (dumped) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XCF01SVG | ic4 | not dumped |
| 4x | S29GL512N10T | FPR-24437.ic8, FPR-24440.ic11 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XC3S50 | ic2 | not dumped |
Others
Notes

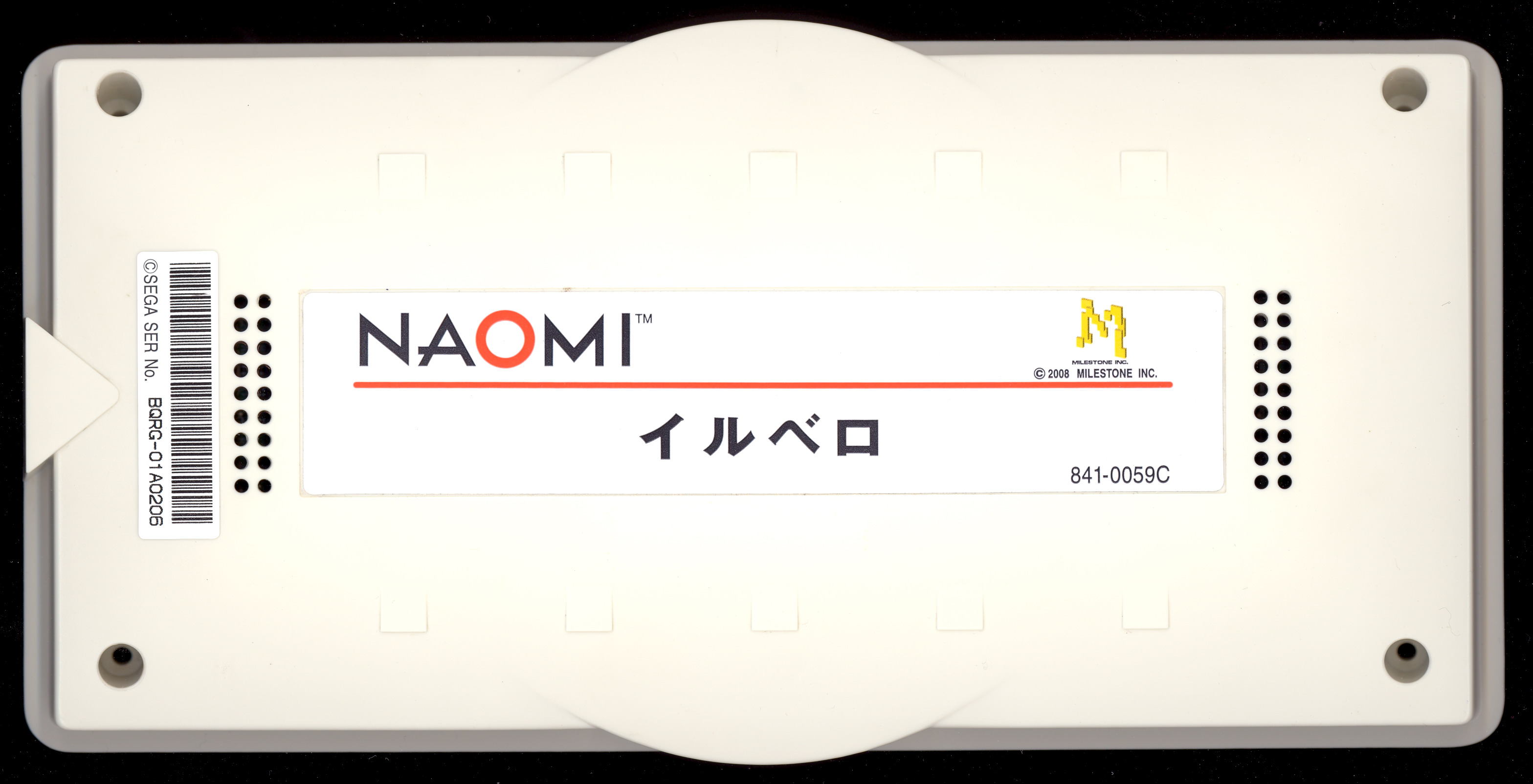

It's a NAOMI cart.
Cart type: 171-8346C
Cart N°: 841-0059C
EPR.ic7: not present
IC2# is labeled "VER.2" - IC#11 is empty
Files
-
Cart
-

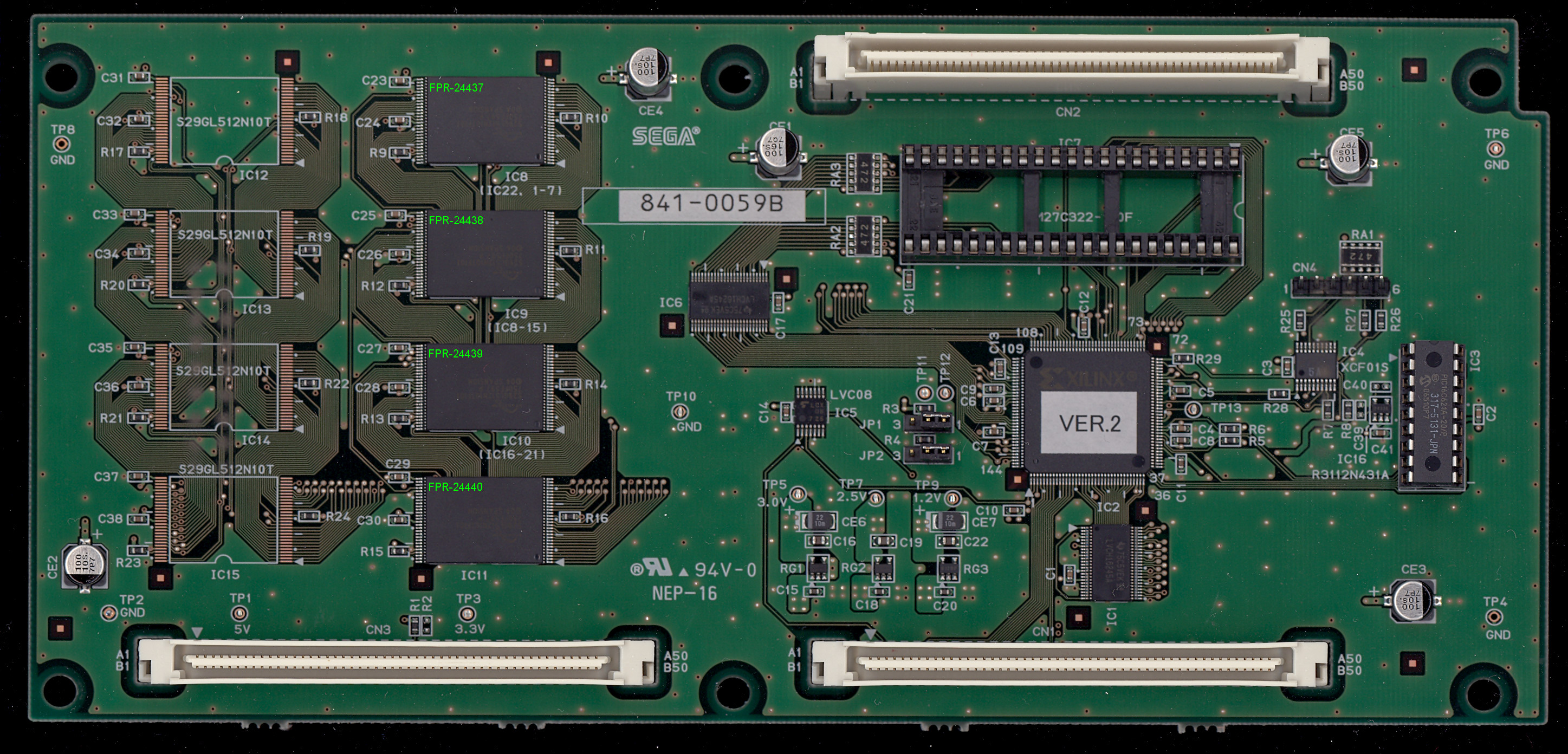

PCB component side
-

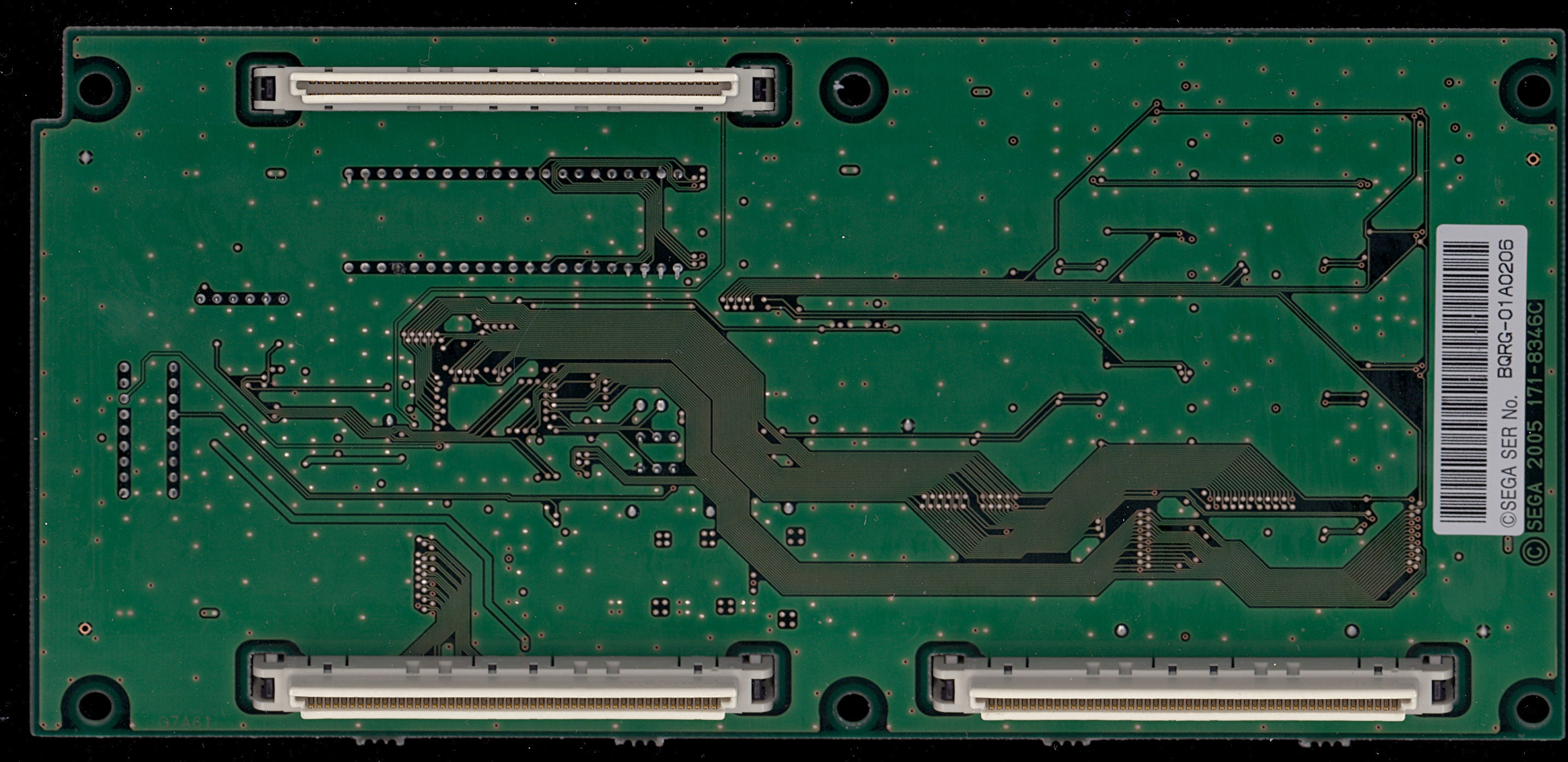

PCB solder side
-

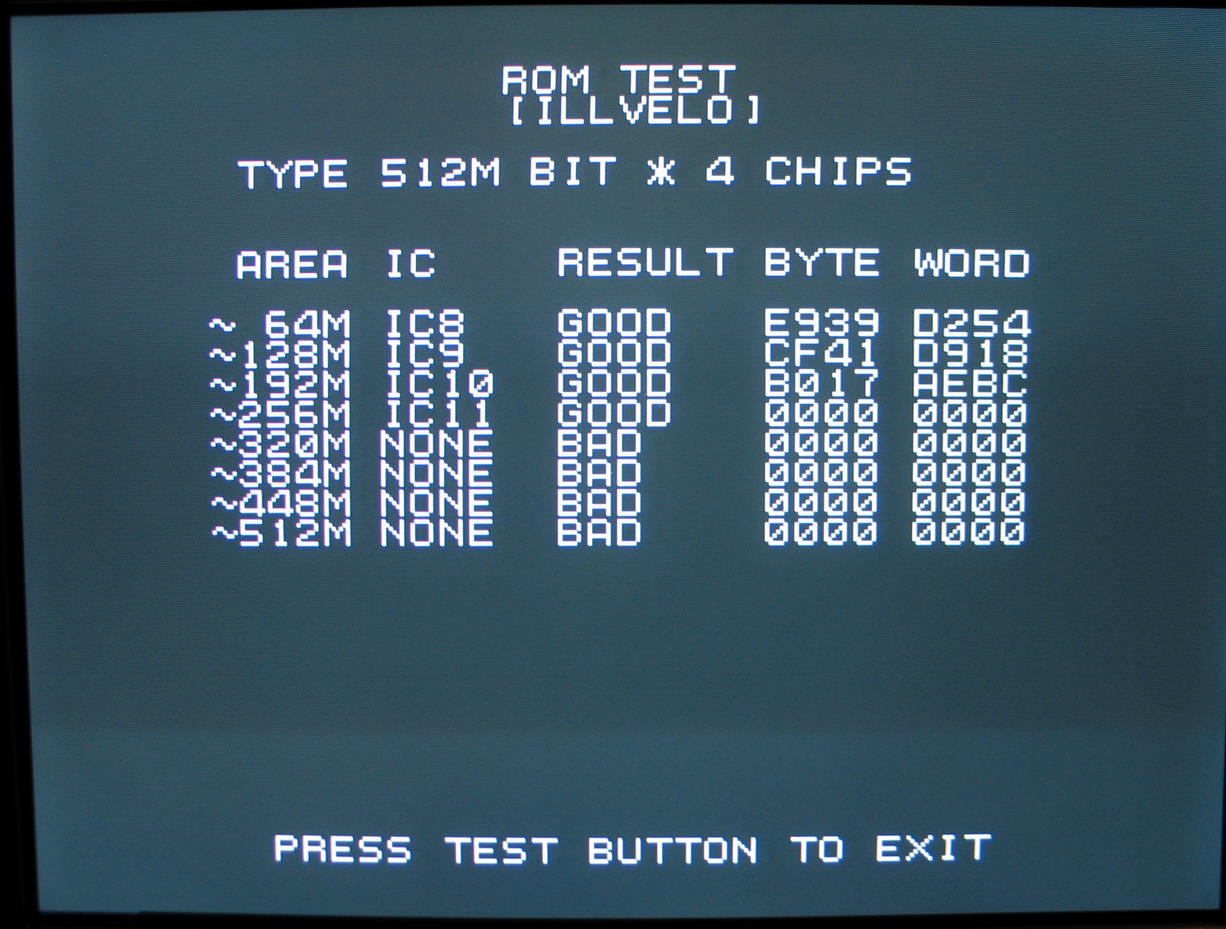

ROM BOARD TEST
-
Readme
1348
