| dumper | Guru |
| date | 18/04/2009 |
| emulator | MAME 0.131 |
| dev | Luca Elia |
| name | ggx on Arcade Database |
| description | Guilty Gear X |
| year | 2000.07.08 |
| manufacturer | Arc System Works - Sammy |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27322 | EPR-23356.ic22 | dumped |
| 14x | M27W064 | 23342.ic1 - 23355.ic14s | dumped |
| 1x | X76F100 | ic37 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0013C
Protection IC: SEGA 315-5881 (317-5063-COM)
Key: 0x00076110
Files
-

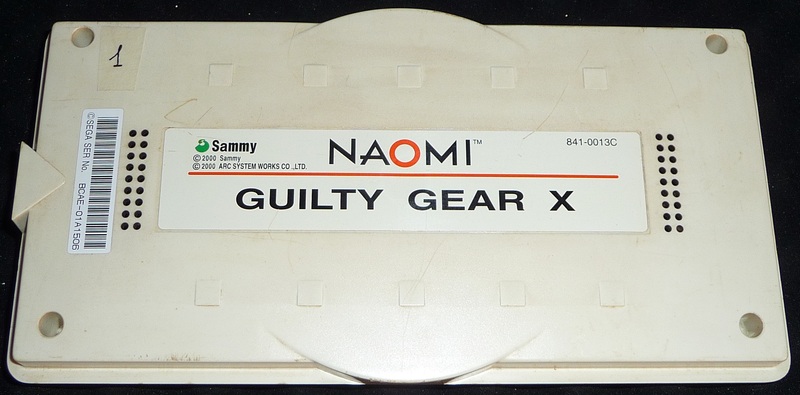

Cart 1
-

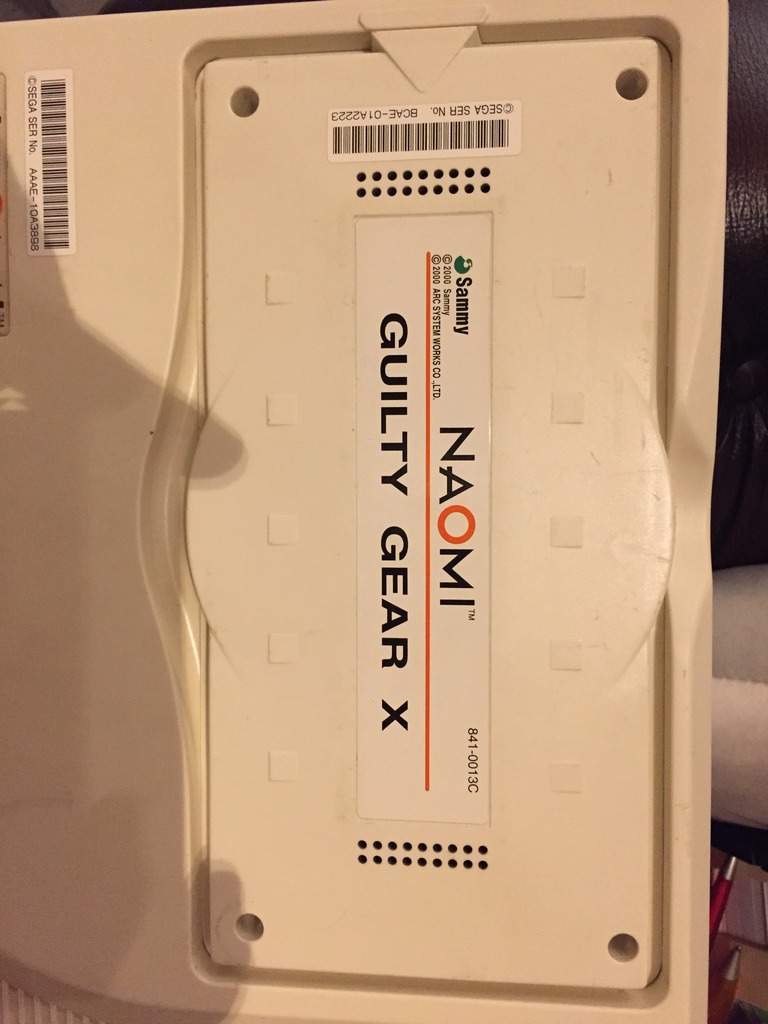

Cart 2
-

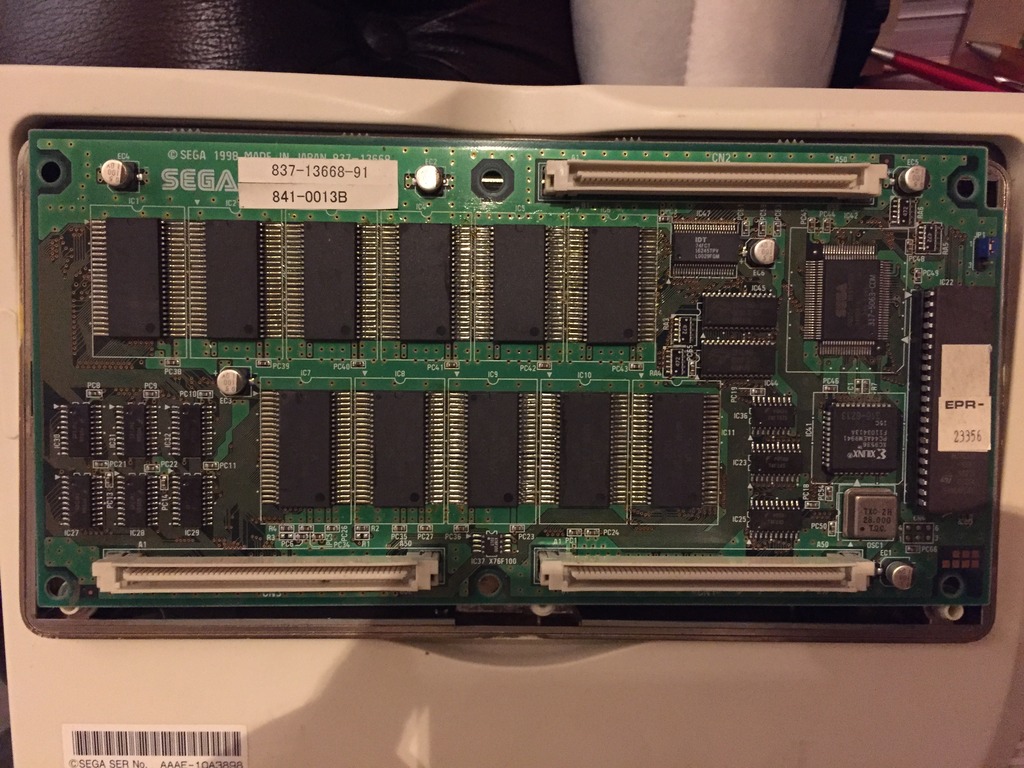

PCB component side
-

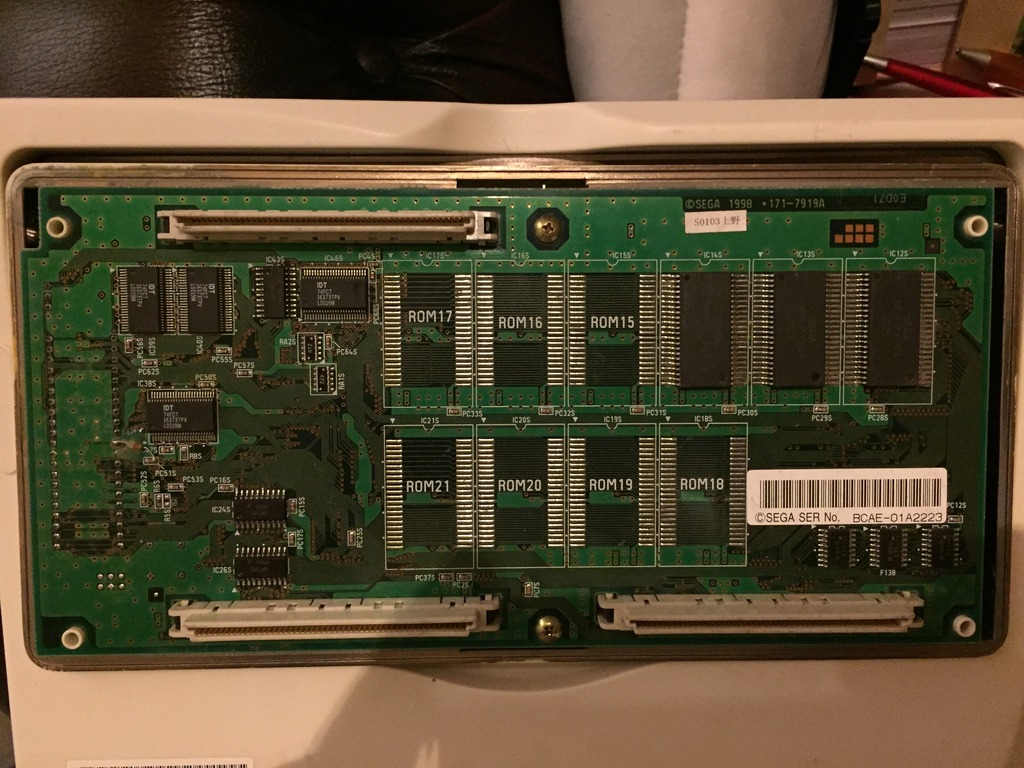

PCB solder side
-

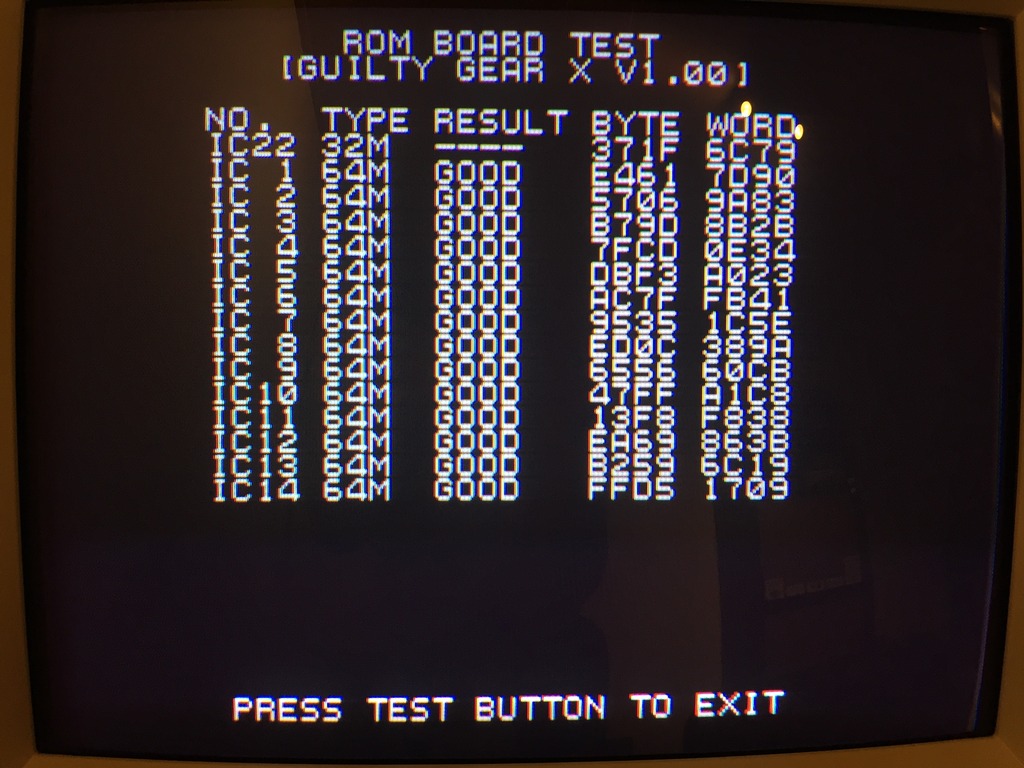

ROM board test
1437
