EMU Infos
dumper "someone"
date 30/01/2014
emulator MAME 0.153
dev R. Belmont
PCB Infos
name clubkpzb on Arcade Database
description Club Kart Prize Version B (Export, Japan)
year 2004.01.23 – 01:39:24
manufacturer Sega

Technical references

CPUs

QTY Type clock position function
1x oscillator 50.000

ROMs

QTY Type position status
1x M27C322 epr-24149.ic11 dumped
16x M27W064 opr-24178.ic17s,ic18,ic19s,ic20,ic21s,ic22,ic23s,ic24,ic25s,ic26,ic27s,ic28,ic29,ic30s,ic31,opr-24193.ic32s dumped
1x 25LC040 ic13s dumped

RAMs

QTY Type position
1x IDT71V256 ic15

PLDs

QTY Type position status
1x A54SX32A 317-0368-COM ic1 read protected

Others

Notes

It's a NAOMI 2 cart.
Cart type: 171-7978B
Cart N°: 840-0137C
Key: 0x997681fe
requires Naomi-based or 837-14438 hopper controller (selected by P1 BUTTON1 bit)

Files

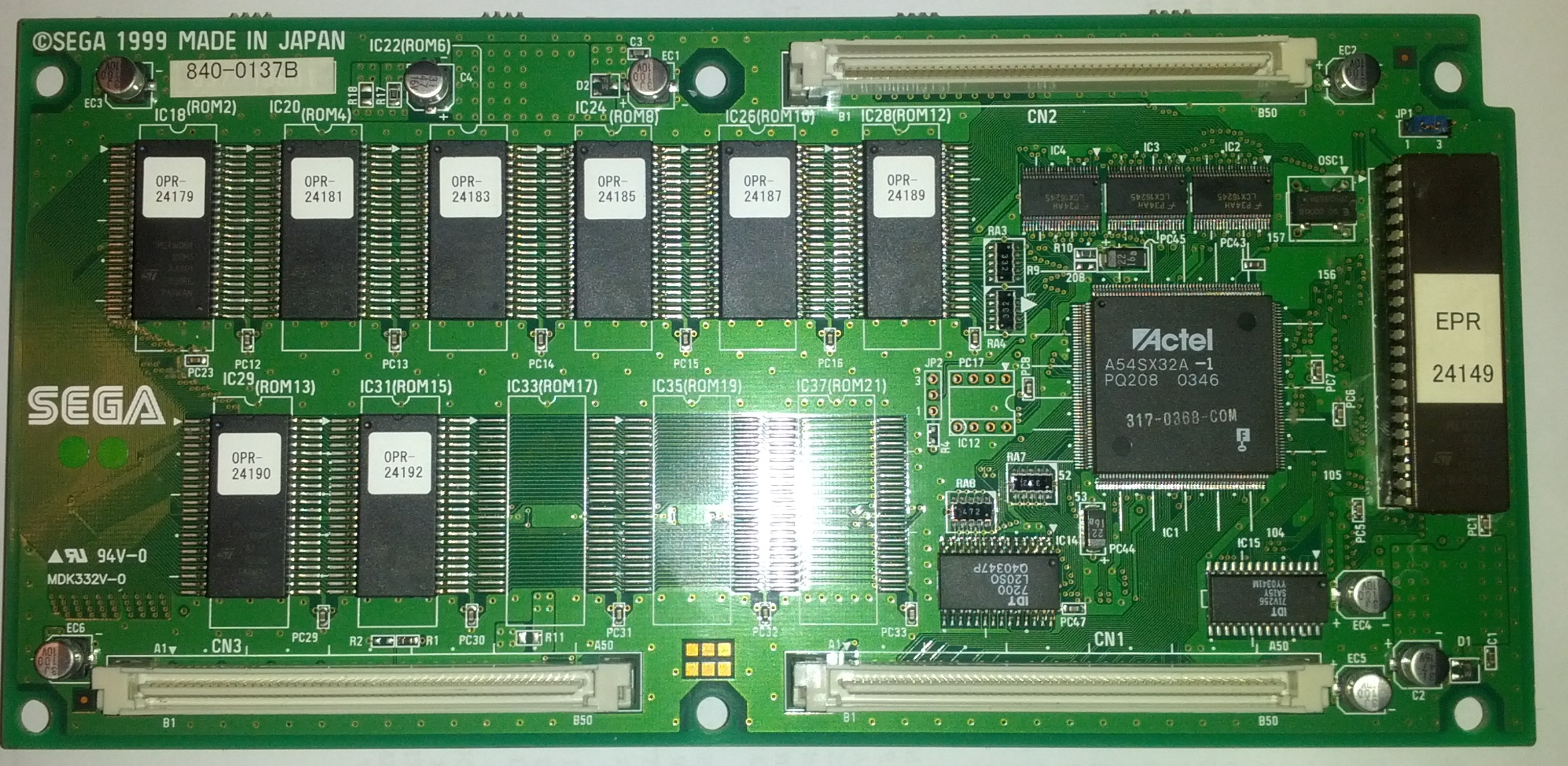

  • PCB component side

    PCB component side

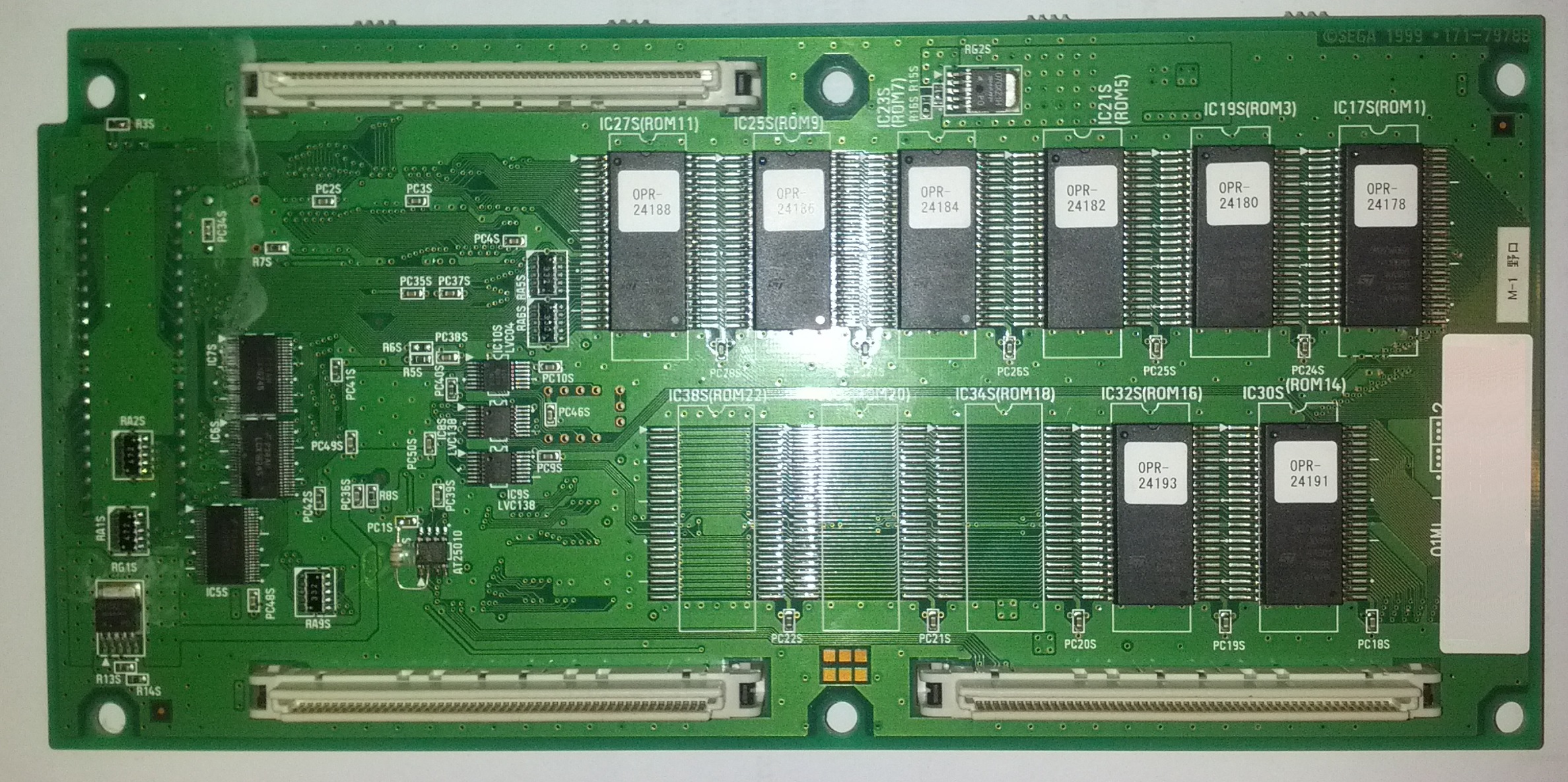

  • PCB solder side
