| dumper | f205v |
| date | 03/05/2010 |
| emulator | MAME 0.186 |
| dev | Osso |
| name | jackalbl on Arcade Database |
| description | Jackal (bootleg, Rotary Joystick) |
| year | 1987 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC6809EP | 6809E | 8-bit Microprocessor - main | |
| 1x | EF68A09EP | 6809 | 8-bit Microprocessor - main | |
| 1x | TDA2002 | Audio Amplifier - sound | ||
| 1x | YM2151 | 2151 | FM Operator Type-M (OPM) - sound | |
| 1x | YM3012 | 3014 | D/A Converter (DAC) - sound | |
| 1x | oscillator | 14.31816MHz | ||
| 1x | oscillator | unmarked |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | D27128 | 2 | dumped |
| 19x | 27256 | 1,3-20 | dumped |
| 2x | N82S129N | 1,2 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 10x | TMS4164-15NL | 4164 (one chip is missing) |
| 2x | AM9128-10PC | 6116 |
| 2x | TMM2015BP-15 | 6116 |
| 3x | HM6264LP-15 | 6264 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | D5C121 | EP1200 | not dumped yet |
| 1x | PAL16R6CN | pal1 | dumped |
| 1x | AMPAL16L8PC | pal2 | dumped |
| 1x | AMPAL16R4PC | pal3 | dumped |
| 1x | PAL16R8ACN | pal4 | dumped |
| 2x | TIBPAL20L8A | pal5,pal6 | read protected |
| 1x | AMPAL16L8PC | pal7 | dumped |
Others
1x 18x2 edge connector
1x trimmer (volume)
2x 8x2 switches DIP (A,B)
1x 4x2 switches DIP (C)
Notes
Update 20170506: better pics, complete redump including PROMs
the PCB was manufactured in Italy (on solder side it is marked "LS" which is a sure giveaway for Italian made PCBs; it's the short form for "Lato Saldature", which means "Solder Side").
Files
-

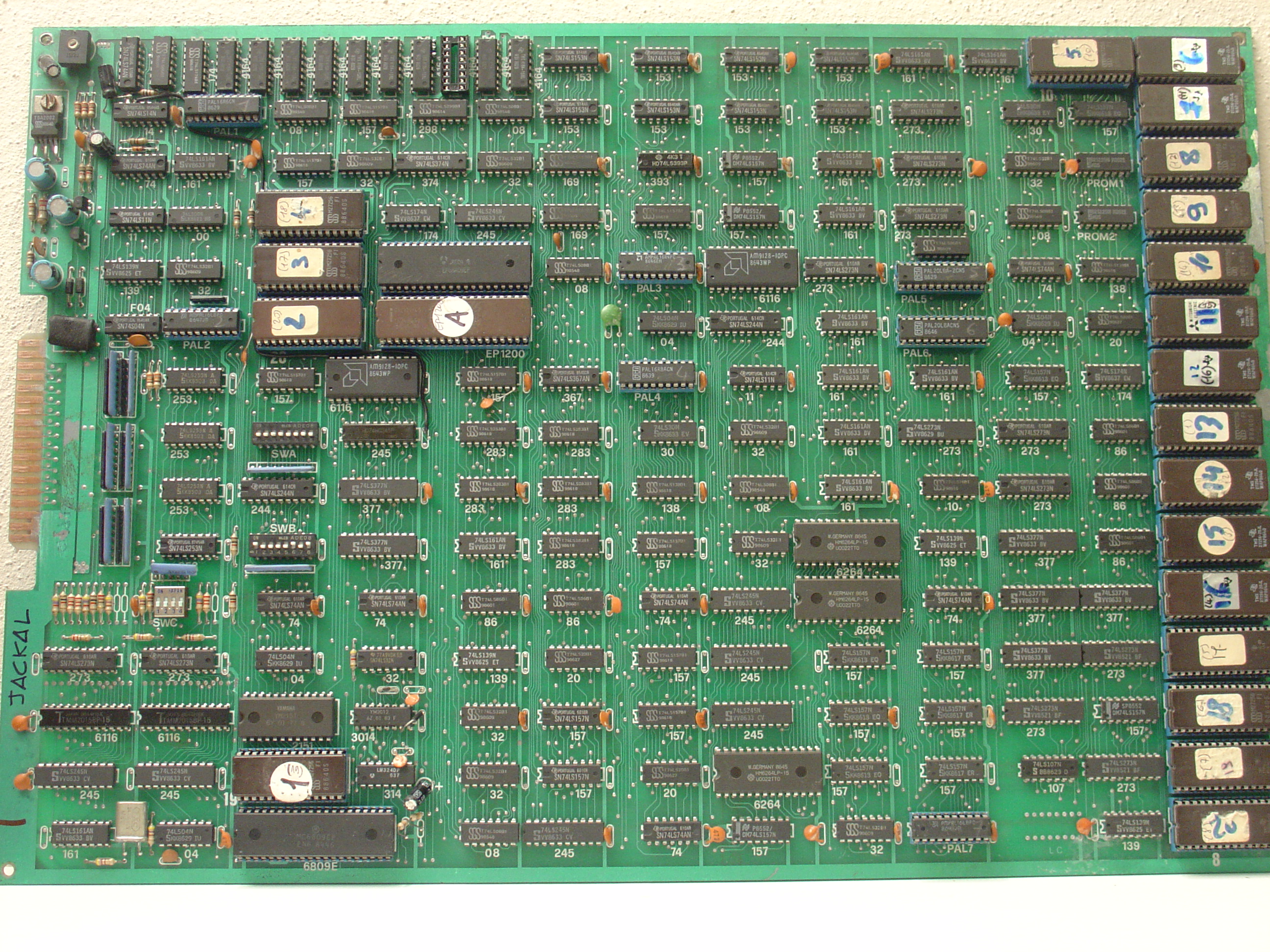

PCB component side 1
-

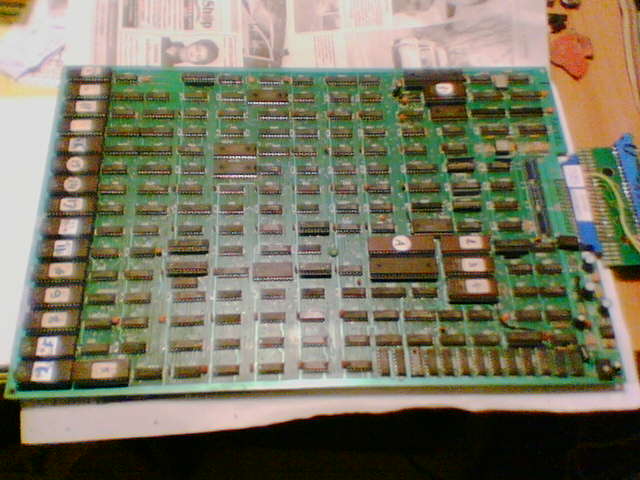

PCB component side 2
-

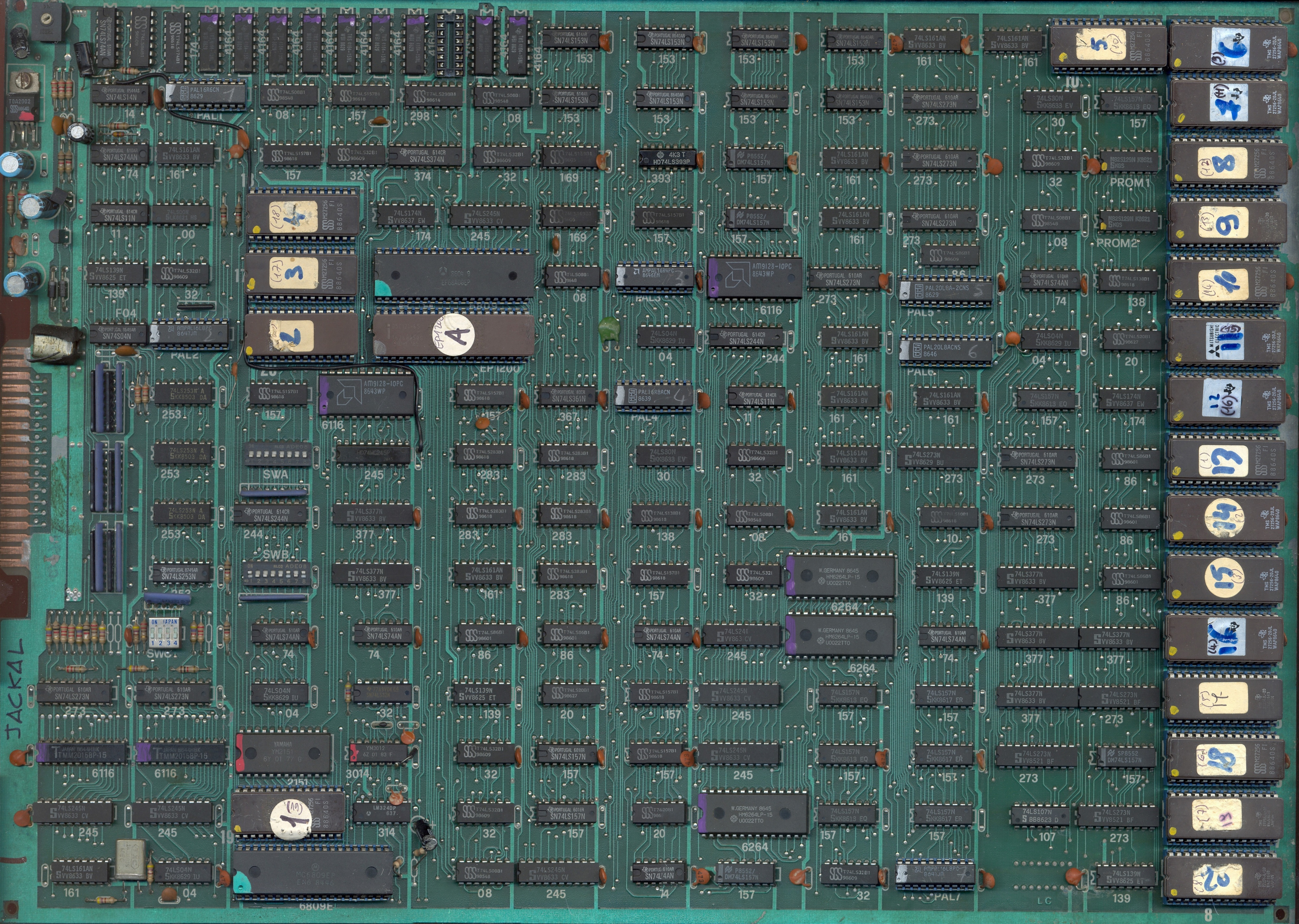

PCB component side 3
-

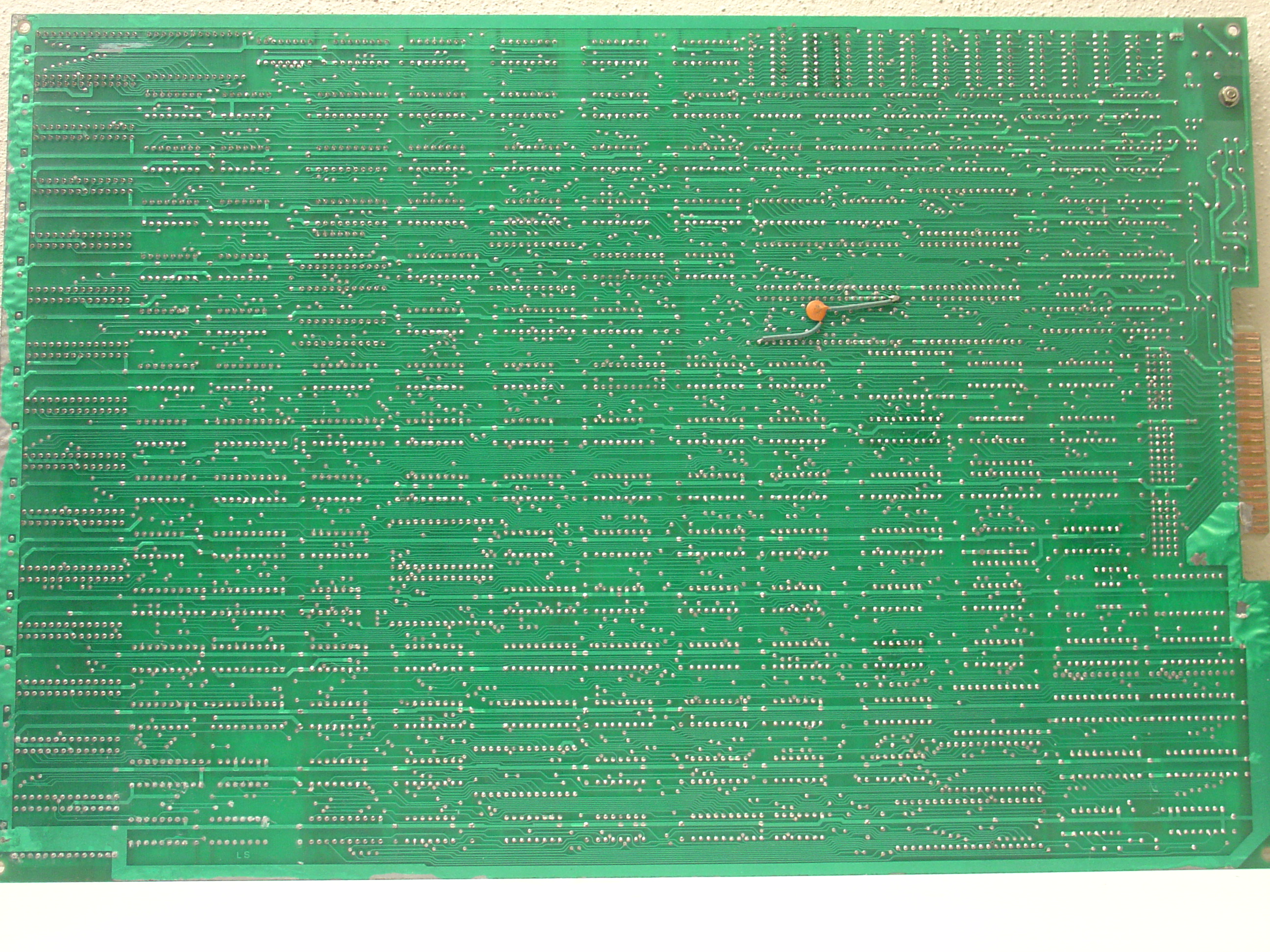

PCB solder side
-

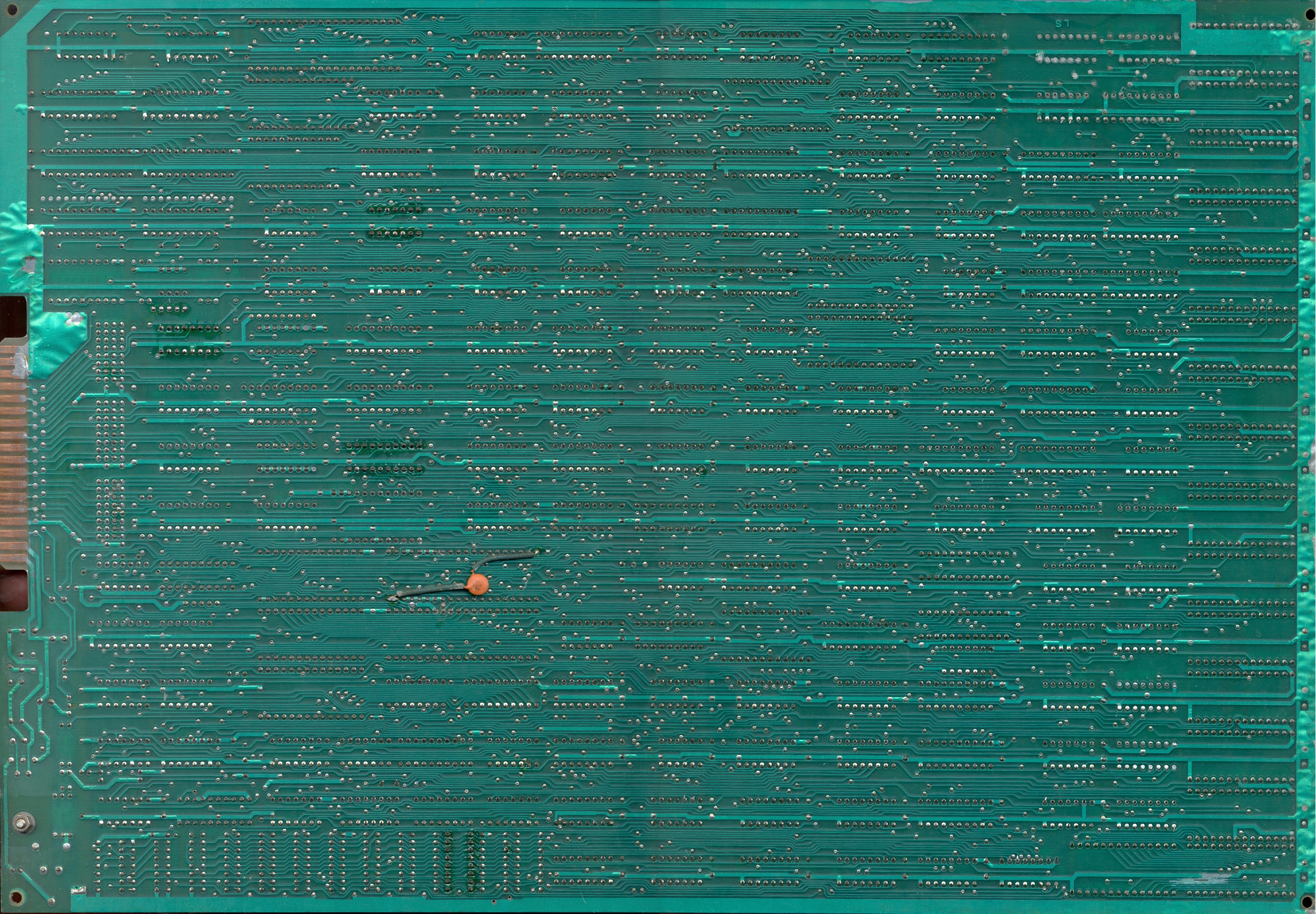

PCB solder side 2
-

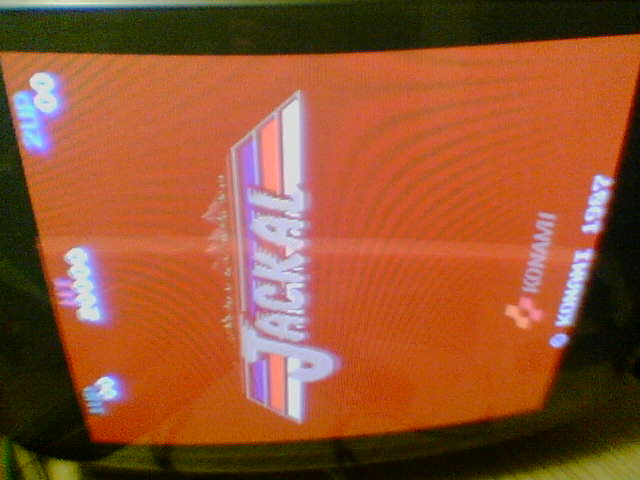

Title
-

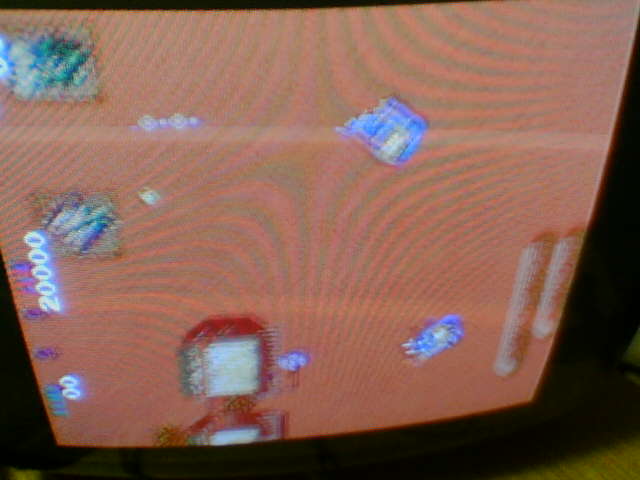

In game 1
-

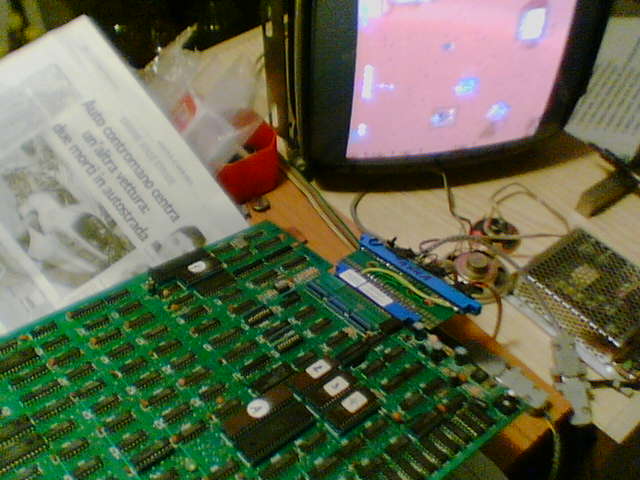

In game 2
-
pinout
