EMU Infos
dumper Guru
date 20/04/2009
emulator MAME 0.131u1
dev Guru
PCB Infos
name f355 on Arcade Database
description Ferrari F355 Challenge (deluxe, no link)
year 1999.07.05
manufacturer Sega

Technical references

CPUs

QTY Type clock position function
1x oscillator 28.000 osc1

ROMs

QTY Type position status
1x M27322 EPR-21902.ic22 dumped
21x M27W064 MPR-21881.ic1 - MPR-21901.ic21s dumped
1x X76F100 ic37 dumped

RAMs

QTY Type position
2x IDT71256 ic44,ic45

PLDs

QTY Type position status
1x 315-6213 ic41 read protected

Others

Notes

It's a NAOMI Multiboard cart.
Cart type: 171-7919A
Cart N°: 834-13842
Protection IC: SEGA 315-5881 (317-0254-COM)
Key: 0x280e8f84

Files

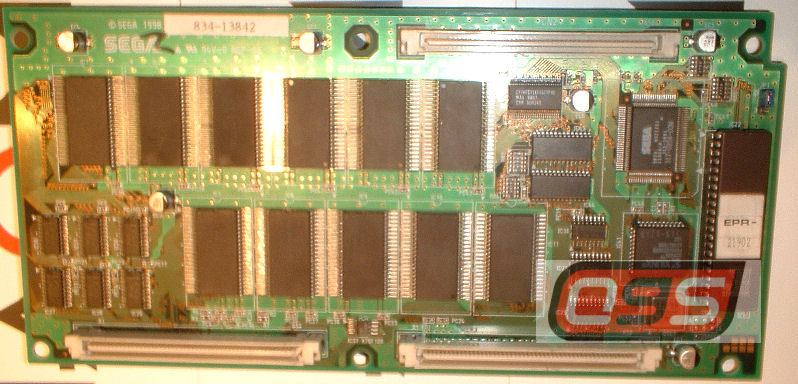

  • main PCB component side

    main PCB component side

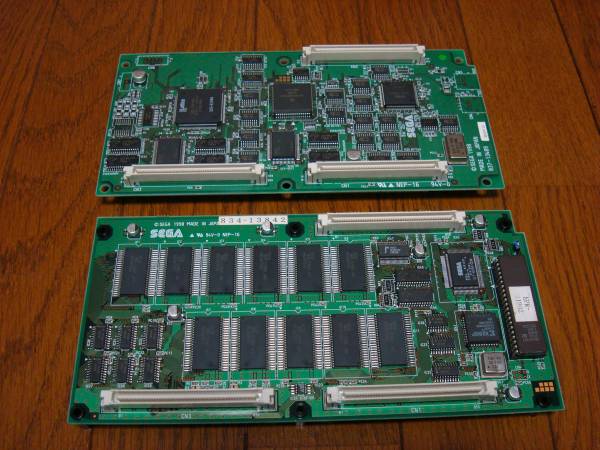

  • PCBs component side

    PCBs component side

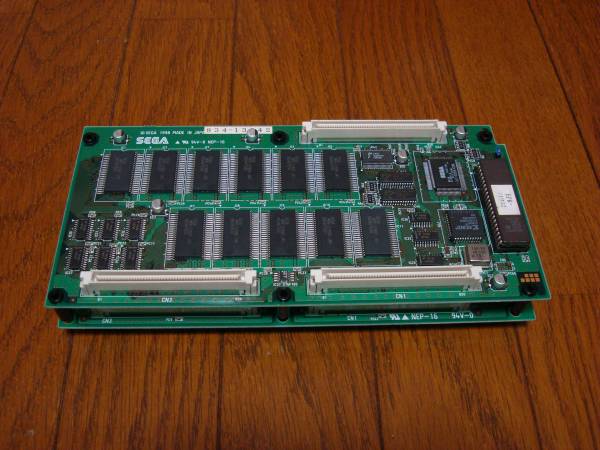

  • assembled PCBs component side

    assembled PCBs component side

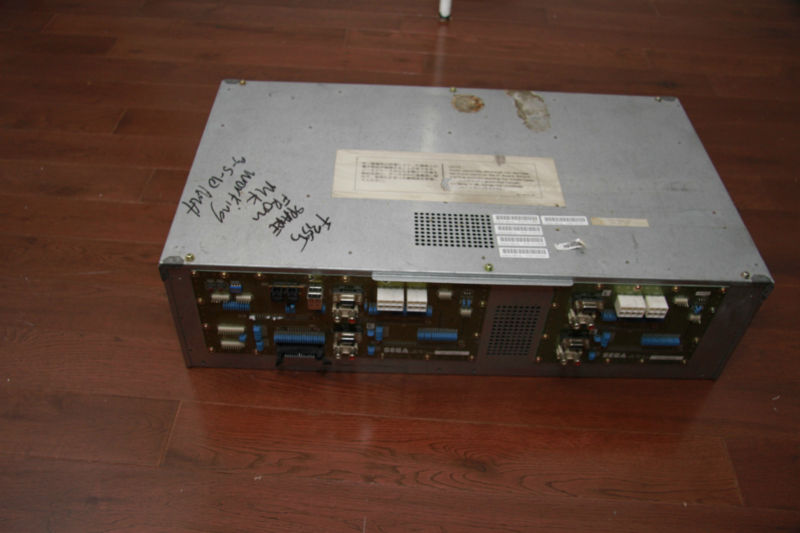

  • Case

    Case

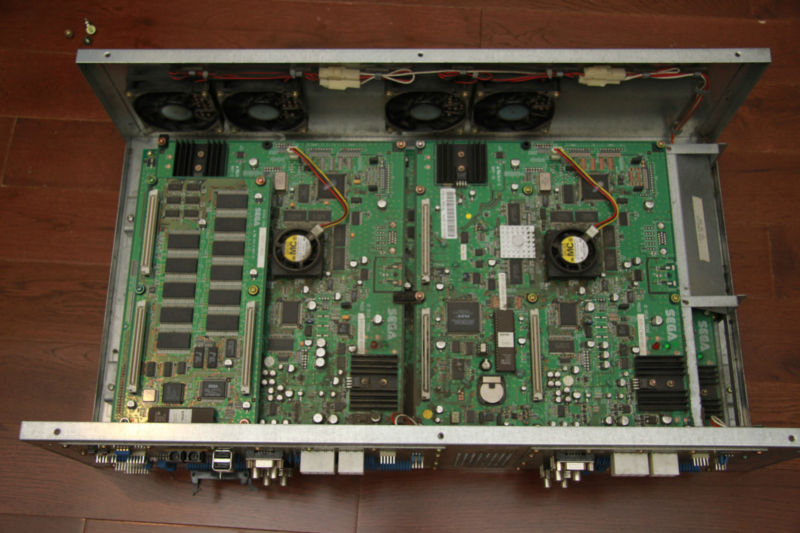

  • Case open

    Case open

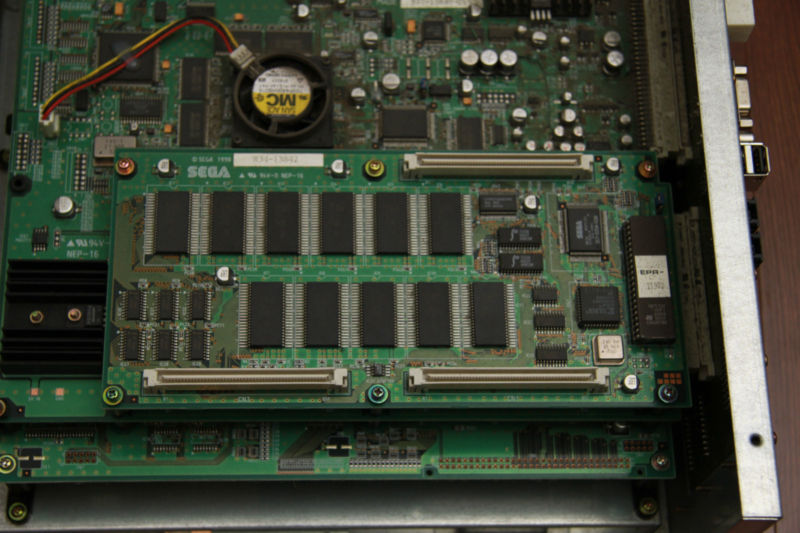

  • Case open detail
