Latest revision as of 13:22, 10 October 2024
| dumper | Alex Cmaylo |
| date | 20/03/2003 |
| emulator | MAME 0.199 |
| dev | MetalliC |
| name | f355twinp on Arcade Database |
| description | Ferrari F355 Challenge (twin/deluxe, preview) |
| year | 1999.09.03 - 11:37:02 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | EPR-22848P.ic22 | dumped |
| 2x | F29F016 | EPR-22848P.ic22 | dumped (as an alternative to the above) |
| 21x | DA28F640J5 | ic1s - ic21s | dumped |
| 1x | X76F100 | ic37 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | EPM7064 315-6206 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7885A
Cart N°: 834-13950P no cart, only PCB
Protection IC: SEGA 315-5881 (317-0267-COM)
Key: 0x2806efd4
Files
-

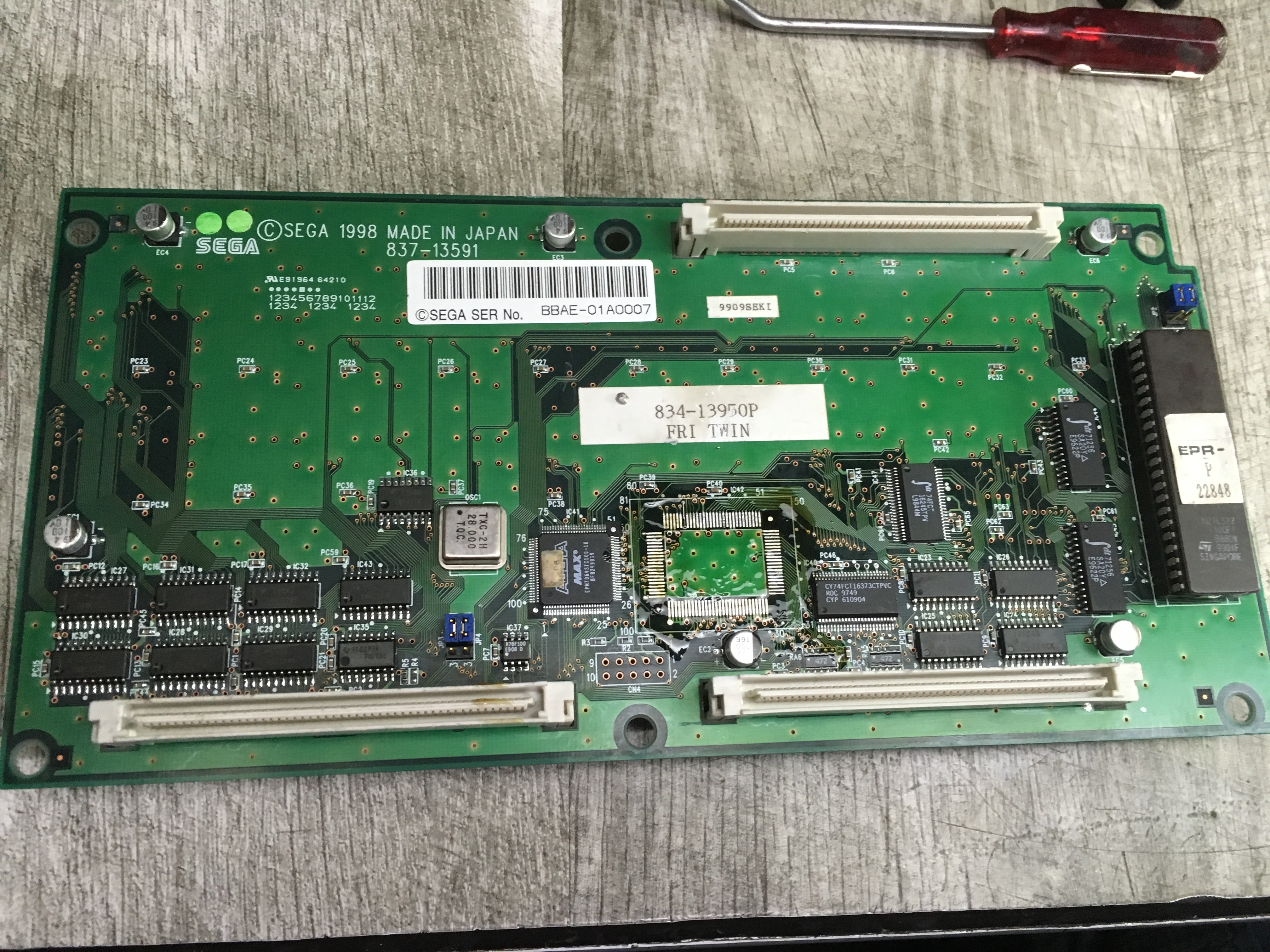

1st PCB component side
-

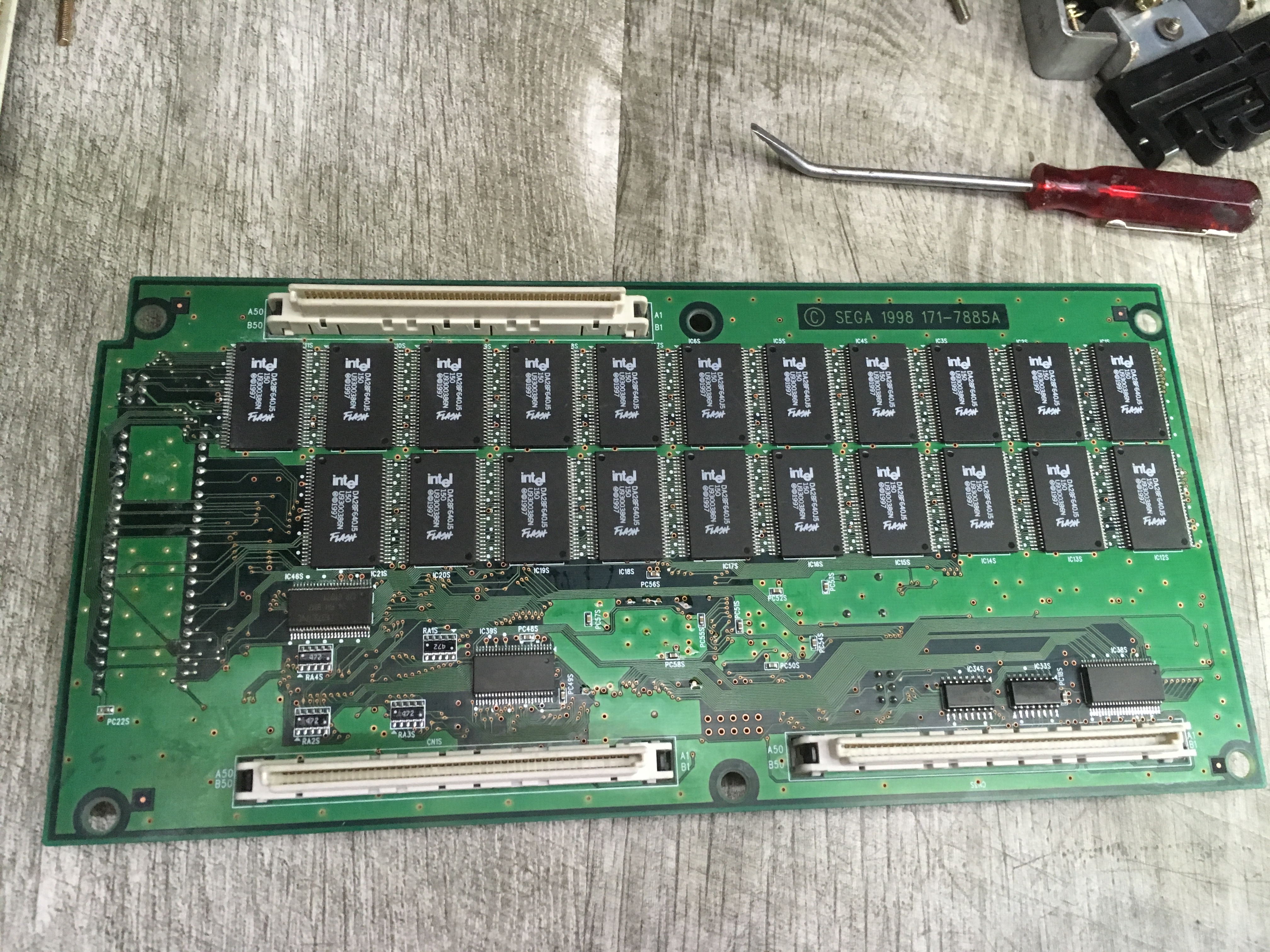

1st PCB solder side
-

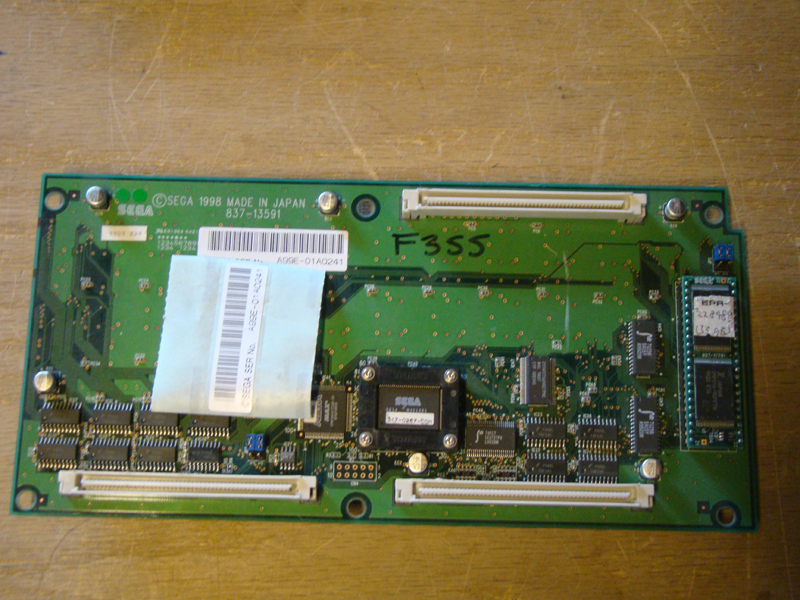

2nd PCB component side
-

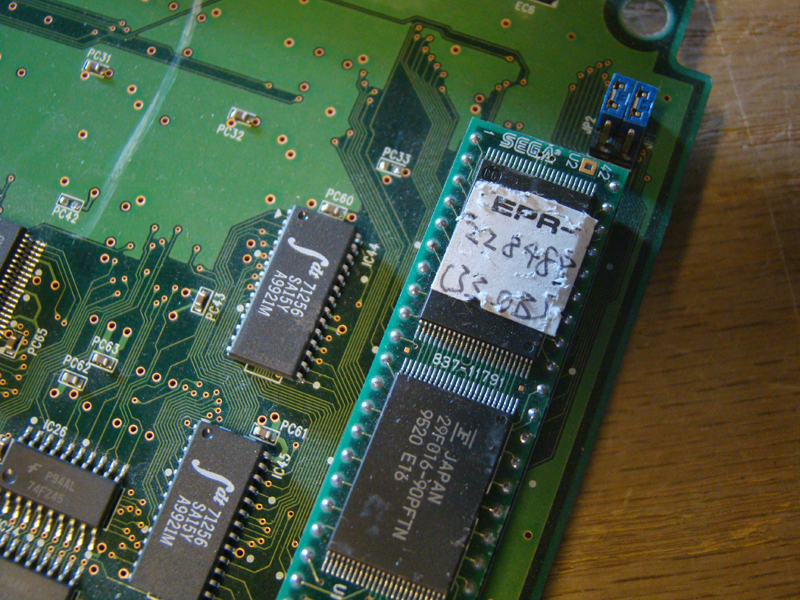

2nd PCB component side detail 1
-

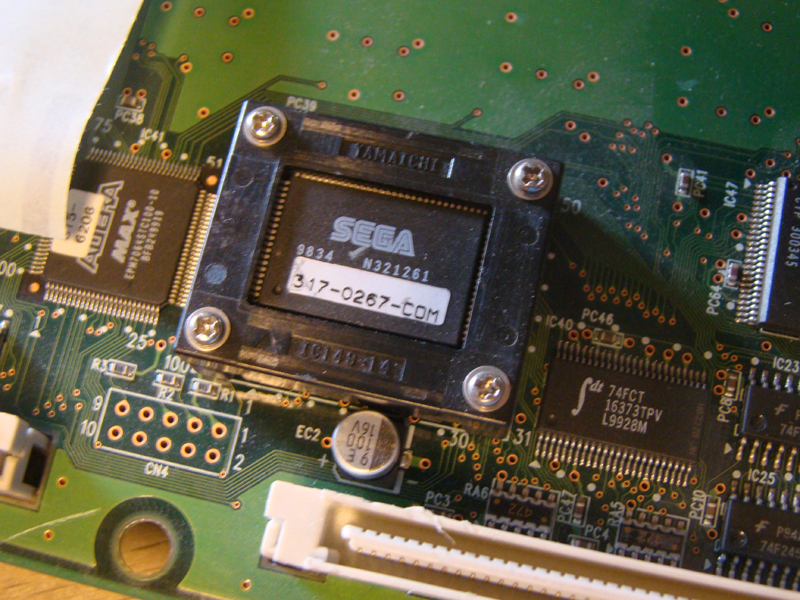

2nd PCB component side detail 2
-

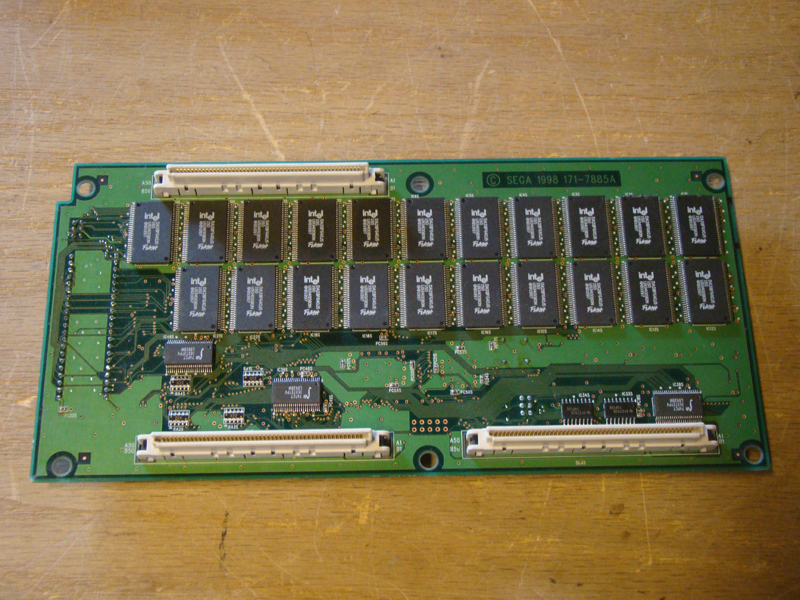

2nd PCB solder side
-

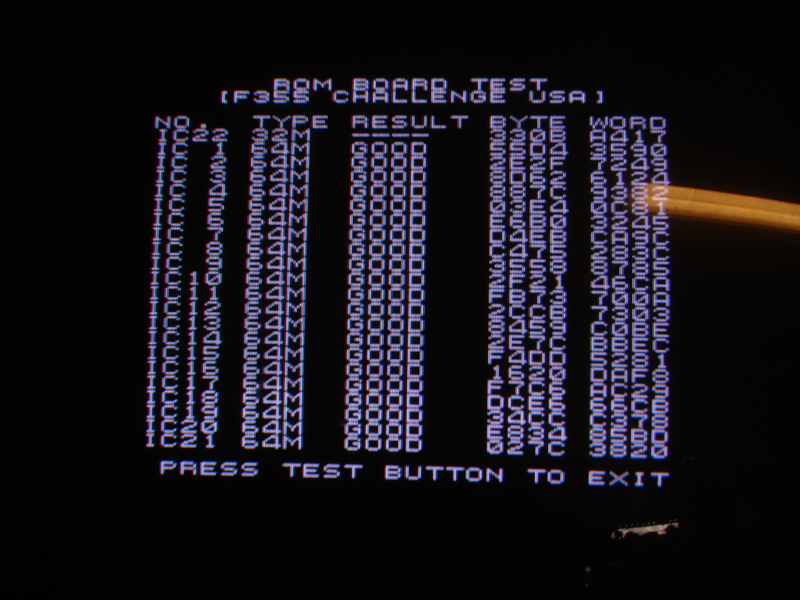

ROM board test
