| dumper | f205v, Corrado Tomaselli |
| dump date | 17/02/2008 |
| emulator | MAME 0.123u2 |
| dev | Corrado Tomaselli |
| name | toyfight on Arcade Database |
| description | Toy Fighter |
| year | 1999.07.16 |
| manufacturer | Sega / Anchor |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | EPR-22035.ic22 | dumped |
| 10x | MX23C6410 | 22025.ic1 - 22034.ic16s | dumped |
| 1x | X76F100 | ic37 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | CY7C199-12VC | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0011B
Protection IC: SEGA 315-5881 (317-0257-COM)
Key: 0x2802ca85
Files
-

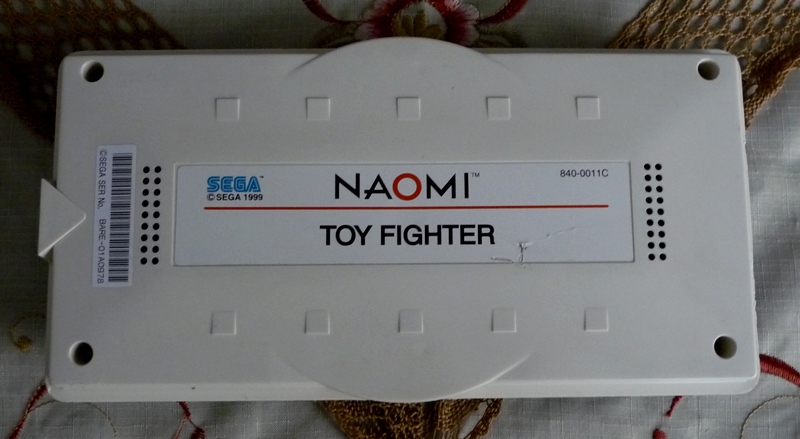

cart
-
PCB component side
-
PCB solder side
