| dumper | f205v |
| date | 31/07/2006 |
| emulator | MAME 0.35b11 |
| dev | Mirko Buffoni |
| name | gberetb on Arcade Database |
| description | Green Beret (bootleg) |
| year | 1985 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z8400BPS-Z80B-CPU | 8-bit Microprocessor - main | ||
| 1x | SN76489 | Digital Complex Sound Generator - sound | ||
| 1x | TDA2003 | - | Audio Amplifier - sound | |
| 1x | oscillator | 20.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | TMS27128 | 1,2,3,4 | dumped |
| 2x | 27128 | 5,7 | not dumped, empty socket |
| 1x | HN27256 | 6 | dumped |
| 4x | AM27S21 | 2 | not dumped yet |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | HM6264L-17 | |
| 4x | NMC2148HJ-3 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PAL16R6A-2 | read protected |
Others
1x 18x2 edge connector
1x trimmer (volume)
2x 8 DIP switches banks
Notes
Files
-

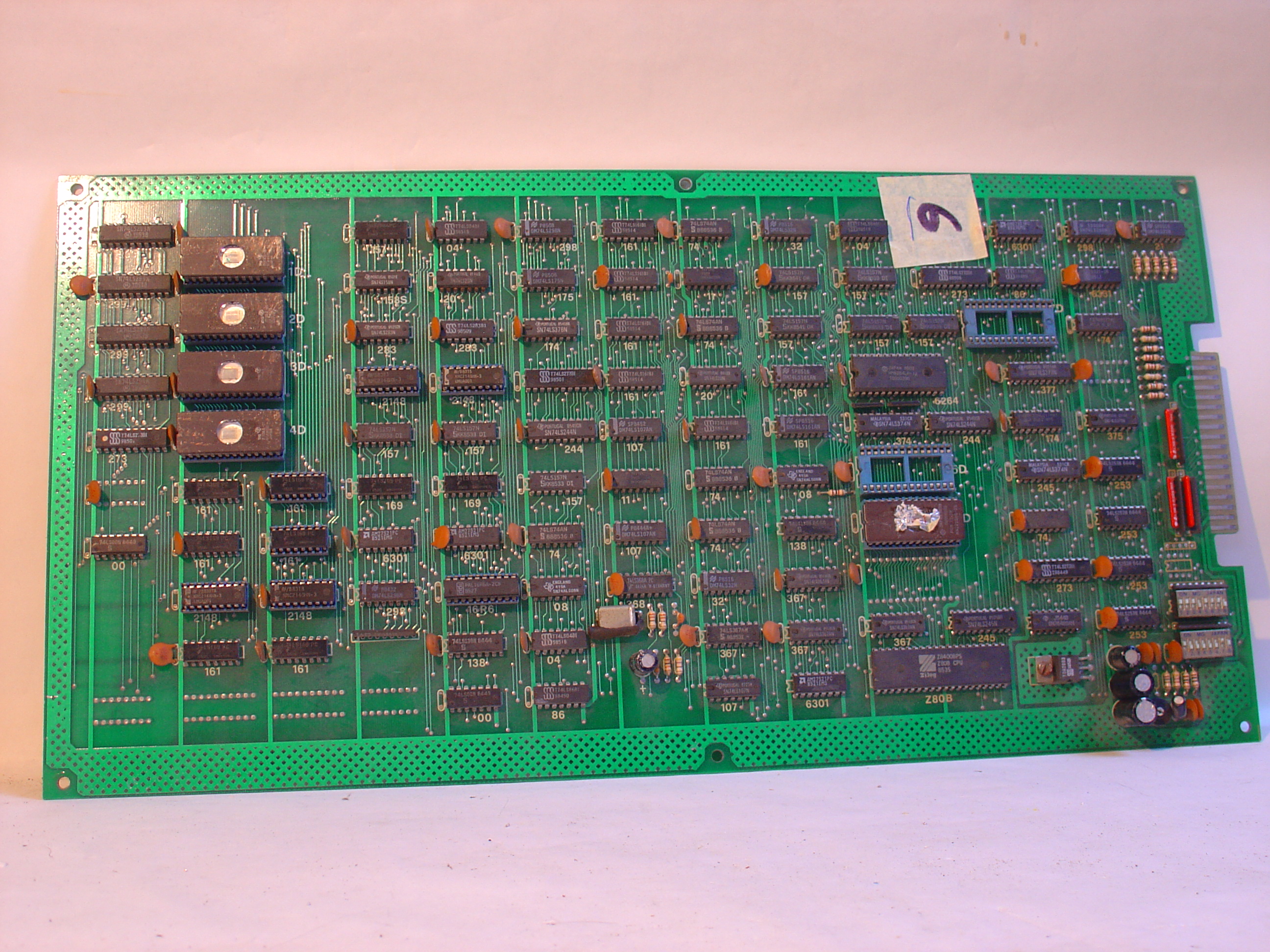

PCB component side
-

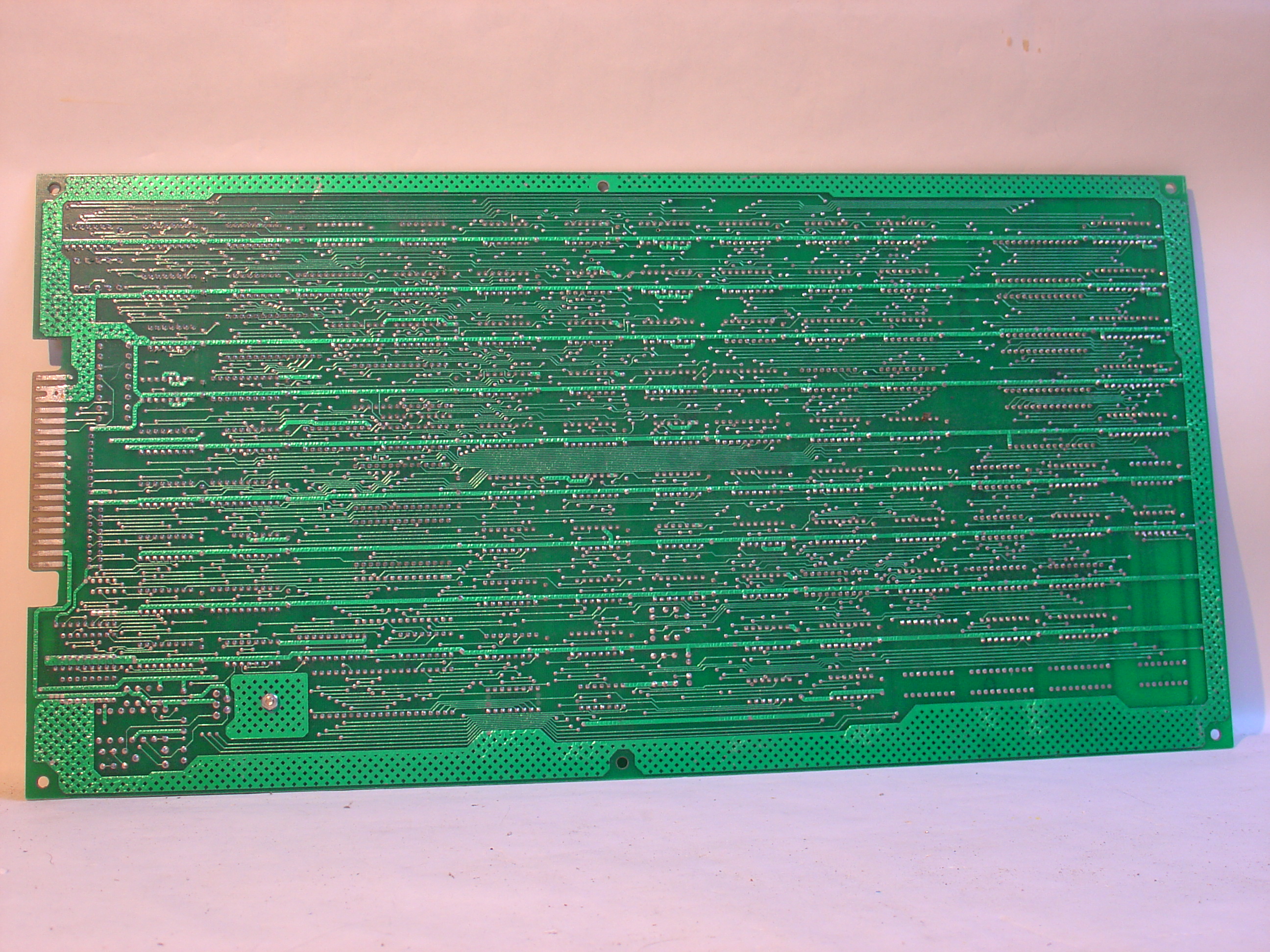

PCB solder side
