| dumper | f205v |
| date | 19/03/2006 |
| emulator | MAME 0.104u8 |
| dev | Pierpaolo Prazzoli |
| name | starfght on Arcade Database |
| description | Star Fighter |
| year | 1979 |
| manufacturer | Jeutel |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80CPU-8400W | 15G | 8-bit Microprocessor - main | |
| 1x | oscillator | 18432 | 11A |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 10x | 2708 | 1-10 ROMs board | dumped |
| 2x | MBM2716 | 7A,9A main board | dumped |
| 1x | MMI6331 | 7F main board | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 24x2 edge connector
1x trimmer (volume)
1x 6 DIP switches bank
Notes
Files
-

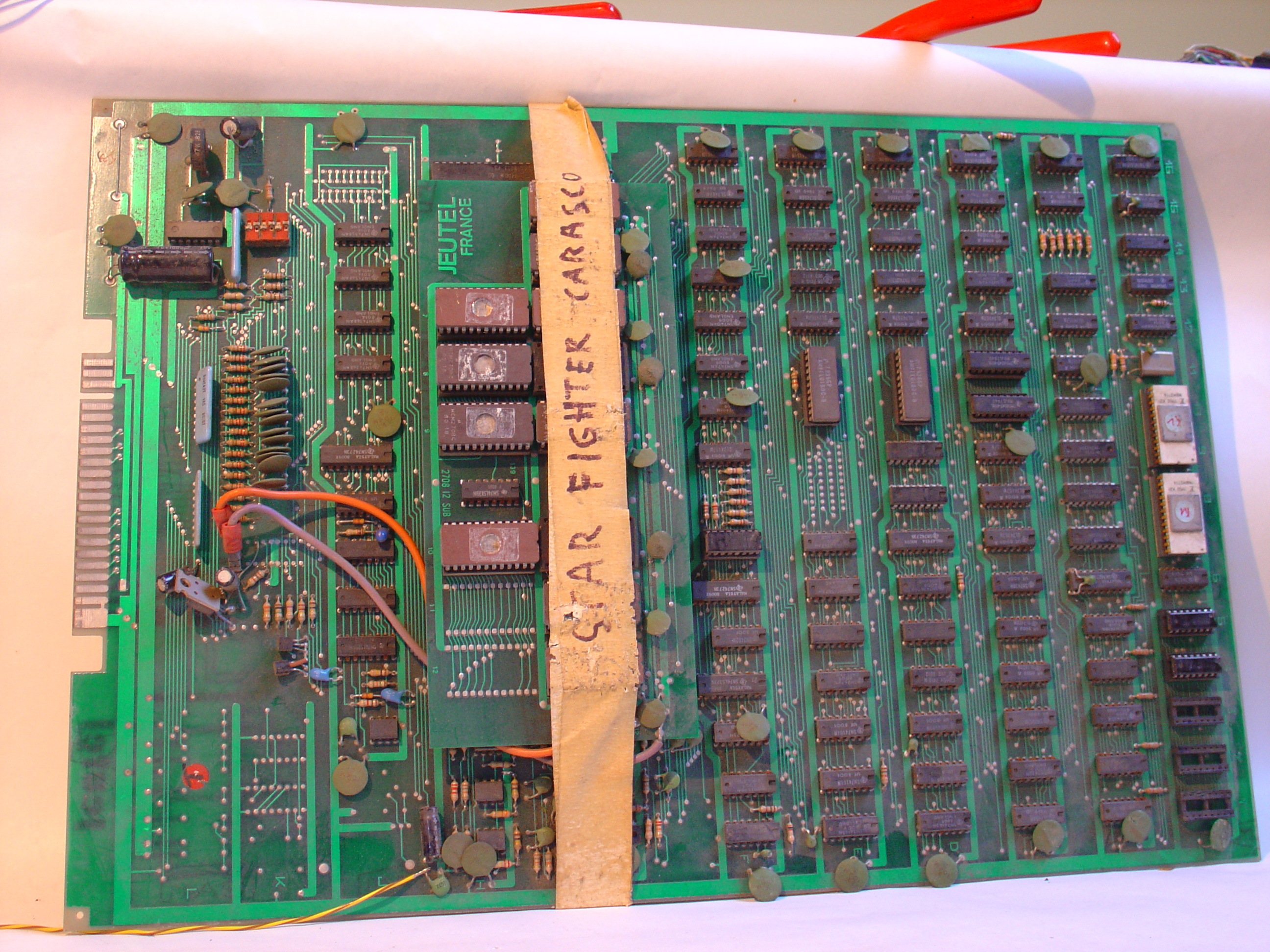

assembled PCBs component side
-

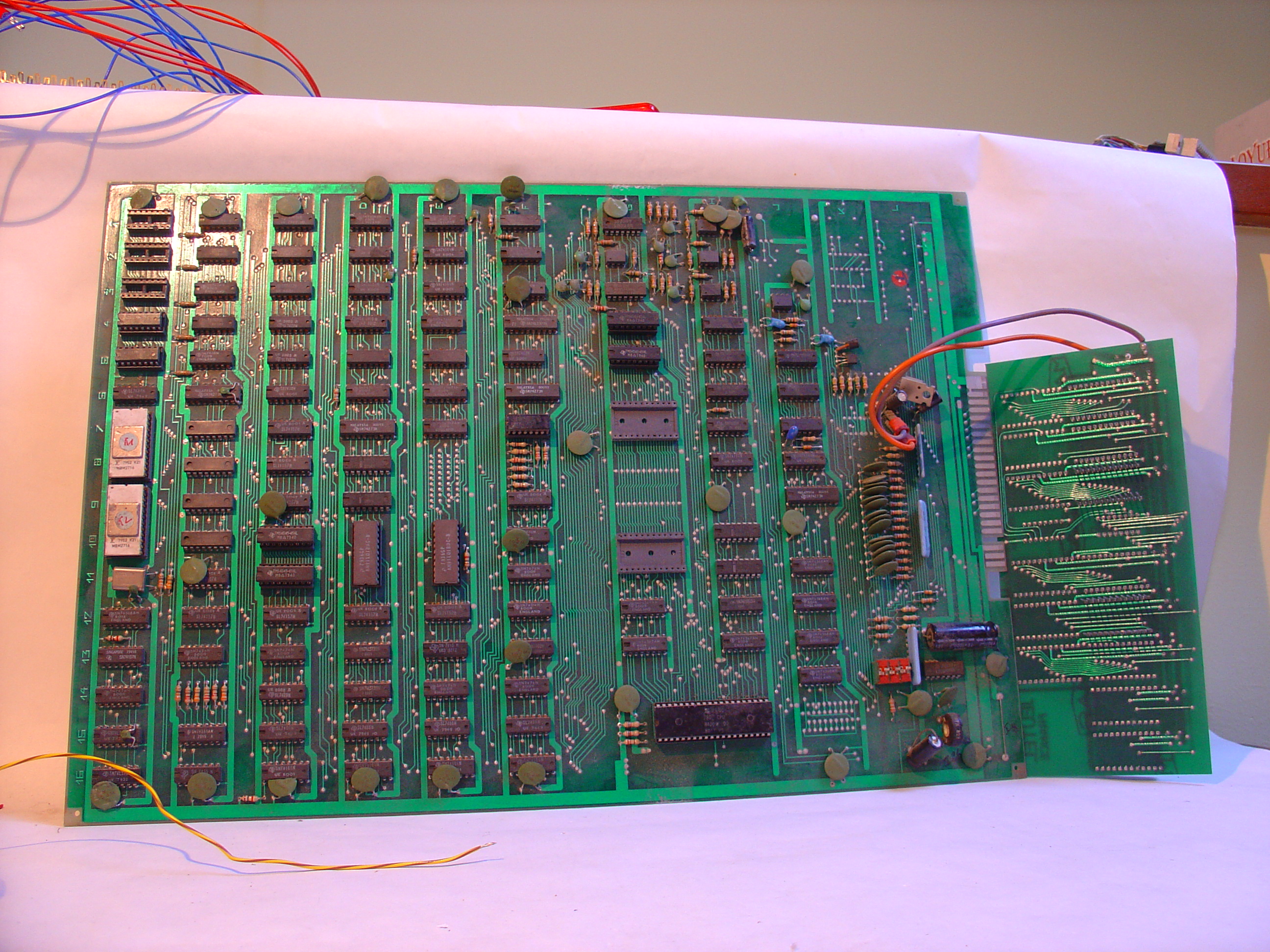

main PCB component side
-

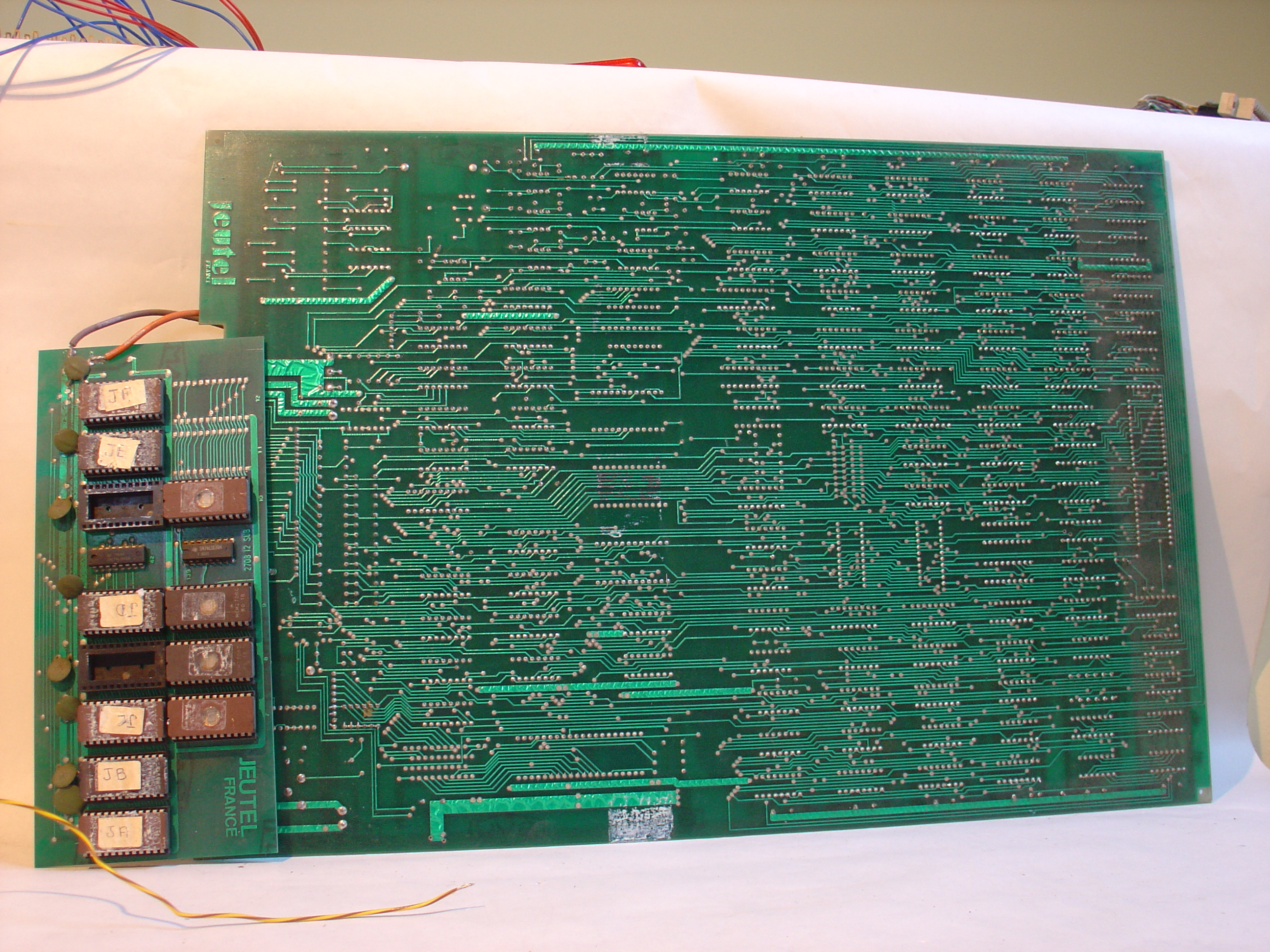

ROMs PCB component side
