Latest revision as of 15:00, 27 September 2024
| dumper | f205v |
| date | 17/03/2008 |
| emulator | MAME 0.123u6 |
| dev | Roberto Fresca |
| name | potgame on Arcade Database |
| description | Pot Game (Italian) |
| year | 1996 |
| manufacturer | C.M.C. |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | G65SC02P-2 | u1 | 8-bit Microprocessor - main | |
| 1x | MC68B45P | u8 | CRT Controller (CRTC) | |
| 2x | MC68B21CP | u29,u30 | Peripheral Interface Adapter | |
| 1x | 95101 | u34 | Programmable Sound Generator - sound | |
| 1x | TDA2003 | u33 | Audio Amplifier - sound | |
| 1x | oscillator | 16.000000MHz | os1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | TMS27C256 | u2,u20,u21 | dumped |
| 1x | AM27S29PC | u25 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | U6264ADC | u13 |
| 1x | GM76C28A-10 | u3 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PALCE20V8H-25PC/4 | u22,u23 | read protected |
| 1x | PALCE16V8H-15PC/4 | u5 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
1x 8 DIP switches bank
1x battery 3.6V
Notes
PCB is marked: "top" and "C.M.C. POOL 10" on component side
PCB is marked: "bottom" and "POOL 10 C.M.C" on solder side
PCB is labeled: "POTGAME" on component side
PCB is labeled: "P.G." on solder side
Files
-

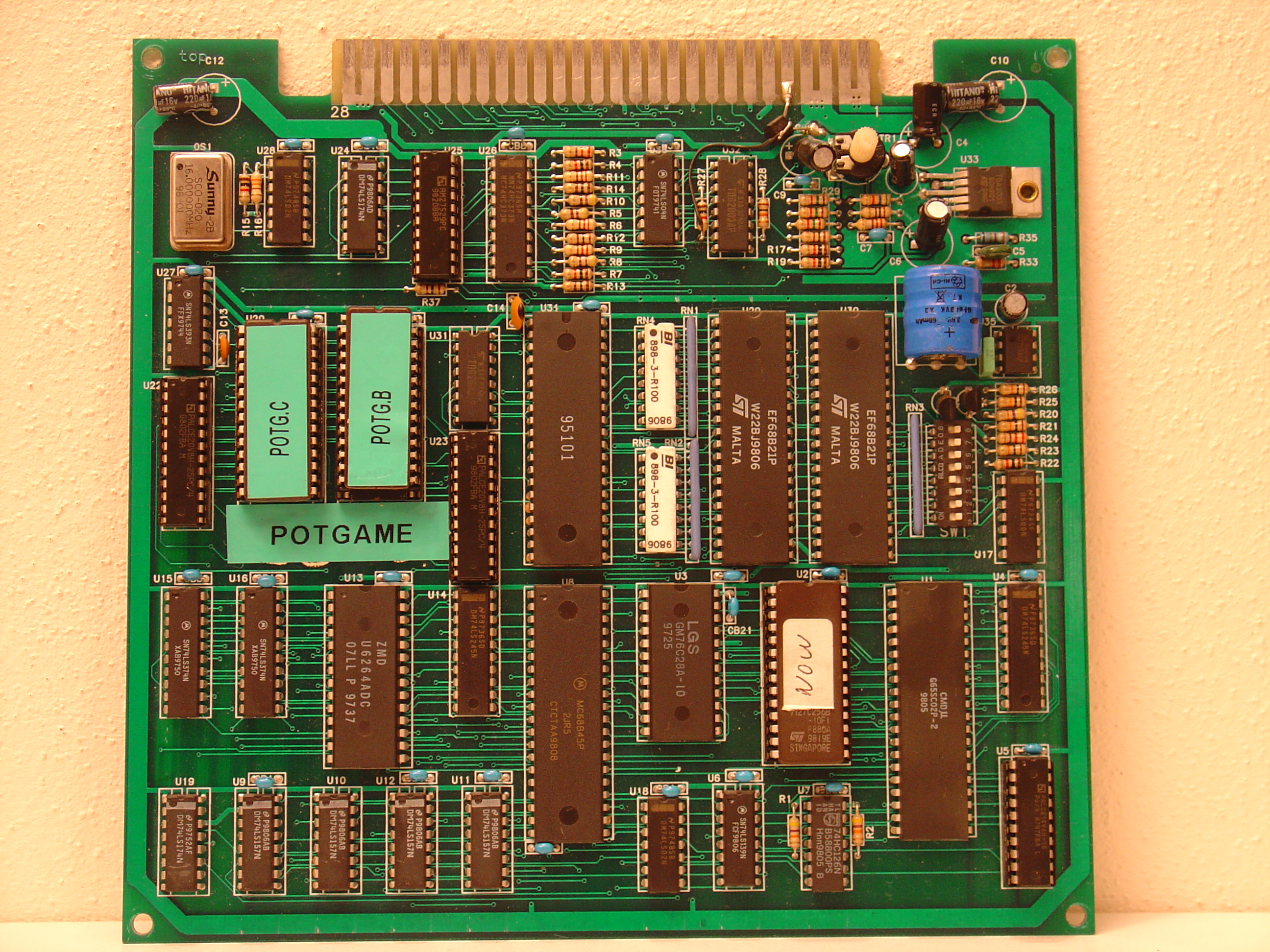

PCB component side
-

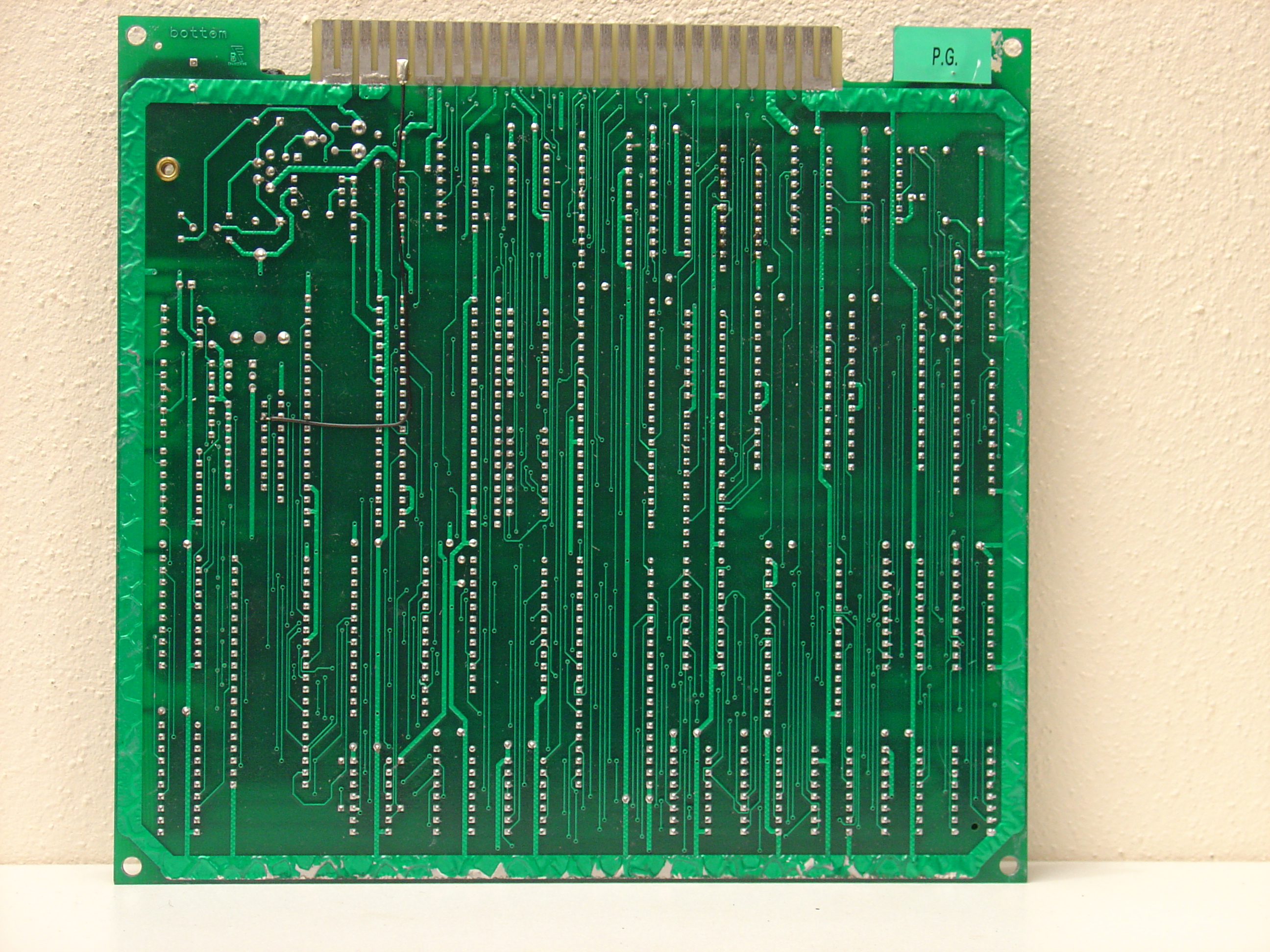

PCB solder side
-

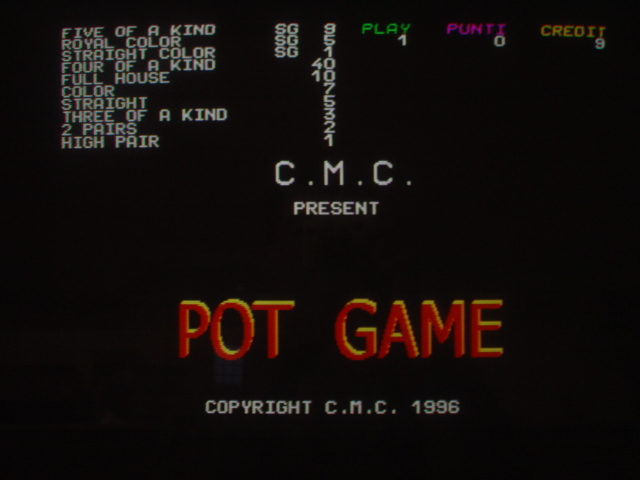

Title
-

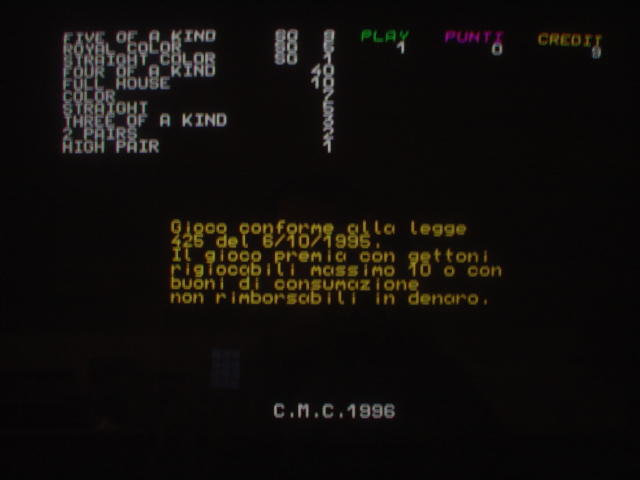

Attract mode
-

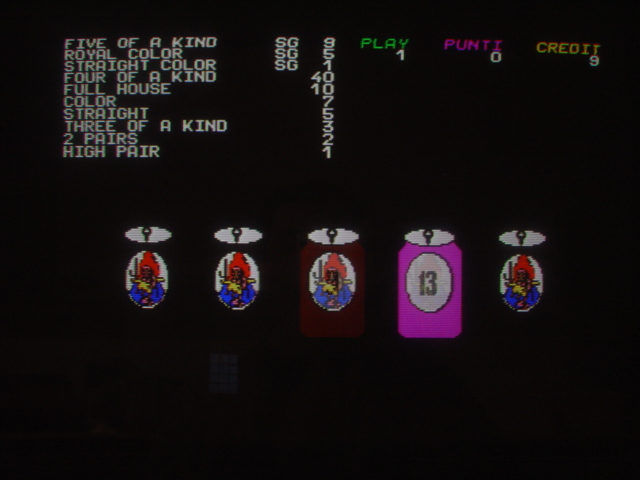

In game 1
-

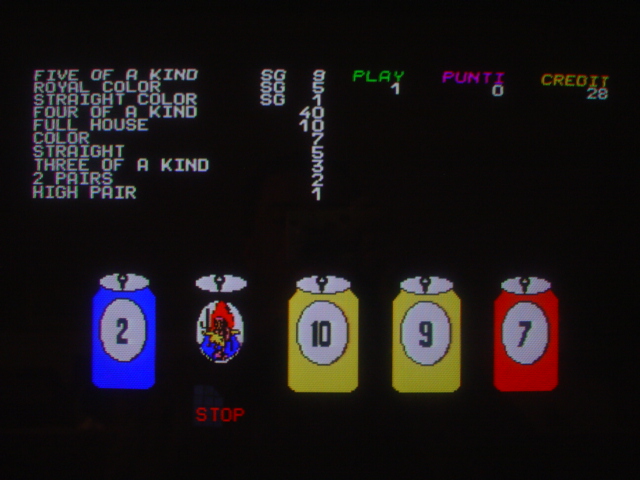

In game 2
-

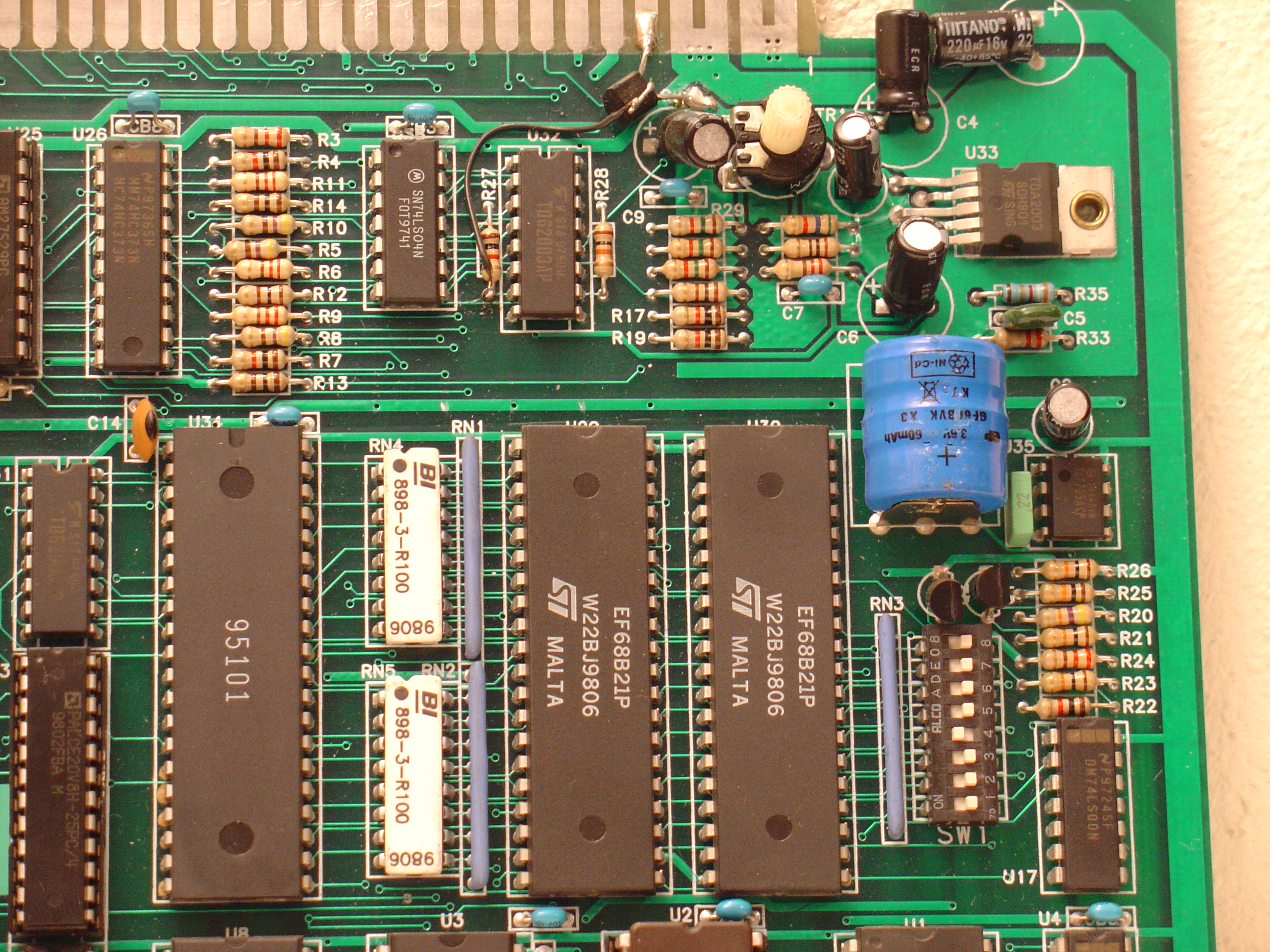

resistors Detail 1
-

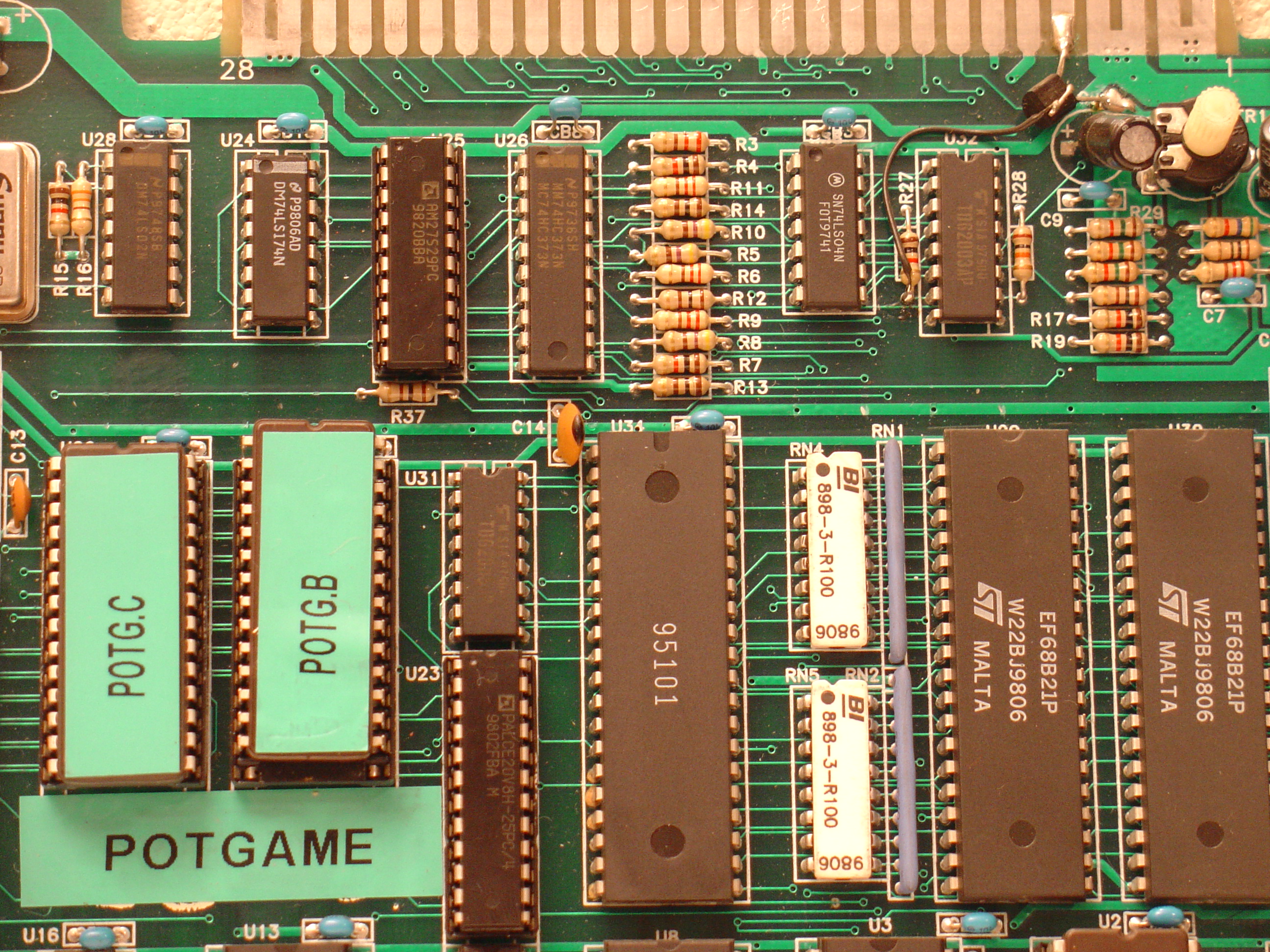

resistors Detail 2
