Latest revision as of 14:38, 27 September 2024
| dumper | Corrado Tomaselli |
| date | 24/02/2018 |
| emulator | MAME 0.36b4 |
| dev | Olivier Galibert |
| name | puzznicj on Arcade Database |
| description | Puzznic (Japan) |
| year | 1989 |
| manufacturer | Taito |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TC0090LVC | both main PCB ic5 (labeled 62900) | 8-bit Microprocessor - main | |
| 1x | YM2203C | both main PCB ic20 | FM Operator Type-N (OPM) - sound | |
| 1x | YM3014B | both main PCB ic19 | D/A Converter (DAC) - sound | |
| 1x | uPC4556C | both main PCB u18 | Dual Operational Amplifier - sound | |
| 1x | MB3735 | both main PCB ic17 | Audio Amplifier - sound | |
| 1x | oscillator | 13.33056MHz | both main PCB osc1 | |
| 1x | MC68705P3S | both ROMs PCB ic4 | 8-bit EPROM Microcomputer Unit (internal ROM dumped) | |
| 1x | oscillator | 3.579545 | both ROMs PCB x1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | DS40986 | both ROMs PCB 11.ic9 12.ic10 13.ic11 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | CXK58257P-10 | both main PCB ic1, ic2, ic3, ic4 |
| 1x | CXK5864BSP-10L | 1st main PCB ic11 |
| 1x | TMM2063AP-10 | 2nd main PCB ic11 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PAL20L8ACNS | ROMs PCB ic3 | read protected |
Others
1x 28x2 JAMMA edge connector (main PCB)
1x trimmer (volume)(main PCB VR)
2x 8x2 switches DIP (main PCB DSA, DSB)
Notes
1st main PCB is marked: "TAITO L SYSTEM K1100439A J1100187A" and "MAIN PCB MADE IN JAPAN TAITO CORPORATION" and "SERIAL NO 949016564" on component side
1st main PCB is labeled: "K1100439A FLIPULL" and "PUZZNIC"(handwritten) on component side
1st ROMs PCB is marked: "TAITO" and "J9100241A K9100188A SUB PCB MADE IN JAPAN TAITO CORPORATION" on component side
1st ROMs PCB is labeled: "90CCC" on component side
2nd main PCB is marked: "TAITO L SYSTEM K1100439A J1100187A" and "MAIN PCB MADE IN JAPAN TAITO CORPORATION" and "SERIAL NO 949011729" on component side
2nd main PCB is labeled: "K1100439A FLIPULL" on component side
2nd ROMs PCB is marked: "TAITO" and "J9100241A K9100188A SUB PCB MADE IN JAPAN TAITO CORPORATION" on component side
2nd ROMs PCB is labeled: "90CCC" and "CWBO"(handwritten) on component side
update 20180314: Corrado Tomaselli dumped EPROMs and MCU.
Files
-

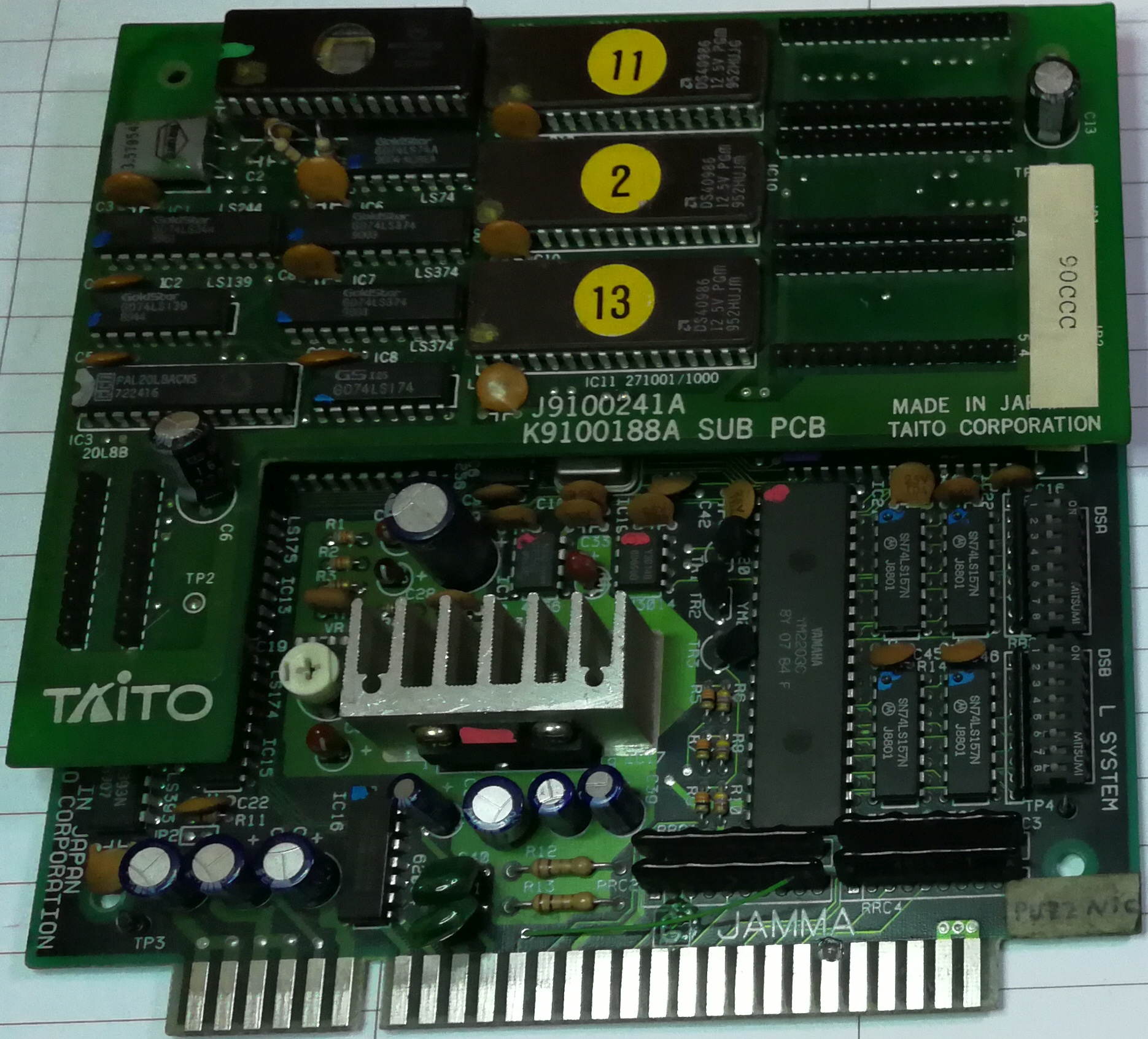

1st assembled PCBs component side
-

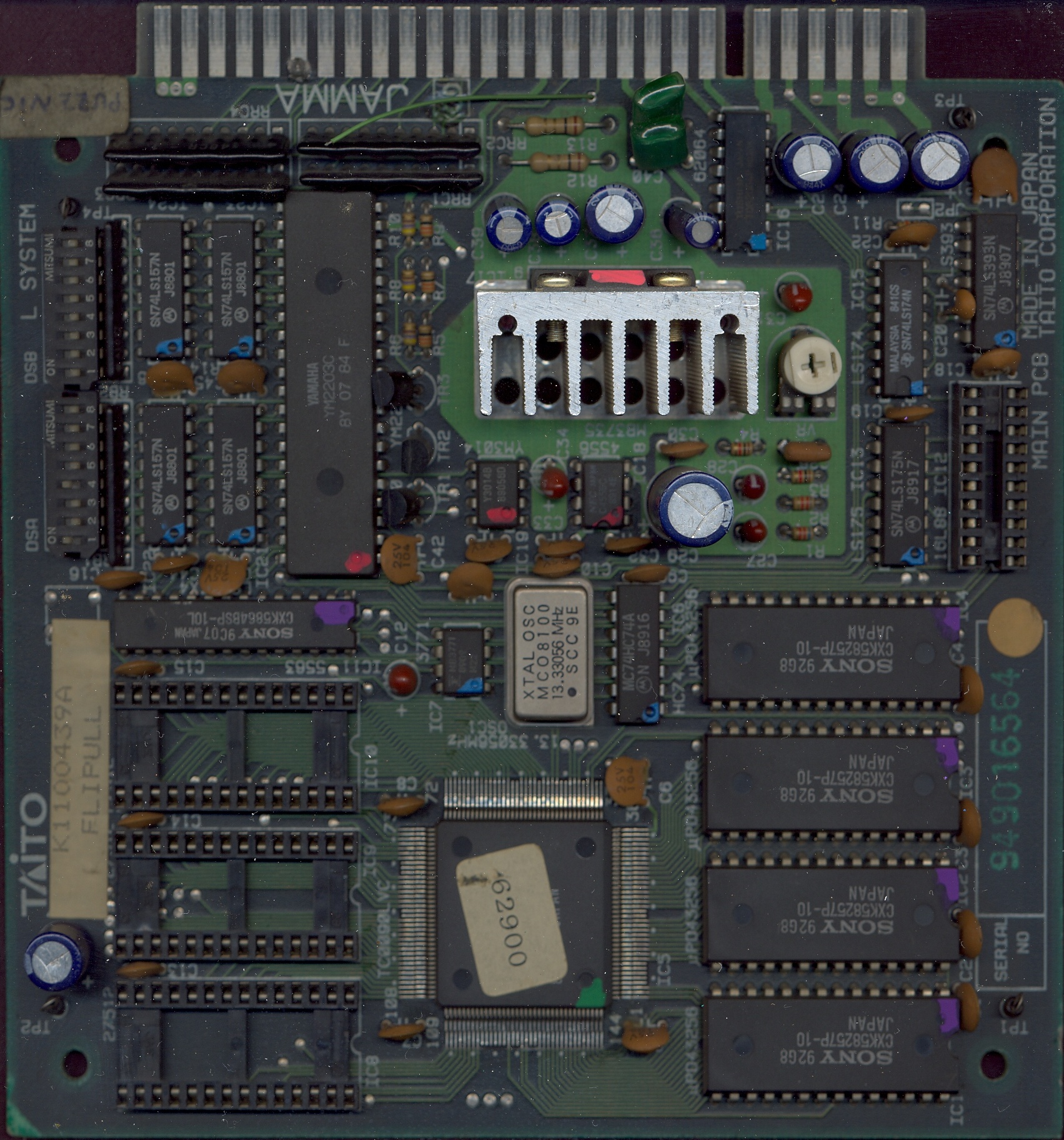

1st main PCB component side
-

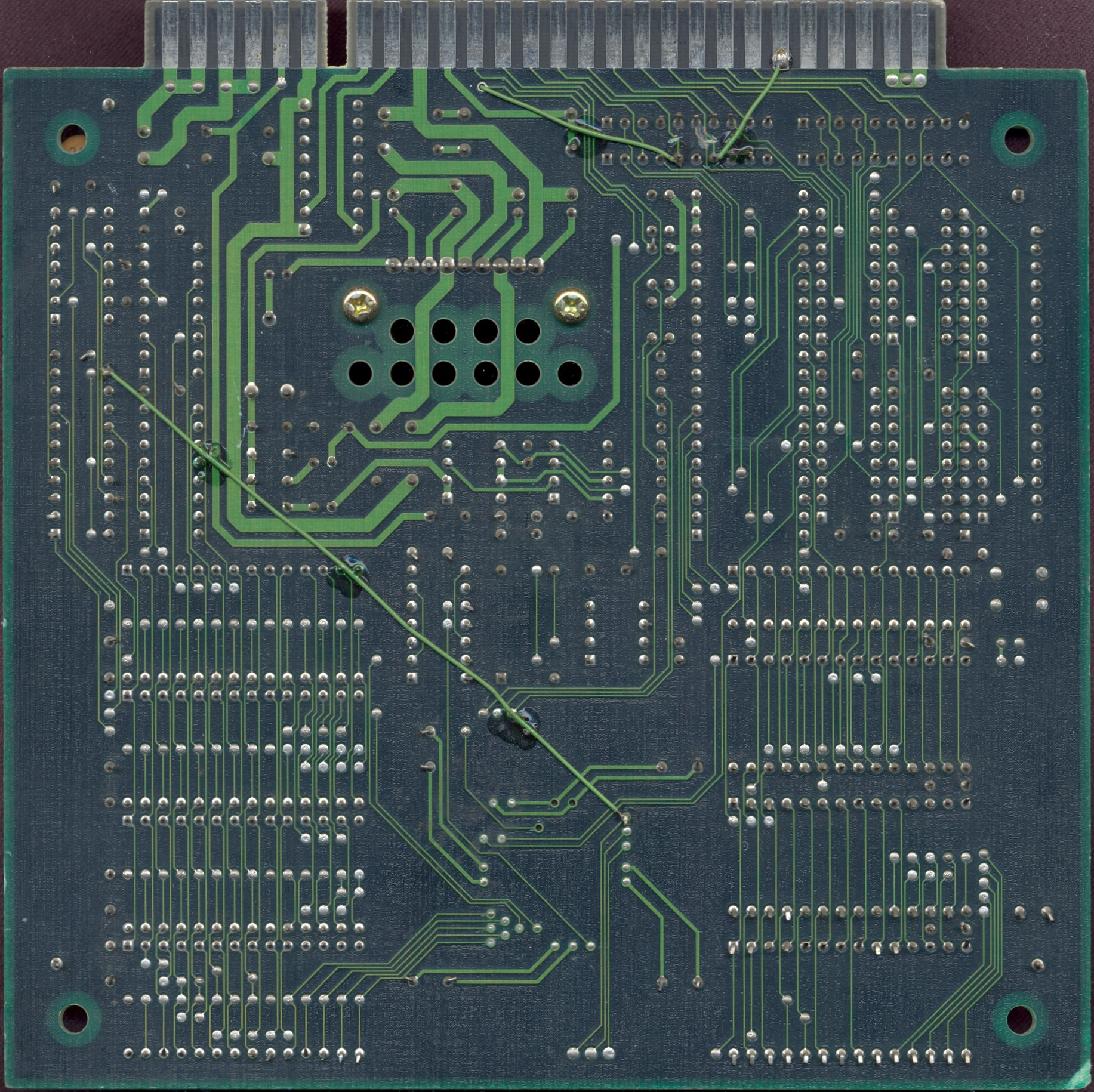

1st main PCB solder side
-

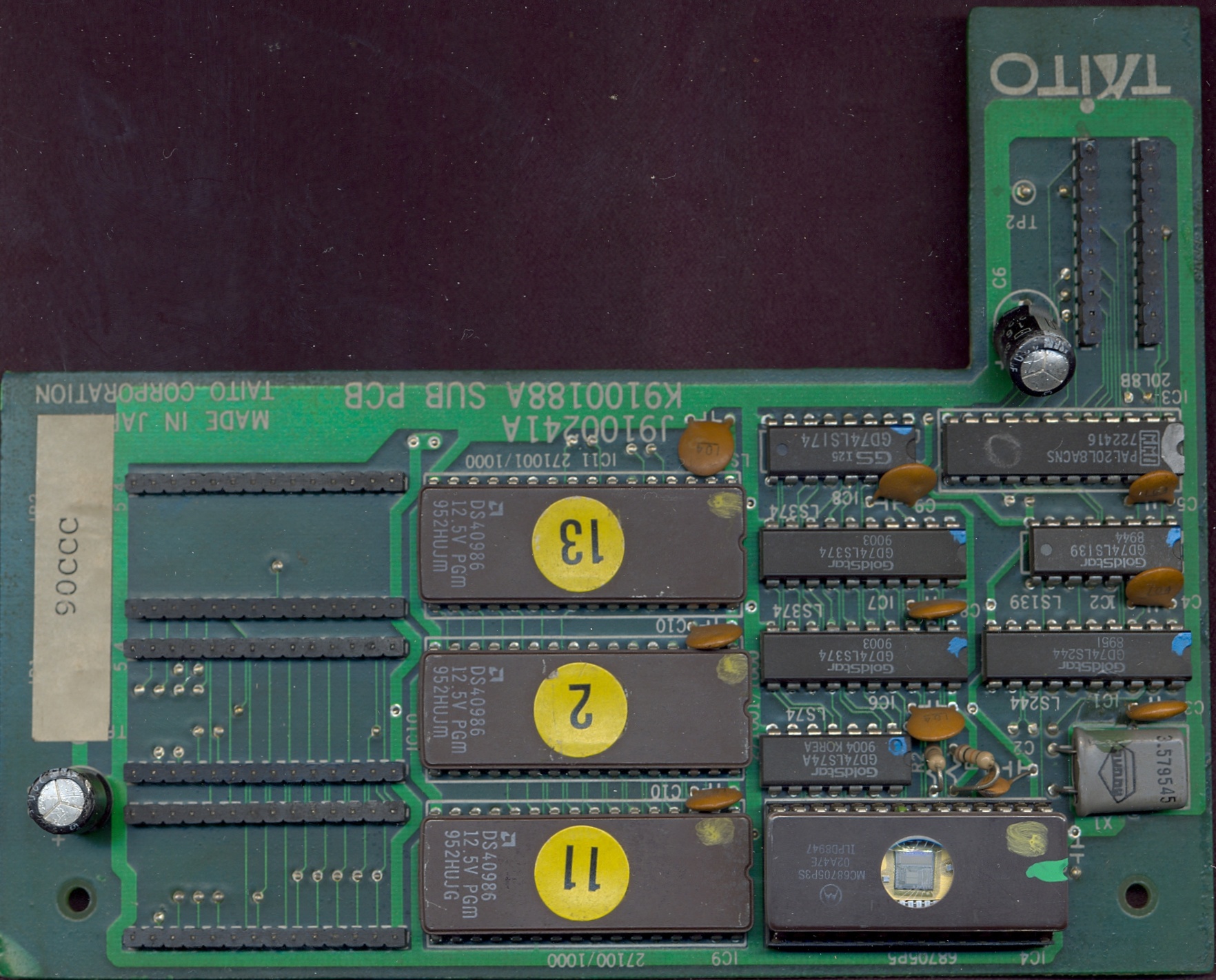

1st ROMs PCB component side
-

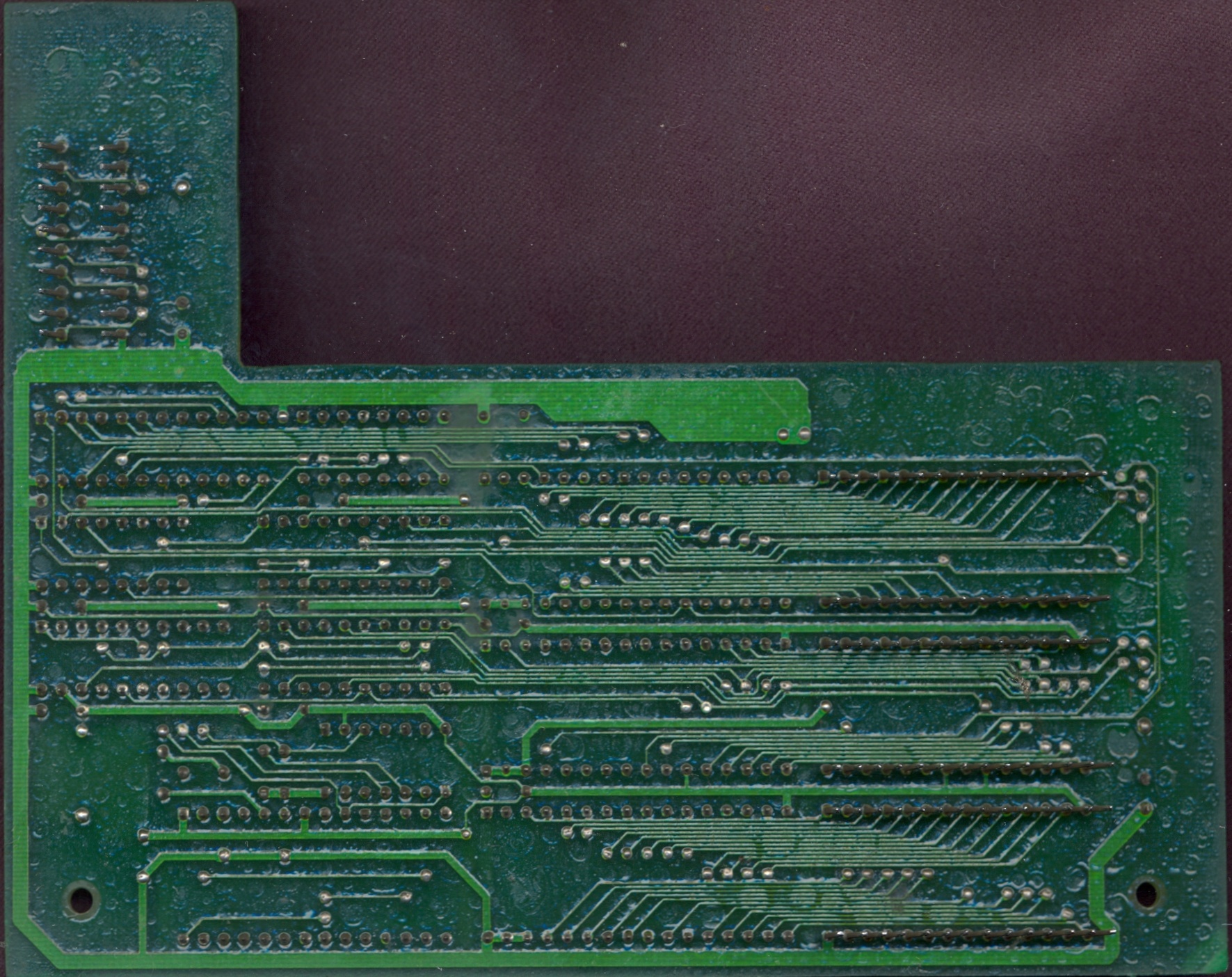

1st ROMs PCB solder side
-

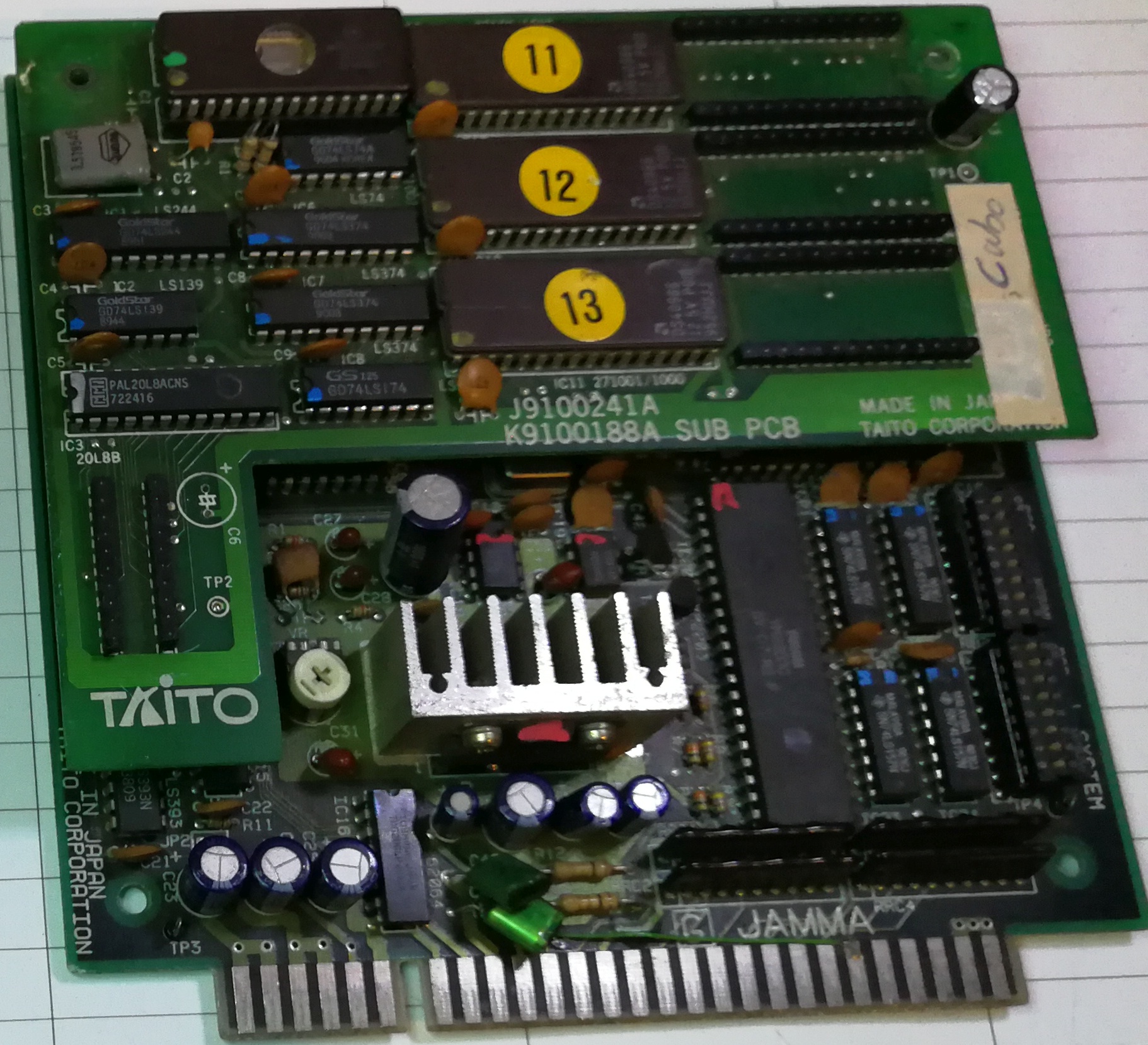

2nd assembled PCBs component side
-

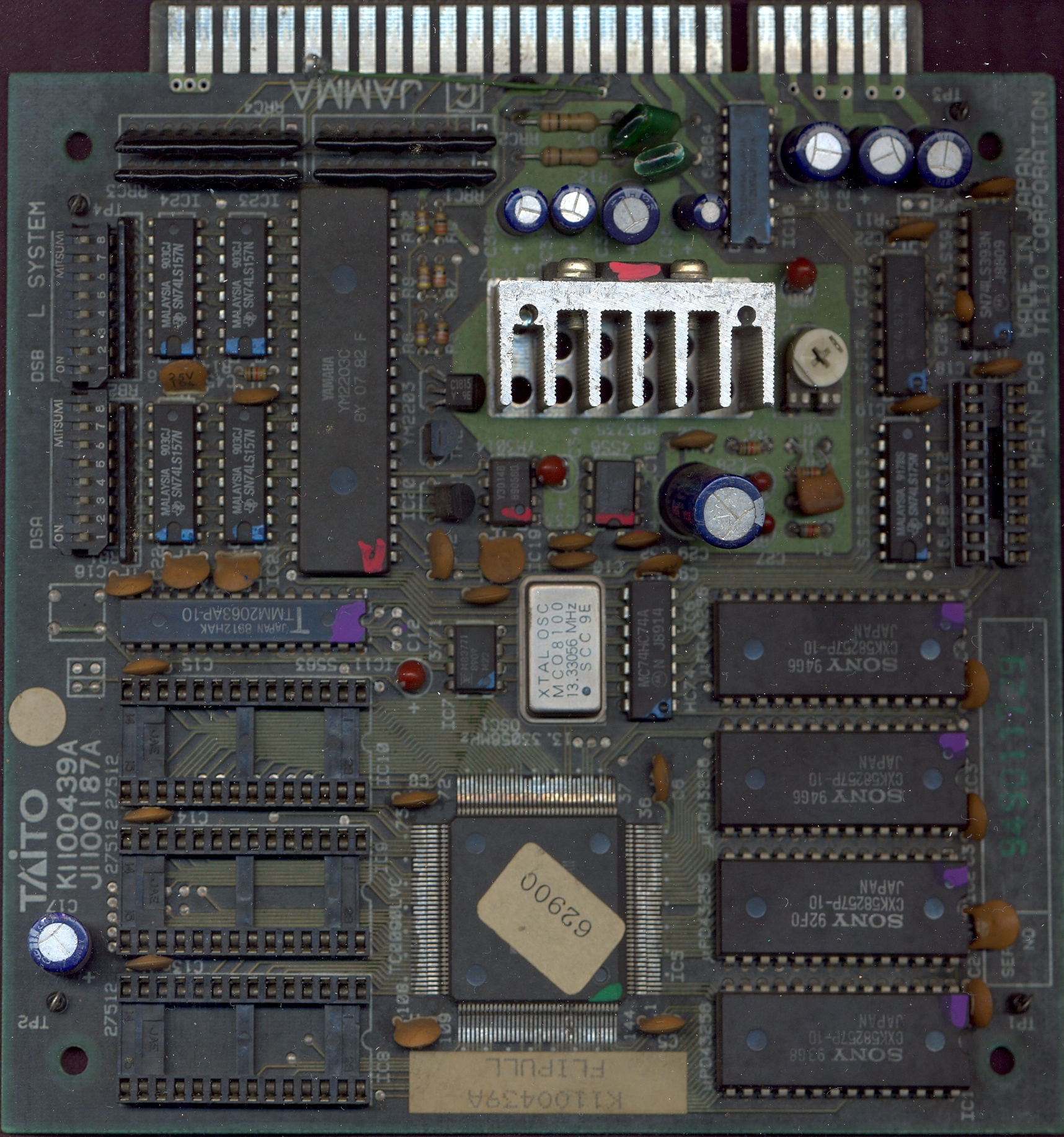

2nd main PCB component side
-

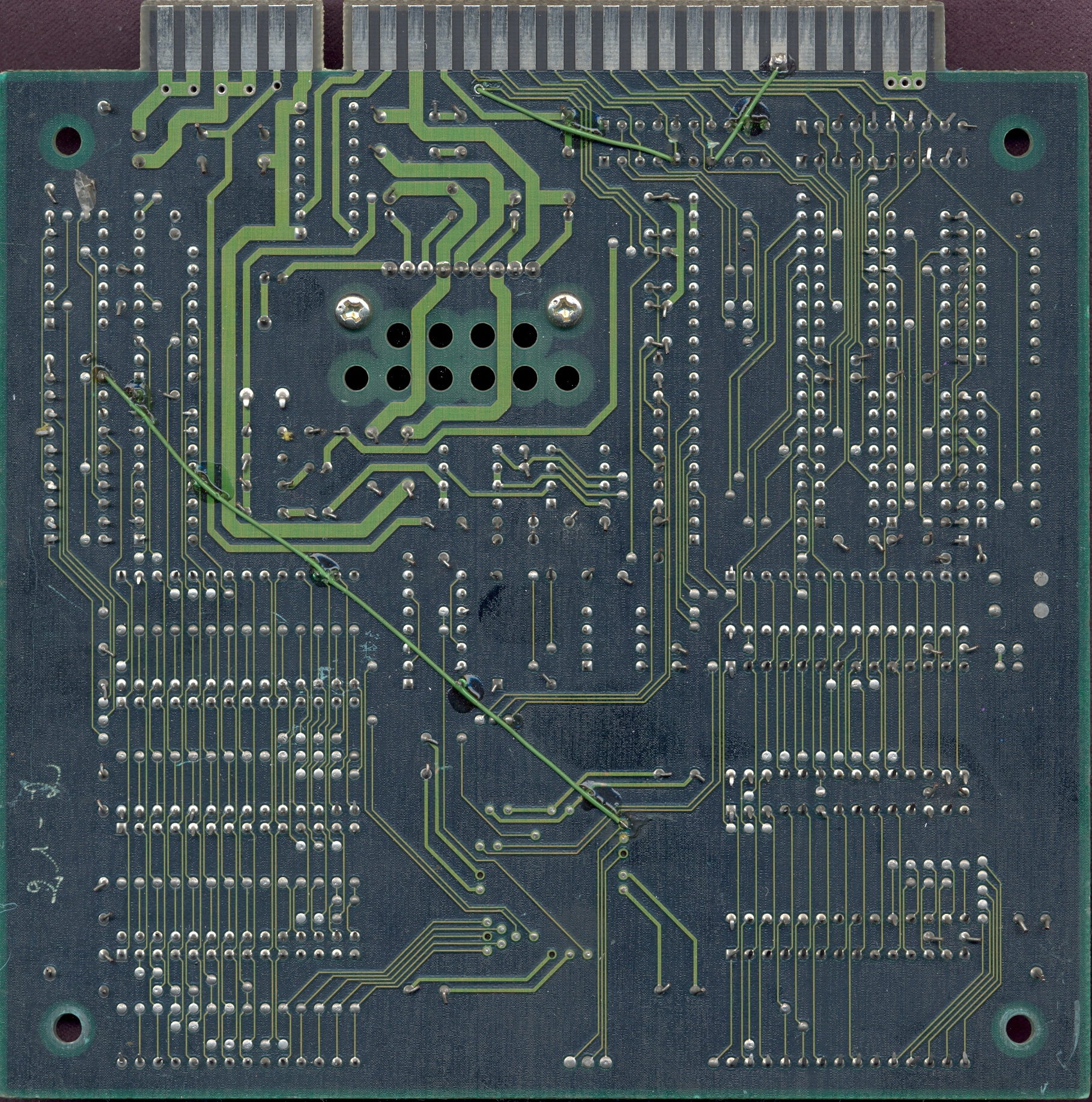

2nd main PCB solder side
-

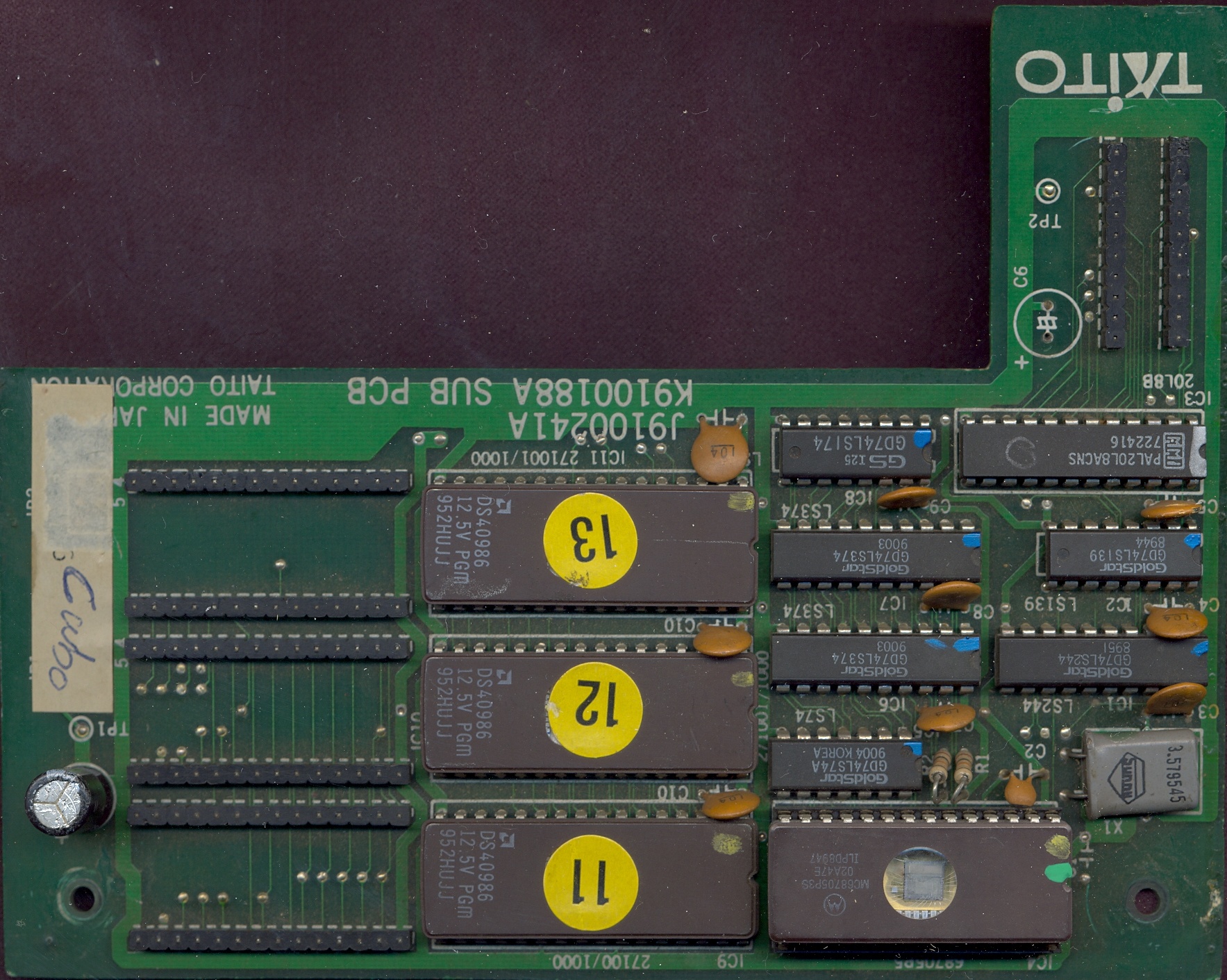

2nd ROMs PCB component side
-

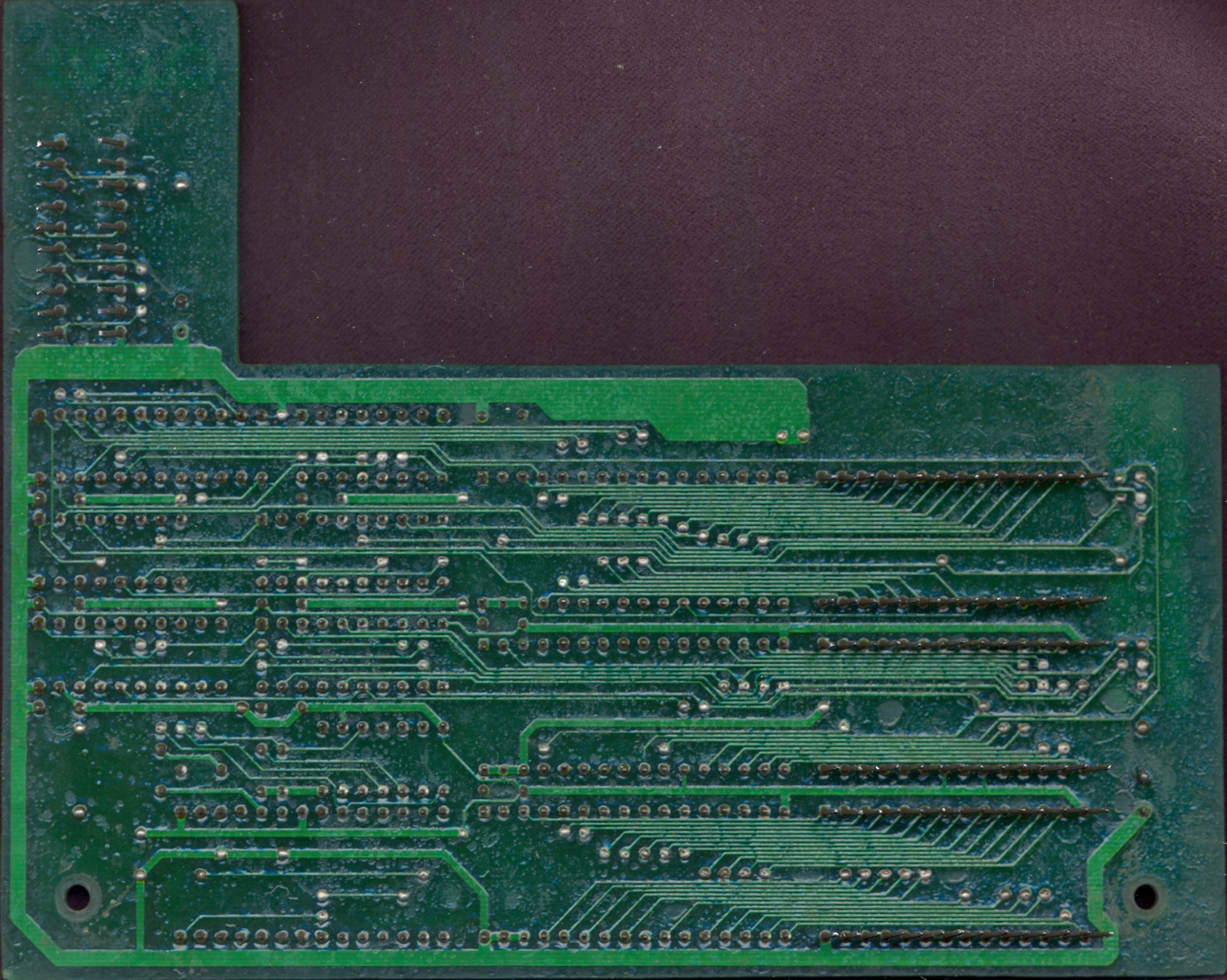

2nd ROMs PCB solder side
