| dumper | f205v |
| date | 21/09/2005 |
| emulator | MAME 0.100u3 |
| dev | Pierpaolo Prazzoli |
| name | powerbals on Arcade Database |
| description | Power Balls (Super Slam conversion) |
| year | 1994.12 |
| manufacturer | Playmark |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P12 | 16/32-bit Microprocessor - main | ||
| 1x | M6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | 87c751 | 8-bit Microcontroller - main (internal ROM dumped) | ||
| 1x | LM358 | - | Dual Operational Amplifier - sound | |
| 1x | TDA1510 | - | Audio Amplifier - sound | |
| 1x | oscillator | 12.000MHz | y2 | |
| 1x | oscillator | 26.000MHz | y3 | |
| 1x | blu resonator | 1000J-f | y1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TMS27C020 | 21,22 main | dumped |
| 1x | M27C4001 | 20 sound | dumped |
| 1x | TMS27C040 | 23 gfx | dumped |
| 5x | M27C4001 | 24,26,27,28,29 gfx | dumped |
| 2x | AM27C040 | 25,30 gfx | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 6x | HM3-65728BK-5 | u37 |
| 4x | KM62256BLP-7L | u37 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TPC1020AFN-084C | read protected | |
| 1x | PALCE16V8H/4 | read protected | |
| 3x | PALCE22V10H/4 | read protected | |
| 1x | PAL22V10A | read protected |
Others
1x 28x2 JAMMA edge connector
2x 10x2 connectors (not used)
1x trimmer (volume)
2x 8 DIP switches banks (SW1,SW2)
Notes
PCB is marked: "Made in Italy by PlaYmark" on component side
PCB is marked: "22-11-93" and "SUPER SLAM LS" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
PCB is labelled: "42" and "POWER BALLS PLAY DIC94" on component side
update 20231126: better description
Files
-

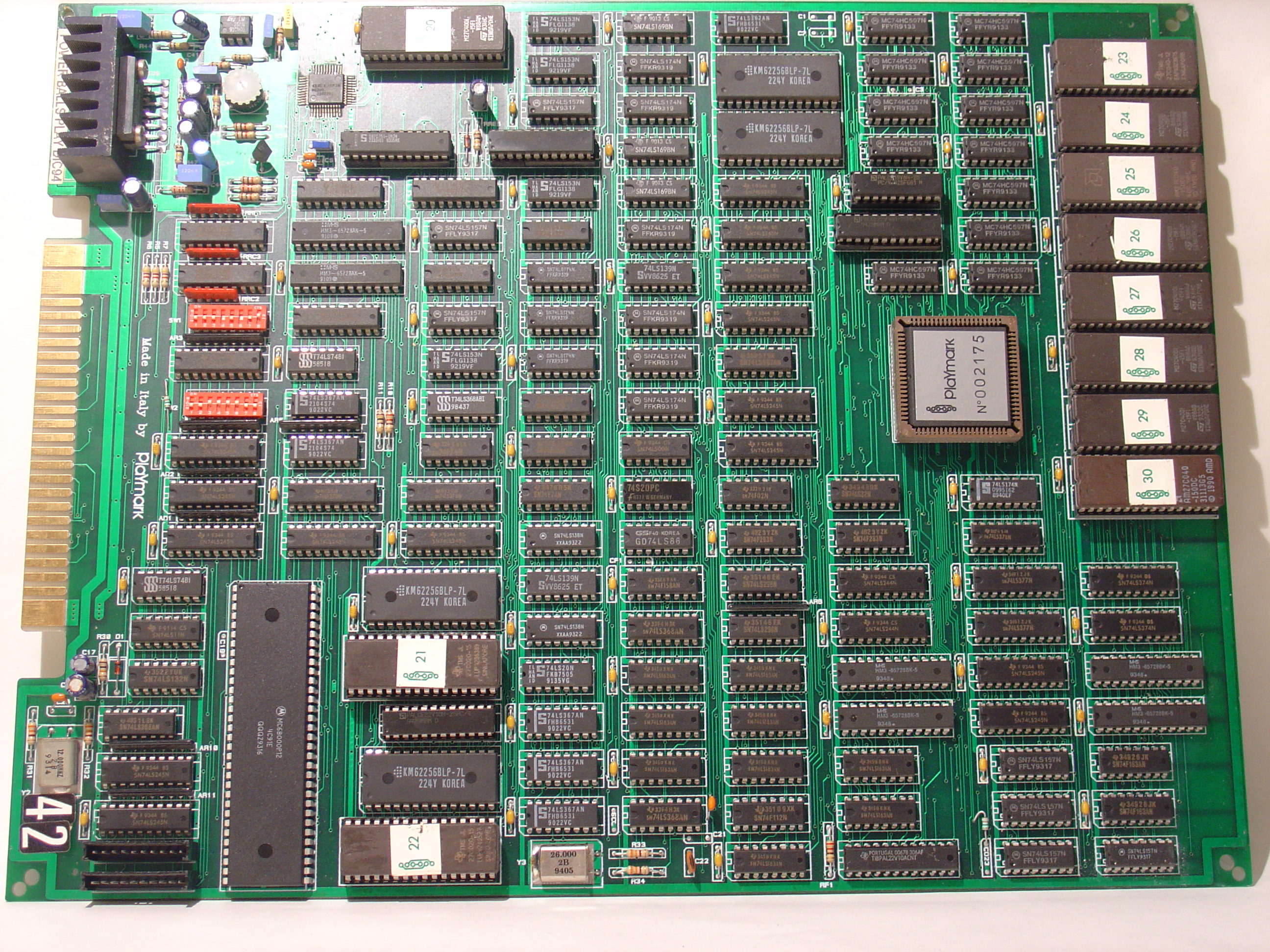

PCB component side
-

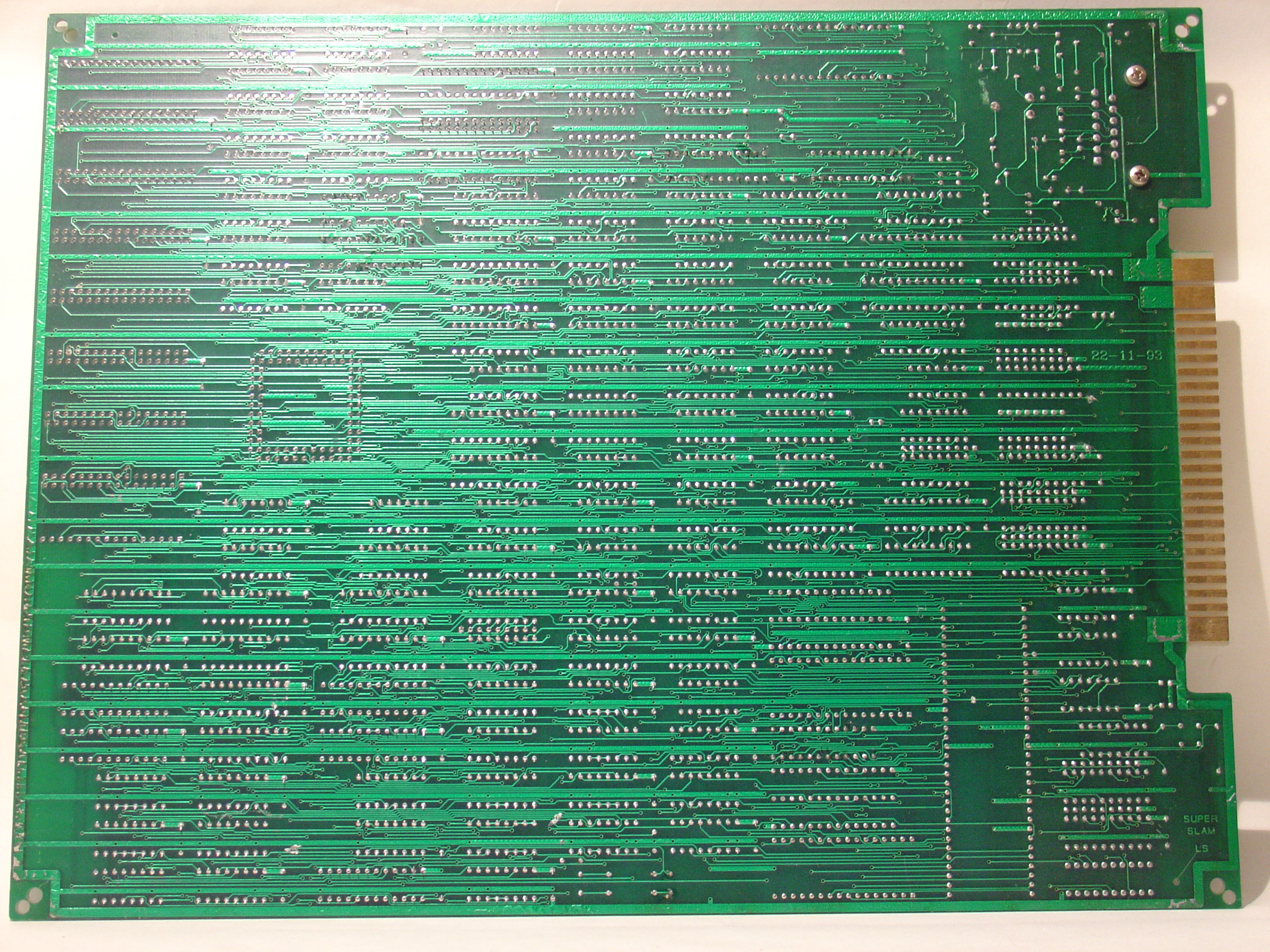

PCB solder side
-

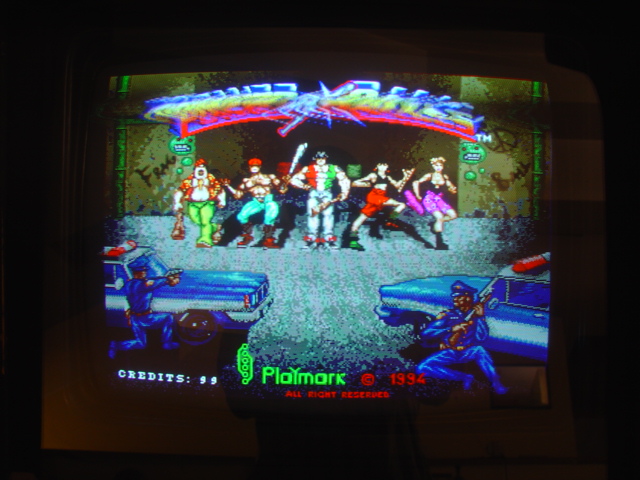

Title
-

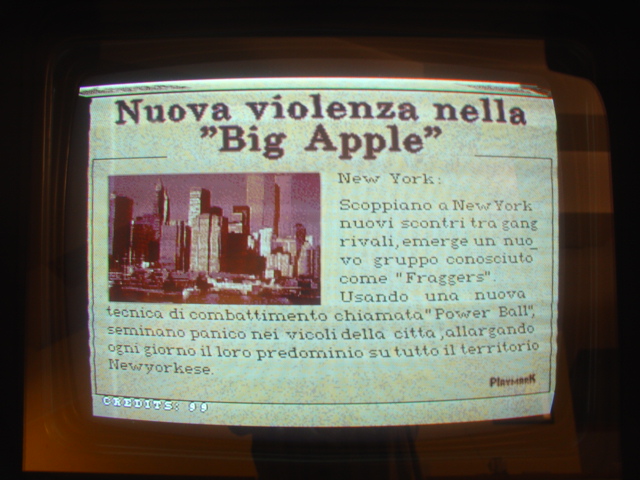

Intro
-

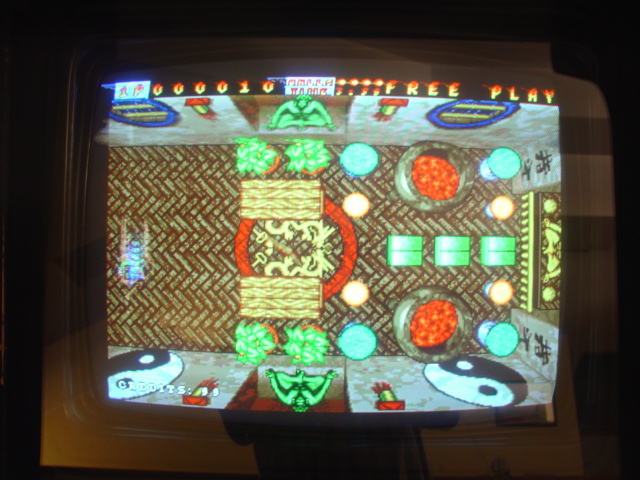

In game
-

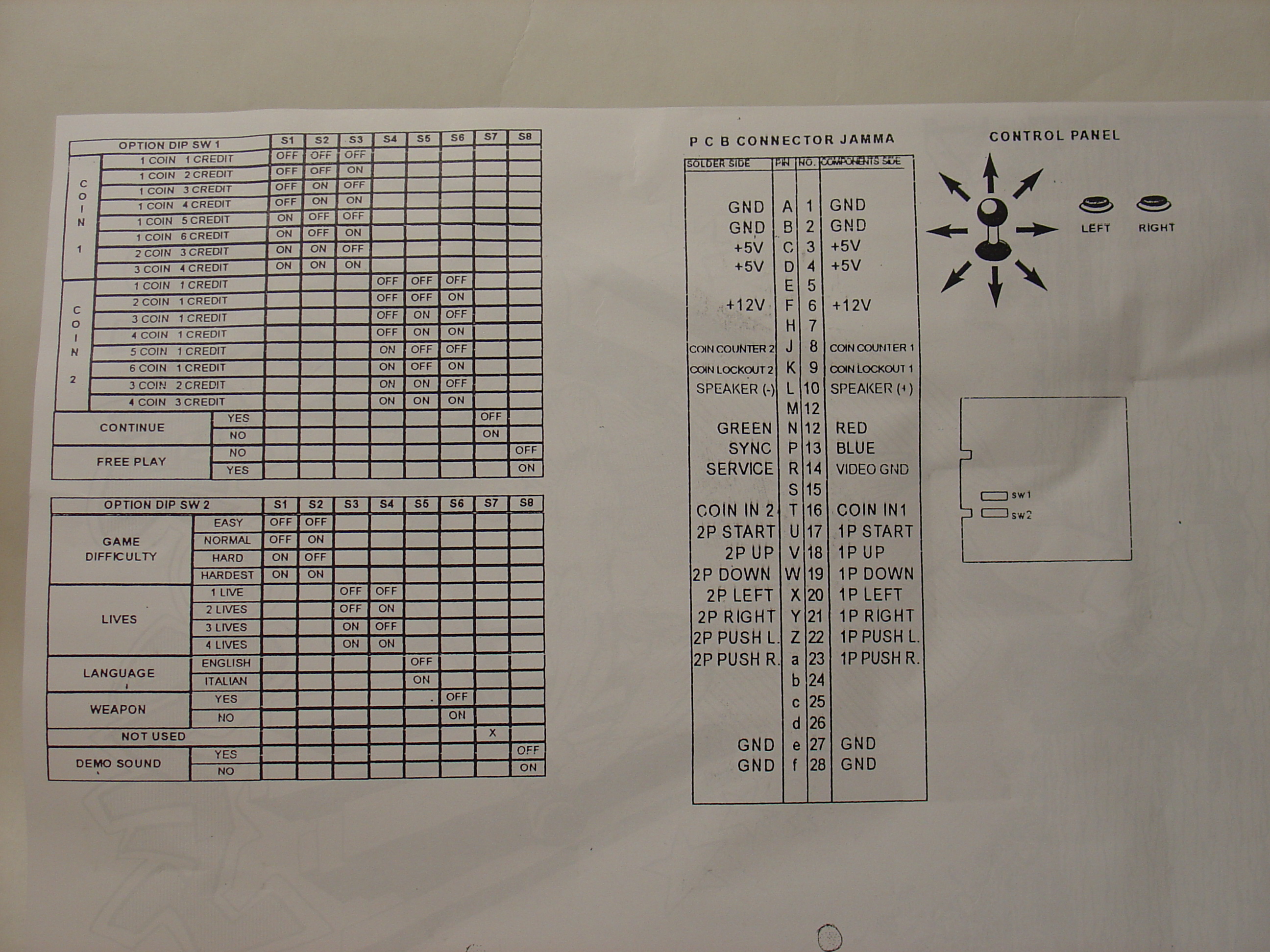

DIP switches
-
