Latest revision as of 14:40, 23 September 2024
| dumper | f205v |
| date | 10/06/2005 |
| emulator | MAME 0.135u3 |
| dev | f205v |
| name | panzer on Arcade Database |
| description | Panzer (bootleg of Spectar) |
| year | 1980 |
| manufacturer | Proel |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | SY6502A | 7b | 8-bit Microprocessor - main | |
| 1x | LM3900 | 3g | Quad Amplifier - main | |
| 1x | TDA2003 | 4g | Audio Amplifier - main | |
| 1x | oscillator | 10.000MHz | 11c | main |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 11x | F2708 | 1-11 | dumped |
| 1x | 6331-1 | 6f | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 8x | 2114 | 7c,9c,14d,15d,16d,17d,14e,15e |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x 8x2 switches DIP
Notes
Files
-

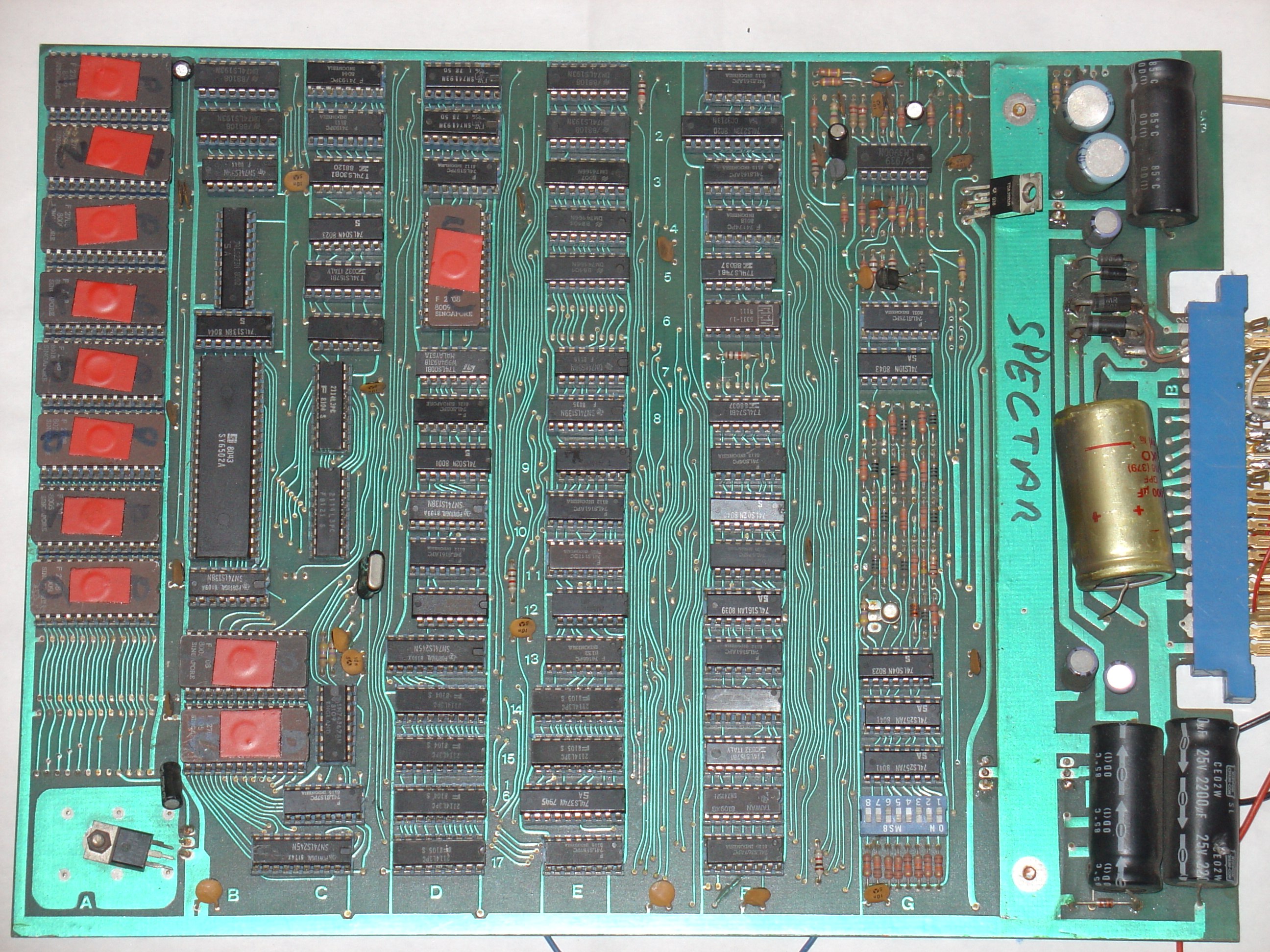

PCB component side
-

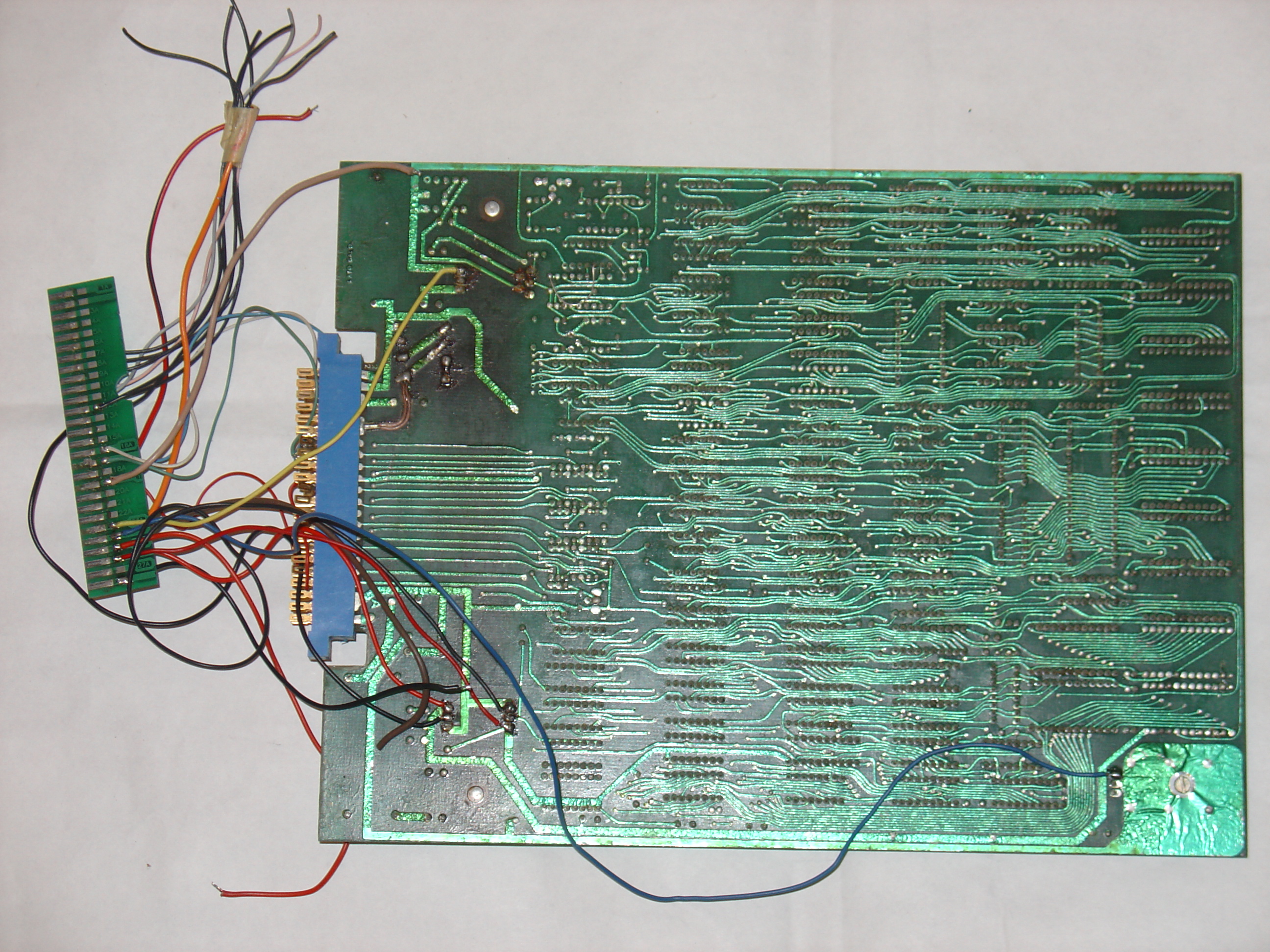

PCB solder side
