Latest revision as of 09:23, 14 September 2024

EMU Infos
dumper f205v
date 26/04/2020
emulator MAME 0.222
dev Osso
PCB Infos
name sfjbl on Arcade Database
description Street Fighter (Japan, bootleg)
year 1987
manufacturer

Technical references

CPUs

QTY Type clock position function
1x MC68000P10 8,001MHz(@15) main PCB 8a 16/32-bit Microprocessor - main
1x C8751H-88 8,001MHz(@18) 0MHz(@19) sound PCB 5o 8-bit Microcontroller - main (internal ROM dumped)
2x Z0840004PSC-Z80CPU 3,576MHz(@6) sound PCB 8b,8d 8-bit Microprocessor - sound
2x M5205 250kHz(@16) - 250kHz(@17) sound PCB 4a,4b ADPCM Speech Syntesis IC - sound
1x YM2151 1,788MHz(@23) - 3,576MHz(@24) sound PCB 6d FM Operator Type-M (OPM) - sound
1x YM3012 1,788MHz(@2) sound PCB 5c D/A Converter (DAC) - sound
1x LM324 - sound PCB 4c Quad Operational Amplifier - sound
2x HA13001 - sound PCB 1a,2a Audio Power Amplifier - sound
1x oscillator 3.579545 sound PCB x-tal1
1x oscillator 8.000MHz sound PCB x-tal2
1x blu resonator 1000J xtal3

ROMs

QTY Type position status
2x TMM24256AP main PCB A36,A39 dumped
30x TMM24512AP main PCB A34,A35,A37,A38,A40-A43,A45-A50,K2-K17 dumped
26x TMM24512AP ROMs PCB A7-A19,A21-A33 dumped
4x TMM24512AP sound PCB A1,A2,A4,A5 dumped
2x TMM24256AP sound PCB A3,A6 dumped
1x N82S123N sound PCB 9p dumped
2x N82S129N sound PCB 7m,8m dumped
1x N82S129N ROMs PCB 13g dumped

RAMs

QTY Type position
2x AKM62256LP-12 main PCB 14a,14c
2x MCM2016HN55 ROMs PCB 9a,10a
2x UM6116K-2 ROMs PCB 9c,10c
3x V61C16S35 ROMs PCB 11c,7l,9l
1x TMM2018D-45 ROMs PCB 12c
3x MCM2016HN45 sound PCB 4g,4h,8f
2x V61C16S35 sound PCB 2e,2f

PLDs

QTY Type position status
1x TIBPAL16r4-25CN main PCB 7a dumped
2x TIBPAL16L8-25CN main PCB 11b,16e dumped
5x TIBPAL16L8-25CN ROMs PCB 11e,12e,12f,10g,10j dumped
4x TIBPAL16L8-25CN sound PCB 3q,6m,7c,7e dumped
1x TIBPAL16r4-25CN sound PCB 7d dumped

Others

1x 28x2 JAMMA edge connector (sound PCB)
3x 50 pins flat cable connector from main PCB to ROMs PCB and to sound PCB (CN1,CN2,CN3)
1x 4 legs connector (sound PCB CN5)
1x 3 legs connector (sound PCB CN6)
2x trimmer (volume)(sound PCB VR1,VR2)
4x 8 DIP switches banks (sound PCB DIP-SW1,DIP-SW2,DIP-SW3,DIP-SW4)

Notes

main PCB is marked: "17-51-1" on component side

update 20200510: De-soldered everything and dumped, more accurate description.

update 20200515: many thanks to Team Europe for their wonderful job in de-capping and dumping the MCU! Dump is now complete.

update 20240914: added "manual.pdf" scan.

Files

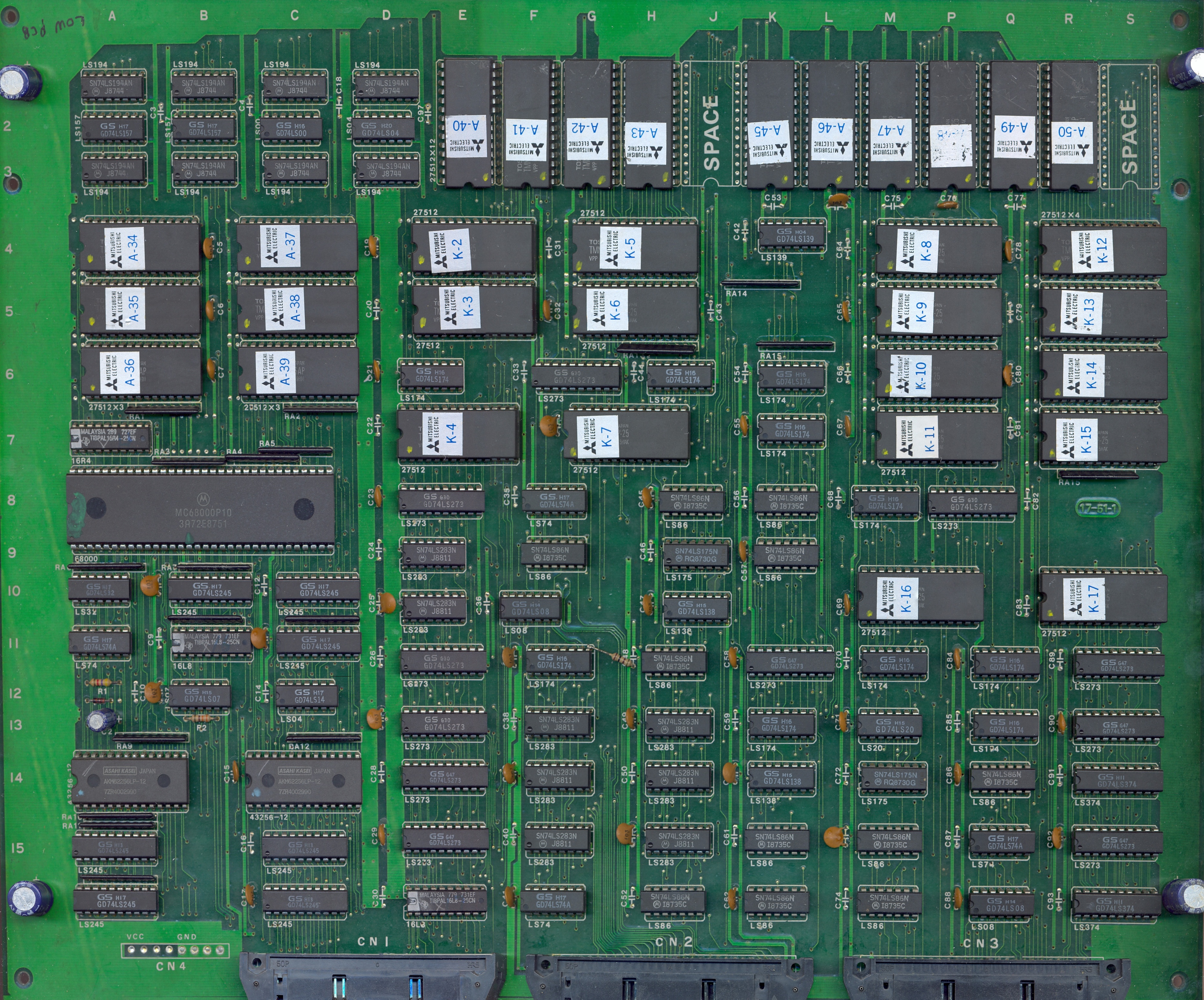

  • main PCB component side

    main PCB component side

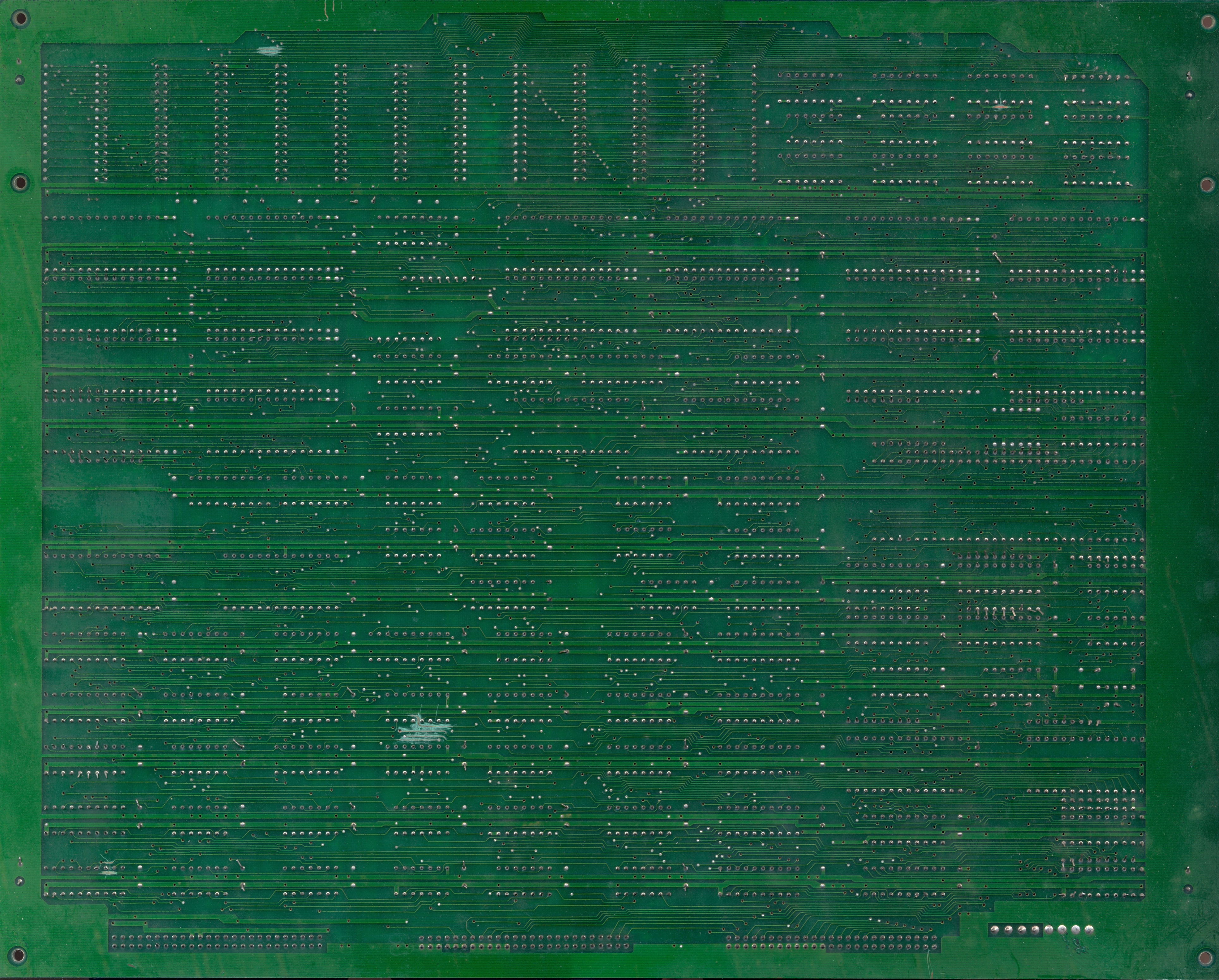

  • main PCB solder side

    main PCB solder side

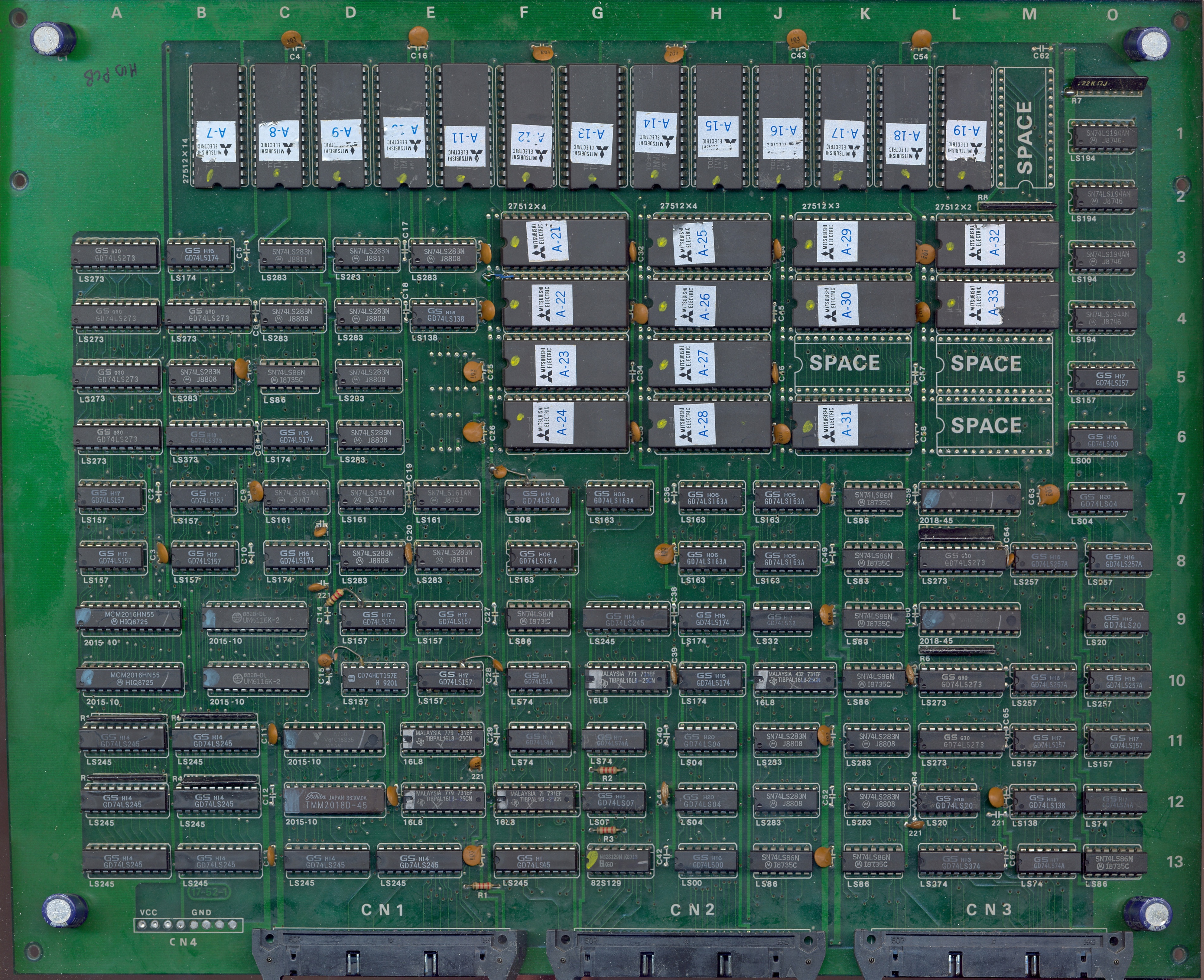

  • ROMs PCB component side

    ROMs PCB component side

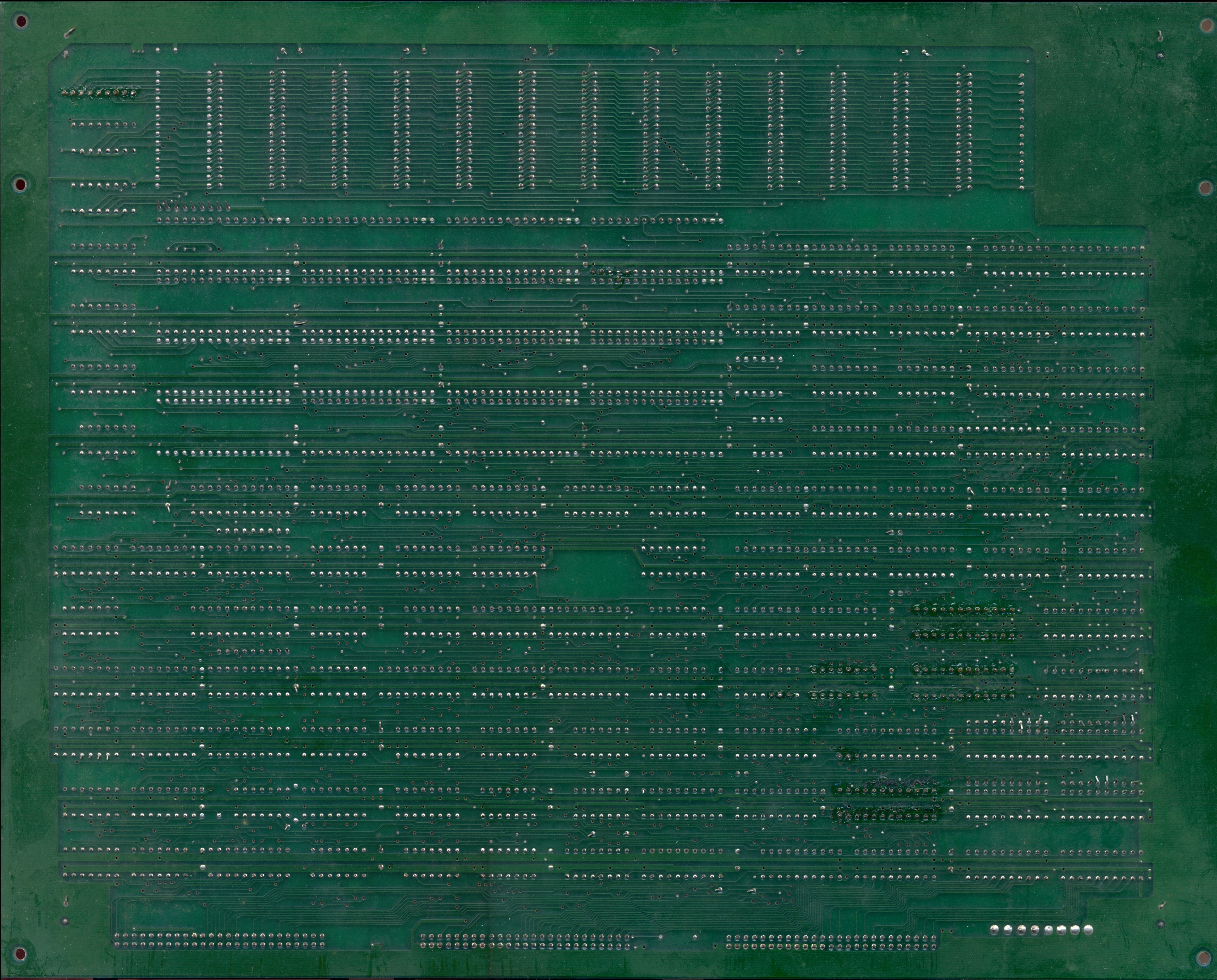

  • ROMs PCB solder side

    ROMs PCB solder side

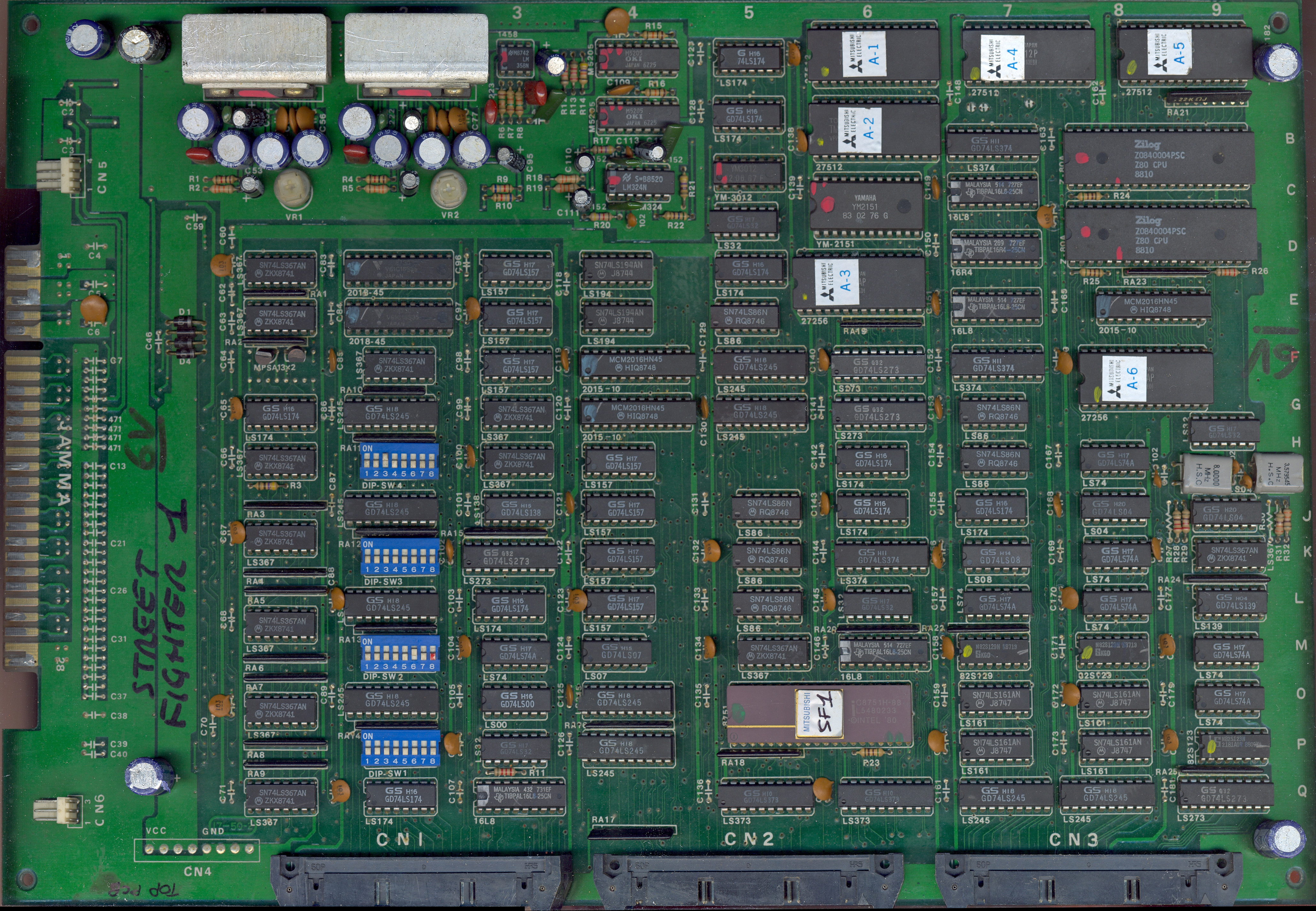

  • sound PCB component side

    sound PCB component side

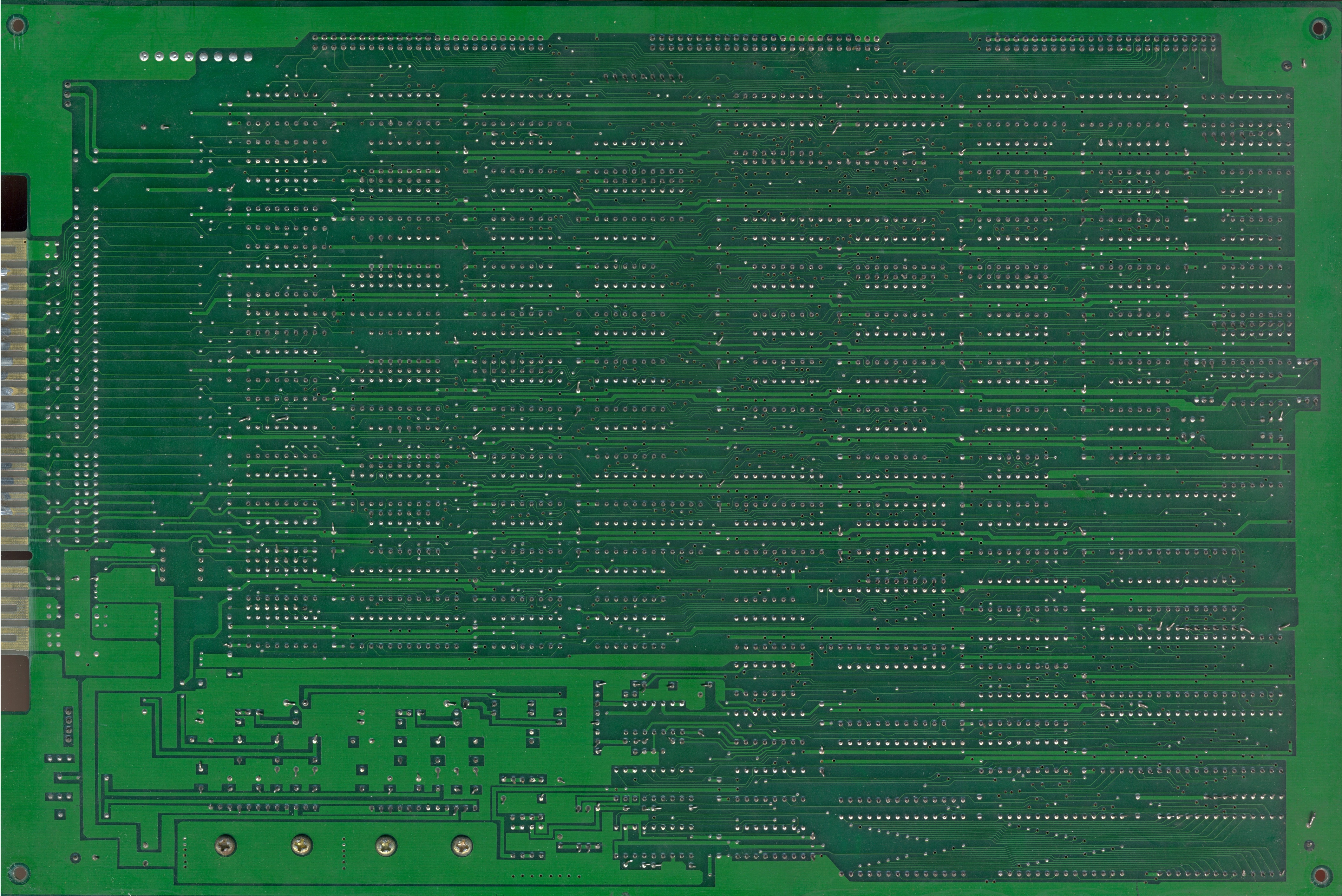

  • sound PCB solder side

    sound PCB solder side

  • manual

    manual
