Latest revision as of 15:25, 10 June 2024

EMU Infos
dumper Manuel Assoni, f205v
date 10/03/2005
emulator MAME 0.78u1
dev Brian Troha
PCB Infos
name runguna on Arcade Database
description Run and Gun (ver EAA 1993 10.4)
year 1993
manufacturer Konami

Technical references

CPUs

QTY Type clock position function
1x MC68HC000FN16 22J 16/32-bit Microprocessor - main
1x KS10011-PF 053936 30L Video 3D
1x 053246A 9W Video Sprites
1x 055673 9Z Video Sprites
1x 053252 8U Video CRT and interrupt control unit
1x 053253 8S Video
6x 052535 R G B B G R Video DAC
1x Z0840006PSC Z80CPU 11G 8-bit Microprocessor - Sound
2x 054539 8L 8P Sound ADPCM
2x 056747 7C 7G Sound hybrid
2x LA4705 3C 3E Audio Power Amplifier - sound
1x 051550 15B Coin counter and reset
10x 005273B S13 S14 S15 S16 S17 S18 S19 S21 S22 S23 Inputs
1x oscillator 18.432000MHz 32.000000MHz 4R

ROMs

QTY Type position status
1x M27C1001 13G dumped
2x M27C4001 16N 18N dumped
3x 057032 057033 056802 21N 23N 31U not dumped
7x 056795 056796 056797 056798 056799 056801 056803 2J 2N 2U 2Y 5U 5Y 36M not dumped
1x MSM16911 35B not dumped

RAMs

QTY Type position
2x MCM2018AN45 27H 29H
2x CY7C128A-35PC 26F 27F
4x MN4464M-08LL 15G 29W 15Z 17Z
6x HM62256ALSP-8 4K 4N 25N 26N 25O 28O
3x CXK58257ASP-70L 34V 35V 37V
2x uPD424260-80 15W 17W

PLDs

QTY Type position status
1x PAL16L8ACN 13D read protected (Konami 055983)
2x PAL16L8BCN 14P 33V read protected (Konami 056541 056543)
1x PALCE16V8H-15PC/4 13T read protected (Konami 056542)

Others

1x 28x2 JAMMA edge connector
1x 4 legs connector (CN3 SOUND OUT FOR MAIN CRT)
1x 4 legs connector (CN4 SOUND OUT FOR SUB CRT)
1x 15 legs connector (CN8 3P)
1x 15 legs connector (CN10 4P)
1x pushbutton (TEST SW)
1x 4 DIP switches bank (DIPSW4P)
1x 2 contacs jumper (closed on this PCB) (JP18 1 CABINET)
1x 2 contacs jumper (closed on this PCB) (JP19 2 CABINETS)

Notes

PCB is marked: "KONAMI" and "PWB353344C MADE IN JAPAN" on component side
PCB is marked: "KONAMI" and "PWB353344C" on solder side

update 20180422: redump, complete description and pics

Files

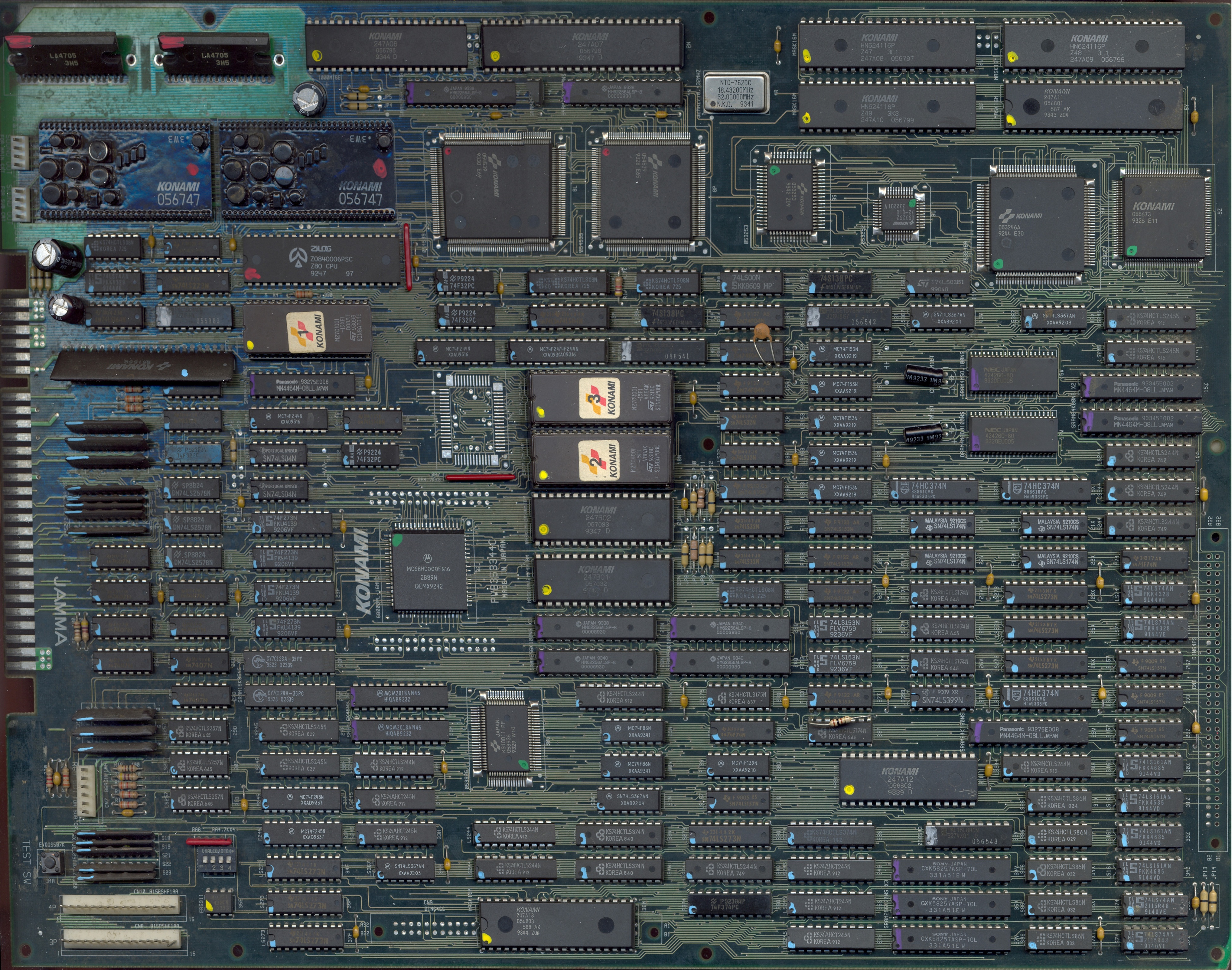

  • PCB component side

    PCB component side

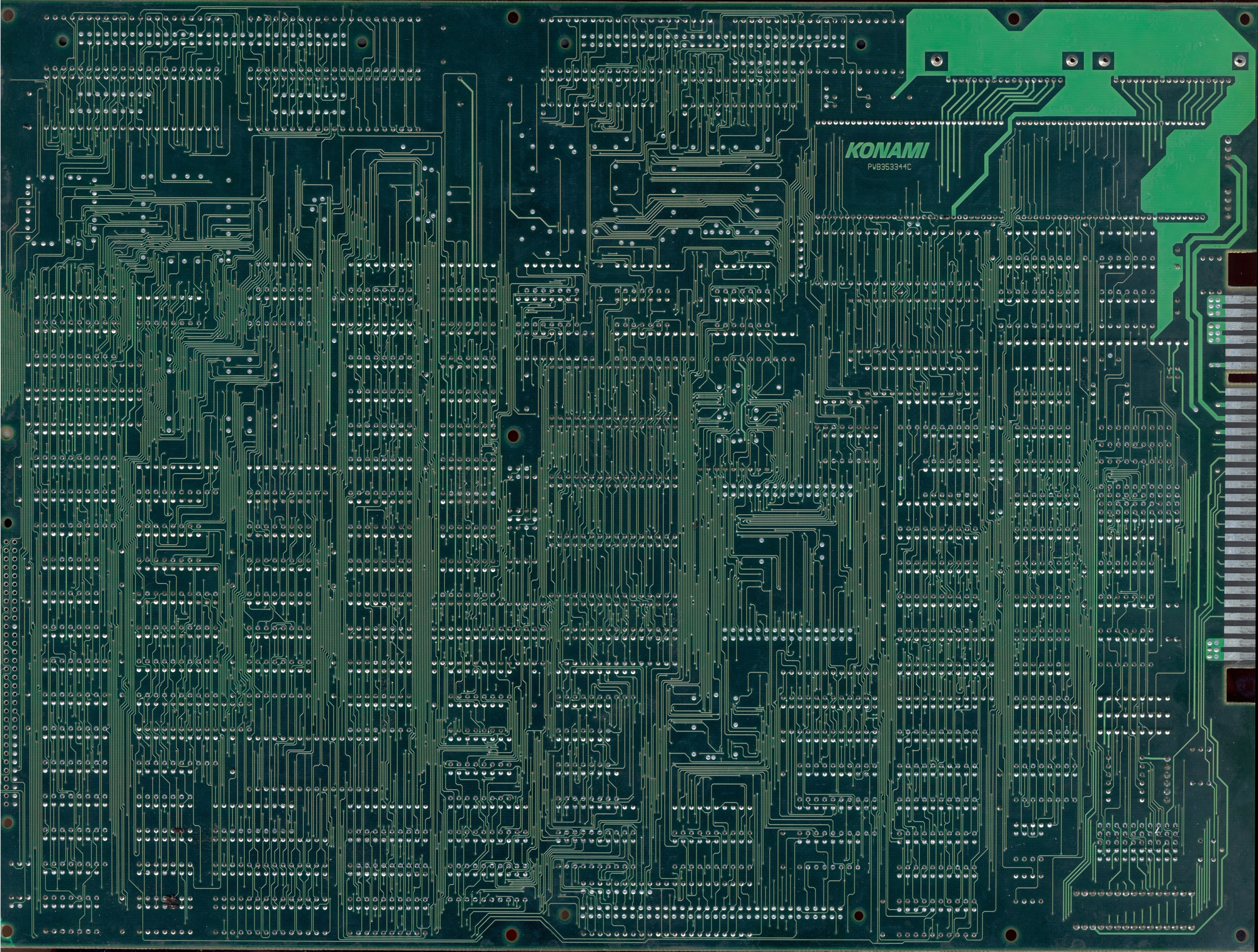

  • PCB solder side

    PCB solder side
