Latest revision as of 09:13, 7 June 2024

EMU Infos
dumper Guru, f205v
date 15/10/2004
emulator MAME 0.88u2
dev David Haywood
PCB Infos
name hotbubl on Arcade Database
description Hot Bubble (Korea, with adult pictures)
year 1998.07
manufacturer Afega (Pandora license)

Technical references

CPUs

QTY Type clock position function
1x MC68HC000P10 12MHz(@15) main PCB u7 16/32-bit Microprocessor - main
1x unknown QFP208 main PCB LTC1 unknown
1x unknown LCC64 ROMs PCB LTC1 unknown
1x Z84C0006FEC 4MHz(@7) main PCB u127 8-bit Microprocessor - sound
1x AD-65 7.575MHz(@5) main PCB u128 4-Channel Mixing ADCPM Voice Synthesis LSI - sound
1x BS901 4MHz(@23) main PCB u124 FM Operator Type-M (OPM) - sound
1x BS902 main PCB u125 D/A Converter (DAC) - sound
2x IL324N - main PCB u130,u131 Quad Operational Amplifier - sound
1x KA22065 - main PCB AMP22065 Audio Power Amplifier - sound
1x oscillator 12.000MHz main PCB osc1
1x oscillator 4.000MHz main PCB osc

ROMs

QTY Type position status
1x TMS27C512 main PCB uc2,uc14 dumped
2x AM27C010 main PCB uc1,uc9 dumped
3x AM27C020 main PCB uc3,uc10,uc18 dumped
6x FM27C040 main PCB uc6,uc7,uc12,uc15,uc16,uc19 dumped

RAMs

QTY Type position
6x HM61S16 u32,u38,u51,u54,u75,u80
2x GM76C88Al-15 u56,u57
6x GM76C256CLL-70 u8,u14,u112,u116,u118,u120

PLDs

QTY Type position status
0x

Others

1x 28x2 JAMMA edge connector (main PCB)
3x 96 pins connectors from main PCB to ROMs PCB (CN1,CN2,CN3)
1x trimmer (volume) (main PCB)
2x 8 DIP switches banks (main PCB DIPSW1,DIPSW2)

Notes

main PCB is labelled: "3A 7/98" on component side

update 20210328: full redump, better description, better pics

Files

  • assembled PCBs 1

    assembled PCBs 1

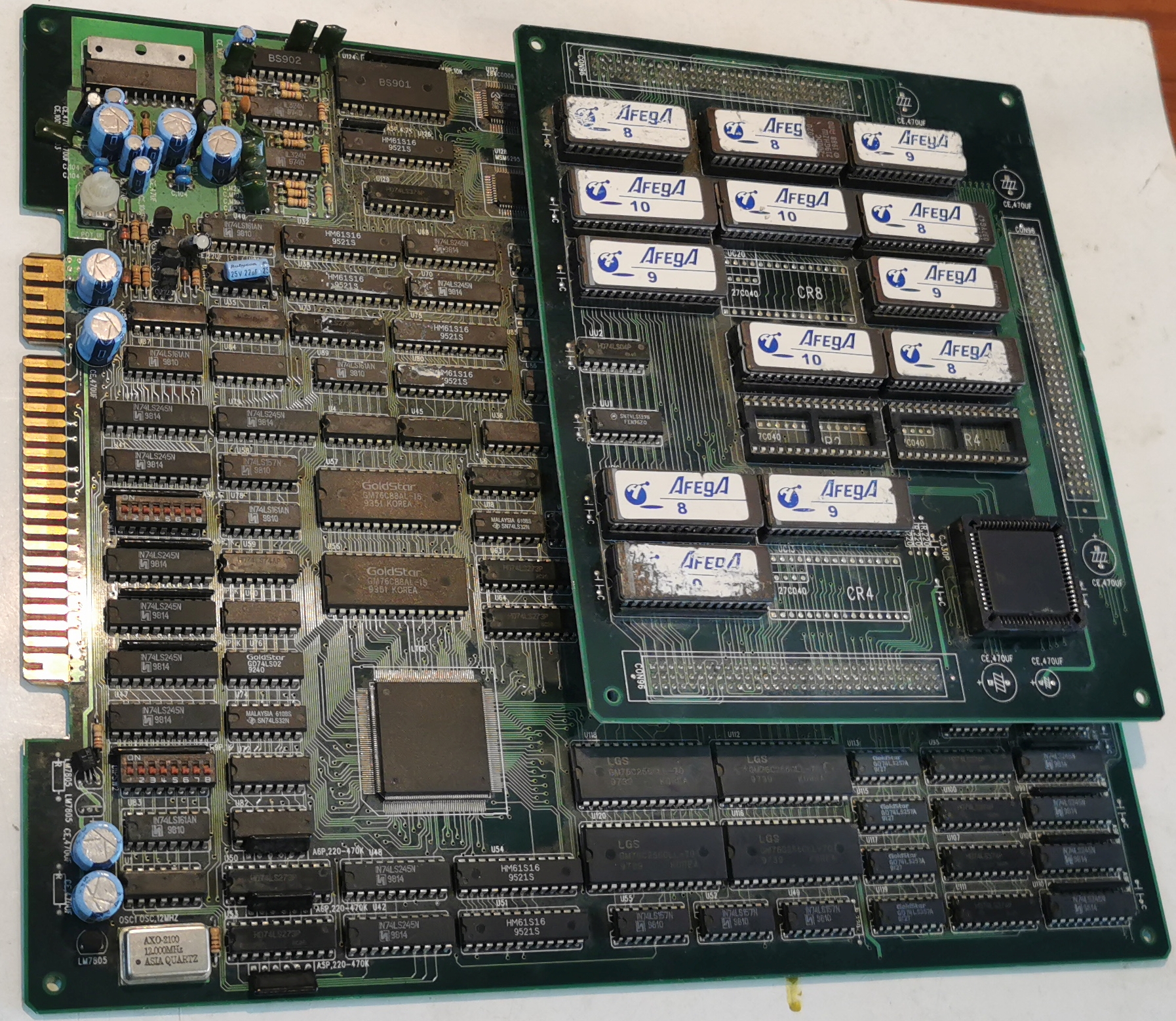

  • assembled PCBs 2

    assembled PCBs 2

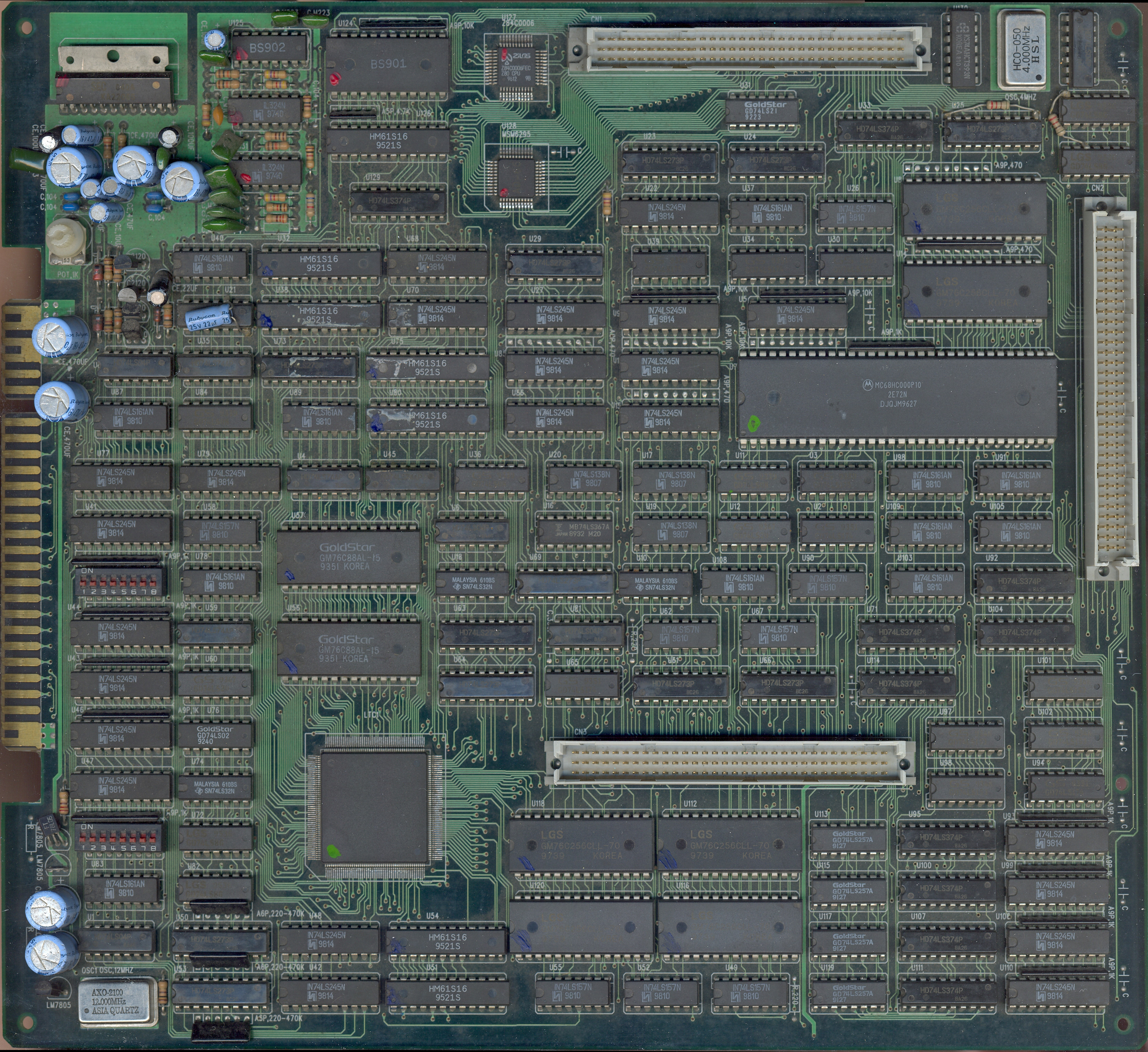

  • main PCB component side

    main PCB component side

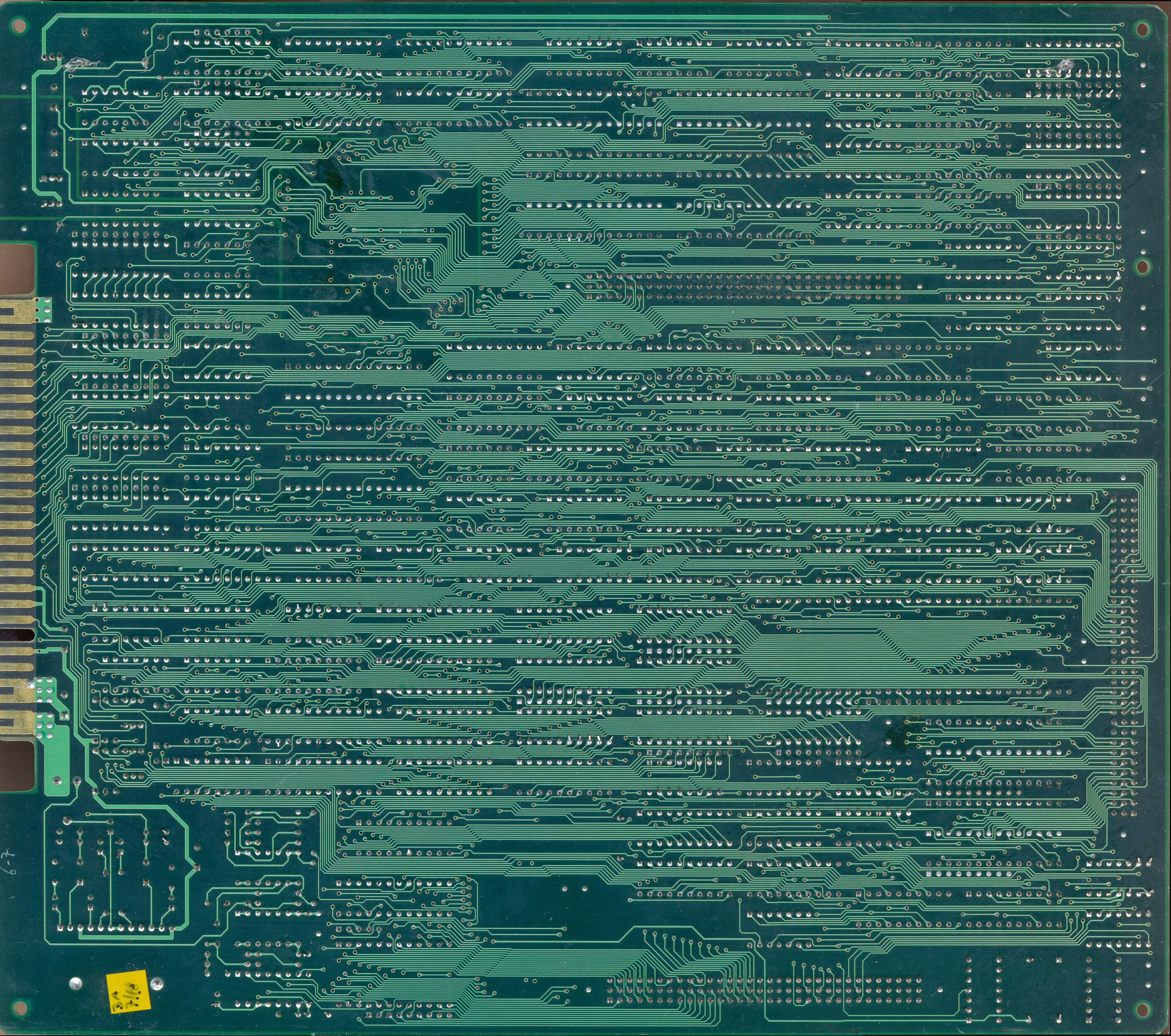

  • main PCB solder side

    main PCB solder side

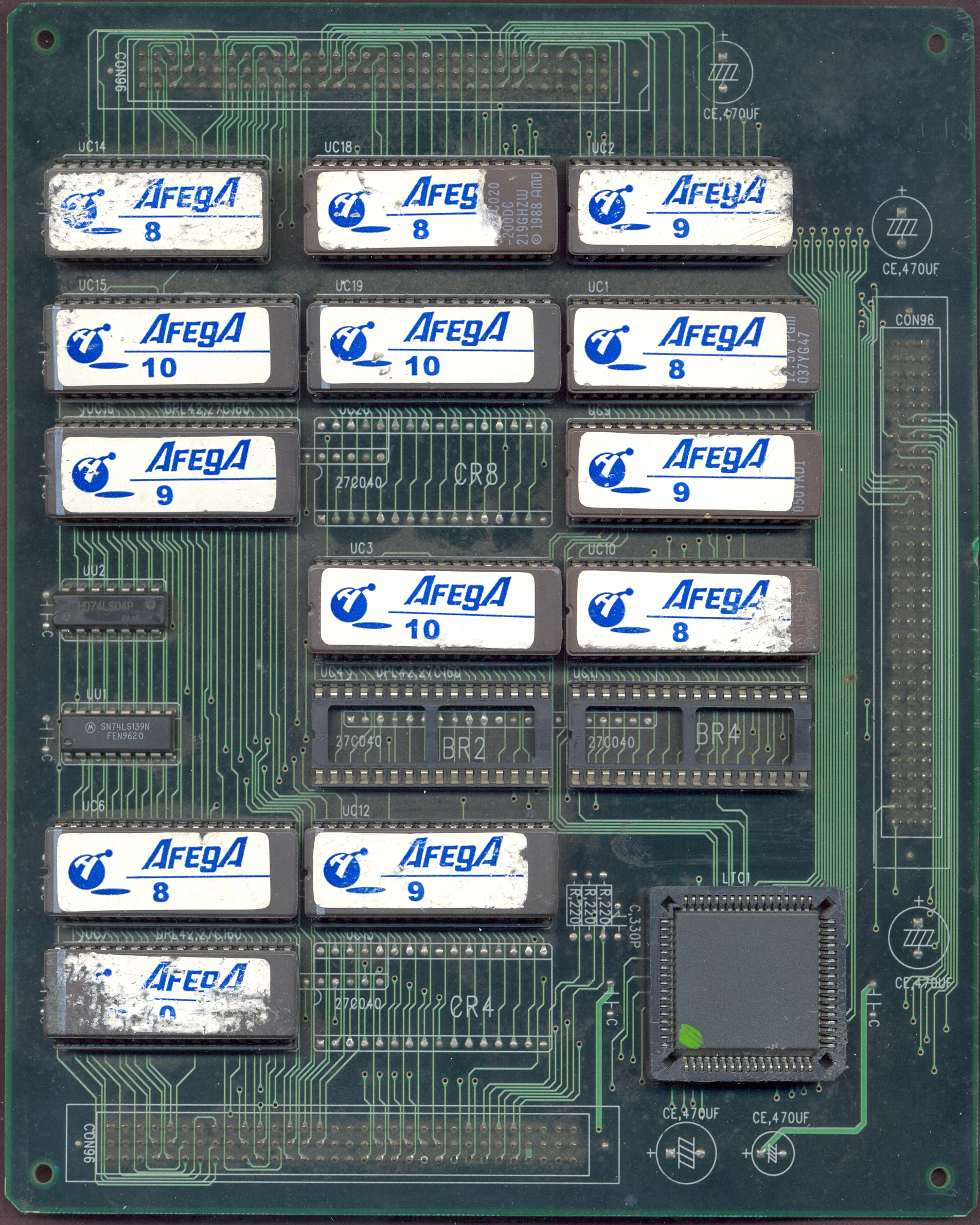

  • ROMs PCB component side

    ROMs PCB component side

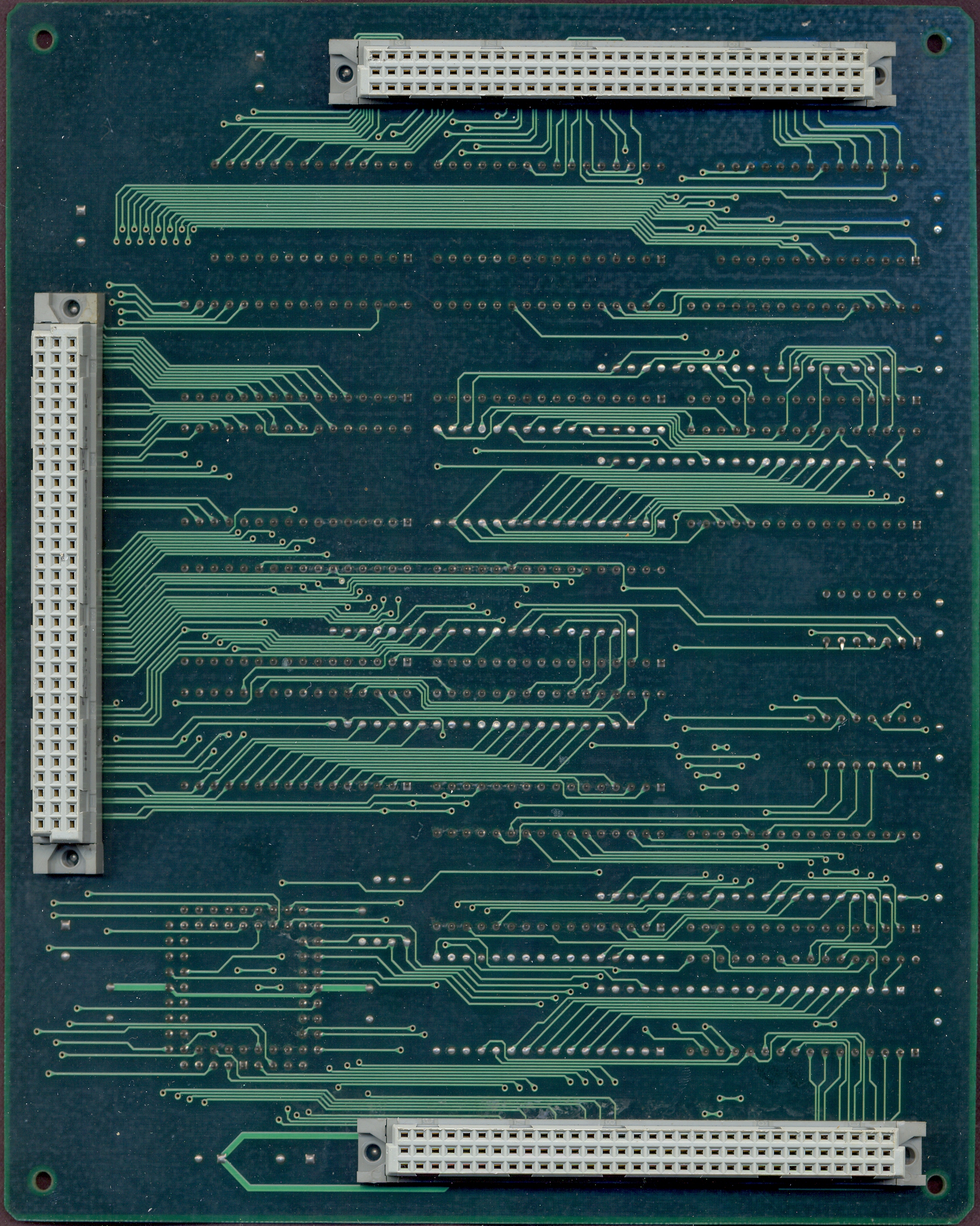

  • ROMs PCB solder side

    ROMs PCB solder side

  • Title

    Title

  • Intro

    Intro

22
