Latest revision as of 10:25, 12 April 2017
| dumper | |
| date | |
| emulator | |
| dev |
| name | 1312 |
| description | Dead or Alive 2 |
| year | 1999.10.12 |
| manufacturer | Tecmo |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27322 | EPR-22121.ic22 | not dumped |
| 21x | M27W064 | MPR-22100.ic1 - MPR-22120.ic21s | not dumped |
| 1x | X76F100 | ic37 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 841-0003C
Protection IC: SEGA 315-5881 (317-5048-COM)
Key: 0x0008ad01
Files
-

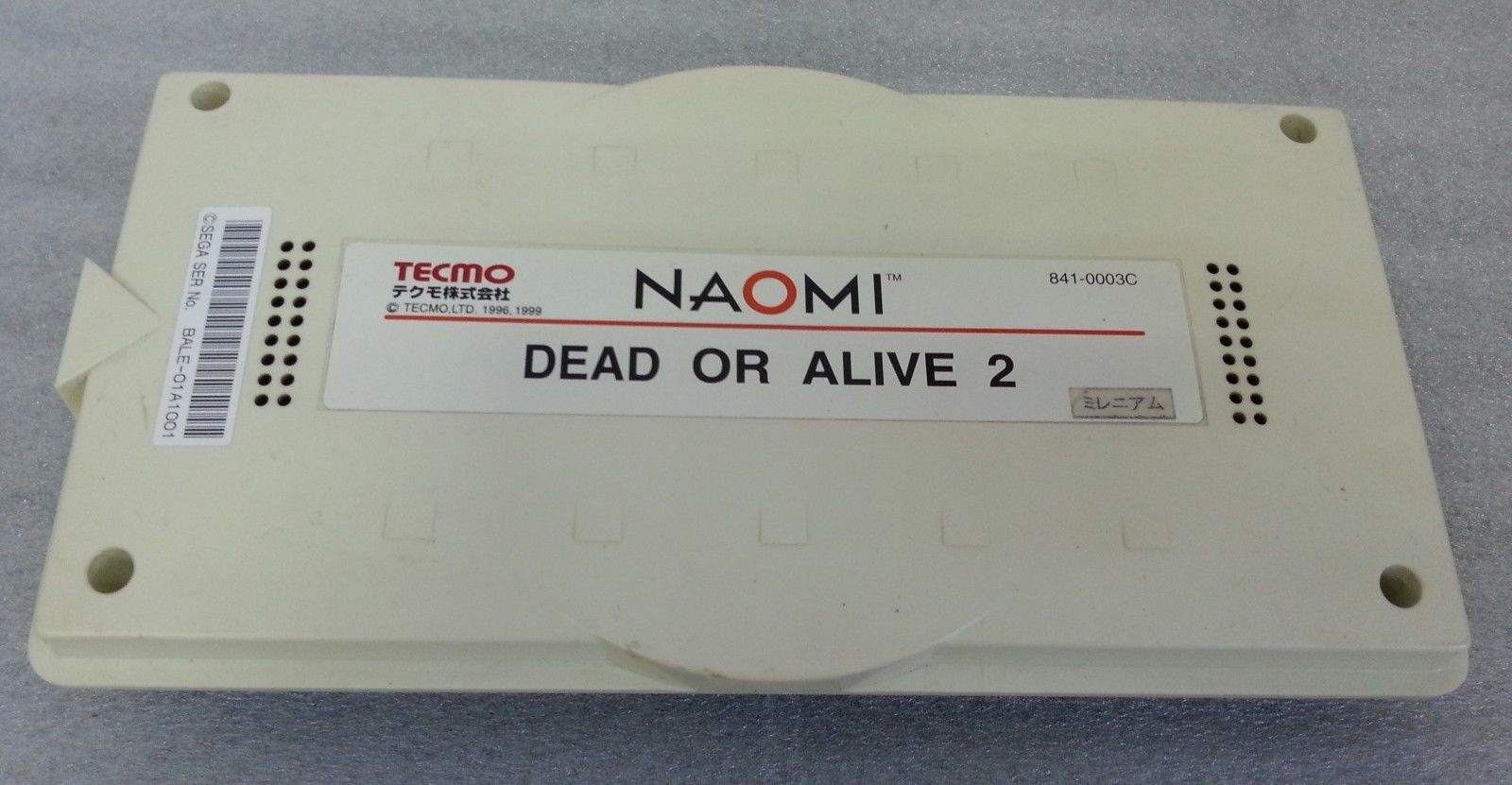

Cart
-

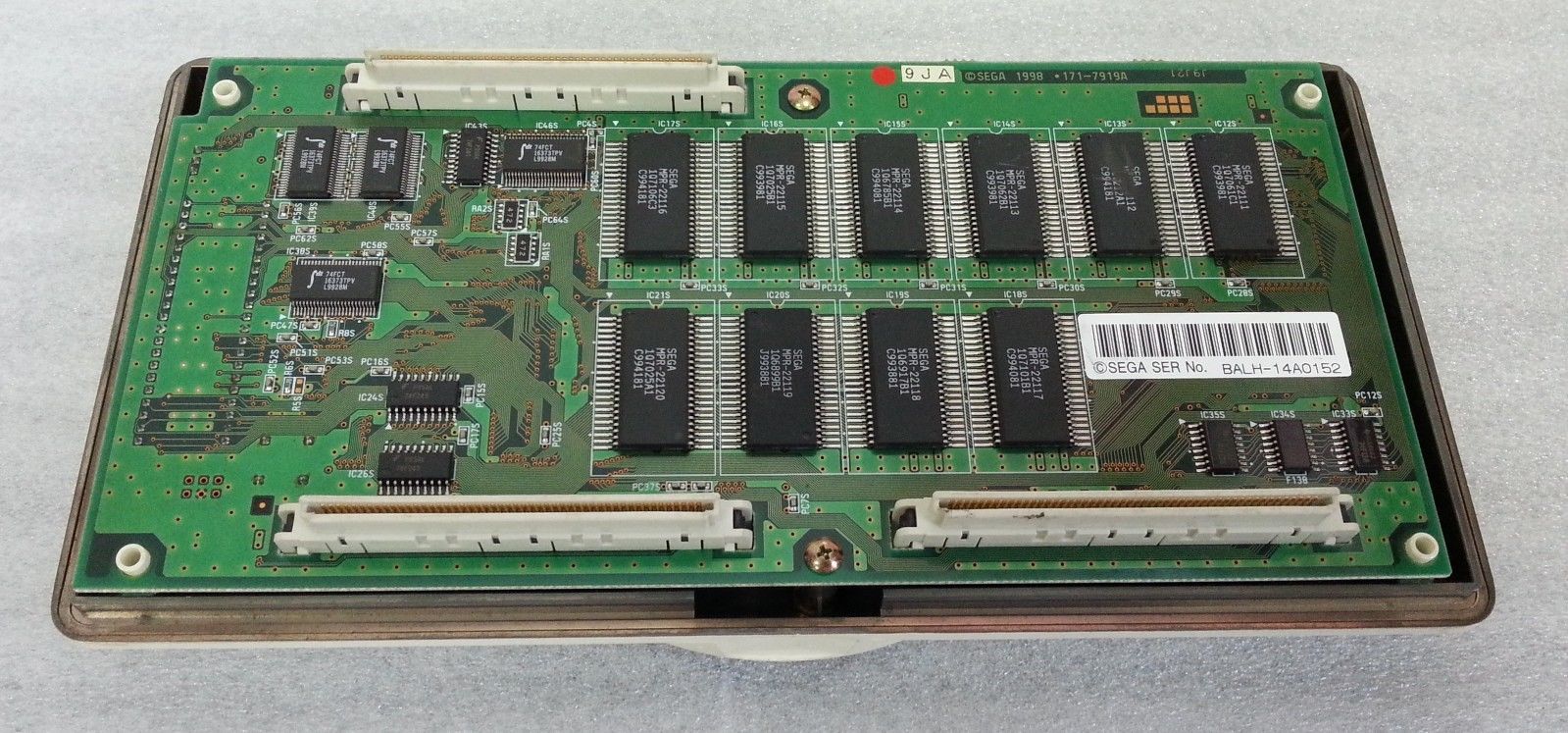

PCB solder side
